| 4g lte: | N |
|---|
| Adjustment shutter speed: | Auto/Manual |
|---|
| Alarm input/output: | N |
|---|
| Aperture type: | Permanent |
|---|
| Audio: | Built-in microphone Sound detection Network audio streaming |
|---|
| Bluetooth: | No |
|---|
| Built-in loudspeaker: | No |
|---|
| Built-in microphone: | Yes |
|---|
| Camera shutter speed: | 1/3 - 1/100000 s |
|---|
| Case: | Compact - Metal |
|---|
| Closest focusing distance: | 0.6 m |
|---|
| Colour: | white |
|---|
| Compatible memory cards: | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
|---|
| Connectivity technology: | Wired & Wireless |
|---|
| Dc output voltage: | 12 |
|---|
| Default administrator login / password: | admin / -Administrator password must be set on first run |
|---|
| Default ip address: | DHCP |
|---|

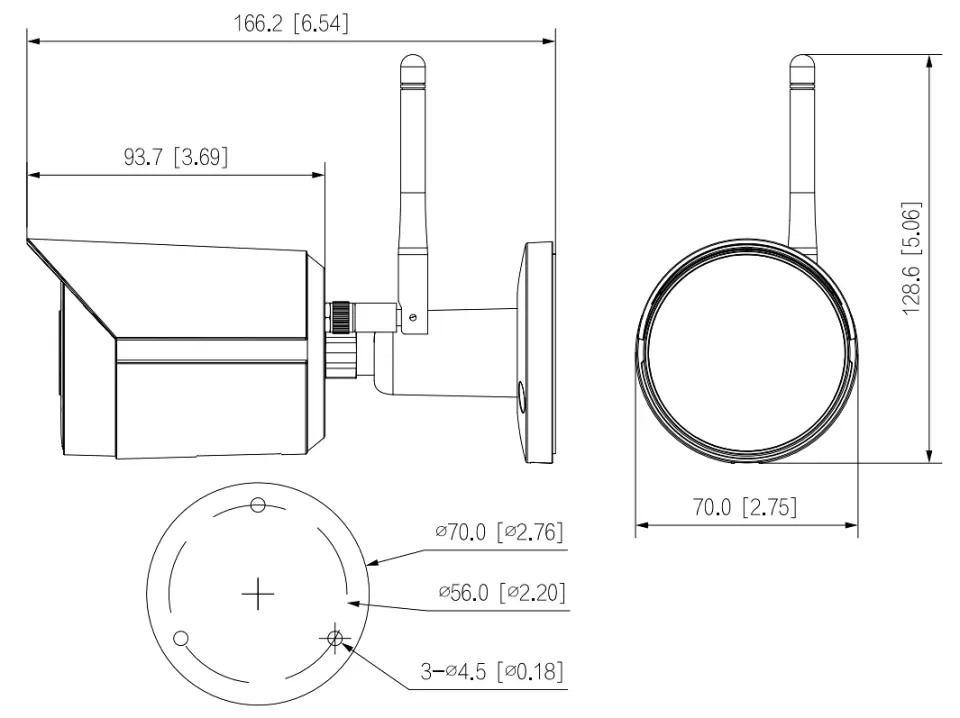

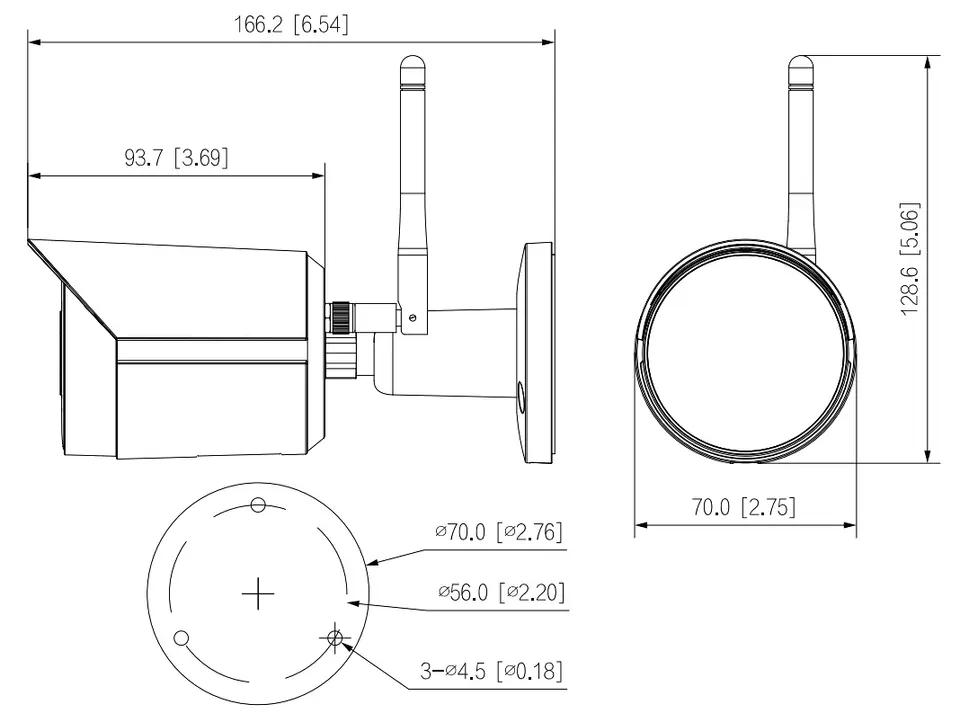

| Depth: | 166.2 mm |
|---|

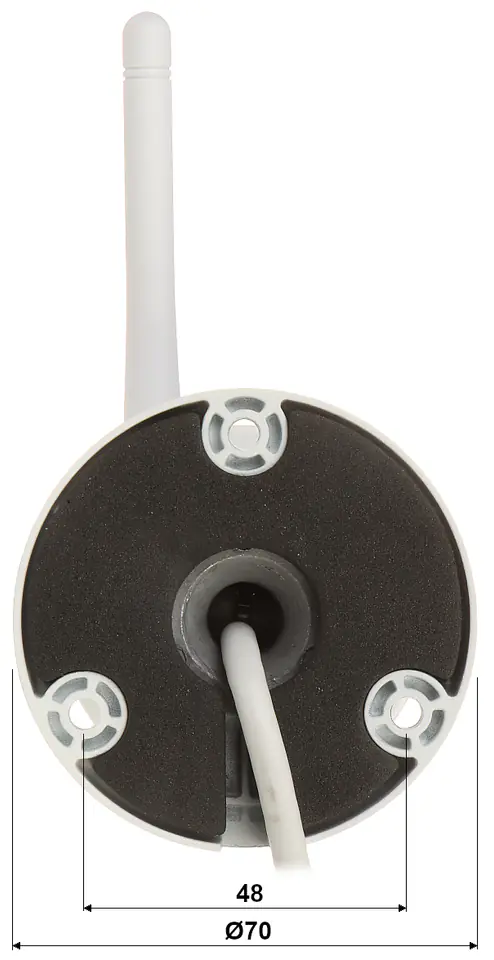

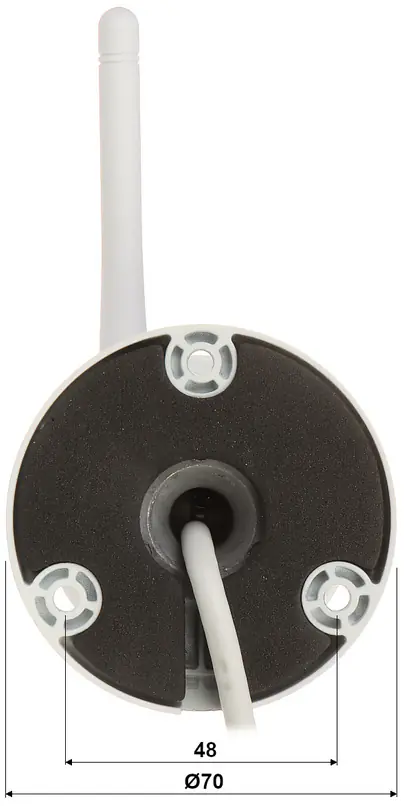

| Dimensions: | 166 x 70 x 129 mm |
|---|
| Ethernet interface type: | 10 Megabit Ethernet, 100 Megabit Ethernet |
|---|
| Focal length range: | 2.8 mm |
|---|
| Form factor: | Tube/dome |
|---|
| Frame rate: | 25 / 30 fps |
|---|
| Height: | 128.6 mm |
|---|
| Horizontal rotation angle: | 0 - 360° |
|---|
| Housing material: | Metal, Plastic |
|---|
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 |
|---|
| International protection (ip) code: | IP67 |
|---|
| Ir illuminator range: | 30 m |
|---|
| Led type: | IR |
|---|
| Lens type: | Fixed focal length lens |
|---|
| Lens viewing angle, horizontal: | 100° |
|---|
| Lens viewing angle, vertical: | 53° |
|---|
| Main stream transmission speed: | 25 fps @ 1080p |
|---|
| Maximum aperture number: | 2 |
|---|
| Maximum memory card size: | 256 GB |
|---|
| Maximum range: | 80 m |
|---|
| Maximum resolution: | 1920 x 1080 pixels |
|---|

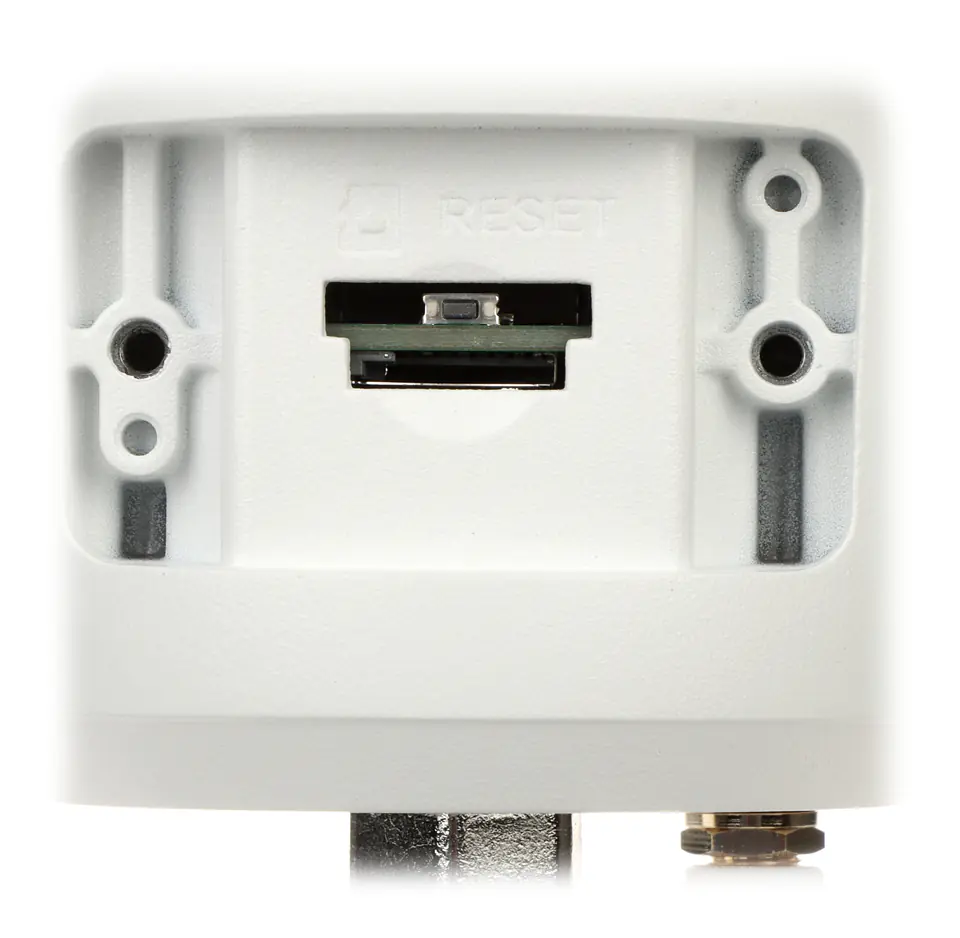

| Memory card slot: | Micro SD card support up to 256GB (local recording possible) |
|---|
| Minimum illumination: | 0.025 lx |
|---|
| Mobile app access port: | 37777 |
|---|
| Mobile operating systems supported: | iOS, Android |
|---|
| Mobile phone access: | Cloud access (P2P) Android: Free DMSS app iOS (iPhone): Free DMSS app |
|---|
| Motion detection: | Yes |
|---|
| Mounting type: | Wall/ceiling |
|---|
| Network interface: | Wi-Fi - 2.4 GHz IEEE 802.11 b/g/n, 10/100 Base-T (RJ-45) |
|---|
| Network protocols: | IPv4, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, DHCP, DNS, NTP, Multicast |
|---|
| Networking standards: | IEEE 802.11g, IEEE 802.11n, IEEE 802.11b |
|---|
| Night vision: | Yes |
|---|
| Night vision distance: | 30 m |
|---|
| Number of cameras: | 1 |
|---|
| Number of illumination leds: | 1 |
|---|
| Number of lenses: | 1 |
|---|
| Number of memory card slots: | 1 |
|---|
| Number of sensors: | 1 |
|---|
| Objective: | 2.8 mm |
|---|
| Onvif: | 20.06 |
|---|
| Operating relative humidity (h-h): | 0 - 95% |
|---|
| Operating temperature: | -40 °C ... 60 °C |
|---|
| Operating temperature (t-t): | -30 - 70 °C |
|---|
| Optical sensor size: | 25.4 / 2.8 mm (1 / 2.8") |
|---|
| Pc app access ports: | 37777 |
|---|
| People detection: | Yes |
|---|
| Placement supported: | Outdoor |
|---|
| Port onvif: | 80 |
|---|

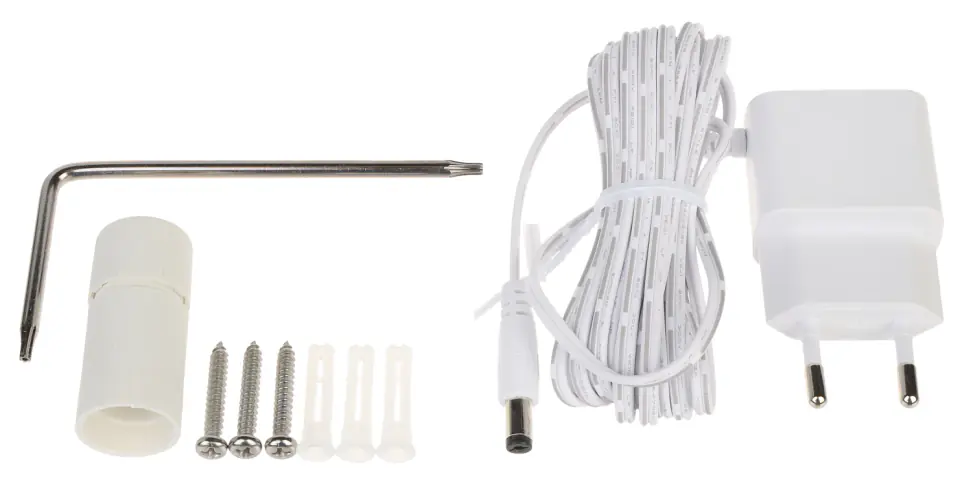

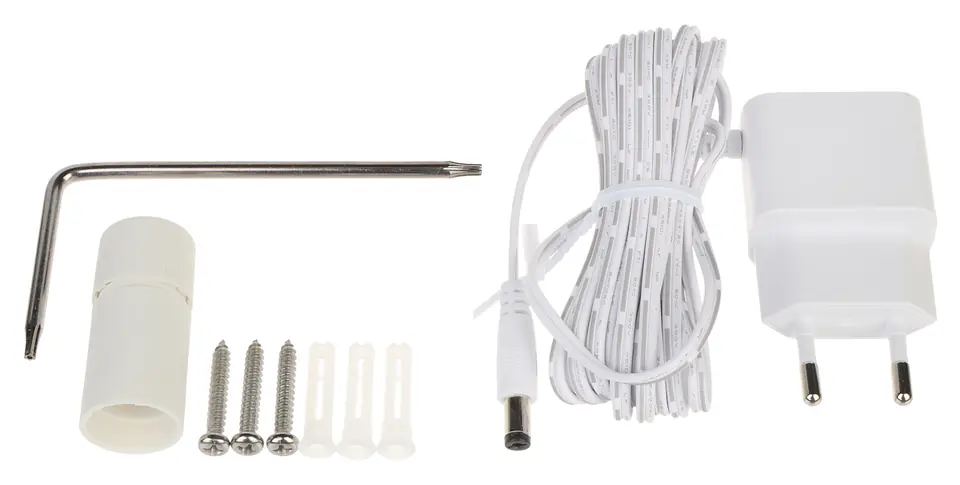

| Power: | 12 V DC / 350 mA (power adapter included) |
|---|
| Power consumption: | ≤ 4.1 watts |
|---|
| Power consumption (max): | 4.1 W |
|---|
| Power consumption (typical): | 2 W |
|---|
| Power source type: | DC |
|---|
| Producer / brand: | DAHUA |
|---|
| Product colour: | White |
|---|
| Progressive scan: | Yes |
|---|
| Ram capacity: | 64 MB |
|---|
| Resolution: | 1920 x 1080 - 1080p, 1280 x 960 - 1.3 MP, 1280 x 720 - 720p |
|---|
| Rom capacity: | 16 MB |
|---|
| Rtsp url: | rtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main streamrtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Auxiliary stream |
|---|
| Scales: | 0.47 kg |
|---|
| Sealing: | IP67 |
|---|
| Selected features: | Wi-Fi module, Range : 80 m (open area) ; Antenna - SMA D-WDR socket - Wide dynamic range of 3D-DNR lighting - Digital noise reduction in the image ROI - improving the quality of selected parts of the image BLC - configurable backlight compensation Auto white balance AGC - Automatic image gain adjustment Day/night mode ICR - Mechanical IR filter Mirror - Mirror image Motion detection - max. 4 zones - Human detection |
|---|
| Sensor size: | 2.1 MP |
|---|
| Sensor type: | HD CMOS |
|---|
| Signal-to-noise ratio (snr): | 56 dB |
|---|
| Standard: | TCP/IP |
|---|
| Storage temperature (t-t): | -40 - 60 °C |
|---|
| Supported languages: | English, Spanish, Russian |
|---|
| Total megapixels: | 2 MP |
|---|
| Transducer: | 1/2.8" Progressive Scan CMOS |
|---|
| Two-way talk: | N |
|---|

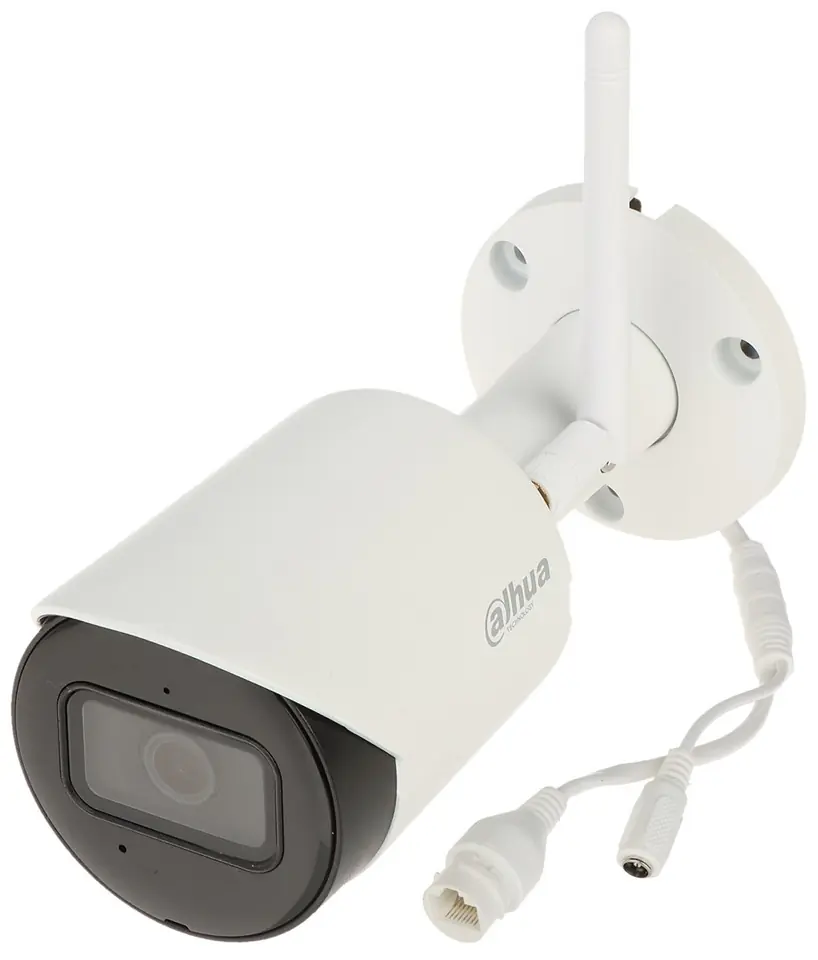

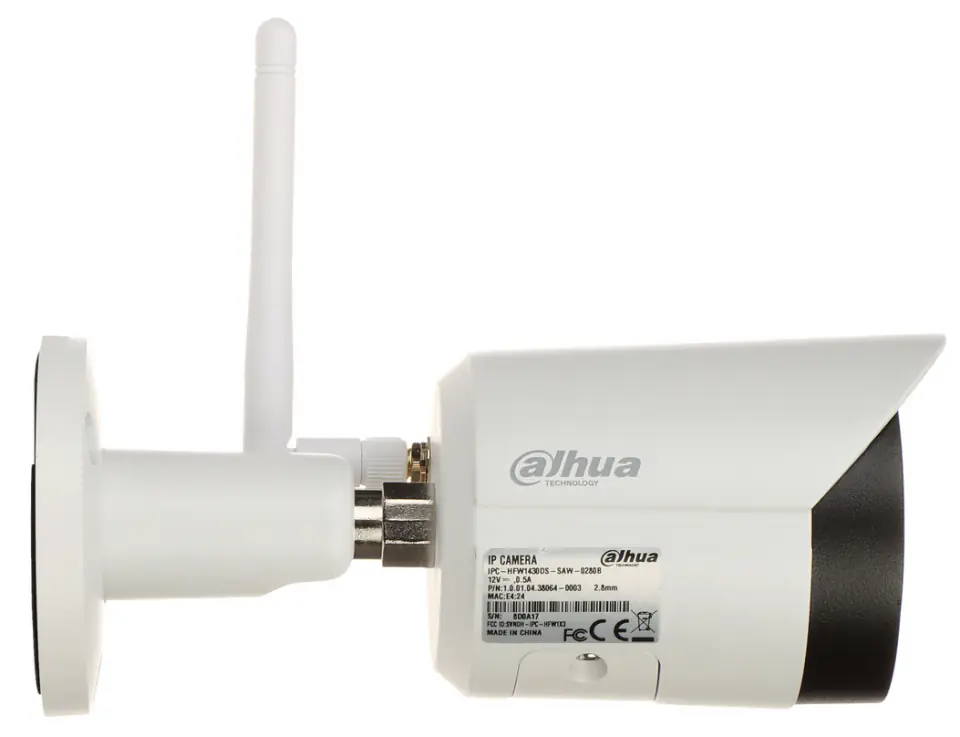

| Type: | IP security camera |
|---|
| Vertical rotation angle: | 0 - 90° |
|---|
| Video compression formats: | H.264B, H.264+, H.265+, H.264H, M-JPEG, H.264, H.265 |
|---|
| Video streaming: | Yes |
|---|
| Viewing angle: | 100°(manufacturer data) 95° (our tests) |
|---|
| Viewing angle, diagonal: | 120° |
|---|
| Warranty: | 3 years |
|---|
| Web access ports: | 80, 37777 |
|---|
| Web browser: | Yes |
|---|
| Web server: | Built-in |
|---|
| Web-based management: | Yes |
|---|
| Weight: | 477.9 g |
|---|
| Wi-fi: | Yes |
|---|
| Wi-fi band: | Single-band (2.4 GHz) |
|---|
| Wide dynamic range (wdr): | DWDR |
|---|
| Width: | 70 mm |
|---|
