| Alarm input channels: | 1 |
|---|
| Alarm input/output: | Yes |
|---|
| Alarm inputs / outputs: | 1 / 1 |
|---|
| Alarm output channels: | 1 |
|---|
| Anti-flicker: | Yes |
|---|
| Audio: | Built-in Microphone External Microphone Input Audio Output Support Two-way Audio Digital Noise Reduction |
|---|
| Audio formats supported: | MP3, MP2L2, G.726, AAC-LC, G.722.1, PCM |
|---|
| Automatic network replenishment (anr): | Yes |
|---|
| Back light compensation (blc): | Yes |
|---|
| Behavior analysis: | Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection |
|---|
| Bit rate control: | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
|---|
| Bluetooth: | No |
|---|
| Built-in hdd: | No |
|---|
| Built-in microphone: | Yes |
|---|
| Built-in speaker(s): | Yes |
|---|
| Camera shutter speed: | 1/3 - 1/100000 s |
|---|
| Card reader integrated: | Yes |
|---|
| Case: | Compact, Metal |
|---|
| Colour: | white |
|---|
| Compatible memory cards: | MicroSDHC, MicroSD (TransFlash), MicroSDXC |
|---|
| Connectivity technology: | Wired |
|---|
| Day/night mode: | Yes |
|---|
| Dc output voltage: | 12 |
|---|
| Default administrator login / password: | admin / -Administrator password must be set on first run |
|---|
| Default ip address: | 192.168.1.64 |
|---|
| Diameter: | 15.5 cm |
|---|
| Digest authentication: | Yes |
|---|

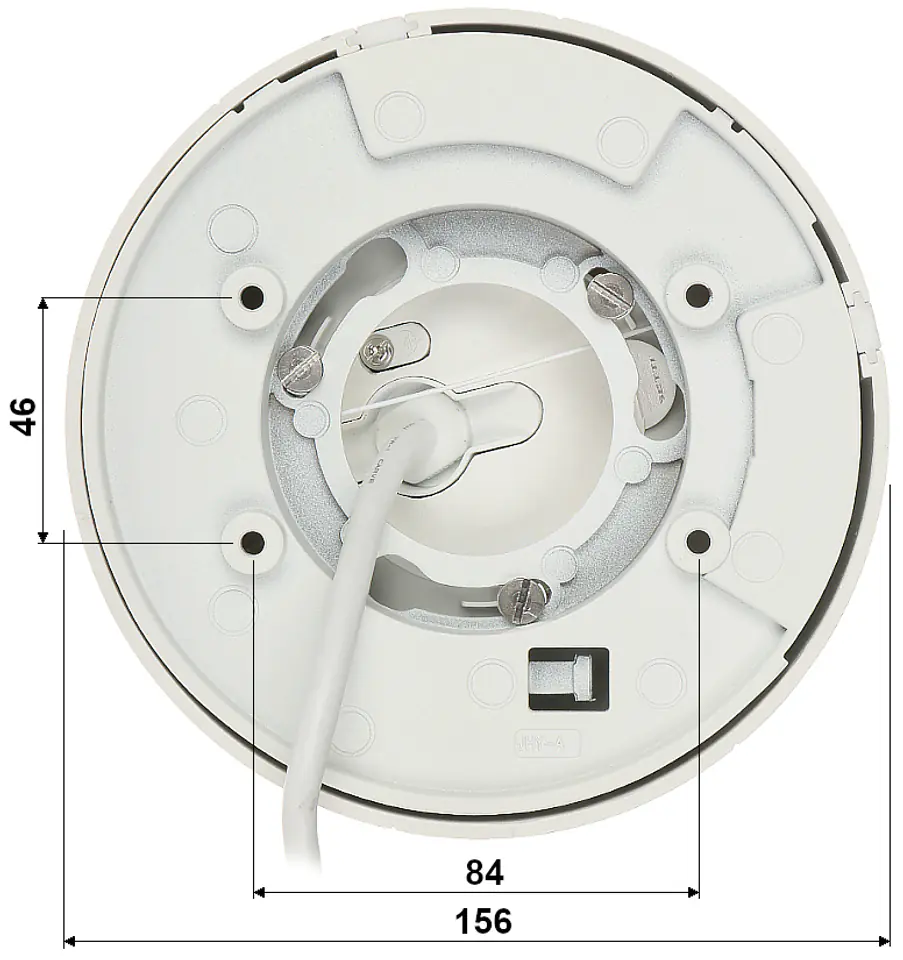

| Dimensions: | Ø 156 x 155.3 mm |
|---|
| Ethernet interface type: | Fast Ethernet |
|---|
| Ethernet lan: | Yes |
|---|
| Ethernet lan (rj-45) ports: | 1 |
|---|
| Form factor: | Turret |
|---|
| Heartbeat: | Yes |
|---|
| Height: | 155.3 mm |
|---|
| Highlight compensation (hlc): | Yes |
|---|
| Housing material: | Metal |
|---|
| Https encryption: | Yes |
|---|
| Human and vehicle targets classification: | Yes |
|---|
| Identify distance (wide): | 7 m |
|---|
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
|---|
| Image quality adjustment: | Saturation, Sharpness, Contrast, Brightness |
|---|
| International protection (ip) code: | IP67 |
|---|
| Iris: | Yes |
|---|
| Languages support: | Lithuanian, Turkish, Thai, Estonian, Portuguese, Slovenian, Danish, Ukrainian, LAT, Dutch, Czech, Spanish, Hungarian, French, Vietnamese, Norwegian, Slovak, Bulgarian, Swedish, Finnish, German, Polish, Japanese, Russian, English, Greek, Italian, Traditional Chinese, HRV, Korean, Romanian, SER |
|---|
| Led type: | IR |
|---|
| Lens diameter: | 4 mm |
|---|
| Lens viewing angle, horizontal: | 180° |
|---|
| Lens viewing angle, vertical: | 44° |
|---|
| Main stream transmission speed: | 20 fps @ 7.4 Mpx |
|---|
| Max. number of on-line users: | 6 |
|---|
| Maximum aperture number: | 1 |
|---|
| Maximum memory card size: | 256 GB |
|---|
| Maximum resolution: | 5120 x 1440 pixels |
|---|

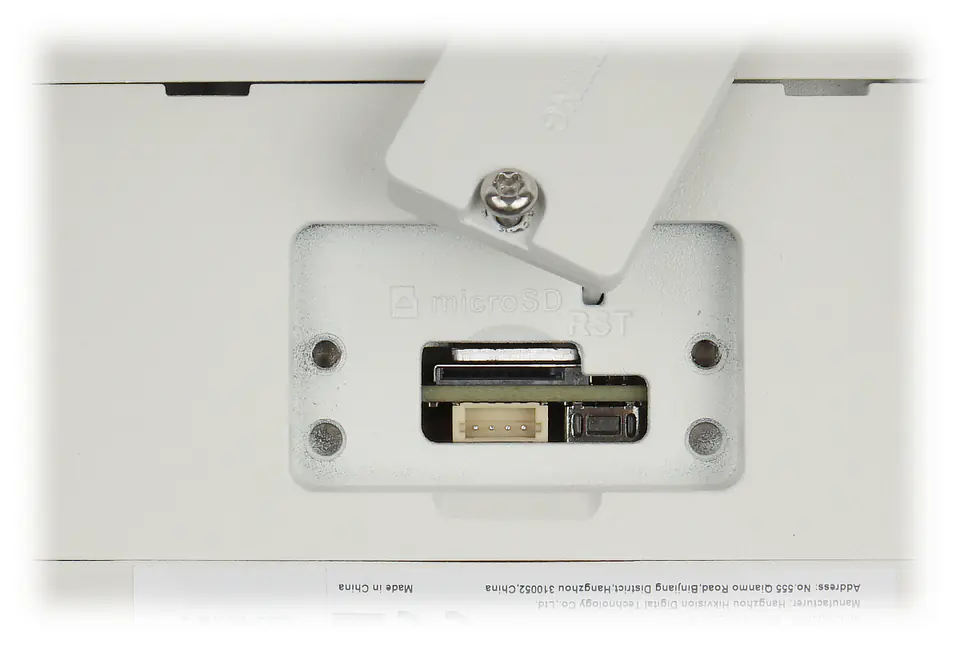

| Memory card slot: | Micro SD card support up to 256GB (local recording possible) |
|---|
| Mobile app access port: | 8000 |
|---|
| Mobile phone access: | Port: 8000 or cloud access (P2P) Android: Free Hik-Connect app iOS: Free Hik-Connect app |
|---|
| Mounting type: | Ceiling |
|---|
| Network interface: | 10/100 Base-T (RJ-45) |
|---|
| Network protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, IEEE 802.1x, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets |
|---|
| Night vision: | Yes |
|---|
| Night vision distance: | 30 m |
|---|
| Noise reduction technology: | 3D noise reduction |
|---|
| Number of cameras: | 1 |
|---|
| Number of languages: | 33 |
|---|
| Number of lenses: | 2 |
|---|
| Number of sensors: | 2 |
|---|
| Number of users: | 32 user(s) |
|---|
| Objective: | 2 x 4 mm |
|---|
| Operating temperature: | -30 °C ... 60 °C |
|---|
| Operating temperature (t-t): | -30 - 60 °C |
|---|
| Optical sensor size: | 25.4 / 1.8 mm (1 / 1.8") |
|---|
| Package depth: | 230 mm |
|---|
| Package height: | 230 mm |
|---|
| Package weight: | 1.9 kg |
|---|
| Package width: | 230 mm |
|---|
| Pan range: | -30 - 30° |
|---|
| Password protection: | Yes |
|---|
| Password reset via email: | Yes |
|---|
| Pc app access ports: | Port: 8000 or access via cloud (P2P) - iVMS-4200 application |
|---|
| Port onvif: | 80 |
|---|
| Power: | 12 V DC / 790 mA, PoE (802.3af) |
|---|
| Power consumption: | ≤ 9.5 watts @ 12 volts DC ≤ 10.5 watts @ PoE |
|---|
| Power consumption (max): | 9.5 W |
|---|
| Power source type: | DC, PoE |
|---|
| Producer / brand: | Hikvision |
|---|
| Product colour: | White |
|---|
| Range of white light illuminator (led): | 30 m |
|---|
| Region of interest (roi) encoding: | Yes |
|---|
| Reset button: | Yes |
|---|
| Resolution: | 5120 x 1440 - 7.4 MP |
|---|
| Rtsp url: | Main stream : rtsp://user:password o@192.168.1.64:554/Streaming/Channels/101/ - with authorization Secondary stream : rtsp://user:password o@192.168.1.64:554/Streaming/Channels/102/ - with authorization |
|---|
| Sample rate: | 48 kHz |
|---|
| Sap code: | 311319443 |
|---|
| Scales: | 1.28 kg |
|---|
| Scanning system: | Progressive |
|---|
| Sealing: | IP67 |
|---|
| Security algorithms: | EAP-MD5 |
|---|
| Selected features: | Intelligent Image Analysis - line crossing, intrusion, area entry / area exit detection, scene change WDR - 130 dB - Wide dynamic range of 3D-DNR lighting - Digital noise reduction in the image ROI - improving the quality of selected parts of the image NAS support - Network Attached Storage - allows you to connect memory resources directly to the computer network ANR - recording the image on the card in the absence of communication with the recorder (network failure) and later Anti-Flicker Sync - Technology to eliminate eye-straining flicker Active deterrent function - Light and sound alarm Built-in white light illuminator (LED) : 4 BLC LEDs - backlight compensation HLC - Strong (spot) light compensation AGC - Automatic adjustment of image gain Ability to change resolution, quality and bandwidth Configurable: brightness, contrast, saturation Motion detection - classification of people and Vehicles |
|---|
| Sensor size: | 2 x 3.7 Mpx - 8 Mpx (total) |
|---|
| Sensor type: | CMOS |
|---|
| Signal-to-noise ratio (snr): | 52 dB |
|---|
| Standard: | TCP/IP |
|---|
| Storage temperature (t-t): | -30 - 60 °C |
|---|
| Supported graphics resolutions: | 5120 x 1440 |
|---|
| Supported languages: | Polish, Bulgarian, Croatian, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Hungarian, Italian, Latvian, Lithuanian, Norwegian, Portuguese, Romanian, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Turkish |
|---|
| Sustainability certificates: | CE, RoHS, WEEE |
|---|
| Tilt angle range: | -75 - 75° |
|---|
| Total megapixels: | 8 MP |
|---|
| Transducer: | 2 x 1/1.8" Progressive Scan CMOS |
|---|
| Type: | IP security camera |
|---|
| User access level: | Administrator, Operator, User |
|---|
| Video compression formats: | H.264, H.265+, H.265, H.264+ |
|---|
| Video formats supported: | H.265+, MJPG, H.265, H.264+, H.264 |
|---|
| Video motion detection: | Yes |
|---|
| Viewing angle: | 180°(horizontal)44°(vertical) |
|---|
| Warranty: | 3 years |
|---|
| Web access ports: | 80 |
|---|
| Web server: | Built-in |
|---|
| Web-based management: | Yes |
|---|
| Wi-fi: | No |
|---|
| Wide dynamic range (wdr): | Yes |
|---|
