| Angle of rotation: | 360° |
|---|
| Anti-flicker: | Yes |
|---|
| Audio: | Built-in microphone |
|---|
| Audio formats supported: | MP3 |
|---|
| Audio input channels: | 1 channels |
|---|
| Audio output channels: | 1 channels |
|---|
| Back light compensation (blc): | Yes |
|---|
| Behavior analysis: | Intrusion detection, Line crossing detection |
|---|
| Bit rate: | 32 Kbps - 16 Mbps |
|---|
| Bit rate control: | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
|---|
| Bluetooth: | No |
|---|
| Built-in hdd: | No |
|---|
| Built-in microphone: | Yes |
|---|
| Camera pan control: | Yes |
|---|
| Camera shutter speed: | 1/3 - 1/100000 s |
|---|
| Camera tilt control: | Yes |
|---|
| Card reader integrated: | Yes |
|---|

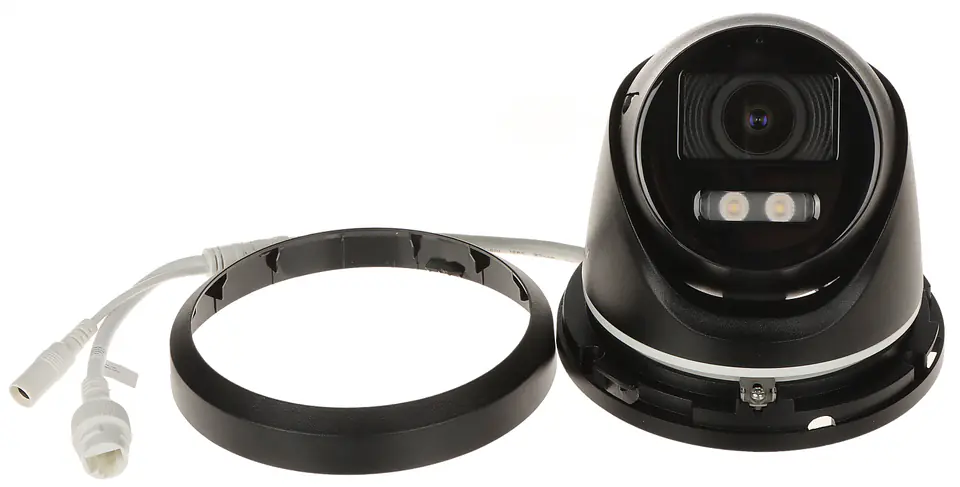

| Case: | Dome, Aluminum + Plastic |
|---|
| Colour: | Black |
|---|
| Compatible memory cards: | MicroSDHC, MicroSDXC, MicroSD (TransFlash) |
|---|
| Connectivity technology: | Wired |
|---|
| Day/night mode: | Yes |
|---|
| Dc output voltage: | 12 |
|---|
| Default administrator login / password: | admin / -Administrator password must be set on first run |
|---|
| Default ip address: | 192.168.1.64 |
|---|

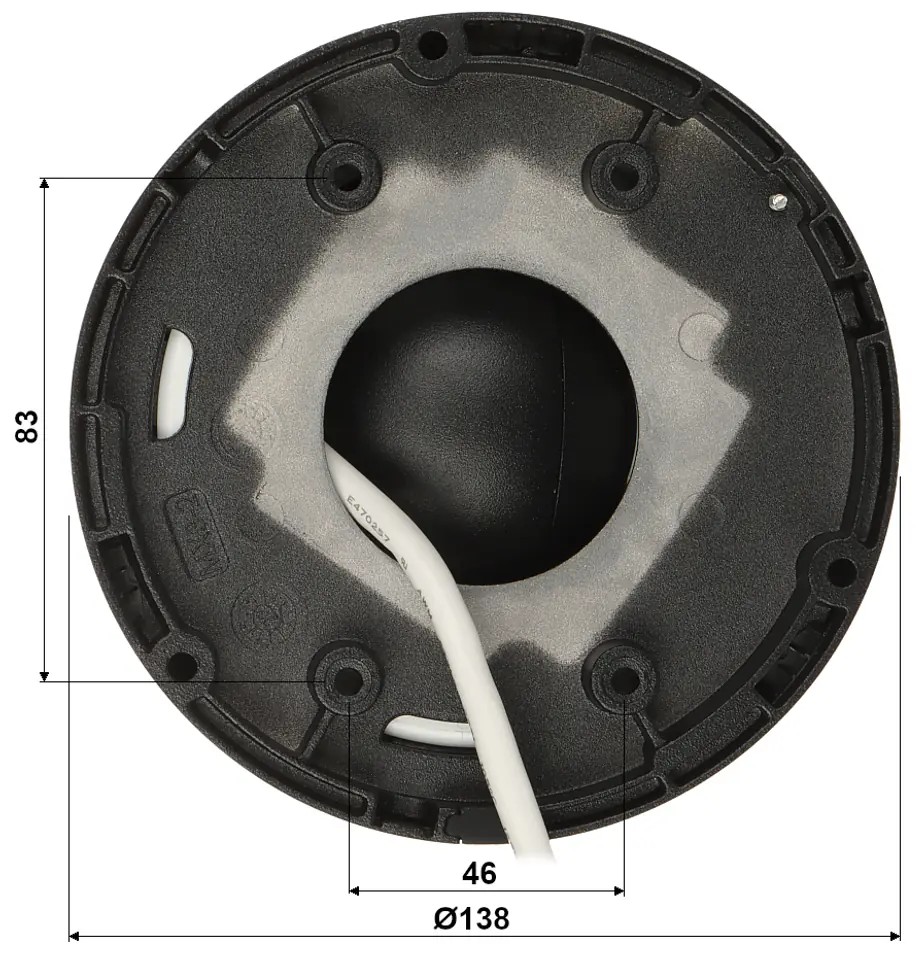

| Diameter: | 13.8 cm |
|---|

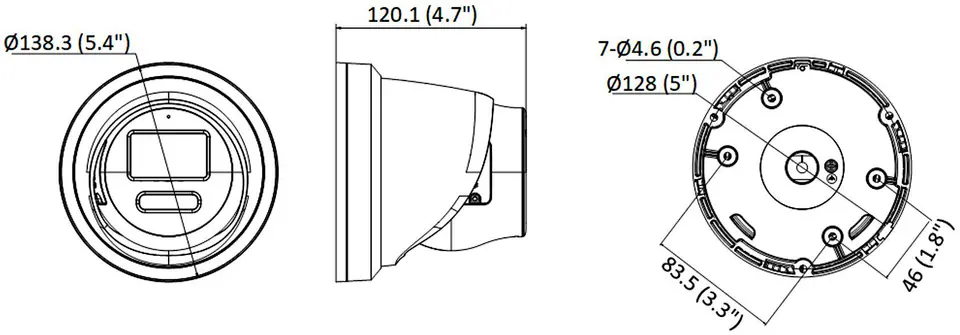

| Dimensions: | Ø 139 x 120 mm |
|---|
| Ethernet interface type: | Fast Ethernet |
|---|
| Ethernet lan: | Yes |
|---|
| Ethernet lan (rj-45) ports: | 1 |
|---|
| Fixed focal length: | 2.8 mm |
|---|
| Form factor: | Turret |
|---|
| Frame rate: | 30 fps |
|---|
| Heartbeat: | Yes |
|---|
| Height: | 120.1 mm |
|---|
| Highlight compensation (hlc): | Yes |
|---|
| Housing material: | Metal |
|---|
| Https encryption: | Yes |
|---|
| Identify distance: | 9 m |
|---|
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
|---|
| Image quality adjustment: | Saturation, Brightness, Sharpness, Contrast |
|---|
| Infrared (ir) cut-off filter: | Yes |
|---|
| Intelligent video surveillance (ivs) system features: | Scene change |
|---|
| International protection (ip) code: | IP67 |
|---|
| Ip address filtering: | Yes |
|---|
| Lens viewing angle, diagonal: | 124° |
|---|
| Lens viewing angle, horizontal: | 102° |
|---|
| Lens viewing angle, vertical: | 52° |
|---|
| Main stream transmission speed: | 25 fps @ 8.3 Mpx |
|---|
| Max. number of on-line users: | 6 |
|---|
| Maximum aperture number: | 1 |
|---|
| Maximum memory card size: | 256 GB |
|---|
| Maximum resolution: | 3840 x 2160 pixels |
|---|

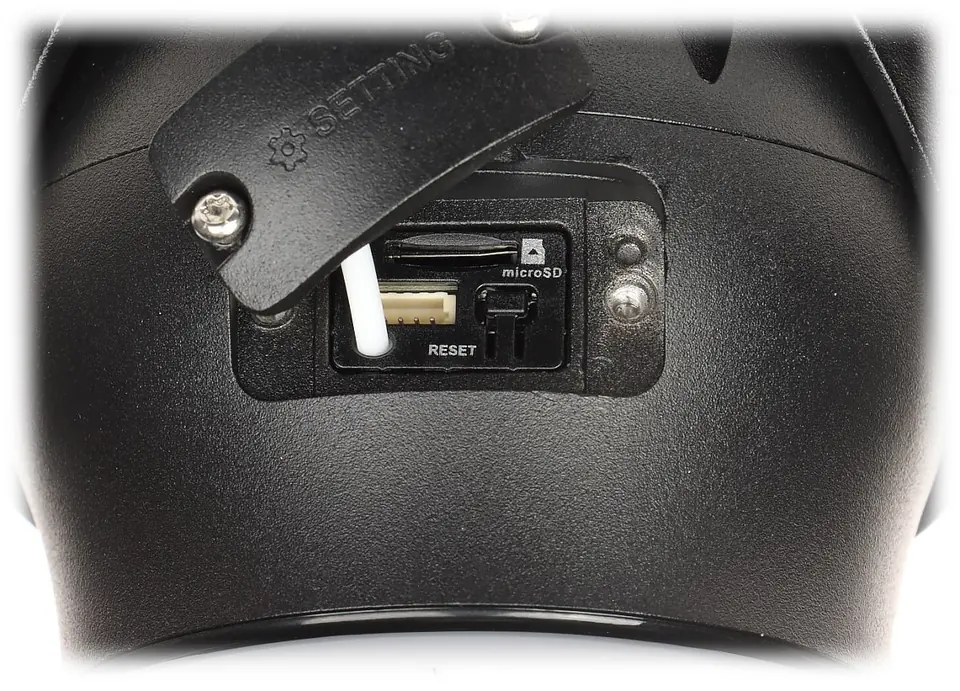

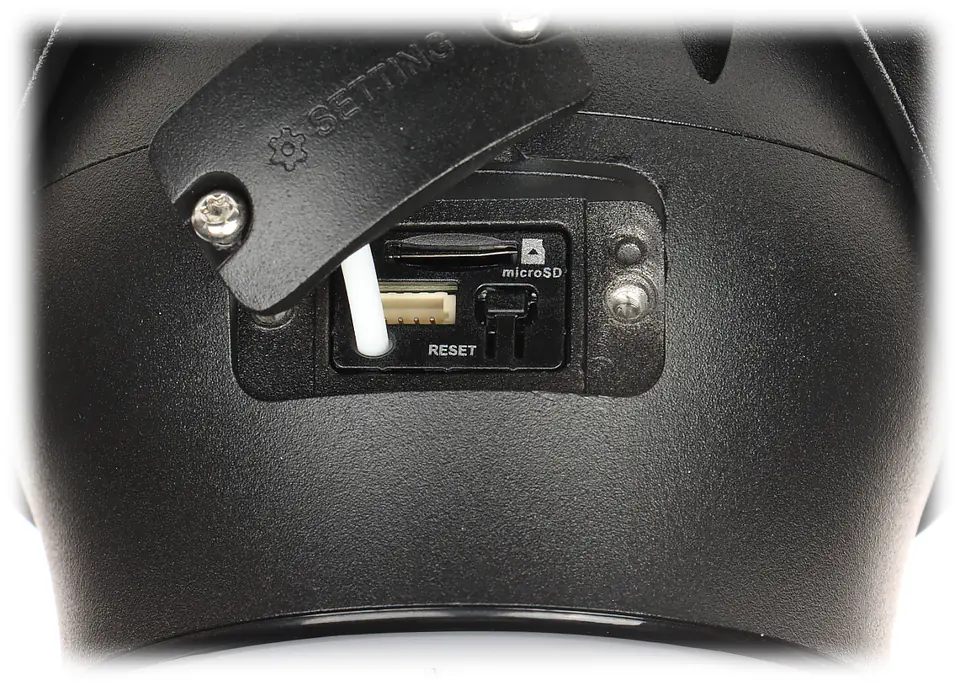

| Memory card slot: | Micro SD card support up to 256GB (local recording possible) |
|---|
| Minimum illumination: | 0.0005 lx |
|---|
| Mirror: | Yes |
|---|
| Mobile app access port: | 8000 |
|---|
| Mobile phone access: | Port: 8000 or cloud access (P2P) Android: Free Hik-Connect app iOS: Free Hik-Connect app |
|---|
| Mounting type: | Ceiling/wall |
|---|
| Network interface: | 10/100 Base-T (RJ-45) |
|---|
| Network protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, IEEE 802.1x, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP |
|---|
| Networking standards: | IEEE 802.3af, IEEE 802.1x |
|---|
| Night vision: | Yes |
|---|
| Night vision distance: | 30 m |
|---|
| Noise reduction: | Yes |
|---|
| Noise reduction technology: | 3D noise reduction |
|---|
| Number of cameras: | 1 |
|---|
| Number of languages: | 33 |
|---|
| Number of lenses: | 1 |
|---|
| Number of sensors: | 1 |
|---|
| Number of users: | 32 user(s) |
|---|
| Objective: | 2.8 mm |
|---|
| Onvif: | 18.12 |
|---|
| Operating relative humidity (h-h): | 0 - 95% |
|---|
| Operating temperature: | -30 °C ... 60 °C |
|---|
| Operating temperature (t-t): | -30 - 60 °C |
|---|
| Optical sensor size: | 25.4 / 1.2 mm (1 / 1.2") |
|---|
| Package depth: | 170 mm |
|---|
| Package height: | 150 mm |
|---|
| Package weight: | 1.16 kg |
|---|
| Package width: | 170 mm |
|---|
| Pan range: | 0 - 360° |
|---|
| Password protection: | Yes |
|---|
| Pc app access ports: | Port: 8000 or access via cloud (P2P) - iVMS-4200 application |
|---|
| Placement supported: | Outdoor |
|---|
| Port onvif: | 80 |
|---|
| Power: | PoE (802.3af), 12 V DC / 460 mA |
|---|
| Power consumption: | ≤ 6.5 W @ PoE≤ 5.5 W @ 12 V DC |
|---|
| Power consumption (max): | 5.5 W |
|---|
| Power consumption (power over ethernet (poe)): | 6.5 W |
|---|
| Power source type: | DC, PoE |
|---|
| Privacy masking: | Yes |
|---|
| Producer / brand: | Hikvision |
|---|
| Product colour: | Black |
|---|
| Progressive scan: | Yes |
|---|
| Quality of service (qos) support: | Yes |
|---|
| Range of white light illuminator (led): | 30 m |
|---|
| Region of interest (roi) encoding: | Yes |
|---|
| Resolution: | 3840 x 2160 - 8.3 MP, 4K UHD, 3200 x 1800 - 5.8 MP, 2688 x 1520 - 4 MP, 1920 x 1080 - 1080p1280 x 720 - 720p |
|---|
| Rtsp url: | Main stream : rtsp://user:password o@192.168.1.64:554/Streaming/Channels/101/ Secondary stream : rtsp://user:password o@192.168.1.64:554/Streaming/Channels/102/ |
|---|
| Sample rate: | 48 kHz |
|---|
| Sap code: | 311318346 |
|---|
| Scales: | 0.91 kg |
|---|
| Scanning system: | Progressive |
|---|
| Sealing: | IP67 |
|---|
| Selected features: | Possibility to turn off the WDR LED illuminator - 130 dB - Wide dynamic range of 3D-DNR lighting - Digital noise reduction in the image ROI - improving the quality of selected parts of the image Anti-Flicker - Technology to eliminate the tiring effect of image flickering BLC - backlight (background) compensation HLC - Strong (spot) light compensation Ability to change resolution, quality and bandwidth Mirror - Image mirroring Motion detection Configurable privacy zones Sharpness - Sharpen image contours False alarm filtering based on person and vehicle recognition Video tampering Intelligent image analysis: line crossing, intrusion, scene change, area entry detection/area exit detection, face detection |
|---|
| Sensor size: | 8.3 MP |
|---|
| Sensor type: | CMOS |
|---|
| Standard: | TCP/IP |
|---|
| Storage relative humidity (h-h): | 0 - 95% |
|---|
| Storage temperature (t-t): | -30 - 60 °C |
|---|
| Supported languages: | Polish, Bulgarian, Croatian, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Hungarian, Italian, Latvian, Lithuanian, Norwegian, Portuguese, Romanian, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Turkish |
|---|
| Tilt angle range: | 0 - 75° |
|---|
| Total megapixels: | 8 MP |
|---|
| Transducer: | 1/1.2" Progressive Scan CMOS |
|---|
| Type: | IP security camera |
|---|
| Video compression formats: | H.264+, H.265+, H.264, H.265, M-JPEG |
|---|
| Video motion detection: | Yes |
|---|
| Video streaming: | Yes |
|---|
| Viewing angle: | 102°(manufacturer data) 100° (our tests) |
|---|
| Voice codecs: | G.722.1, MP2L2, AAC, G.711alaw, PCM, G.711ulaw, G.726 |
|---|
| Warranty: | 3 years |
|---|
| Web access ports: | 80 |
|---|
| Web server: | Built-in |
|---|
| Web-based management: | Yes |
|---|
| Weight: | 870 g |
|---|
| Wi-fi: | No |
|---|
| Wide dynamic range (wdr): | Yes |
|---|
