| Access from a mobile phone:: | Port: 8000 or cloud access (P2P) Android: Free app iVMS-4500 or Hik-Connect iOS (iPhone): Free app iVMS-4500 or Hik-Connect |
|---|---|
| Case:: | Dome, Aluminum |
| Colour:: | white |
| Default administrator login / password:: | admin / -Administrator password should be set at first startup |
| Default ip address:: | 192.168.1.64 |

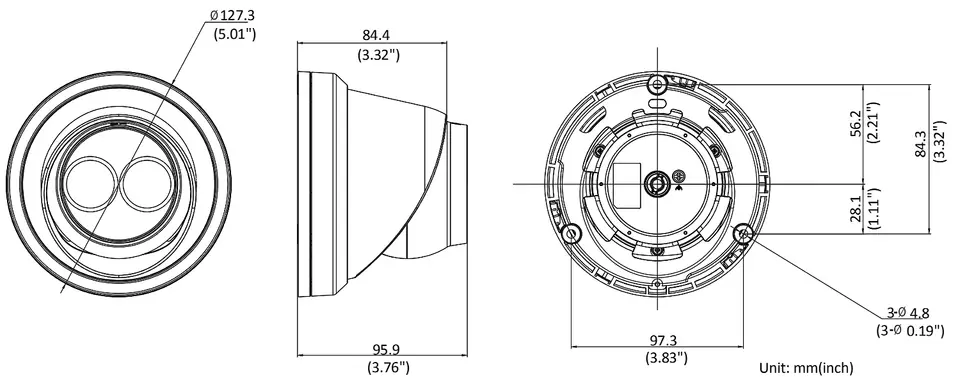

| Dimensions:: | Ø 127 x 96 mm |
| Image compression method:: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Ir illuminator range:: | 30 m |
| Main stream transmission speed:: | 25 fps @ 4 Mpx |
| Manufacturer / brand:: | Hikvision |
| Matrix size:: | 4.1 Mpx |
| Max. number of on-line users:: | 6 |

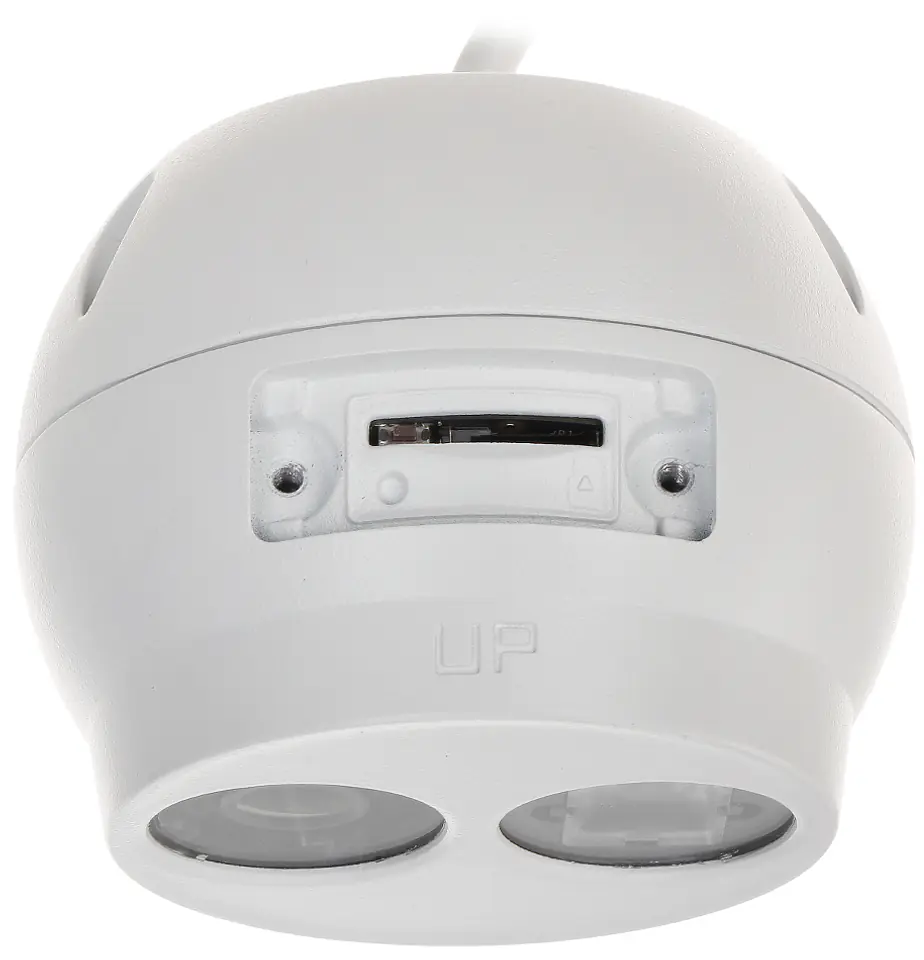

| Memory card slot:: | Supports Micro SD cards up to 256GB (local write possible) |
| Network interface:: | 10/100 Base-T (RJ-45) |
| Network protocols:: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, IEEE 802.1x, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE |
| Objective:: | 4 mm |
| Onvif port:: | 80 |
| Onvif:: | 18.12 |
| Operating temperature :: | -30 °C ... 60 °C |
| Port of access via mobile application:: | 8000 |
| Ports for access via the pc application:: | Port: 8000 or Cloud Access (P2P) - iVMS-4200 Application |
| Power consumption:: | ≤ 7 W @ PoE (802.3af)≤ 6 W @ 12 V DC |
| Power:: | PoE (802.3af), 12 V DC / 500 mA |
| Resolution:: | 2688 x 1520 - 4 Mpx ,1920 x 1080 - 1080p ,1280 x 720 - 720p |
| Rtsp url:: | Stream mainrtsp://user:password o@192.168.1.64:554/Streaming/Channels/101/ Auxiliary streamrtsp://user:password o@192.168.1.64:554/Streaming/Channels/102/ |
| Sap code:: | 311313531 |
| Scales:: | 0.61 kg |
| Scanning system:: | Progressive |
| Sealing:: | IP67 |
| Selected features:: | AcuSense WDR Series Camera - 120 dB - Wide Dynamic Range 3D-DNR - Digital Noise Reduction in BLC/HLC Image - Background Light / Strong ROI Light Compensation - Anti-Flicker Enhancement - Anti-Flicker Imaging Technology - AnR Flickering Technology - Card Recording in The Absence of Communication with the Recorder (Network Failure) and Subsequent Synchronization ICR Day/Night Mode - WB Mechanical IR Filter - AGC White Balance - Automatic Image Gain Adjustment Ability to Change Resolution, Quality and Throughput Sharpness - Mirror Image Contour Sharpening - Image Mirror Configurable Privacy Zones Motion Detection False Alarm Filtering Based on Person and Vehicle Recognition Intelligent Image Analysis: Intrusion, Line Crossing, Face Detection |
| Standard:: | TCP/IP |
| Supported languages:: | Polish, Bulgarian, Croatian, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Hungarian, Italian, Latvian, Lithuanian, Norwegian, Portuguese, Romanian, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Turkish, Ukrainian |
| Transducer:: | 1/3" Progressive Scan CMOS |
| Viewing angle:: | 84° (manufacturer data) 82° (our tests) |
| Warranty:: | 3 years |
| Web access ports:: | 80 |
| Web server:: | Built-in |
IP camera with efficient H.264 / H.265 image compression algorithm for clearer and smoother image transmission at a maximum resolution of 4 MPx
The ability to power PoE, in accordance with the 802.3af standard, makes the device even more versatile and easier to install
