| Angle of rotation: | 360° |
|---|---|
| Anti-flicker: | Yes |
| Audio: | Built-in Microphone, Built-in Speaker - Alarm Siren |
| Audio formats supported: | MP3 |
| Back light compensation (blc): | Yes |
| Behavior analysis: | Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection |
| Bit rate: | 32 Kbps - 8 Mbps |
| Bit rate control: | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bluetooth: | No |
| Built-in hdd: | No |
| Built-in microphone: | Yes |
| Built-in speaker(s): | Yes |
| Camera pan control: | Yes |
| Camera shutter speed: | 1/3 - 1/100000 s |
| Camera tilt control: | Yes |
| Card reader integrated: | Yes |
| Case: | Compact, Metal |
| Colour: | white |
| Compatible memory cards: | MicroSDHC, MicroSD (TransFlash), MicroSDXC |
| Compression: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Connectivity technology: | Wired |
| Day/night mode: | Yes |
| Dc output voltage: | 12 |
| Default administrator login / password: | admin / -Administrator password must be set on first run |
| Default ip address: | 192.168.1.64 |
| Depth: | 73.3 mm |

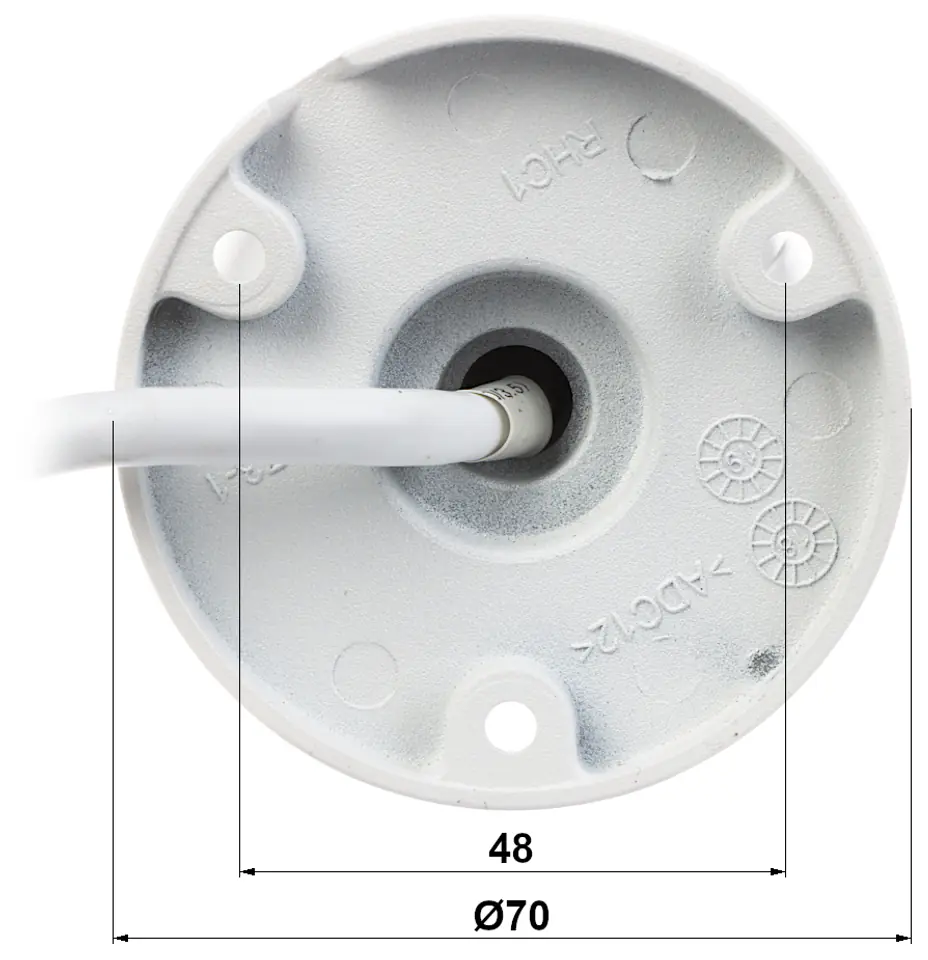

| Dimensions: | Ø 73 x 191 mm |
| Ethernet interface type: | Fast Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Fixed focal length: | 2.8 mm |
| Form factor: | Bullet |
| Frame rate: | 30 fps |
| Heartbeat: | Yes |
| Highlight compensation (hlc): | Yes |
| Housing material: | Aluminium |
| Https encryption: | Yes |
| Identify distance (wide): | 6 m |
| Image quality adjustment: | Contrast, Sharpness, Brightness, Saturation |
| Infra-red wavelength: | 850 nm |
| Infrared (ir) cut-off filter: | Yes |
| Intelligent video surveillance (ivs) system features: | Scene change |
| International protection (ip) code: | IP67 |
| Ip address filtering: | Yes |
| Ir illuminator range: | 40 m |
| Languages support: | Italian, Traditional Chinese, Estonian, Portuguese, Slovenian, French, Vietnamese, Dutch, Czech, Spanish, Hungarian, Greek, Finnish, Slovak, Ukrainian, LAT, Bulgarian, Swedish, Norwegian, Korean, Romanian, SER, Lithuanian, Turkish, Thai, English, Danish, German, Polish, Japanese, Russian |
| Led type: | IR |
| Lens viewing angle, diagonal: | 123° |
| Lens viewing angle, horizontal: | 103° |
| Lens viewing angle, vertical: | 55° |
| Main stream transmission speed: | 25 fps @ 4 Mpx |
| Max. number of on-line users: | 6 |
| Maximum aperture number: | 1.4 |
| Maximum memory card size: | 256 GB |
| Maximum resolution: | 2688 x 1520 pixels |

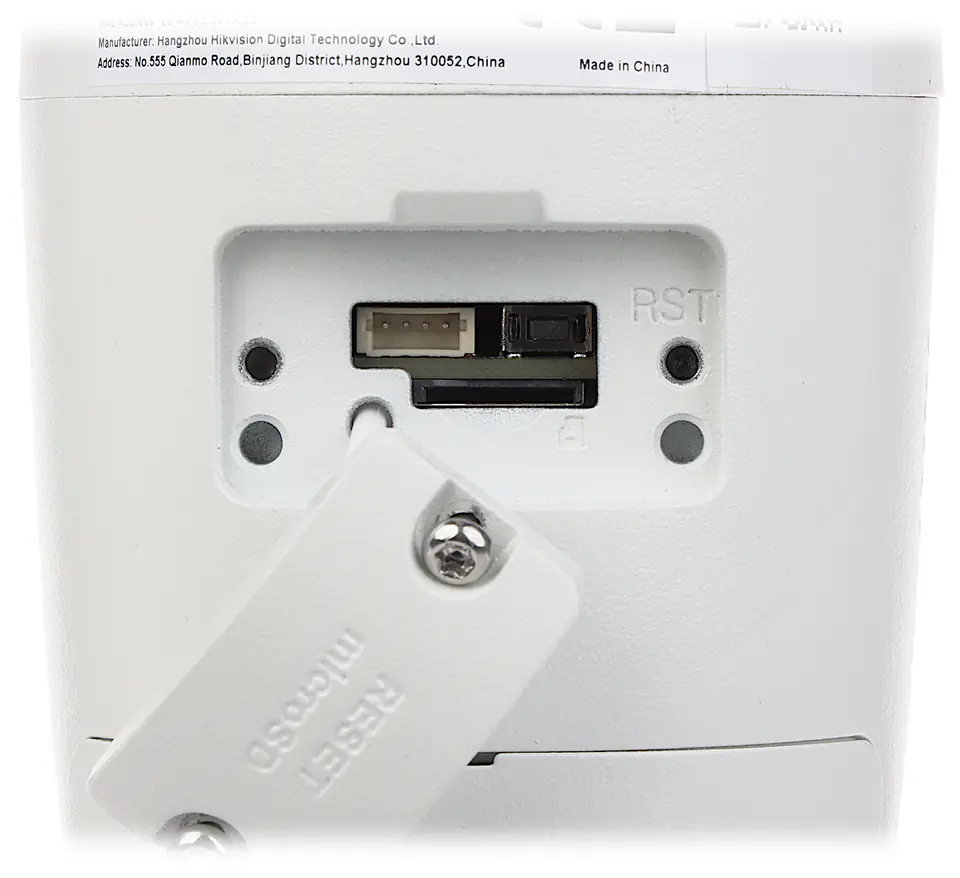

| Memory card slot: | Micro SD card support up to 256GB (local recording possible) |
| Minimum illumination: | 0.003 lx |
| Mirror: | Yes |
| Mobile app access port: | 8000 |
| Mobile phone access: | Port: 8000 or cloud access (P2P) Android: Free Hik-Connect app iOS: Free Hik-Connect app |
| Mounting type: | Ceiling/wall |
| Network interface: | 10/100 Base-T (RJ-45) |
| Network protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, IEEE 802.1x, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP |
| Networking standards: | IEEE 802.1x, IEEE 802.3af |
| Night vision: | Yes |
| Night vision distance: | 40 m |
| Noise reduction: | Yes |
| Noise reduction technology: | 3D noise reduction |
| Number of cameras: | 1 |
| Number of languages: | 33 |
| Number of lenses: | 1 |
| Number of sensors: | 1 |
| Number of users: | 32 user(s) |
| Objective: | 2.8 mm |
| Onvif: | 18.12 |
| Operating relative humidity (h-h): | 0 - 95% |
| Operating temperature: | -30 °C ... 60 °C |
| Operating temperature (t-t): | -30 - 60 °C |
| Optical sensor size: | 25.4 / 3 mm (1 / 3") |
| Package depth: | 120 mm |
| Package height: | 117 mm |
| Package weight: | 820 g |
| Package width: | 234 mm |
| Pan range: | 0 - 360° |
| Password protection: | Yes |
| Pc app access ports: | Port: 8000 or access via cloud (P2P) - iVMS-4200 application |
| Placement supported: | Outdoor |
| Port onvif: | 80 |
| Power: | PoE (802.3af), 12 V DC / 540 mA |
| Power consumption: | ≤ 8 W @ PoE (802.3af) ≤ 6.5 W @ 12 V DC |
| Power consumption (max): | 6.5 W |
| Power consumption (power over ethernet (poe)): | 8 W |
| Power source type: | DC, PoE |
| Privacy masking: | Yes |
| Producer / brand: | Hikvision |
| Product colour: | White |
| Progressive scan: | Yes |
| Quality of service (qos) support: | Yes |
| Recognize distance (wide): | 12 m |
| Region of interest (roi) encoding: | Yes |
| Reset button: | Yes |
| Resolution: | 2688 x 1520 - 4 MP, 1920 x 1080 - 1080p, 1280 x 720 - 720p |
| Rtsp url: | Main stream : rtsp://user:password o@192.168.1.64:554/Streaming/Channels/101/ Secondary stream : rtsp://user:password o@192.168.1.64:554/Streaming/Channels/102/ |
| Sample rate: | 48 kHz |
| Sap code: | 311315249 |
| Scales: | 0.58 kg |
| Scanning system: | Progressive |
| Sealing: | IP67 |
| Security algorithms: | TLS, HTTPS |
| Selected features: | WDR - 120 dB - Wide dynamic range of 3D-DNR lighting - Digital noise reduction in BLC/HLC image - compensation of background light / strong light ROI - improving the quality of selected parts of the image ANR - recording the image on the card in the absence of communication with the recorder (network failure) and subsequent synchronization EXIR - technology of highly effective infrared LEDs that evenly illuminate the entire scene, both the central point and corners Anti-Flicker - Eliminating technology tiring effect of image flickering Day/Night Mode ICR - Mechanical IR filter Auto white balance AGC - Automatic adjustment of image gain Ability to change resolution, quality and bandwidth Sharpness - Sharpening image contours Mirror - Image mirroring Configurable privacy zones Motion detection Filtering false alarms based on person and vehicle recognition Light and audible alarm, Intelligent image analysis : Line crossing, intrusion, area entry/exit detection, scene change, face detection, advanced face capture features |
| Sensor size: | 4 MP |
| Sensor type: | CMOS |
| Standard: | TCP/IP |
| Storage relative humidity (h-h): | 0 - 95% |
| Storage temperature (t-t): | -30 - 60 °C |
| Supported graphics resolutions: | 640 x 480 (VGA), 640 x 360, 1920 x 1080 (HD 1080), 2688 x 1520, 1280 x 720 (HD 720) |
| Supported languages: | Polish, Bulgarian, Croatian, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Hungarian, Italian, Latvian, Lithuanian, Norwegian, Portuguese, Romanian, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Turkish, Ukrainian |
| Supported network protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| Sustainability certificates: | REACH, CE |
| Tilt angle range: | 0 - 90° |
| Total megapixels: | 4 MP |
| Transducer: | 1/3" Progressive Scan CMOS |
| Type: | IP security camera |
| Video compression formats: | H.265, H.264, H.265+, H.264+, M-JPEG |
| Video motion detection: | Yes |
| Video streaming: | Yes |
| Viewing angle: | 103°(manufacturer data) 100° (our tests) |
| Voice codecs: | G.711alaw, G.726, G.711ulaw, G.722.1, AAC, PCM |
| Warranty: | 3 years |
| Web access ports: | 80 |
| Web browser: | Yes |
| Web server: | Built-in |
| Web-based management: | Yes |
| Weight: | 590 g |
| Wi-fi: | No |
| Wide dynamic range (wdr): | Yes |
| Width: | 72.9 mm |
IP camera with efficient H.264 / H.265 image compression algorithm for clear and smoother image transmission at maximum resolution of 4 MPx
The ability to power PoE in accordance with the 802.3af standard makes the device even more versatile and easier to install
The camera meets the IP67Powered by Darkfighter protection class - the camera has very good sensitivity, dedicated to low light conditions
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
