| Access from a mobile phone:: | Port: 8000 or cloud access (P2P) Android: Free Hik-Connect iOS app: Free Hik-Connect app |
|---|---|
| Case:: | Compact, Metal |
| Colour:: | white |
| Compression:: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Default administrator login / password:: | admin / -Administrator password should be set at first startup |
| Default ip address:: | 192.168.1.64 |

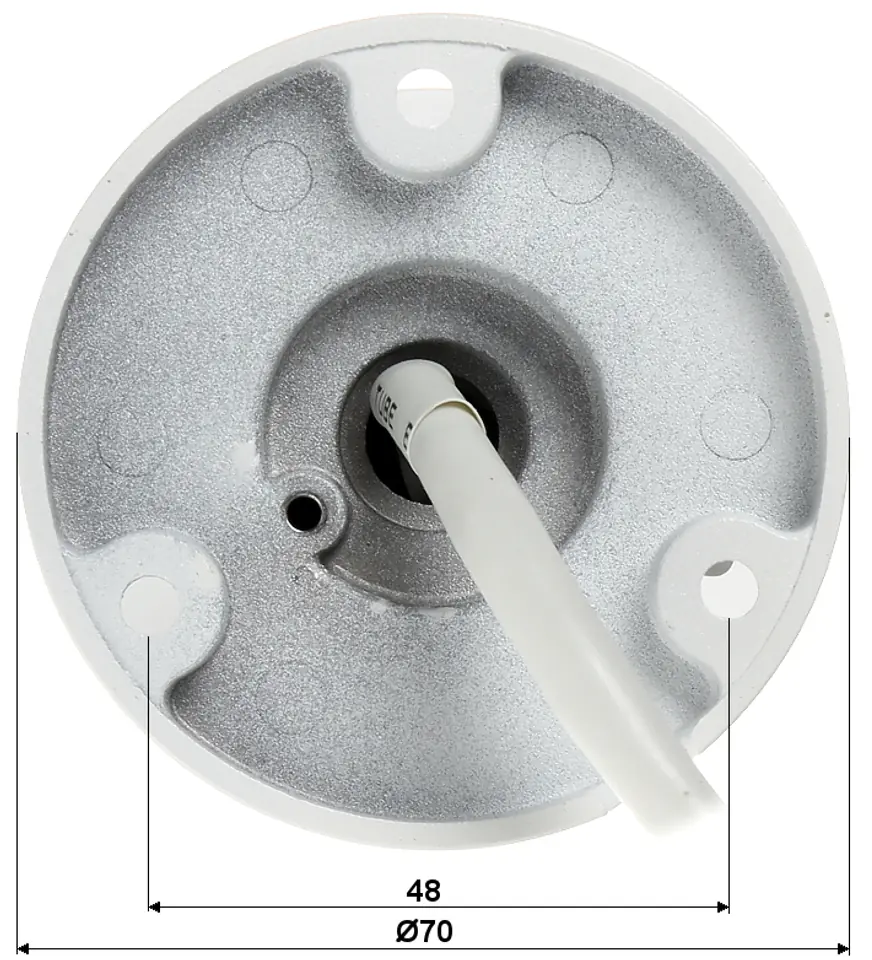

| Dimensions:: | Ø 70 x 162 mm |
| Ir illuminator range:: | 40 m |
| Main stream transmission speed:: | 25 fps @ 4 Mpx |
| Manufacturer / brand:: | Hikvision |
| Matrix size:: | 4 Mpx |
| Max. number of on-line users:: | 6 |

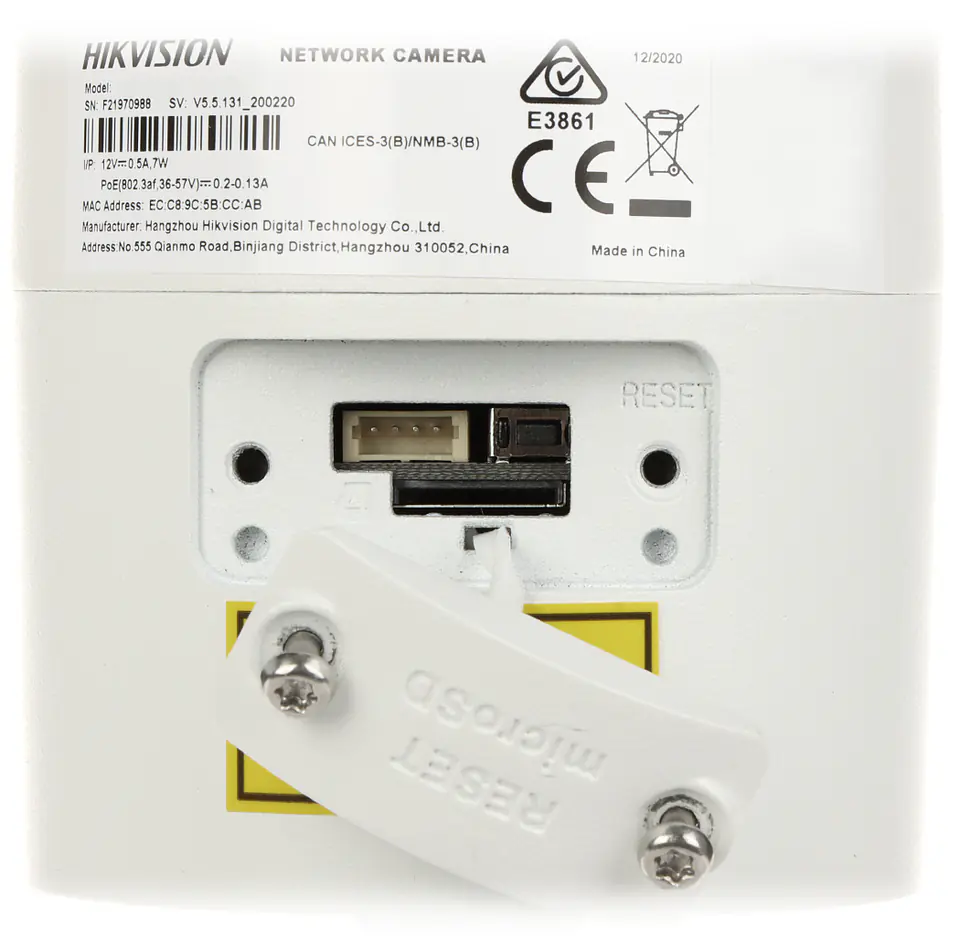

| Memory card slot:: | Supports Micro SD cards up to 256GB (local write possible) |
| Network interface:: | 10/100 Base-T (RJ-45) |
| Network protocols:: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, IEEE 802.1x, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE |
| Objective:: | 4 mm |
| Onvif port:: | 80 |
| Onvif:: | 18.12 |
| Operating temperature :: | -30 °C ... 60 °C |
| Port of access via mobile application:: | 8000 |
| Ports for access via the pc application:: | Port: 8000 or Cloud Access (P2P) - iVMS-4200 Application |
| Power consumption:: | ≤ 7 W @ PoE (802.3af) ≤ 6 W @ 12 V DC |
| Power:: | PoE (802.3af), 12 V DC / 500 mA |
| Resolution:: | 2688 x 1520 - 4 Mpx ,1920 x 1080 - 1080p ,1280 x 720 - 720p |
| Rtsp url:: | Main stream : rtsp://user:password o@192.168.1.64:554/Streaming/Channels/101/ Substream: rtsp://user:password o@192.168.1.64:554/Streaming/Channels/102/ |
| Sap code:: | 311313536 |
| Scales:: | 0.49 kg |
| Scanning system:: | Progressive |
| Sealing:: | IP67 |
| Selected features:: | WDR - 120 dB - Wide dynamic range of 3D-DNR lighting - Digital noise reduction in BLC/HLC image - compensation of background light / strong ROI light - improving the quality of selected parts of the ANR image - recording the image on the card in the absence of communication with the recorder (network failure) and subsequent SYNCHRONIZATION EXIR - technology of highly effective infrared DIODES that evenly illuminate the entire scene, both the central point and the corners of The Anti-Flicker - Elimination technology eye-tiring flickering effect Day/night mode ICR - WB mechanical IR filter - AGC white balance - Automatic adjustment of image gain Ability to change resolution, quality and throughput Sharpness - Sharpen image contours Customizable privacy zones Motion detection Mirror - Image mirrorIng False alarm filtering based on people and vehicle recognition Intelligent Image Analysis : line crossing, intrusion - classification people and vehicles, face detection |
| Standard:: | TCP/IP |
| Supported languages:: | Polish, Bulgarian, Croatian, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Hungarian, Italian, Latvian, Lithuanian, Norwegian, Portuguese, Romanian, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Turkish, Ukrainian, Vietnamese |
| Transducer:: | 1/3" Progressive Scan CMOS |
| Viewing angle:: | 84° (manufacturer data) 80° (our tests) |
| Warranty:: | 3 years |
| Web access ports:: | 80 |
| Web server:: | Built-in |
IP camera with efficient H.265 / H.264 image compression algorithm for clearer and smoother image transmission at a maximum resolution of 4 MPx
The ability to power PoE, in accordance with the 802.3af standard, makes the device even more versatile and easier to install
The camera meets the IP67 Protection ClassPowered by Darkfighter - the camera has very good sensitivity, dedicated to low light conditions
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
