| Angle of rotation: | 360° |
|---|
| Anti-flicker: | Yes |
|---|
| Back light compensation (blc): | Yes |
|---|
| Behavior analysis: | Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection |
|---|
| Bit rate: | 32 Kbps - 8 Mbps |
|---|
| Bit rate control: | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
|---|
| Bluetooth: | No |
|---|
| Built-in hdd: | No |
|---|
| Camera pan control: | Yes |
|---|
| Camera shutter speed: | 1/3 - 1/100000 s |
|---|
| Camera tilt control: | Yes |
|---|
| Card reader integrated: | Yes |
|---|
| Case: | Compact, Metal |
|---|
| Closest focusing distance: | 1.7 m |
|---|
| Colour: | white |
|---|
| Compatible memory cards: | MicroSDXC, MicroSDHC, MicroSD (TransFlash) |
|---|
| Connectivity technology: | Wired |
|---|
| Day/night mode: | Yes |
|---|
| Dc output current: | 0.5 A |
|---|
| Dc output voltage: | 12 |
|---|
| Default administrator login / password: | admin / -Administrator password must be set on first run |
|---|
| Default ip address: | 192.168.1.64 |
|---|
| Depth: | 78.6 mm |
|---|
| Detect distance (wide): | 46 m |
|---|
| Dimensions: | 215 x 79 x 79 mm |
|---|
| Ethernet interface type: | Fast Ethernet |
|---|
| Ethernet lan: | Yes |
|---|
| Ethernet lan (rj-45) ports: | 1 |
|---|
| Fixed focal length: | 2.8 mm |
|---|
| Form factor: | Bullet |
|---|
| Frame rate: | 30 fps |
|---|
| Heartbeat: | Yes |
|---|
| Highlight compensation (hlc): | Yes |
|---|
| Housing material: | Metal |
|---|
| Https encryption: | Yes |
|---|
| Identify distance (wide): | 4 m |
|---|
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
|---|
| Image quality adjustment: | Contrast, Brightness, Sharpness, Saturation |
|---|
| Infrared (ir) cut-off filter: | Yes |
|---|
| Intelligent video surveillance (ivs) system features: | Scene change |
|---|
| International protection (ip) code: | IP67 |
|---|
| Ip address filtering: | Yes |
|---|
| Languages support: | Norwegian, Finnish, Danish, Slovak, German, Polish, Japanese, Russian, Estonian, Portuguese, Slovenian, Ukrainian, LAT, English, Greek, Bulgarian, Swedish, Dutch, Czech, Spanish, Hungarian, Italian, Traditional Chinese, Korean, Romanian, SER, Lithuanian, Turkish, Thai, French, Vietnamese |
|---|
| Length: | 21.5 cm |
|---|
| Lens viewing angle, diagonal: | 127° |
|---|
| Lens viewing angle, horizontal: | 107° |
|---|
| Lens viewing angle, vertical: | 56° |
|---|
| Main stream transmission speed: | 25 fps @ 1080p |
|---|
| Max. number of on-line users: | 6 |
|---|
| Maximum aperture number: | 1 |
|---|
| Maximum memory card size: | 256 GB |
|---|
| Maximum resolution: | 1920 x 1080 pixels |
|---|

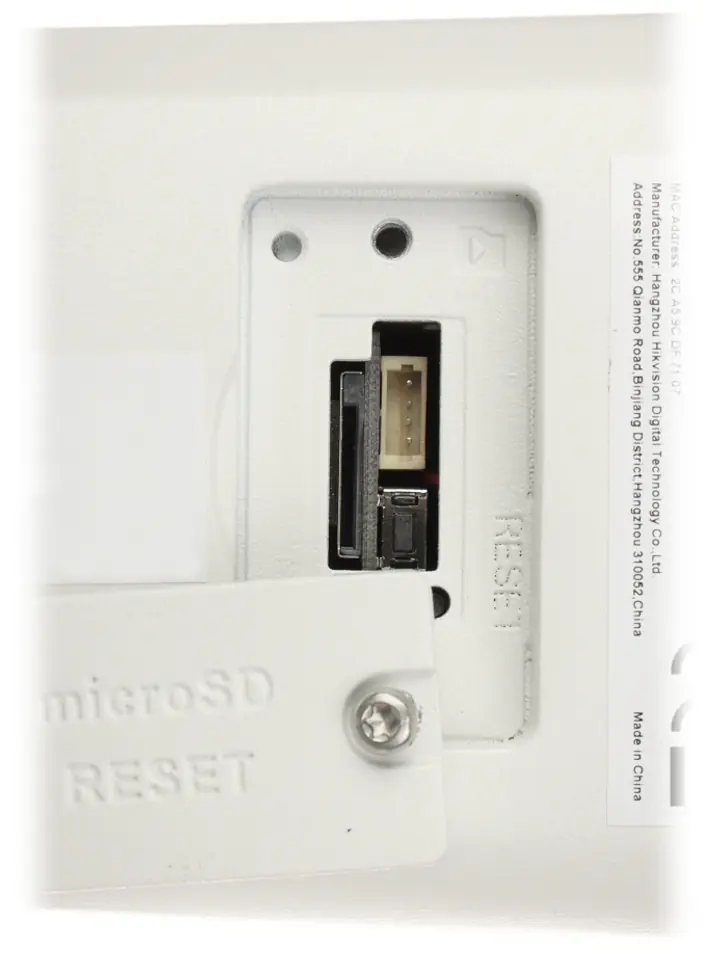

| Memory card slot: | Micro SD card support up to 256GB (local recording possible) |
|---|
| Mirror: | Yes |
|---|
| Mobile app access port: | 8000 |
|---|
| Mobile phone access: | Port: 8000 or cloud access (P2P) Android: Free Hik-Connect app iOS: Free Hik-Connect app |
|---|
| Mounting type: | Ceiling/wall |
|---|
| Network interface: | 10/100 Base-T (RJ-45) |
|---|
| Network protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, IEEE 802.1x, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP |
|---|
| Networking standards: | IEEE 802.1x, IEEE 802.3af |
|---|
| Night vision: | Yes |
|---|
| Night vision distance: | 40 m |
|---|
| Noise reduction: | Yes |
|---|
| Noise reduction technology: | 3D noise reduction |
|---|
| Number of cameras: | 1 |
|---|
| Number of languages: | 33 |
|---|
| Number of lenses: | 1 |
|---|
| Number of sensors: | 1 |
|---|
| Number of users: | 32 user(s) |
|---|
| Objective: | 2.8 mm |
|---|
| Observe distance (wide): | 18 m |
|---|
| Onvif: | 18.12 |
|---|
| Operating relative humidity (h-h): | 0 - 95% |
|---|
| Operating temperature: | -30 °C ... 60 °C |
|---|
| Operating temperature (t-t): | -30 - 60 °C |
|---|
| Optical sensor size: | 25.4 / 2.8 mm (1 / 2.8") |
|---|
| Package depth: | 137 mm |
|---|
| Package height: | 141 mm |
|---|
| Package weight: | 1 kg |
|---|
| Package width: | 315 mm |
|---|
| Pan range: | 0 - 360° |
|---|
| Password protection: | Yes |
|---|
| Pc app access ports: | Port: 8000 or access via cloud (P2P) - iVMS-4200 application |
|---|
| Placement supported: | Outdoor |
|---|
| Port onvif: | 80 |
|---|
| Power: | PoE (802.3af), 12 V DC / 500 mA |
|---|
| Power consumption: | ≤ 7.5 W @ PoE ≤ 6 W @ 12 V DC |
|---|
| Power consumption (max): | 6 W |
|---|
| Power consumption (power over ethernet (poe)): | 7.5 W |
|---|
| Power source type: | DC, PoE |
|---|
| Privacy masking: | Yes |
|---|
| Producer / brand: | Hikvision |
|---|
| Product colour: | White |
|---|
| Progressive scan: | Yes |
|---|
| Quality of service (qos) support: | Yes |
|---|
| Range of white light illuminator (led): | 40 m |
|---|
| Recognize distance (wide): | 9 m |
|---|
| Region of interest (roi) encoding: | Y |
|---|
| Reset button: | Yes |
|---|
| Resolution: | 1920 x 1080 - 1080p1280 x 720 - 720p |
|---|
| Rtsp url: | Main stream : rtsp://user:password o@192.168.1.64:554/Streaming/Channels/101/ Secondary stream : rtsp://user:password o@192.168.1.64:554/Streaming/Channels/102/ |
|---|
| Sap code: | 311315554 |
|---|
| Scales: | 0.69 kg |
|---|
| Sealing: | IP67 |
|---|
| Selected features: | Possibility to turn off the WDR LED illuminator - 120 dB - Wide dynamic range of 3D-DNR lighting - Digital noise reduction in the image ROI - improving the quality of selected parts of the image Anti-Flicker - Technology eliminating the tiring effect of image flickering BLC - backlight compensation (background) HLC - Strong light compensation (spot) WB - White balance AGC - Automatic adjustment of image gain Ability to change resolution, quality and bandwidth Mirror - Reflection Mirrored image Configurable privacy zones Sharpness - Sharpen image contours Motion detection False alarm filtering based on person and vehicle recognition Intelligent image analysis: line crossing, intrusion, scene change, area entry detection/exit detection, face detection |
|---|
| Sensor size: | 2.1 MP |
|---|
| Sensor type: | CMOS |
|---|
| Standard: | TCP/IP |
|---|
| Storage relative humidity (h-h): | 0 - 95% |
|---|
| Storage temperature (t-t): | -30 - 60 °C |
|---|
| Supported graphics resolutions: | 640 x 360, 1920 x 1080 (HD 1080), 640 x 480 (VGA), 1280 x 720 (HD 720) |
|---|
| Supported languages: | Polish, Bulgarian, Croatian, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Hungarian, Italian, Latvian, Lithuanian, Norwegian, Portuguese, Romanian, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Turkish, Ukrainian |
|---|
| Sustainability certificates: | CE, REACH |
|---|
| Tilt angle range: | 0 - 90° |
|---|
| Total megapixels: | 2 MP |
|---|
| Transducer: | 1/2.8" Progressive Scan CMOS |
|---|
| Type: | IP security camera |
|---|
| Video compression formats: | H.265+, H.265, M-JPEG, H.264+, H.264 |
|---|
| Video motion detection: | Yes |
|---|
| Video streaming: | Yes |
|---|
| Viewing angle: | 107°(Manufacturer data) 102° (Our Tests) |
|---|
| Warranty: | 3 years |
|---|
| Web access ports: | 80 |
|---|
| Web server: | Built-in |
|---|
| Web-based management: | Yes |
|---|
| Weight: | 680 g |
|---|
| Wi-fi: | No |
|---|
| Wide dynamic range (wdr): | Yes |
|---|
| Width: | 78.8 mm |
|---|
