| Audio: | Built-in microphone, Network audio |
|---|---|
| Case: | Mini - Metal |
| Colour: | Black |
| Default administrator login / password: | admin / admin |
| Default ip address: | 192.168.1.168 |
| Dimensions: | 37.5 x 37.5 x 33 mm |
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Main stream transmission speed: | 25 fps - 4 Mpx |
| Max. number of on-line users: | 10 |
| Memory card slot: | Micro SD card support up to 512GB (local recording possible) |
| Mobile app access port: | 80 |
| Mobile phone access: | Port: 80 or cloud access (P2P) Android: Free BitVision app iOS (iPhone): Free BitVision app |
| Network interface: | 10/100 Base-T (RJ-45) Wi-Fi - IEEE 802.11 b/g/n |
| Network protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, SMTP, UDP |
| Objective: | 2.8 mm |
| Onvif: | 2.4 |
| Operating temperature: | -20 °C ... 60 °C |
| Pc app access ports: | 80 |
| Port onvif: | 80 |
| Power: | 12 V DC / 190 mA |
| Power consumption: | ≤ 2.3 watts |
| Producer / brand: | APTI |
| Resolution: | 2688 x 1512 - 4 Mpx, 2560 x 1440 - 3.7 Mpx, 1920 x 1080 - 1080p, 1280 x 720 - 720p |
| Rtsp url: | rtsp://user:password@ip_address:80/0 - Main streamrtsp://user:password@ip_address:80/1 - Secondary stream |
| S/n ratio (s/n): | 60 dB |
| Scales: | 0.12 kg |
| Selected features: | Wi-Fi module - IEEE 802.11 b/g/n, Range : 50 m (open space) WDR - 120 dB - Wide dynamic range of 3D-DNR lighting - Digital noise reduction in the image BLC - backlight compensation (background) HLC - Strong (spot) light compensation ROI - improving the quality of selected parts of the image Flicker Control - Technology eliminating the eye-straining effect of flicker F-DNR (Defog) - Reduction of noise associated with precipitation Ability to change the resolution, quality and throughput Motion detection Privacy zones Configurable: brightness, contrast, saturation Mirror - Image mirroring Sharpness - Sharpening image contours Intelligent image analysis : intrusion |
| Sensitivity: | 0.01 Lux @ F1.6 |
| Sensor size: | 4 MP |
| Standard: | TCP/IP |
| Supported languages: | Polish, Bulgarian, Czech, English, French, German, Italian, Portuguese, Russian, Spanish, Turkish |
| Transducer: | 1/3" Progressive Scan CMOS |
| Viewing angle: | 89° (manufacturer data) 111° (our tests) |
| Warranty: | 2 years |
| Web access ports: | 80 |
| Web server: | Built-in |

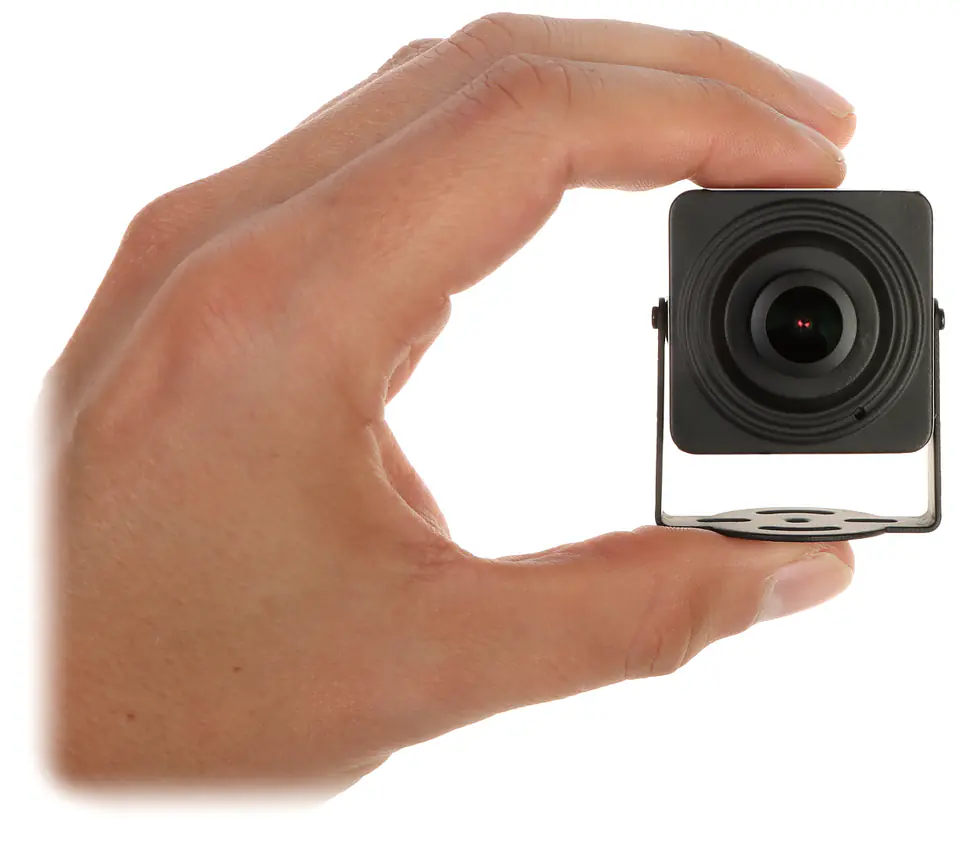

Miniature, internal camera with a very good CMOS sensorThe resolution of the sensor makes the image very detailed, so the camera can be successfully used, for example, to identify people
The Wi-Fi module used allows for remote communication with the camera for max. distance up to 50 m
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
