| Access from a mobile phone:: | Port: 80 or cloud access (P2P) Android: Free BitVision iOS app (iPhone): Free BitVision app |
|---|
| Alarm inputs / outputs:: | 1 / 1 |
|---|
| Audio:: | Built-in Microphone External Microphone Input Audio Output Support Bidirectional Audio |
|---|
| Case:: | Compact - Metal |
|---|
| Colour:: | white |
|---|
| Default administrator login / password:: | admin / admin |
|---|
| Default ip address:: | 192.168.1.168 |
|---|

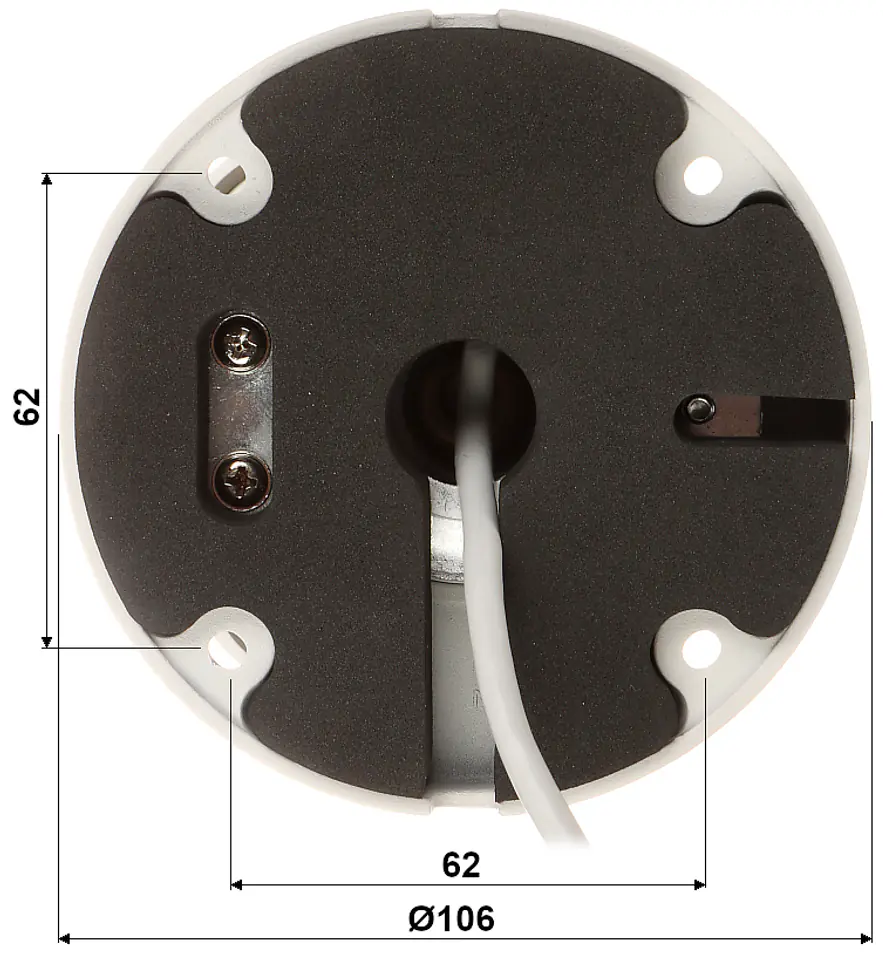

| Dimensions:: | 262 x 106 x 106 mm |
|---|
| Image compression method:: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
|---|
| Ir illuminator range:: | 40 m |
|---|
| Main stream transmission speed:: | 25 fps @ 5 Mpx |
|---|
| Manufacturer / brand:: | APTI |
|---|
| Matrix size:: | 5 Mpx |
|---|
| Max. number of on-line users:: | 10 |
|---|

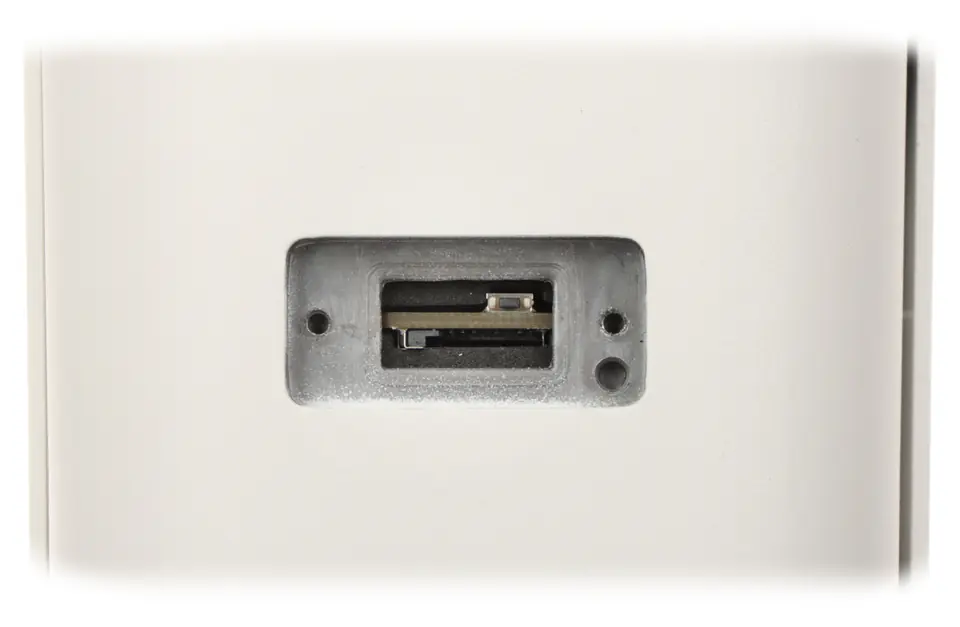

| Memory card slot:: | Supports Micro SD cards up to 512GB (local write possible) |
|---|
| Network interface:: | 10/100 Base-T (RJ-45) |
|---|
| Network protocols:: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SMTP, UDP, SNMP |
|---|
| Objective:: | 2.7 ... 13.5 mm - Motozoom |
|---|
| Onvif port:: | 80 |
|---|
| Onvif:: | 19.12 |
|---|
| Operating temperature :: | -20 °C ... 60 °C |
|---|
| Port of access via mobile application:: | 80 |
|---|
| Ports for access via the pc application:: | 80 |
|---|
| Power consumption:: | ≤ 7.1 watts |
|---|
| Power:: | PoE (802.3af), 12 V DC / 590 mA |
|---|
| Resolution:: | 2592 x 1944 - 5 Mpx ,2560 x 1440 - 3.7 Mpx ,1920 x 1080 - 1080p ,1280 x 720 - 720p |
|---|
| Rtsp url:: | rtsp://user:password@ip_address:80/0 - Main streamrtsp://user:password@ip_address:80/1 - Substream |
|---|
| Scales:: | 1.21 kg |
|---|
| Sealing:: | IP67 |
|---|
| Selected features:: | Motozoom Lens Intelligent Image Analysis: Intrusion, Line Crossing, Suspicious Activity Detection, Human Gathering Detection, Human Detection-Based Motion Detection, WDR Face Detection - 120dB - 3D-DNR Wide Dynamic Range - F-DNR Digital Image Noise Reduction (Defog) - ROI Noise Reduction - Flicker Control - Flicker Control Image Quality Enhancement - Flicker Control Technology to Eliminate Eye-Straining Flicker Effect BLC image - HLC back light (background) compensation - Strong (spot) light compensation Ability to change resolution, quality and bandwidth ICR - Mechanical IR filter Motion detection Privacy Zones Mirror - Image mirroring Day/night mode - Customizable Sharpness - Sharpen image contours |
|---|
| Standard:: | TCP/IP |
|---|
| Supported languages:: | Polish, Bulgarian, Czech, English, French, German, Italian, Portuguese, Russian, Spanish, Turkish |
|---|
| Transducer:: | 1/2.8" SONY Starvis™ Back-illuminated CMOS |
|---|
| Viewing angle:: | 95 ° ... 25° (manufacturer data) 90° ... 29° (our tests) |
|---|
| Warranty:: | 2 years |
|---|
| Web access ports:: | 80 |
|---|
| Web server:: | Built-in |
|---|
