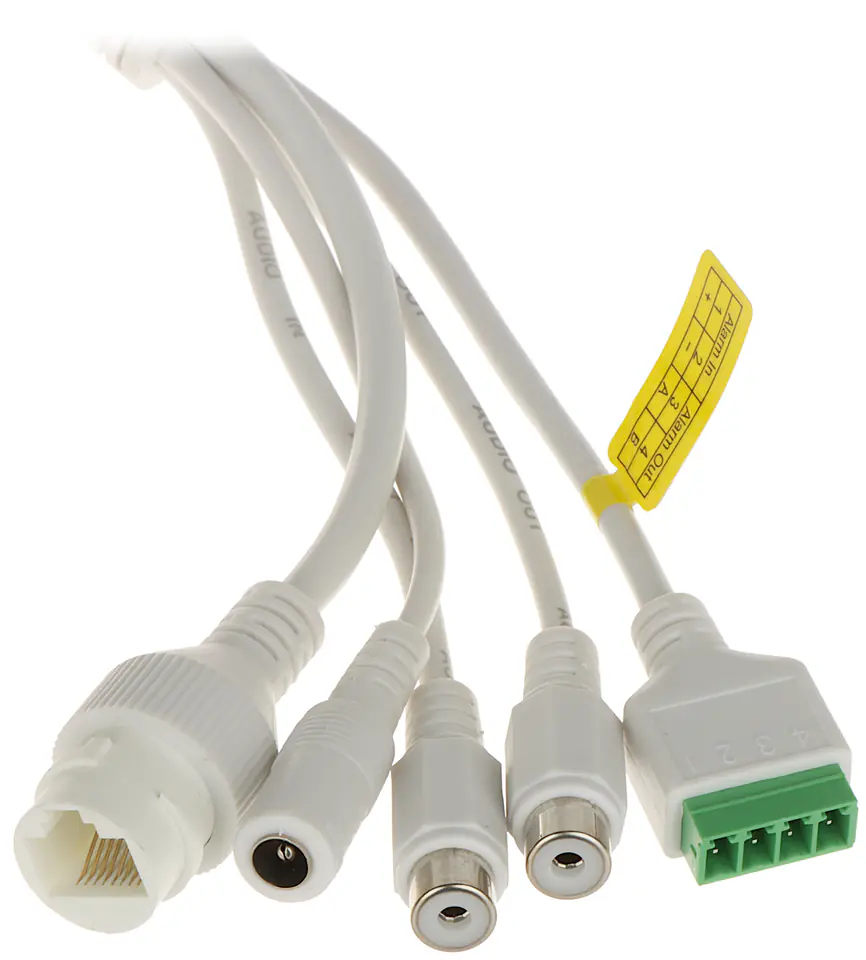

| Alarm inputs / outputs: | 1 / 1 |
|---|
| Audio: | External microphone input Audio output Support two-way audio Network audio streaming |
|---|
| Case: | Compact - Aluminum |
|---|
| Colour: | white |
|---|
| Default administrator login / password: | admin / admin |
|---|
| Default ip address: | 192.168.1.168 |
|---|

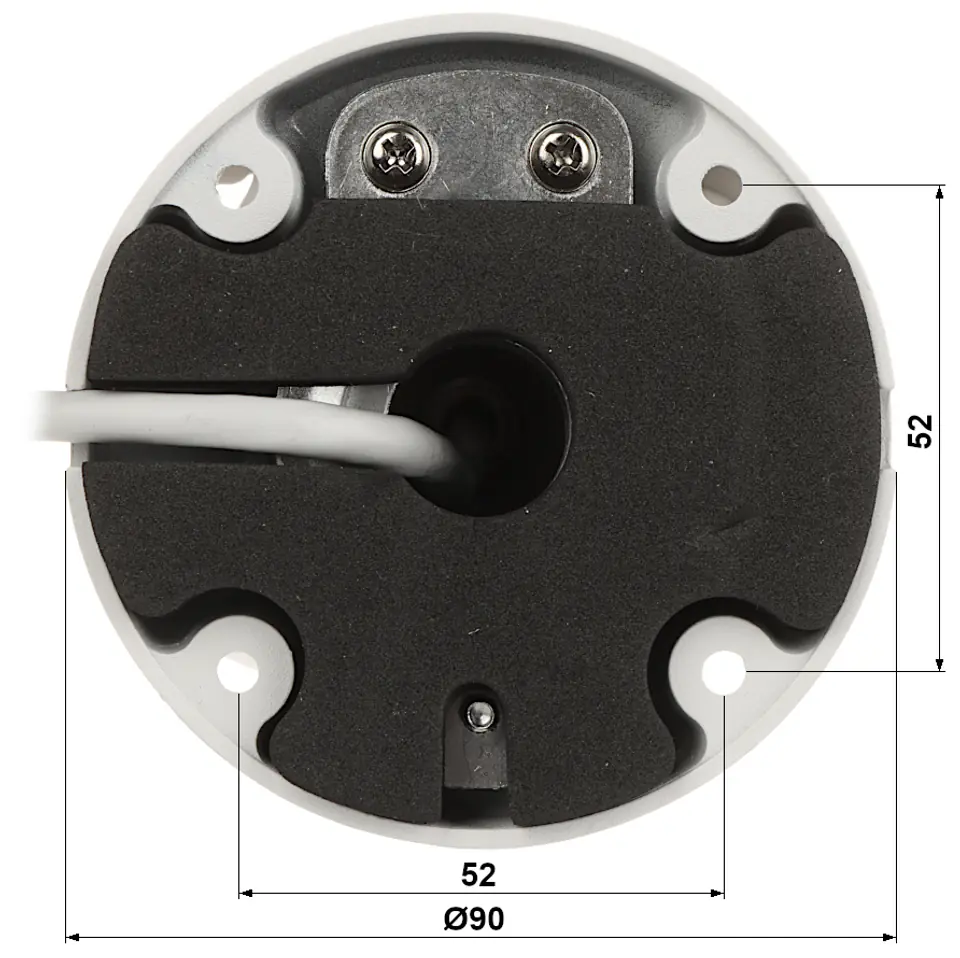

| Dimensions: | 270 x 90 x 90 mm |
|---|
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 |
|---|
| Ir illuminator range: | 60 m |
|---|
| Main stream transmission speed: | .max. 20 fps - 8 Mpxmax. 25 fps - 3.7 Mpx |
|---|
| Max. number of on-line users: | 10 |
|---|

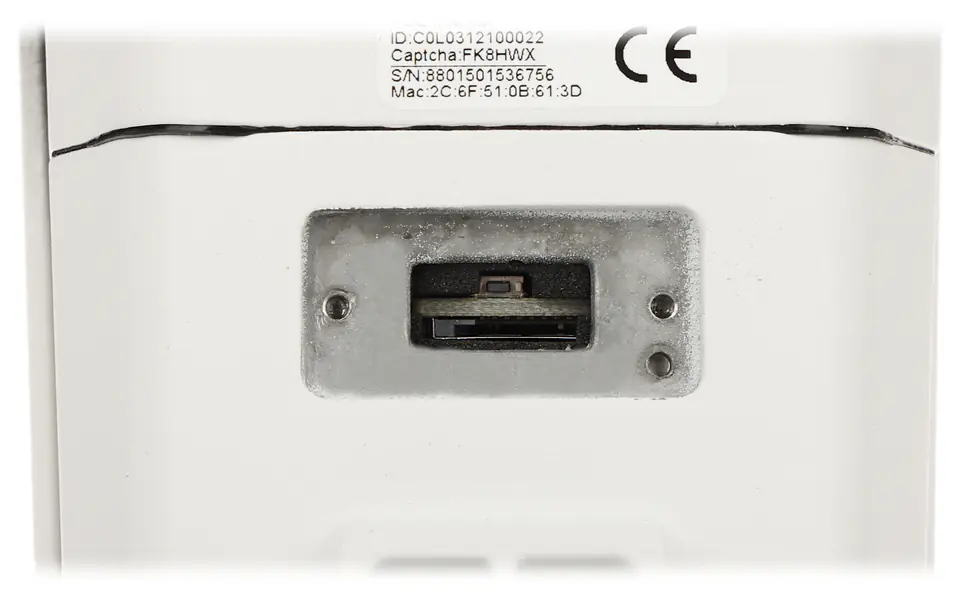

| Memory card slot: | Support for Micro SD cards up to 512GB (local recording possible) (manufacturer's data) |
|---|
| Mobile app access port: | 80 |
|---|
| Mobile phone access: | Port: 80 or cloud access (P2P) Android: Free BitVision app iOS (iPhone): Free BitVision app |
|---|
| Network interface: | 10/100 Base-T (RJ-45) |
|---|
| Network protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, SMTP, UDP, SNMP |
|---|
| Objective: | 2.7 ... 13.5 mm - Motozoom |
|---|
| Onvif: | 19.12 |
|---|
| Operating temperature: | -20 °C ... 60 °C |
|---|
| Pc app access ports: | 80 |
|---|
| Port onvif: | 80 |
|---|
| Power: | PoE (802.3af), 12 V DC / 850 mA |
|---|
| Power consumption: | ≤ 10.2 watts |
|---|
| Producer / brand: | APTI |
|---|
| Resolution: | 3840 x 2160 - 8.3 Mpx, 4K UHD, 3072 x 2048 - 6 Mpx, 2592 x 1536 - 4 Mpx, 2560 x 1440 - 3.7 Mpx, 1920 x 1080 - 1080p, 1280 x 720 - 720p |
|---|
| Rtsp url: | rtsp://user:password@ip_address:80/0 - Main streamrtsp://user:password@ip_address:80/1 - Secondary stream |
|---|
| Scales: | 1.08 kg |
|---|
| Sealing: | IP67 |
|---|
| Selected features: | WDR - 120 dB - Wide dynamic range of 3D-DNR lighting - Digital image noise reduction F-DNR (Defog) - Noise reduction associated with precipitation ROI - improving the quality of selected parts of the image HLC - Strong (spot) light compensation Ability to change resolution, quality and throughput ICR - Mechanical IR filter Day/night mode - customizable Privacy zones Mirror - Image mirroring Flicker Control - Eliminating technology eye-straining flickering effect Sharpness - Sharpening image contours Intelligent Image Analysis : intrusion, line crossing, gathering detection, face detection, motion detection based on human detection |
|---|
| Sensor size: | 8.3 MP |
|---|
| Standard: | TCP/IP |
|---|
| Supported languages: | Polish, Bulgarian, Czech, English, French, German, Italian, Portuguese, Russian, Spanish, Turkish |
|---|
| Transducer: | 1/2.8" SONY Starvis™ Back-illuminated CMOS |
|---|
| Viewing angle: | 96 ° ... 26 ° (manufacturer's data) 100 ° ... 32 (Our tests) |
|---|
| Warranty: | 2 years |
|---|
| Web access ports: | 80 |
|---|
| Web server: | Built-in |
|---|
