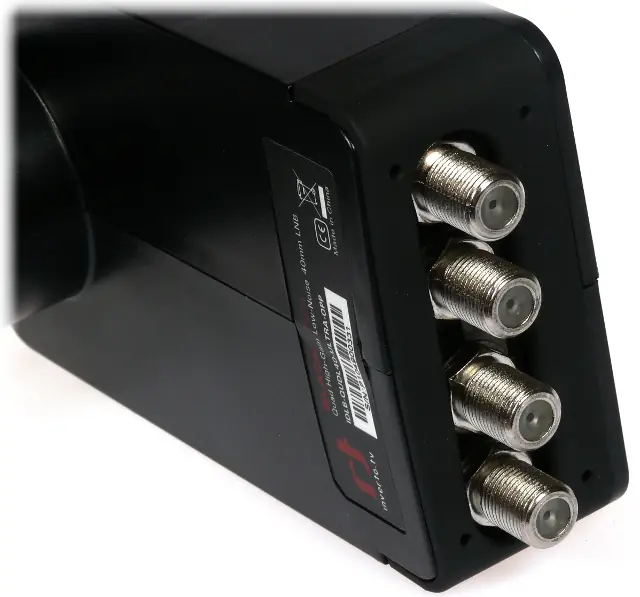

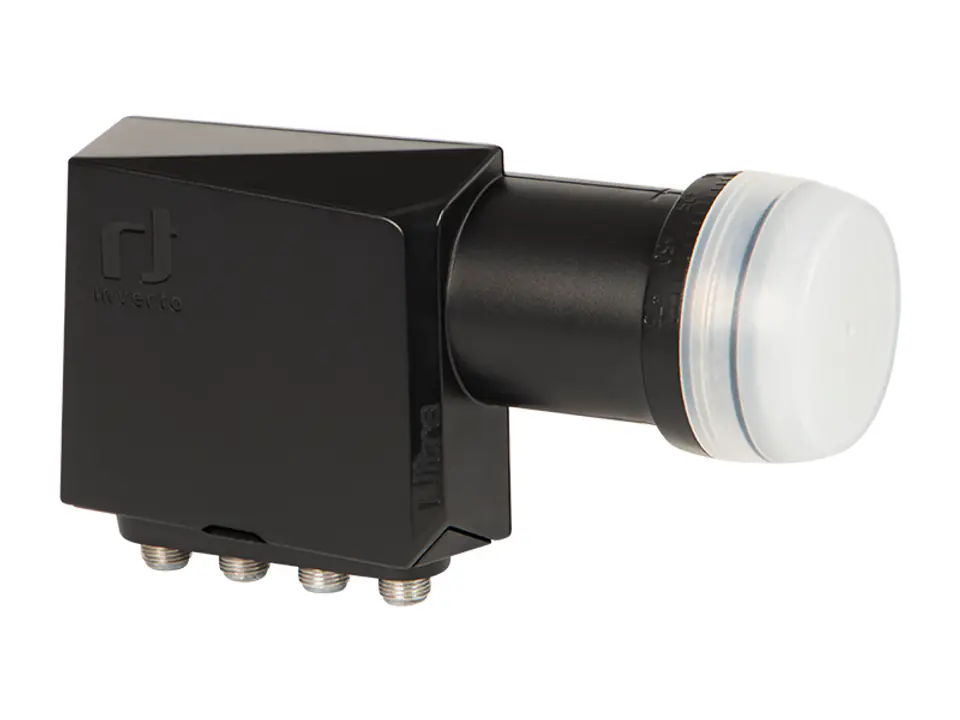

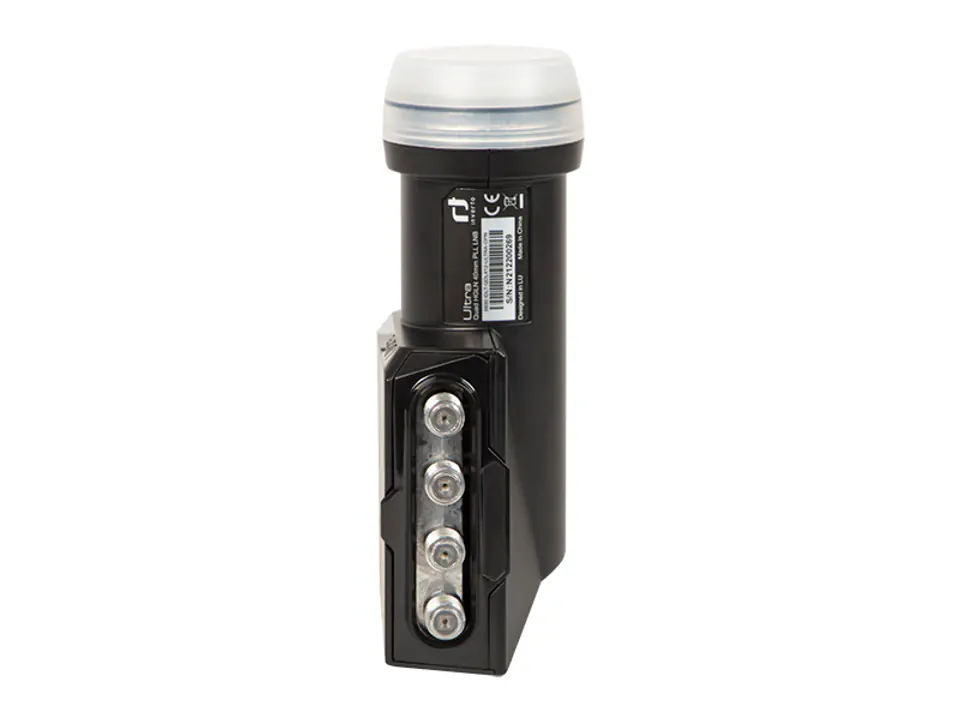

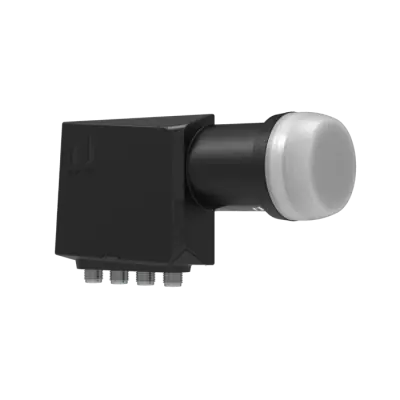

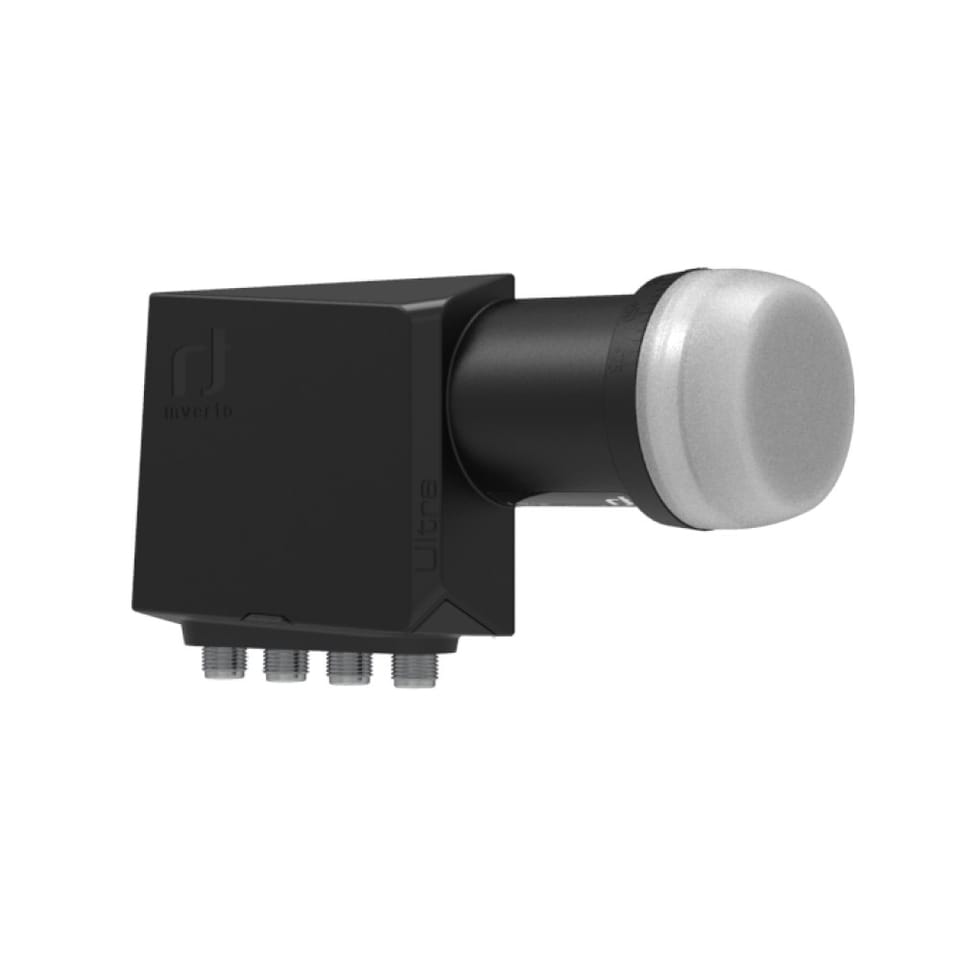

Inverto N-ULTRA-QDL412-IDLT, F, 200 mA, 177.4 g, Black, Grey, 148 x 86 x 57 mm, 306 g
€33.18
Shipping from warehouse: H7
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- KONWERTER INVERTO QUAD BLACK ULTRA / 5453002615157
Share this product:
Specification
| Bottom oscillator: | 9.75 GHz |
|---|---|
| Depth: | 142 mm |
| Height: | 78 mm |
| Housing material: | Plastic |
| Lower band (input): | 10.7 ~ 11.7 GHz |
| Lower band (output): | 950 ~ 1950 MHz |
| Maximum current consumption: | 200 mA |
| Noise level: | 0.2 dB |
| Noise level (max): | 0.7 dB |
| Operating temperature (t-t): | -30 - 60 °C |
| Package type: | Carton |
| Power supply voltage: | 11 - 20 V |
| Product colour: | Black |
| Product diameter: | 49 mm |
| Quantity per pack: | 1 pc(s) |
| Upper band (entrance): | 11.7 - 12.75 GHz |
| Upper band (output): | 1100 - 2150 MHz |
| Upper oscillator: | 10,6 GHz |
| Vswr: | 2.0:1 |
| Weight: | 344 g |
