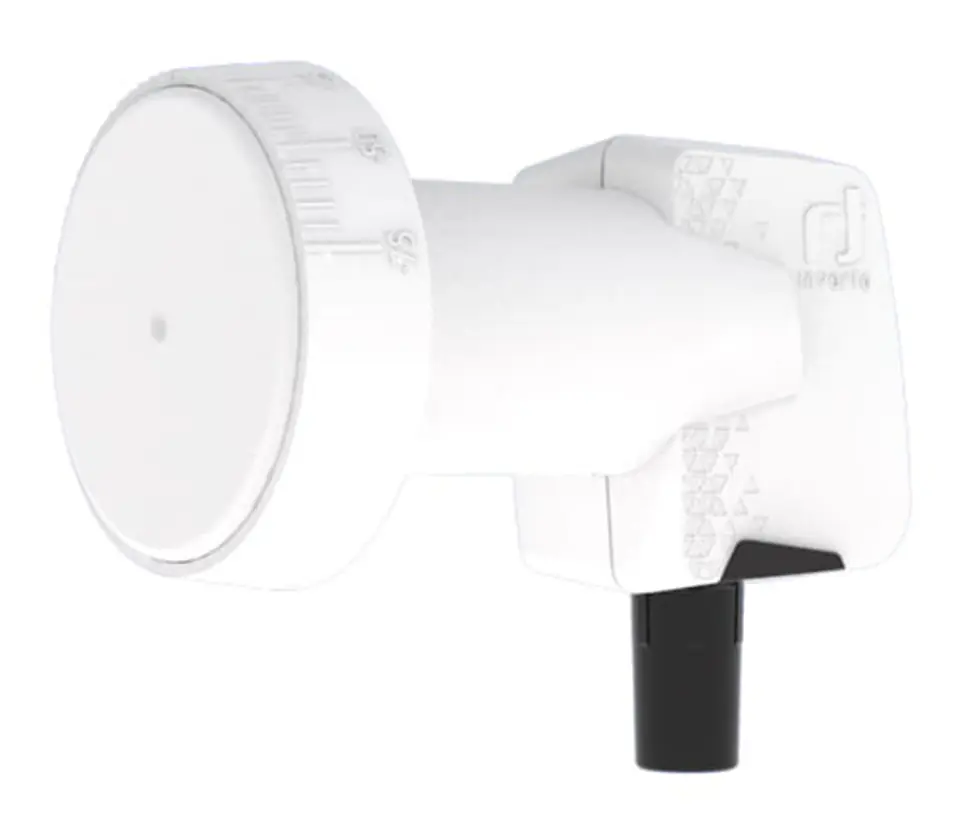

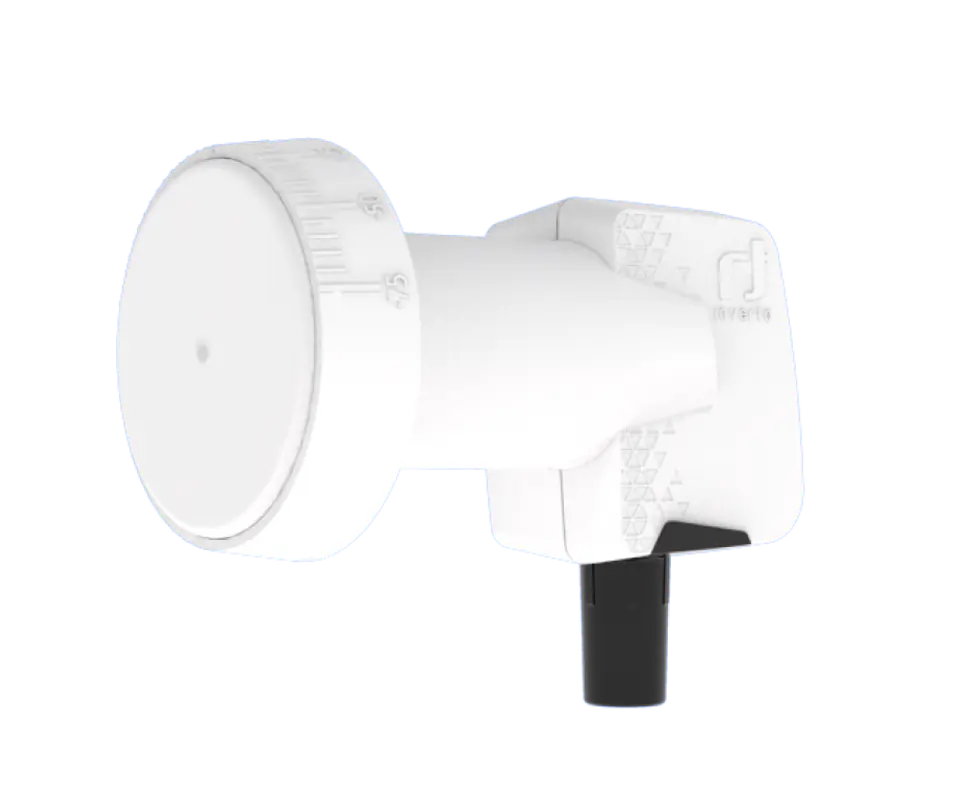

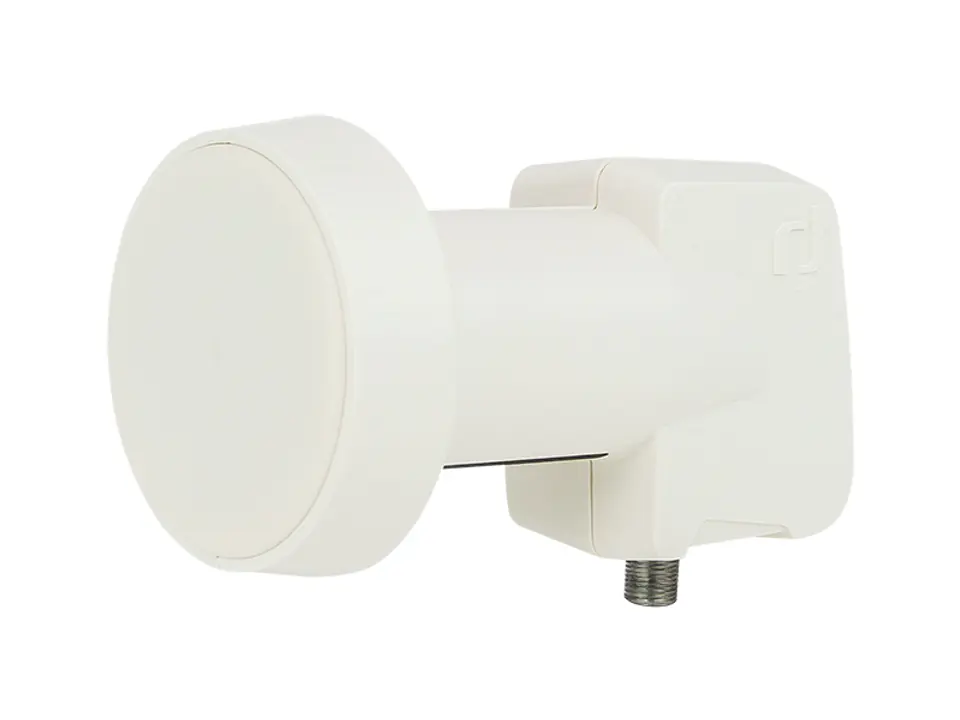

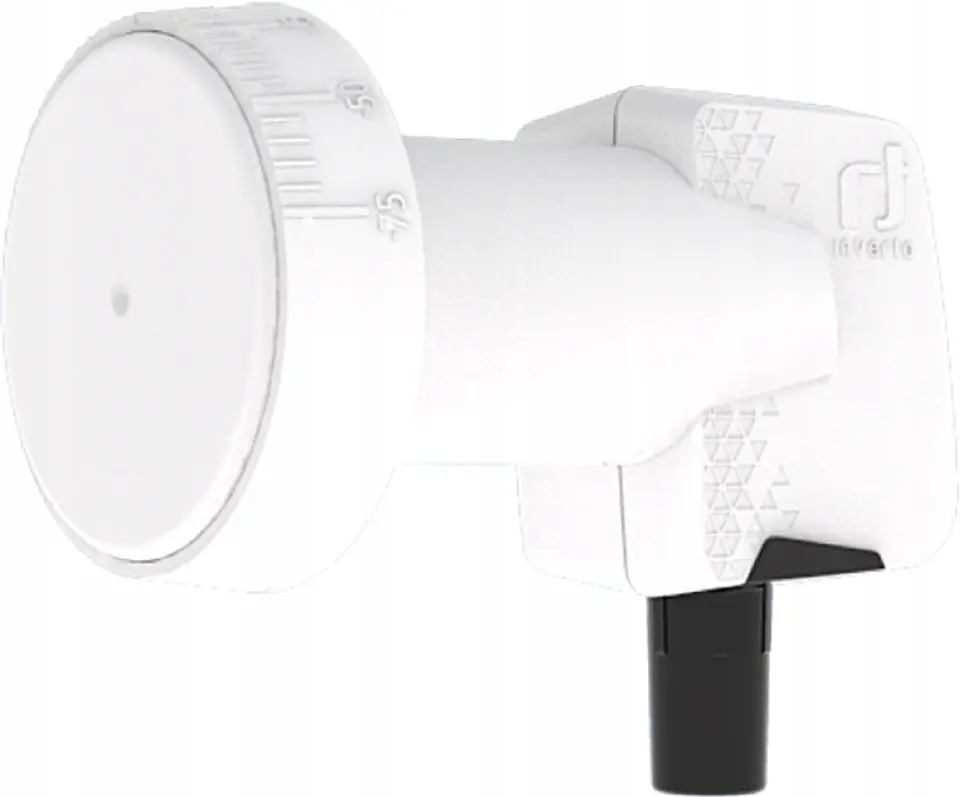

Designed specifically to meet the global DTH market's demand for a competitive and protected 4G/LTE solution, this LNB provides optimized reception capabilities using the latest chipset technology and waveguide design to receive satellite signals. It allows you to receive satellite TV from one satellite and distribute it to one Tuner Decoder. The converter supports HD and UHD transmissions, provides excellent RF performance, very low power consumption and, importantly, is designed to mitigate interference from 4G/LTE transmissions. Manufactured to the highest quality standards in the industry and designed to meet strict specifications, this converter is ideal for DTH and satellite reception operators around the world.
Main features of the single converter
Low phase noise, compatible with DVB-S2 (HD and UHD)
Low noise level
Low power consumption
High cross-polarity insulation
High frequency stability

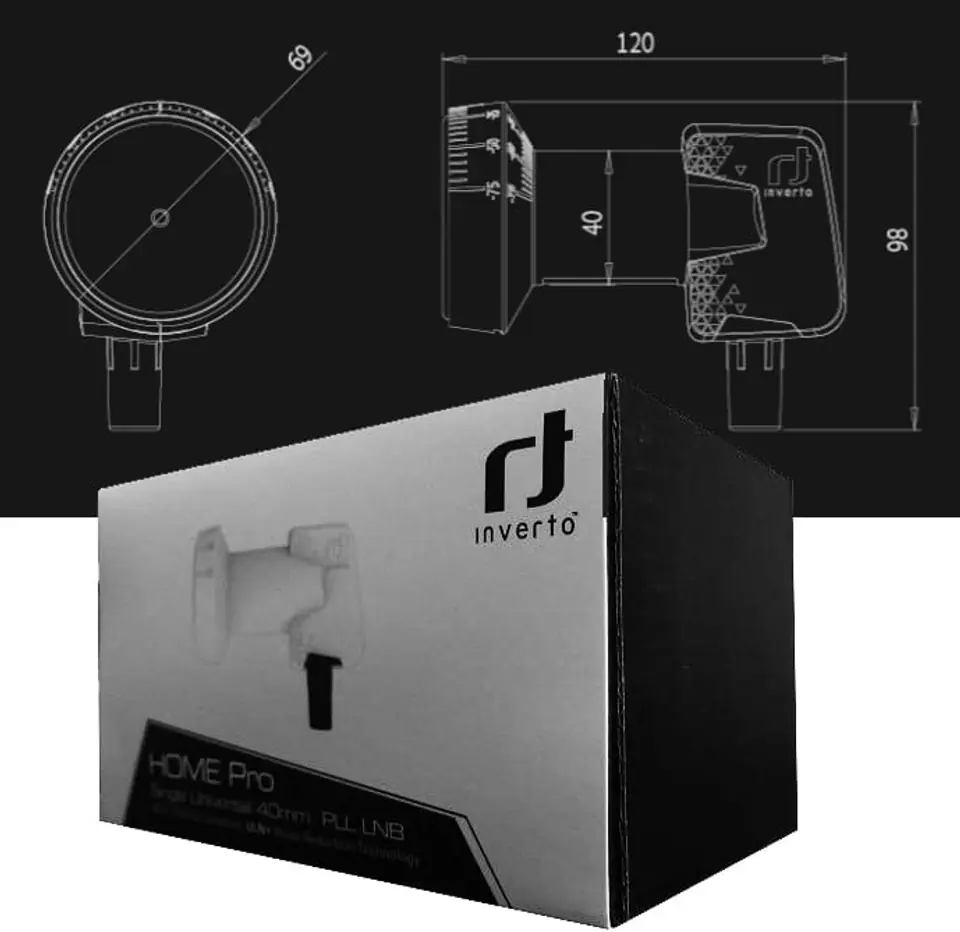

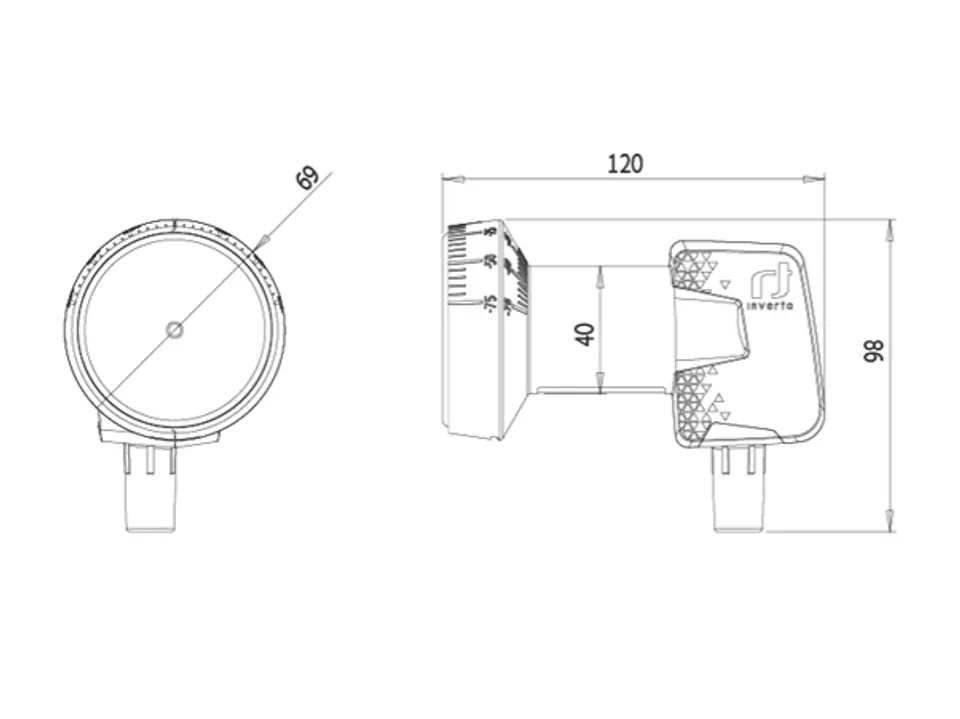

Technical specification of the satellite converter
Input frequency range 10.7GHz~12.75GHz
Output frequency range 950MHz~2150MHz
Low frequency LO band 9.75 GHz
High frequency LO band 10.6 GHz
Noise number 0.3 dB typical (max. 0.7 dB)
FREQUENCY accuracy LO at 25°C ±500 kHz max.
Temperature drift LO ±1.0 MHz max.
Phase noise LO @ 10 kHz -80 dBc/Hz max.
Conversion gain 55 dB min.
Gain ripple (26 MHz band) ±0.75 dB
Gain variability (full band) ±4 dB
Image rejection 40 dB min.
3rd order intermodulation - ICP3 10 dBm min.
1 dB (at the exit) 0 dBm min.
Cross-polarity isolation 22 dB min.
Control signal Ca(V) 11.0V~14.0V
Control signal Cb(H) 16.0V~20.0V
Cc control signal (band switching) 22 kHz ±4 kHz, 0.4V~0.8V pp
VSWR 2.5 output: 1
In the band false level -60 dBm max.
Current consumption 95 mA
Temperature -30°C~+60°C
Output impedance 75 Ω

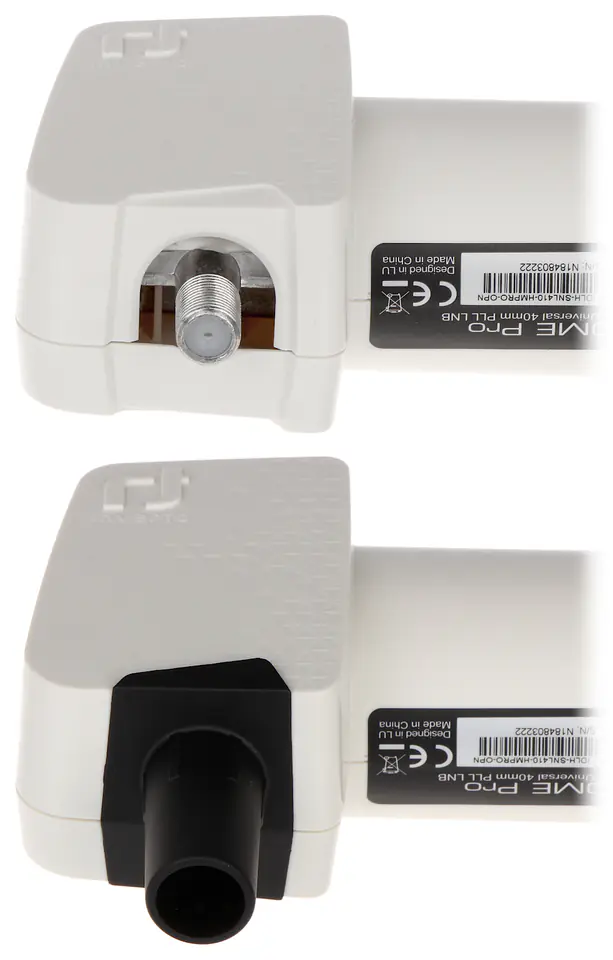

Output connector type Type F (female)
F/D dish ratio 0.6
Weight 136 g
