TECHNICAL DATA:
Power6.9 kW
Idle voltage60 V
Maximum current200 A - 40%
Operating current 60%160 A
Welding electrode diameter1.6 - 4.0
Welding current adjustment range10 - 200 A
Mains protection16 A
Rated supply voltage230 V 50Hz (1ph)
Degree of protectionIP23
FUNCTIONAL FEATURES:

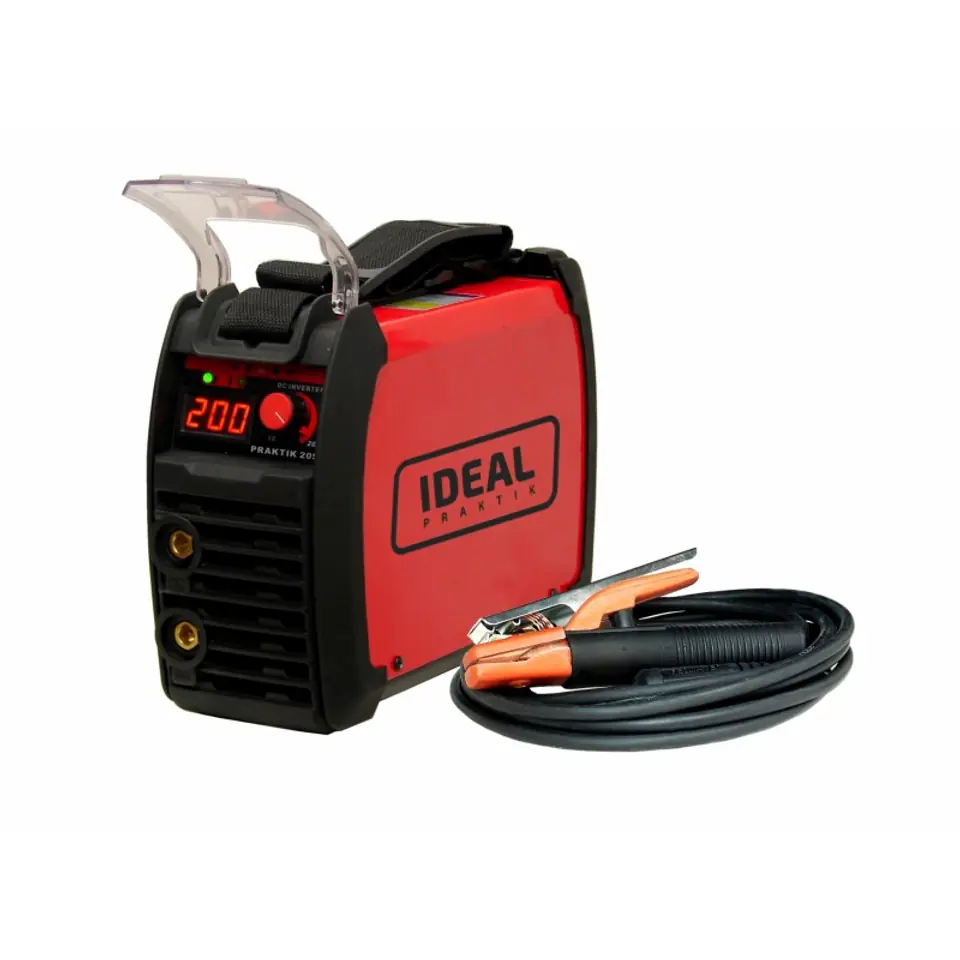

Inverter welding machine for MMA welding with a direct current (DC) coated electrode.
Single-phase power supply.
Digital welding current display.
It allows welding with rutile, alkaline, stainless steel and cast iron electrodes.
Electronically controlled smooth adjustment of welding current.
It has features that facilitate the welding process:
ANTI STICK: short-circuit - automatically turns off the welding voltage if the electrode sticks to the welded material, which facilitates its detachment and prevents the accidental formation of a welding arc.
ARC FORCE: short-circuit current adjustment - facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from being extinguished when the electrode droplet comes into contact with the welding pool.
HOT START: hot start - facilitates the ignition of the electrode by providing a larger welding current each time the arc is ignited.
Maximum diameter of the coated electrode 4.0.
Fan-cooled.
Overload protection.
STANDARD EQUIPMENT:
welding cable 1,5m,
ground cable 1,5m,
shoulder strap.
