TECHNICAL DATA:
Degree of protectionIP 20
Weight7 kg
Overall dimensions L x W x H295x300x200
Charging voltage12/24 V
Inrush current800 A
Charging current80 A
Charging current adjustment degreesDually
Rated battery capacity Ah 15h (min/max)20 - 1000 Ah
Rated inrush current EN 60335-2-29700 A
Power (charging / starting)2.5 / 14 kW
POWER SUPPLY PARAMETERS
Overload protection in the device2 x 150 A
Rated supply voltage230V-1ph 50/60 Hz
USABLE FEATURES:

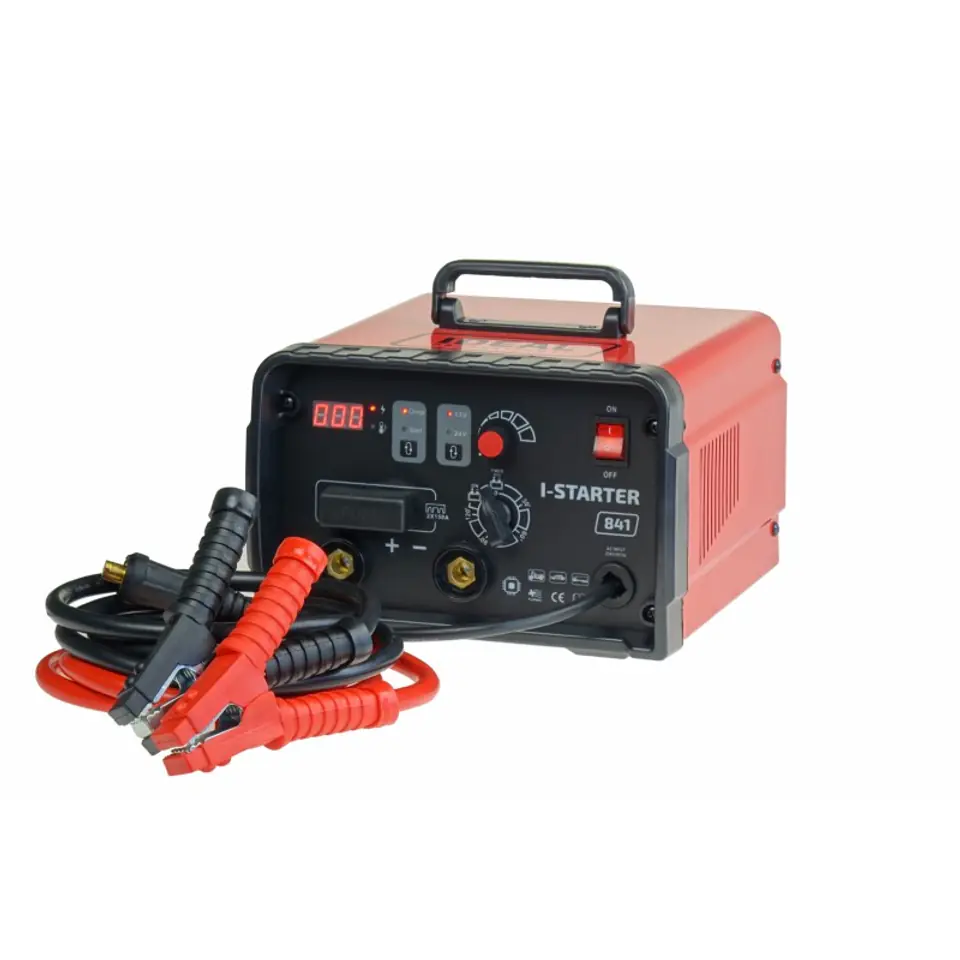

The I-STARTER 841 is an inverter rectifier for charging 12 and 24 volt acid batteries, with the function of starting cars with gasoline and diesel engines (including vans, light trucks and tractors).
The device is equipped with a digital charging current meter.
Stepless adjustment of the charging current allows the rectifier to be positioned even more accurately.
The device has a fan cooling system, which significantly increases its efficiency.
The device is equipped with protection against pole short circuit, overload and reverse polarity, which increases its reliability.
Single-phase power supply.
The device is equipped with a power plug.
The device is equipped with charging and starting cables, and a lamellar fuse.
