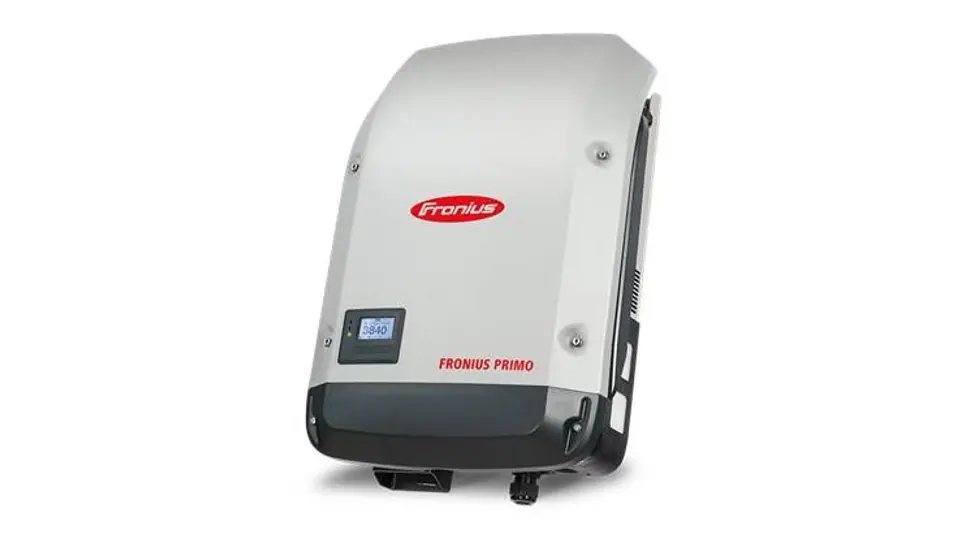

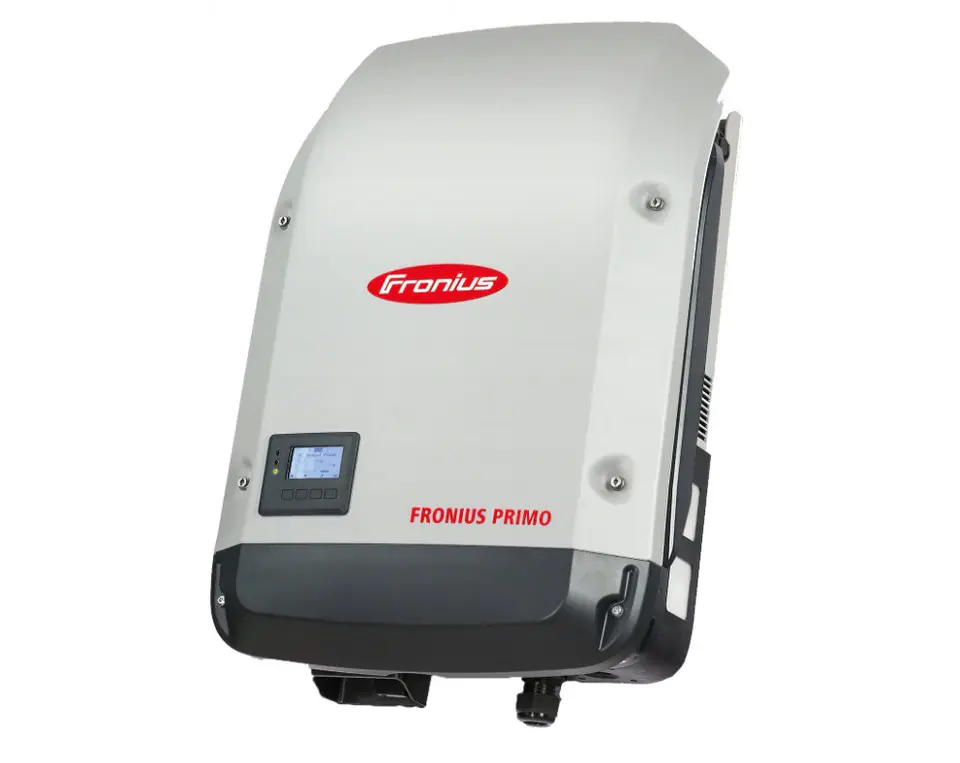

Inverter Fronius Primo 3.6-1, 3.6kW on-grid, single phase, 2 mppt, display, wifi
€1,434.40
Shipping from warehouse: A3
Estimated shipping: Fri, Mar 14 - Mon, Mar 17
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Fronius
- Product code:
- PRIMO 3.6-1 / 9007947197542
Share this product:
Specification
| Ac connection terminals: | 3-pin AC screw terminals 2.5-16 mm² |
|---|---|
| Ac voltage range: | 180 - 270 V |
| Additional information: | The Light version does not have the Datamanager card installed for data transmission |
| Built-in display: | Yes |
| Communication protocol: | Modbus-RTU |
| Connectivity: | WLAN / Ethernet LAN, USB, RS485 |
| Cooling type: | Forced air flow |
| Dc connection terminals: | 4x DC+ and 4x DC- screw terminals - 2.5-16 mm² |
| Depth: | 204 mm |
| Ethernet lan: | Yes |
| Frequency: | 50 - 60 Hz |
| Height: | 645 mm |
| Input current: | 12 A |
| Input frequency: | 50 - 60 Hz |
| Input voltage: | 80 - 1000 V |
| Input voltage range: | 80 - 1000 V |
| International protection (ip) code: | IP65 |
| Max. short-circuit current for module field: | 18 A |
| Maximum input current per phase: | 12 A |
| Maximum output power: | 3.68 VA |
| Maximum power of pv generator: | 5.5 kW |
| Mpp voltage range: | 80 - 800 V |
| Network connection: | Single-phase |
| Non-operating altitude: | 0 - 4000 m |
| Number of digital inputs: | 6 |
| Number of digital outputs: | 4 |
| Number of mpp trackers: | 2 |
| Operating temperature (t-t): | -40 - 55 °C |
| Output current: | 16 A |
| Output power: | 3680 W |
| Power consumption (idle): | 1 W |
| Power supply type: | Auto |
| Product colour: | White |
| Protection class: | I |
| Purpose: | Solar panel |
| Quantity per pack: | 1 pc(s) |
| Rated power: | 3.68 W |
| Relay output: | Yes |
| Rj-45 ports quantity: | 2 |
| Rs485 port: | Yes |
| Signal input: | Yes |
| Start-up voltage: | 80 V |
| Storage relative humidity (h-h): | 0 - 100% |
| Strings for mpp tracker: | 2+2 |
| Topology: | Transformerless |
| Usb port: | Yes |
| Weight: | 21.5 kg |
| Width: | 431 mm |
