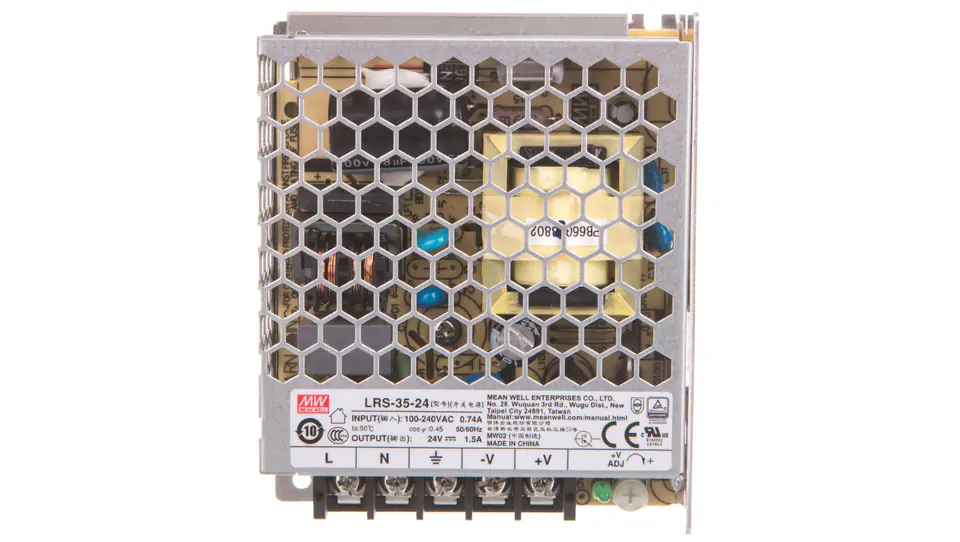

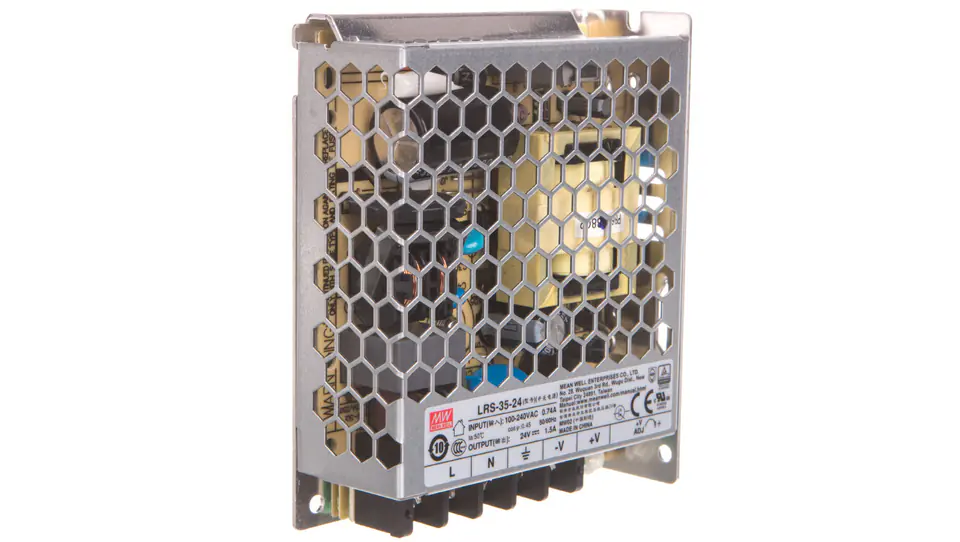

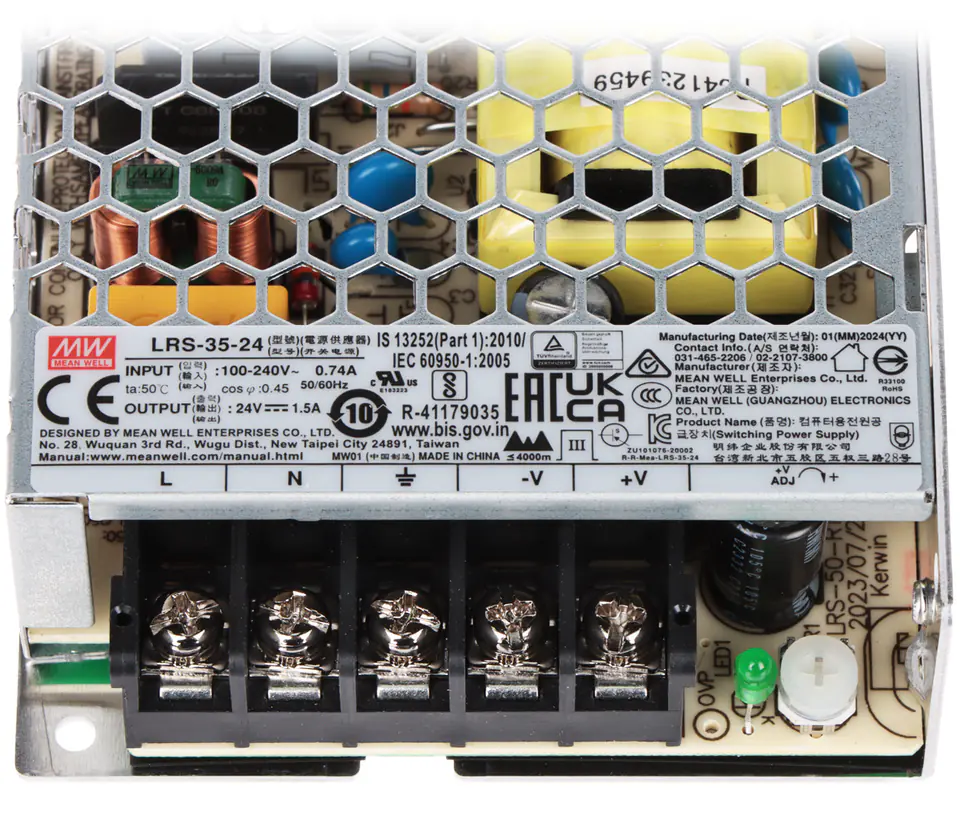

Internal Mount Power Supply 24V 1.5A 35W LRS-35-24
€10.08
Shipping from warehouse: D4
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- MEAN WELL
- Product code:
- LRS-35-24 / 5902887089930
Share this product:
Specification
| Depth [mm]: | 99 |
|---|---|
| Height [mm]: | 36 |
| Maximum output current 1 [a]: | 1.5 |
| Modular version: | Yes |
| Output power [w]: | 35 |
| Output voltage dc 1 [v]: | 24 |
| Output voltage setting range: | No |
| Possibility of direct mounting: | No |
| Rail mountable: | No |
| Rated supply voltage for ac 50 hz [v] from: | 85 |
| Rated supply voltage for ac 50 hz [v] up to: | 264 |
| Rated supply voltage for ac 60 hz [v] from: | 85 |
| Rated supply voltage for ac 60 hz [v] up to: | 264 |
| Rated supply voltage for dc [v] from: | 120 |
| Rated supply voltage for dc [v] to: | 373 |
| Short circuit resistance: | Yes |
| Stabilized: | No |
| Stabilized output voltage: | Yes |
| Suitable for safety-related applications: | No |
| Type of electrical connection: | Screw/spring clamp |
| Type of supply voltage: | AC/DC |
| Wall mountable: | No |
| Width [mm]: | 82 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
