| Depth of measurement: | 192 mm |
|---|---|
| Error limit: | 0.05 mm |
| Groove depth: | 8.3 mm |
| Groove width: | 2.4 mm |
| L. fixed measuring tip: | 8.5 mm |
| L. measuring tip movement.: | 8.5 mm |
| Measuring load: | 0.9 to 1.9 N |
| Measuring range: | 70-120 mm |
| Read: | 0.05 mm |
| Repeatability limit: | 0.025 mm |
| Type of measuring tip: | :ball Ø 2.0 (2) mm |

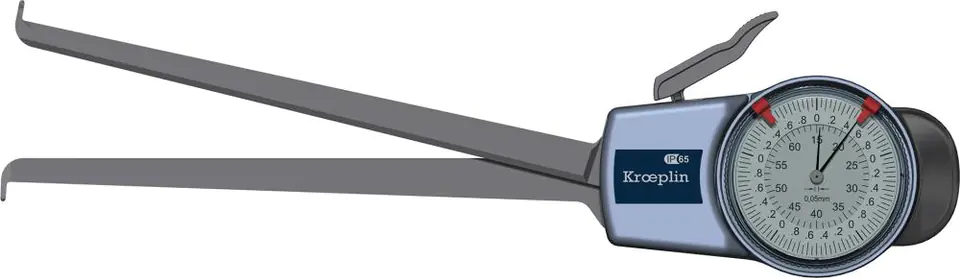

Intertest tentacles for internal measurements
Design: for use in harsh workshop conditions, cushioned drive mechanism with steel transmission spring for greater accuracy, carbide measuring surfaces, movable tolerance markers. With adjustable handle. Delivery in transport packaging.

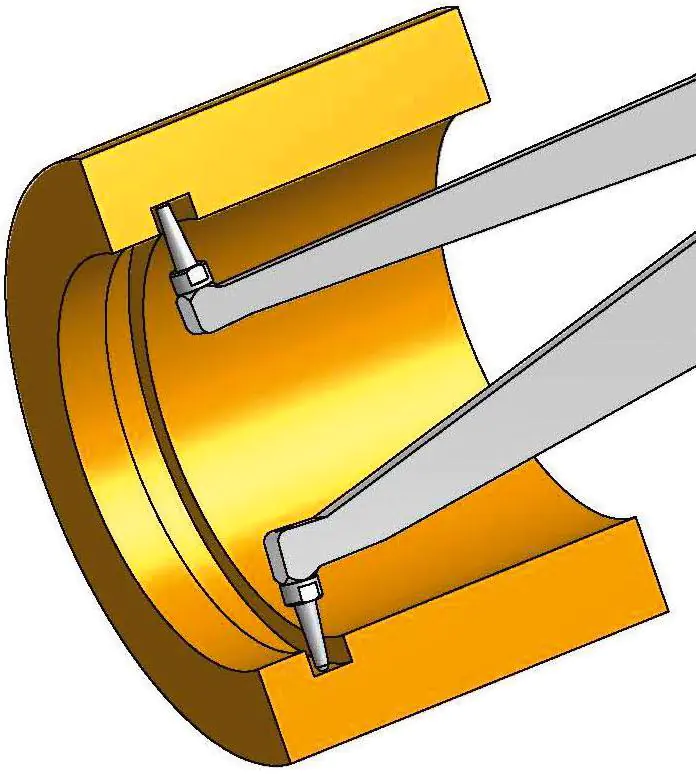

Application: for measuring internal grooves and undercuts.
