| Depth of measurement: | 85 mm |
|---|---|
| Error limit: | 0.030 mm |
| Groove depth: | 7.0 mm |
| Groove width: | 1.2 mm |
| L. fixed measuring tip: | 7.3 mm |
| L. measuring tip movement.: | 7.3 mm |
| Measuring load: | 1.1–1.6 N |
| Measuring range: | 20-40 mm |
| Read: | 0.010 mm |
| Repeatability limit: | 0.010 mm |
| Type of measuring tip: | :ball Ø 1.0 (1) mm |

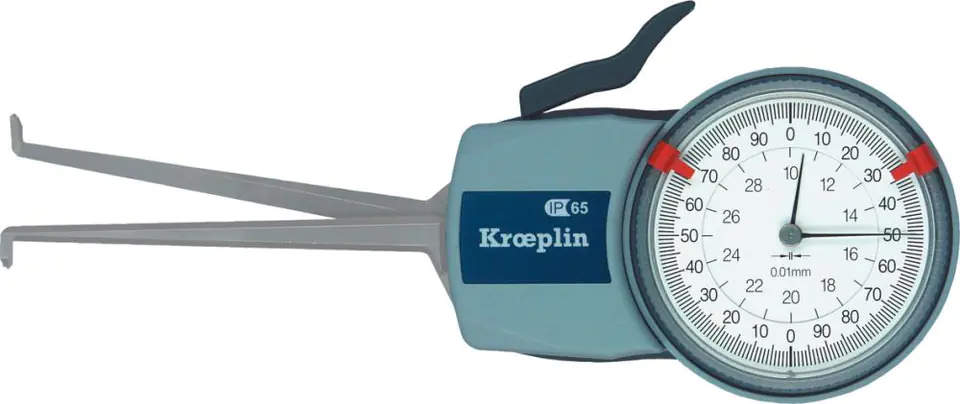

Intertest internal measuring tentacles for workshop use
Design: for use in harsh workshop conditions, cushioned drive mechanism with steel transmission spring for greater accuracy, carbide measuring surfaces, movable tolerance markers. Delivery in transport packaging.

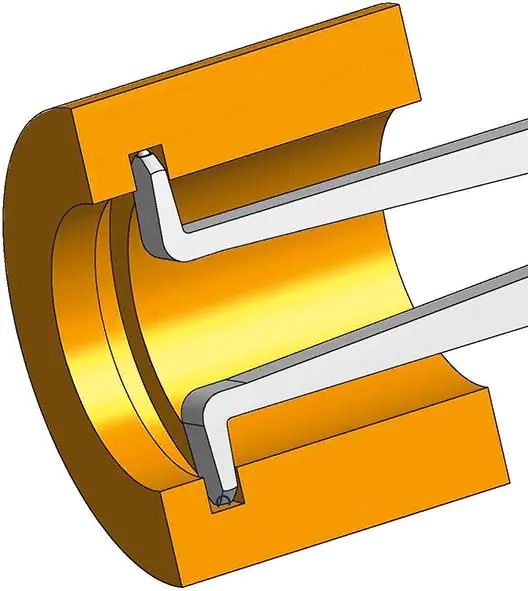

Application: for measuring internal grooves and undercuts.
Readability 0.01 mm
