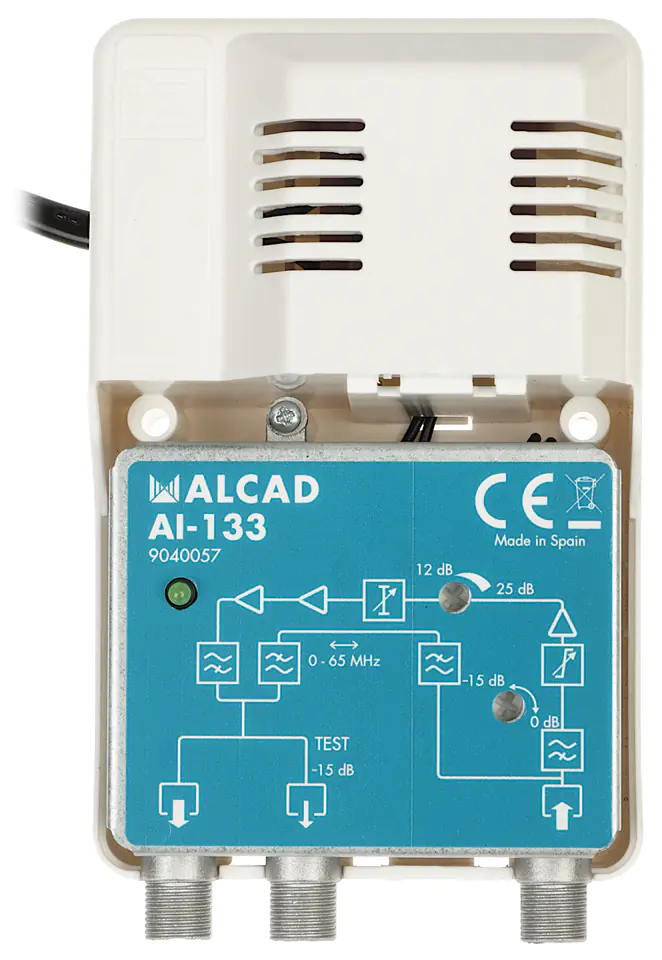

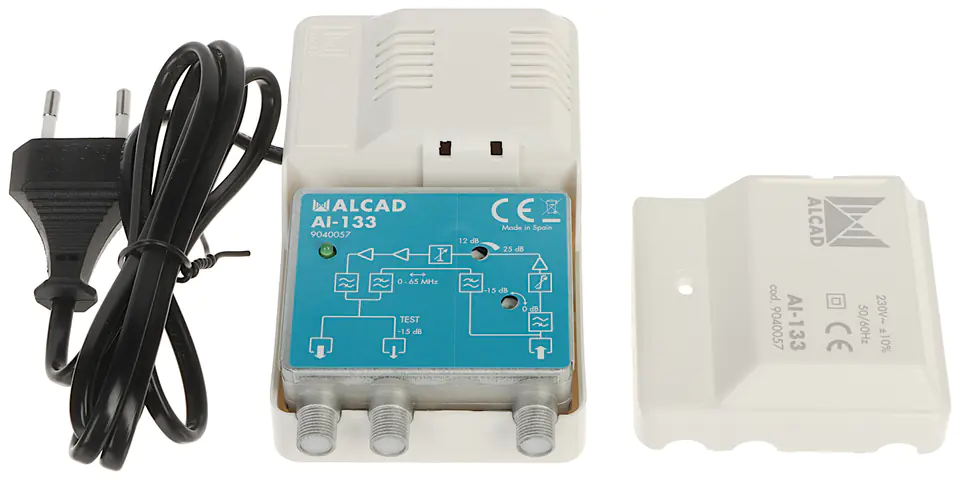

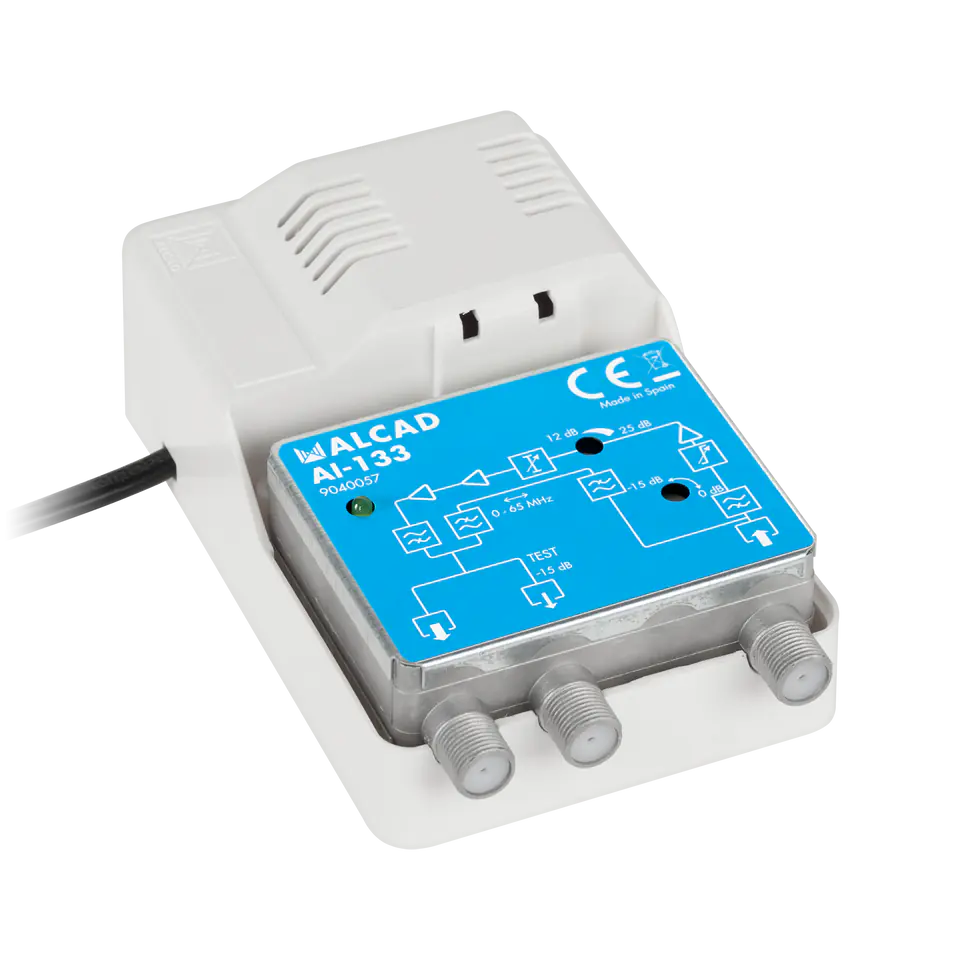

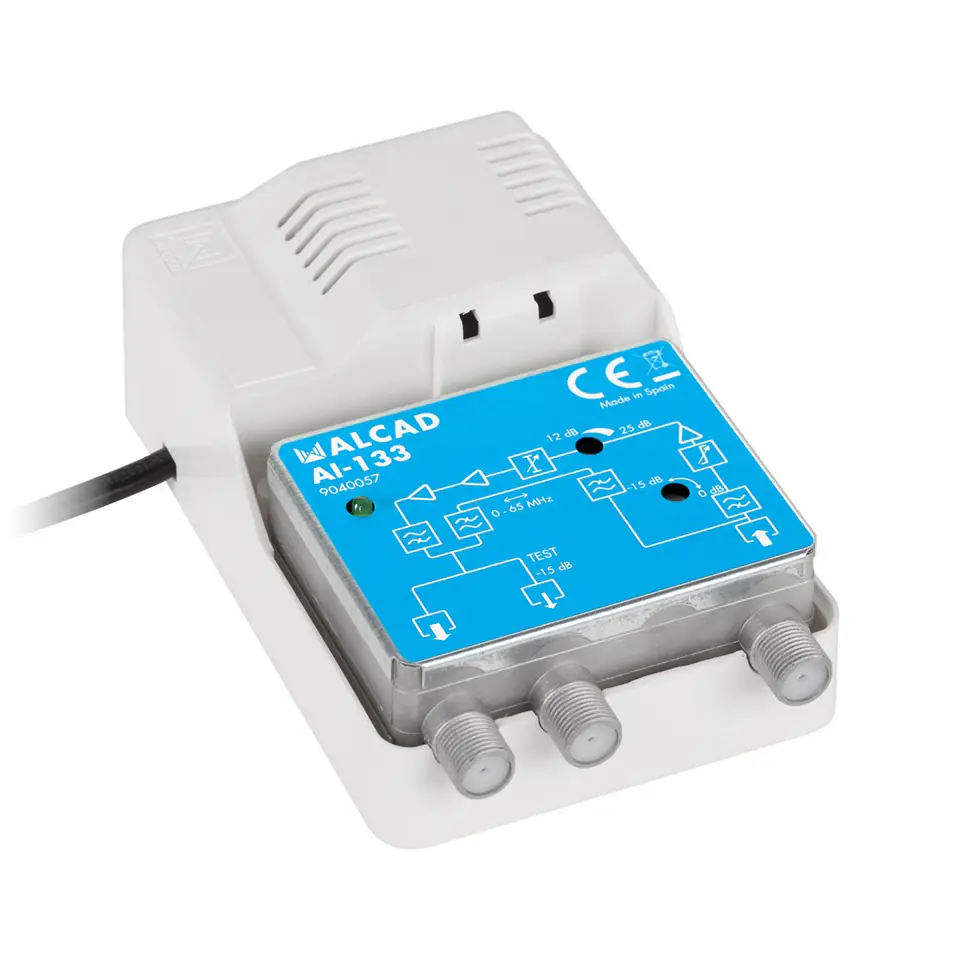

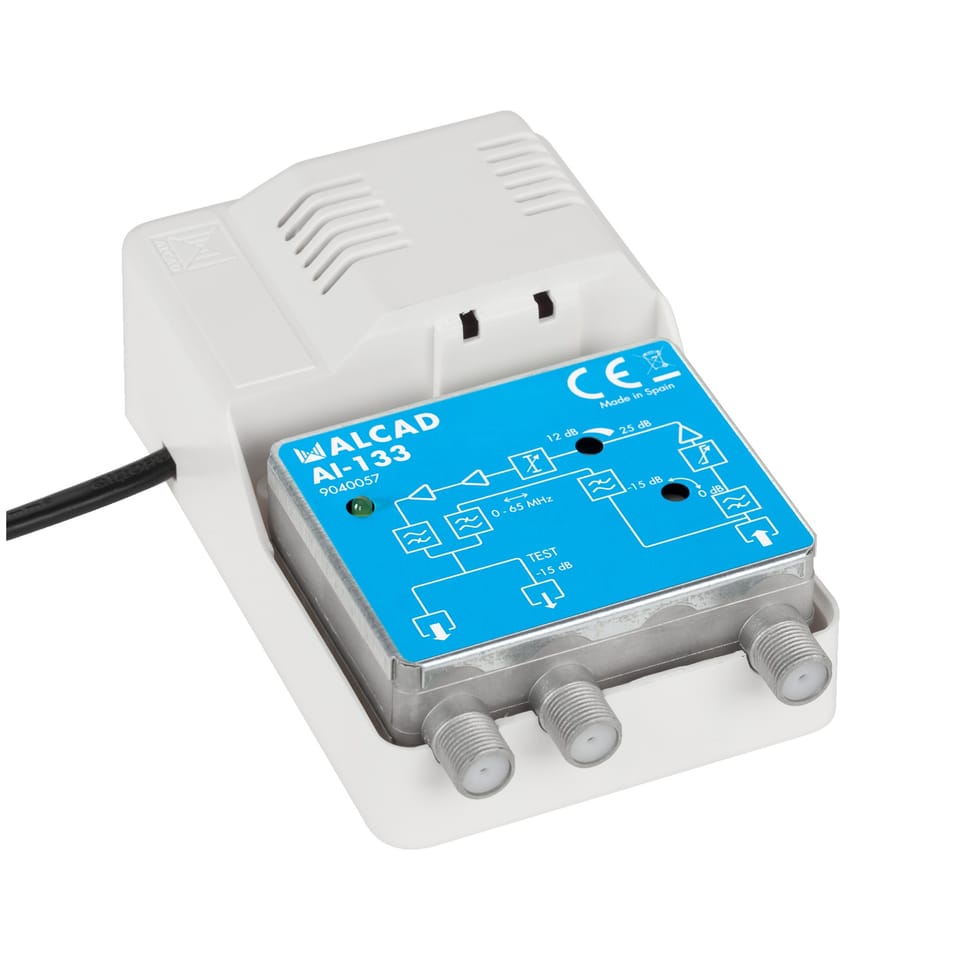

Internal antenna amplifier CATV RP 65 MHz) AI-133 ALCA

€20.01
Shipping from warehouse: ⁨L1⁩
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
inne
Product code:
AI-133 / 8425988904577

Outputs: 1

Return channel
----------
Frequency Range: 5~65MHz
Gain: -2.5 dB +/-0.5 dB
Reflection attenuation: 10 dB
Noise Ratio: 6dB +/- 1.0dB

VHF/UHF
----------
Frequency Range: 86~862MHz
Gain: 24 dB +/-0.1 dB (OUT1); 10 dB +/-0.1 dB (OUT2)
Gain adjustment: 13 dB
Reflection attenuation: 10 dB
Noise Ratio: 6dB +/- 1.0dB

----------
Return loss: 10 dB
Noise figure: 6 +/- 1.0 dB
Power supply: 230 V +/-10% AC, 50/60 Hz
Working Temperature: -10~65 Degree C
Protection class: IP20

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
