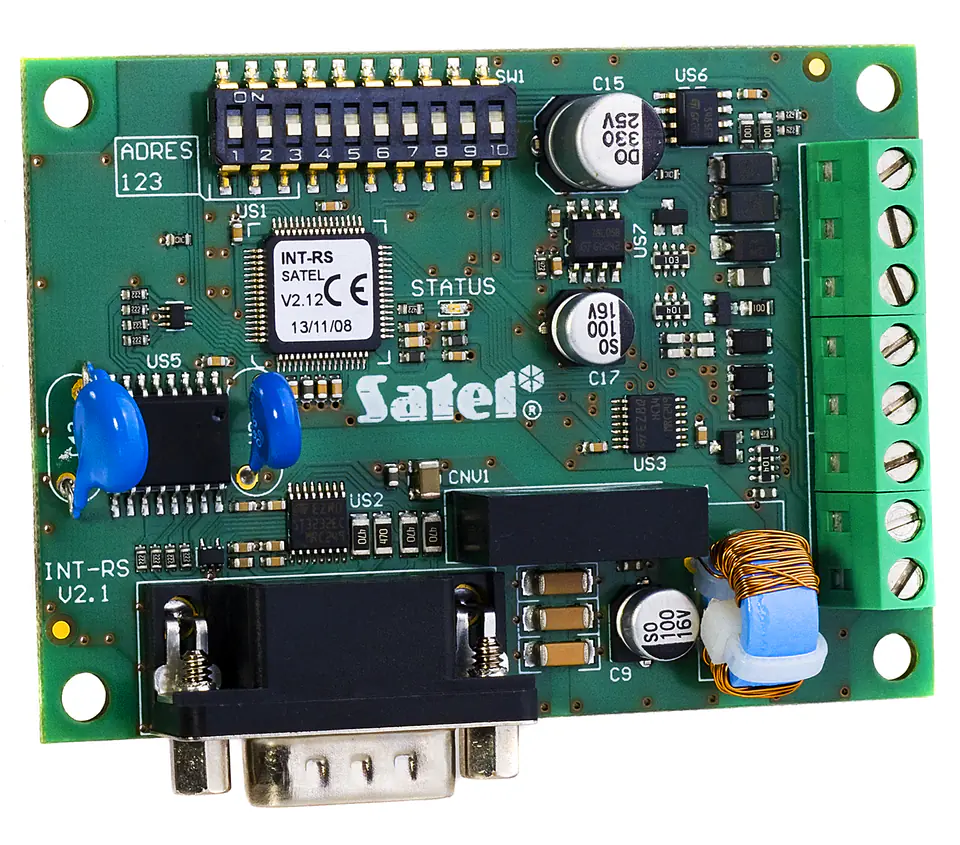

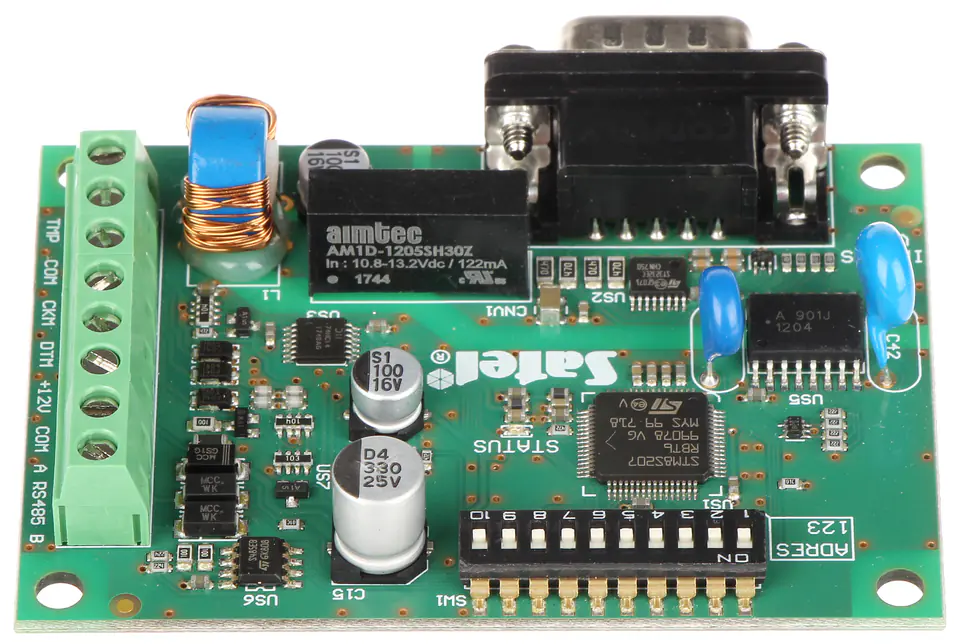

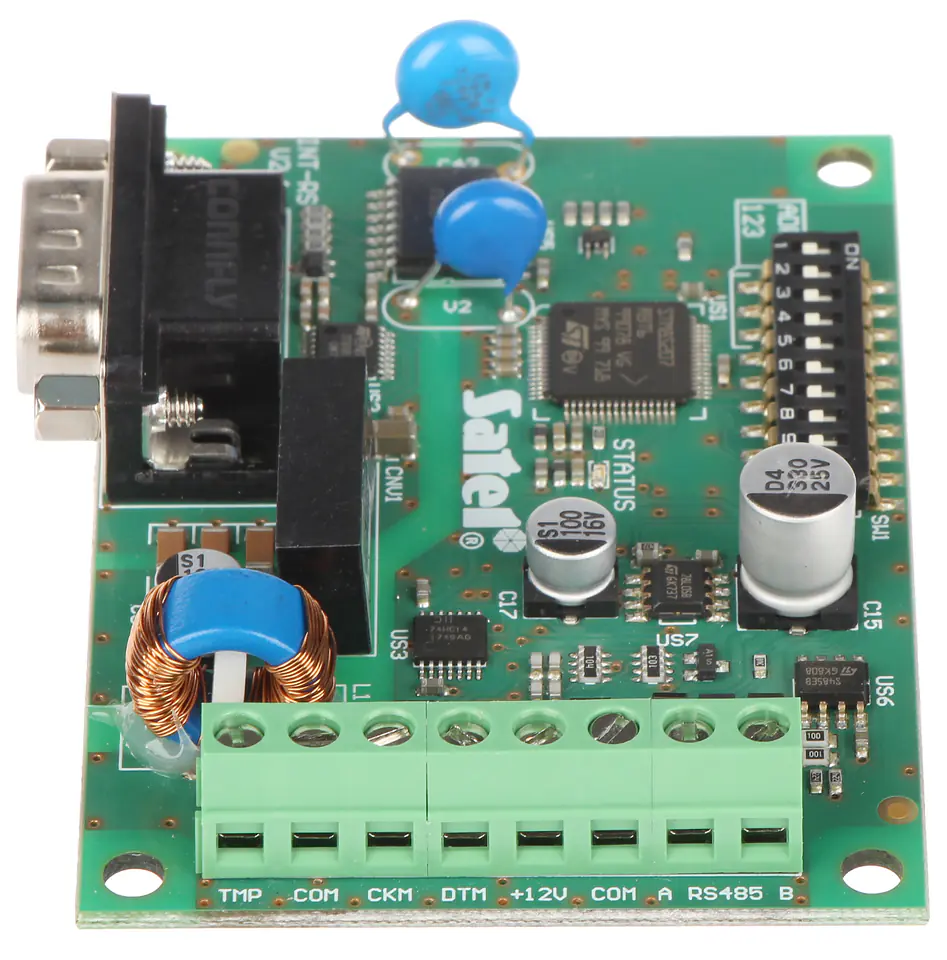

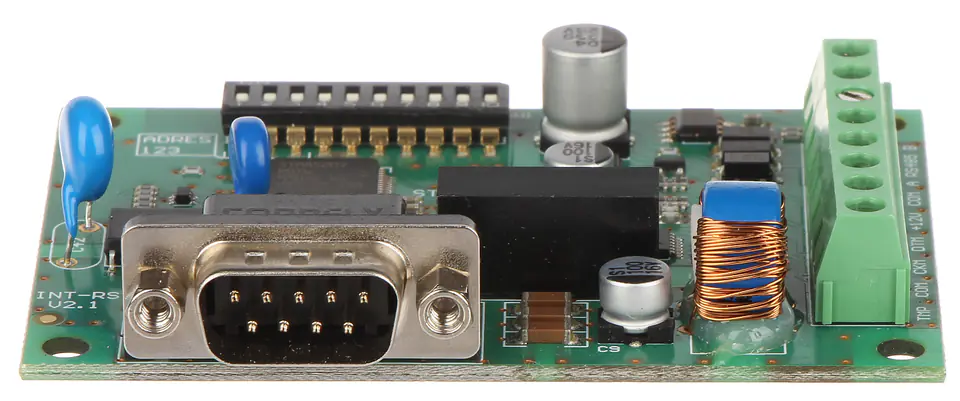

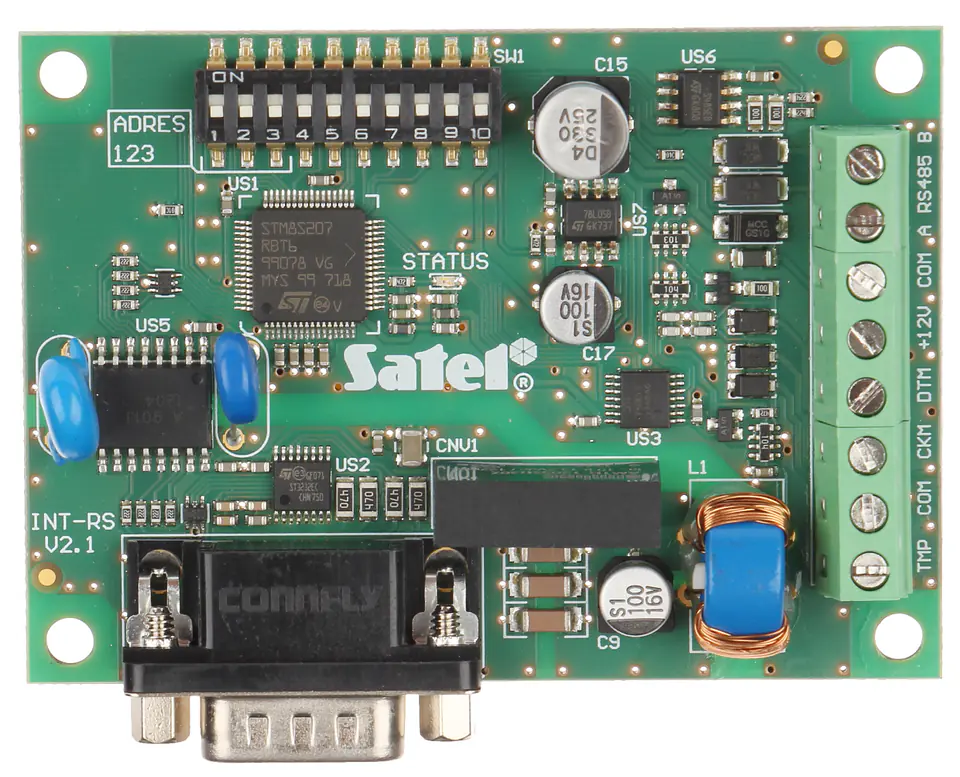

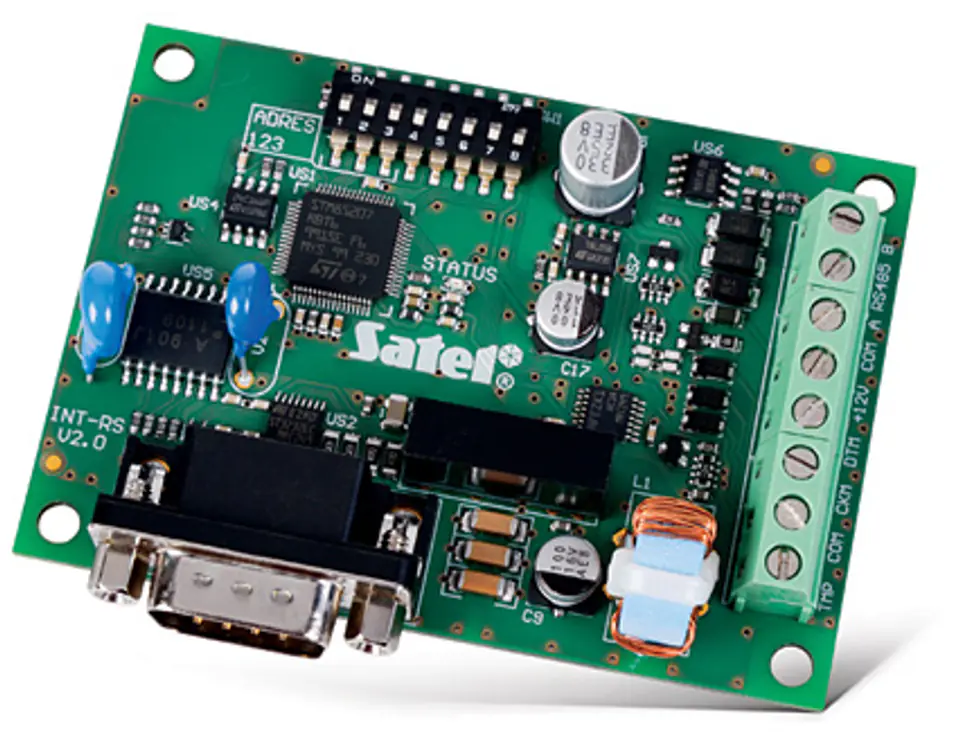

The INT-RS-PLUS module allows for software integration of INTEGRA and INTEGRA Plus alarm systems, including the INTEGRA 256 Plus control panel.
The device converts data sent via keypad bus to RS-232 serial bus standard
Cooperation:: | INTEGRA, INTEGRA Plus |
---|---|
Current consumption:: | Max. 40 mA |
Dimensions:: | 63 x 80 x 18 mm |
Environmental class:: | II |
Manufacturer / brand:: | SATEL |
Operating temperature:: | -10 °C ... 55 °C |
Power:: | 12 VDC |
Scales:: | 0.04 kg |
Selected features:: | Galvanic separation to protect against potential difference |
Use:: | Connecting a computer with the GUARDX program installed (analogous to the LCD keypad) Event monitoring via specialized external modules from other manufacturers Operation of the alarm control panel using different software than offered by SATEL (possibility of integration with other systems) |
Warranty:: | 2 years |
The INT-RS-PLUS module allows for software integration of INTEGRA and INTEGRA Plus alarm systems, including the INTEGRA 256 Plus control panel.
The device converts data sent via keypad bus to RS-232 serial bus standard
