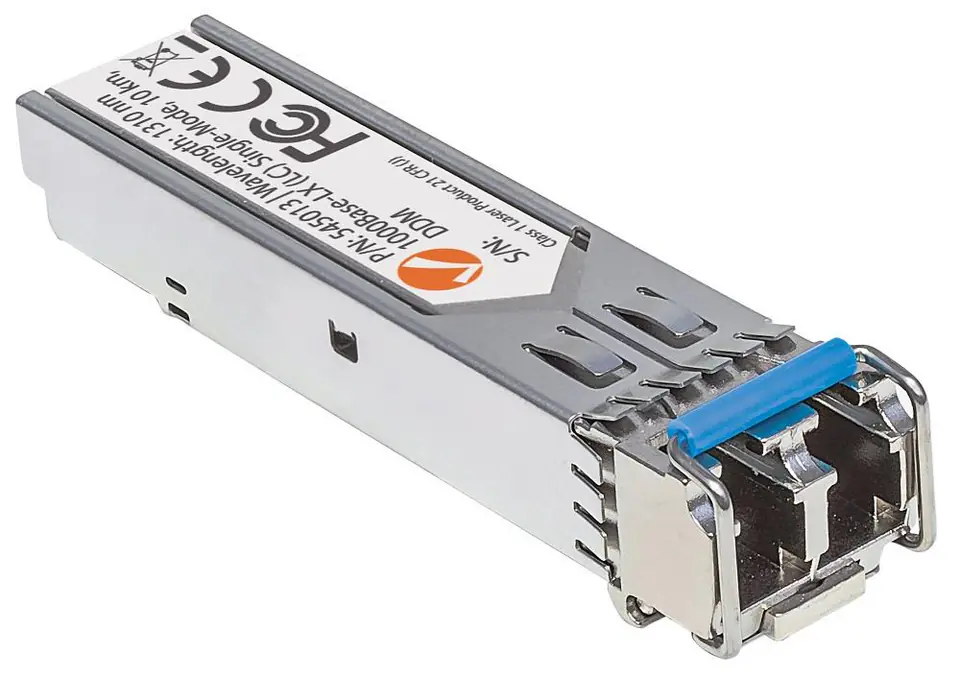

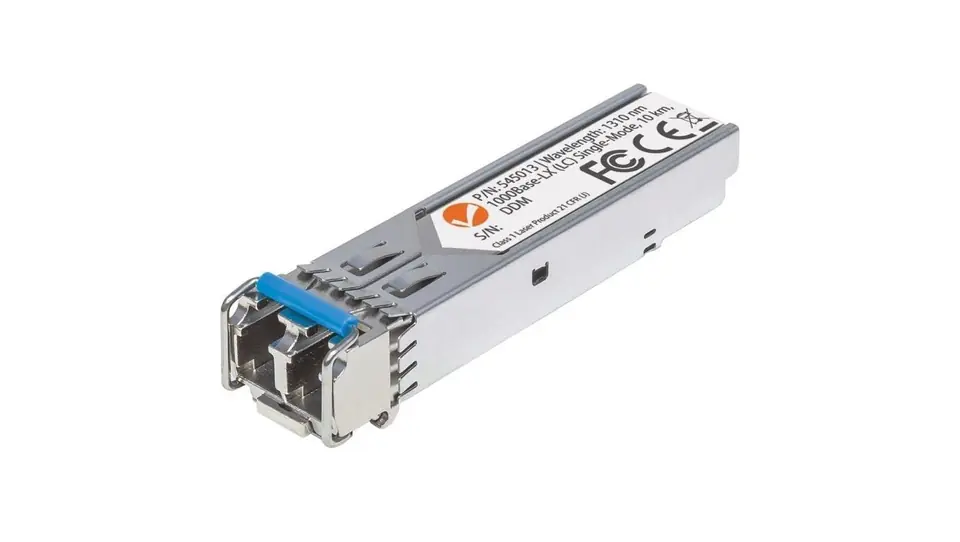

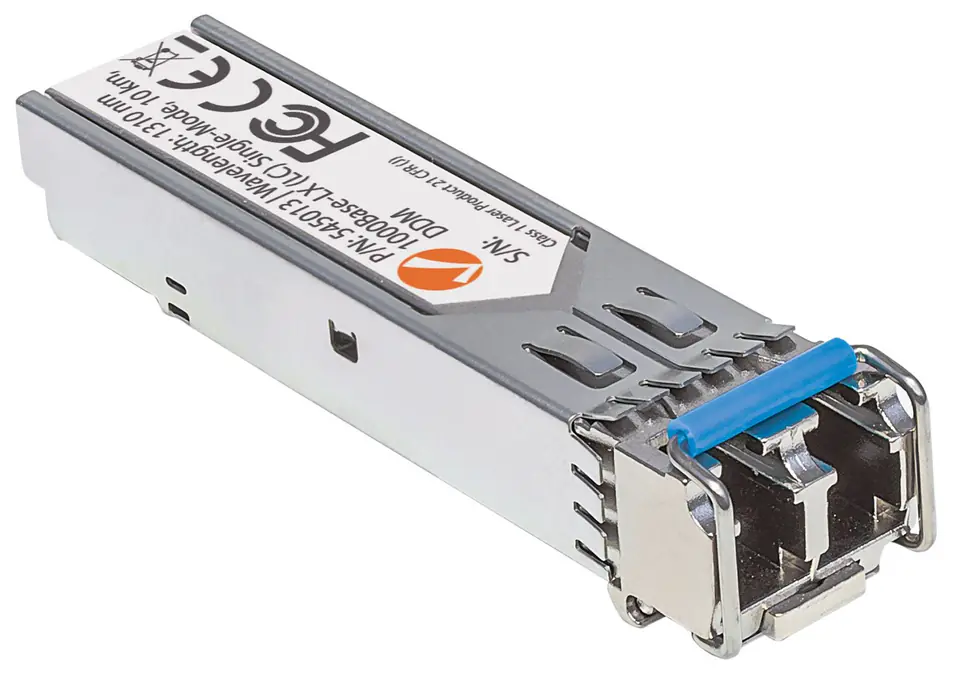

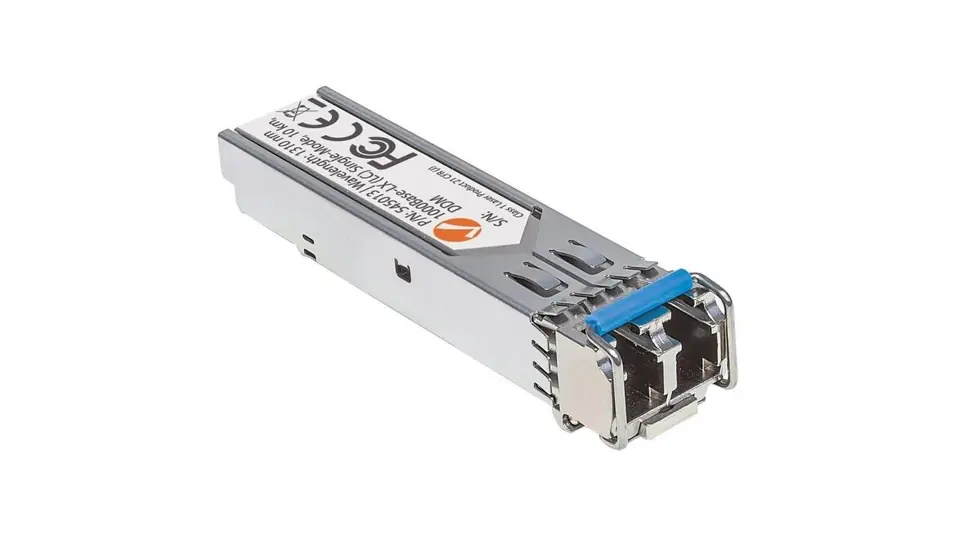

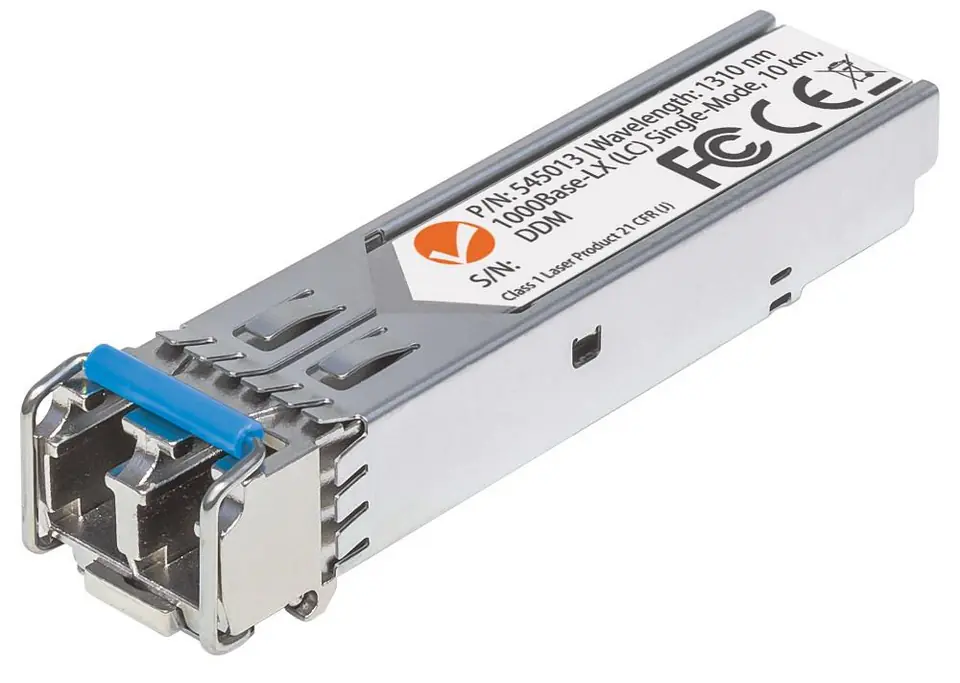

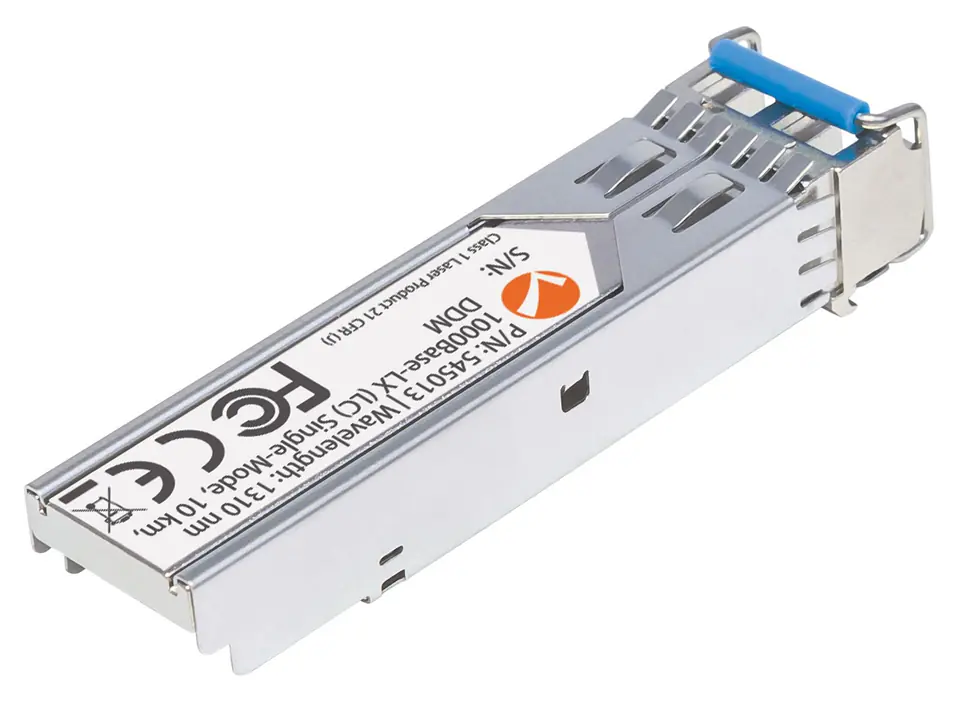

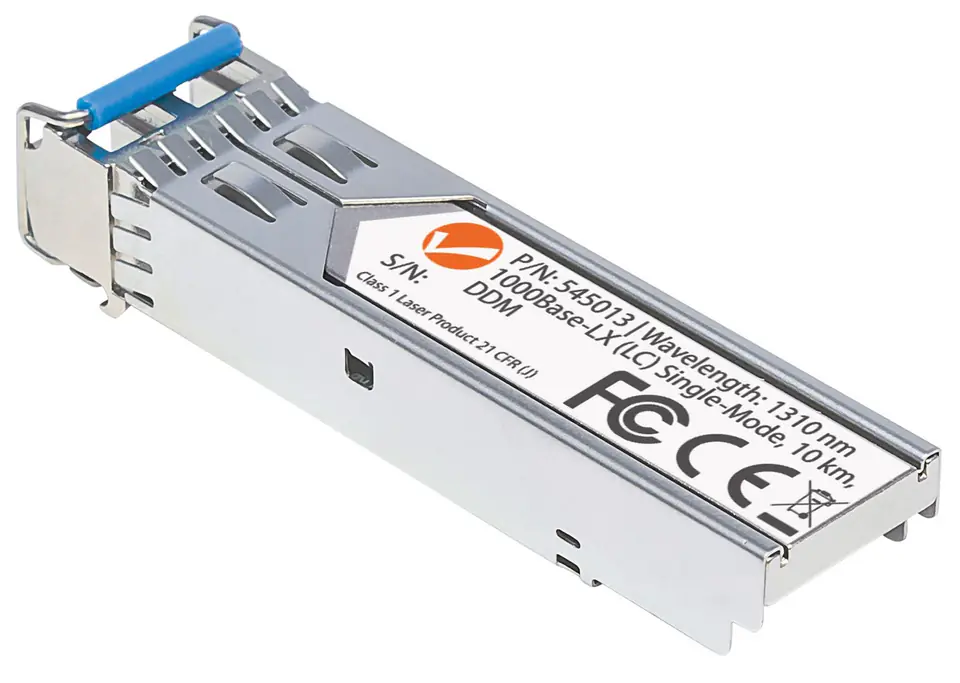

Intellinet MiniGBIC/SFP 1000Base-LX LC) module, single-mode, 1310nm, 10k
€22.51
Shipping from warehouse: A3
Estimated shipping: Thu, Nov 14 - Mon, Nov 18
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- INTELLINET NETWORK SOLUTIONS
- Product code:
- 545013 / 0766623545013
Share this product:
Specification
| Colour: | Silver |
|---|---|
| Depth: | 57 mm |
| Destiny: | Fits any Intellinet Gigabit Switch with SFP slot, Fits MSA or Cisco devices with SFP-compliant slots |
| Dimensions (cm): | 1.4 x 1.2 x 5.7 |
| Duplex system: | Full |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet lan: | Yes |
| Features: | One 1000Base-LX single-mode LC duplex optical port, Data transfer rate: 1000 Mbps, Maximum supported fiber length: 10 km |
| Fiber cable diameters supported (core/cladding): | 9/125 µm |
| Fiber optic connector: | LC |
| Harmonized system (hs) code: | 85369010 |
| Height: | 12 mm |
| Hot-plug support: | Yes |
| Input voltage: | 3.3 V |
| Interface type: | SFP |
| Kind: | Module |
| Link budget: | 14 dB |
| Material: | Metal |
| Maximum data transfer rate: | 1000 Mbit/s |
| Maximum transfer distance: | 10000 m |
| Networking standards: | IEEE 802.3z |
| Number of products included: | 1 pc(s) |
| Operating relative humidity (h-h): | 10 - 85% |
| Operating temperature (t-t): | 0 - 70 °C |
| Power consumption (typical): | 1 W |
| Product colour: | Aluminium |
| Sfp transceiver type: | Fiber optic |
| Single-mode fiber (smf) supported: | Yes |
| Storage temperature (t-t): | -40 - 85 °C |
| Sustainability certificates: | RoHS |
| Tx power (max): | -3 dBmW |
| Tx power (min): | -8 dBmW |
| Wavelength: | 1310 nm |
| Weight: | 18 g |
| Width: | 14 mm |
