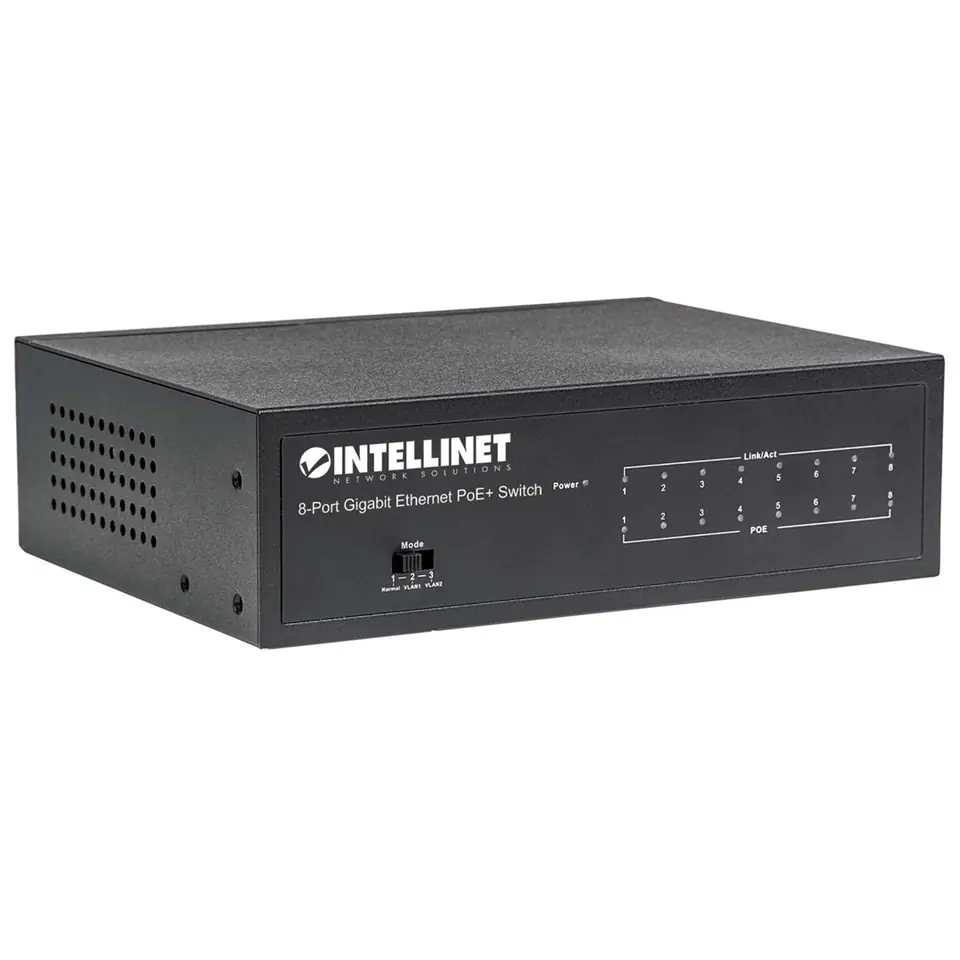

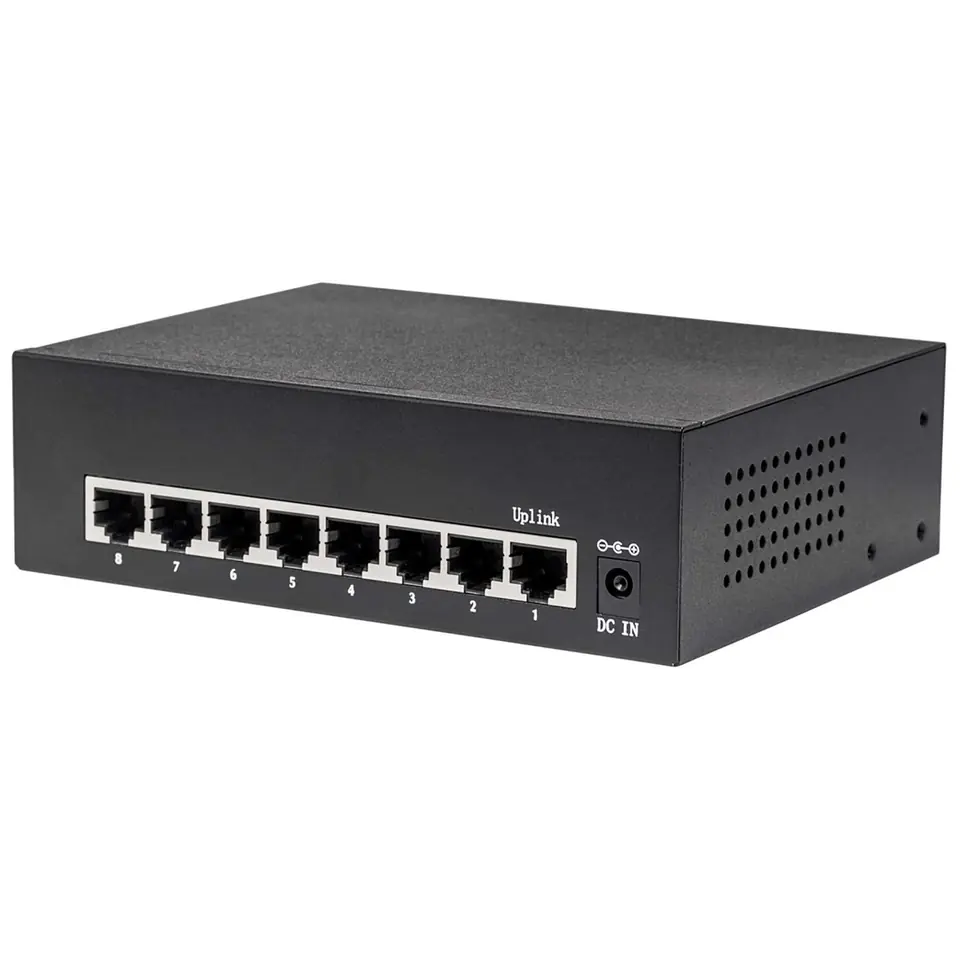

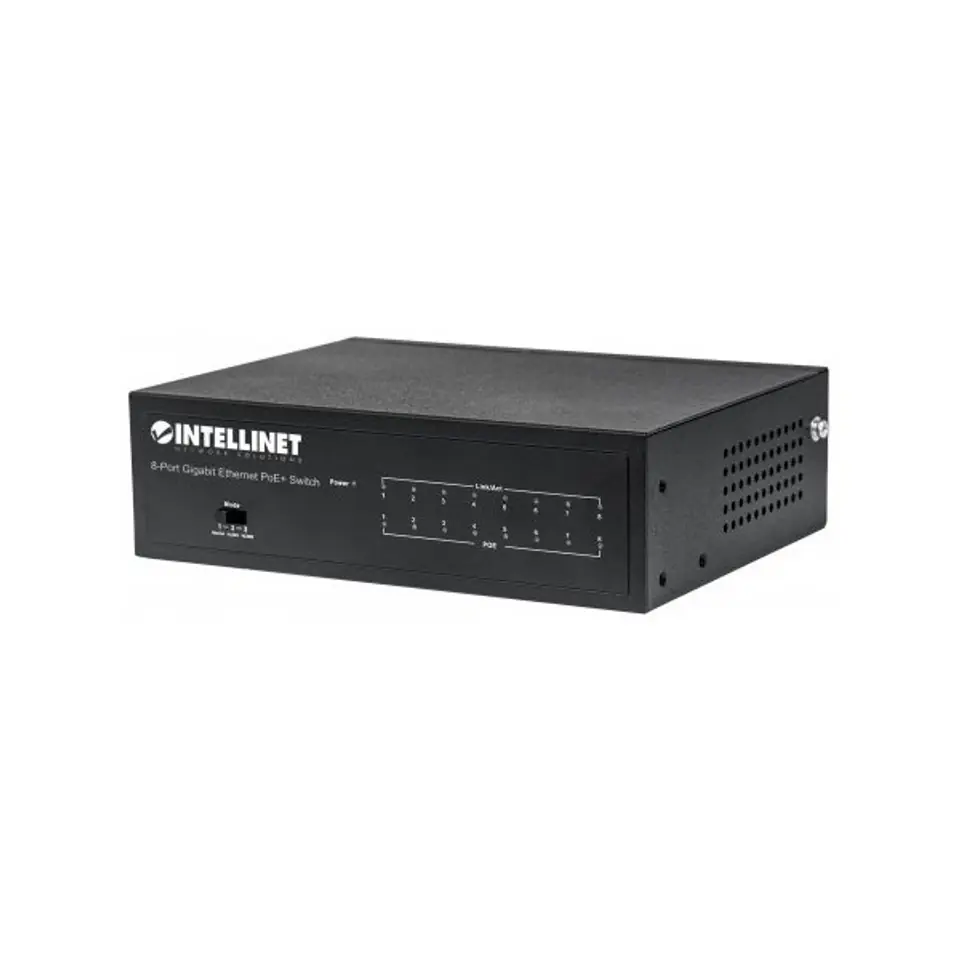

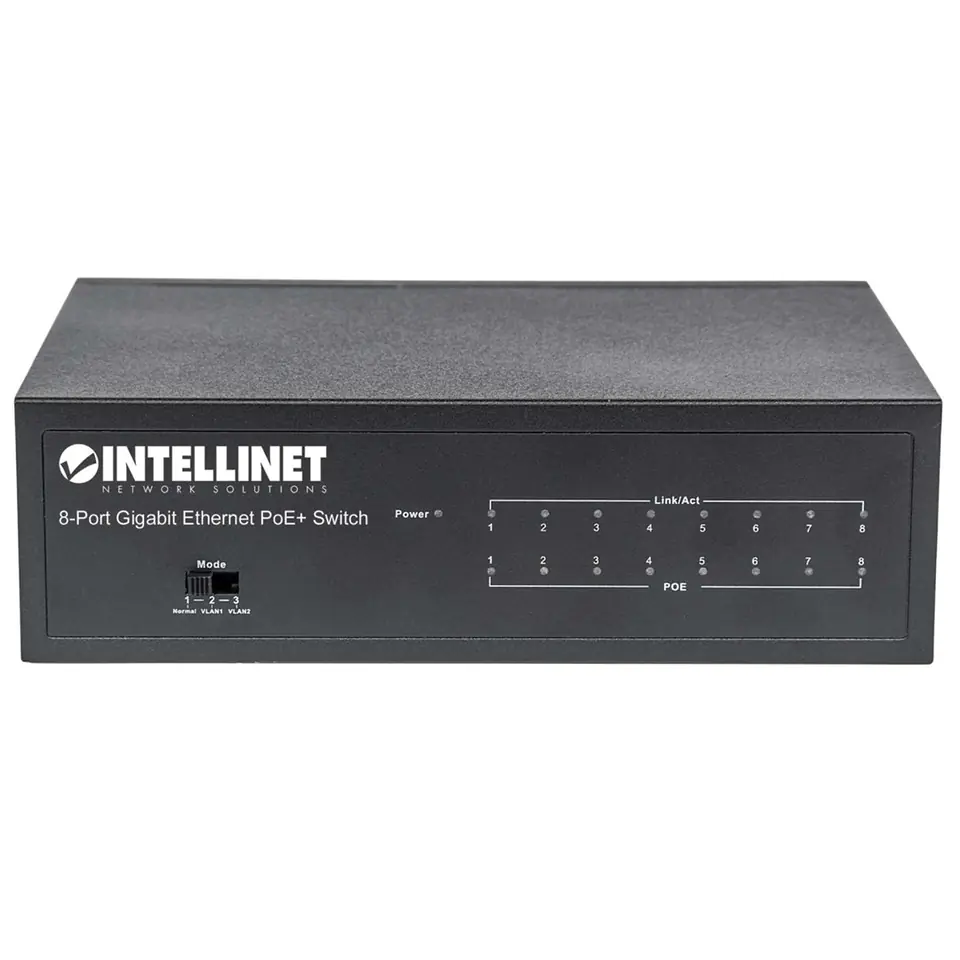

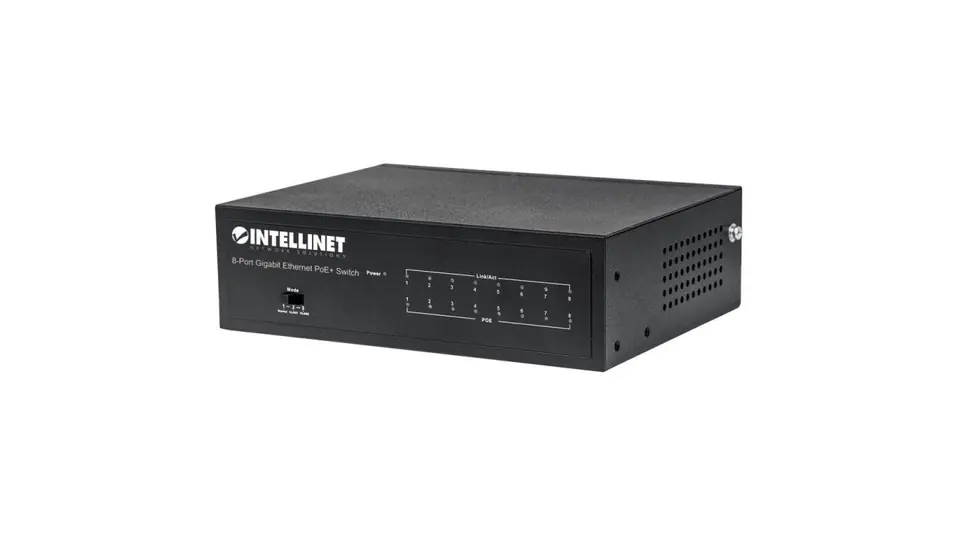

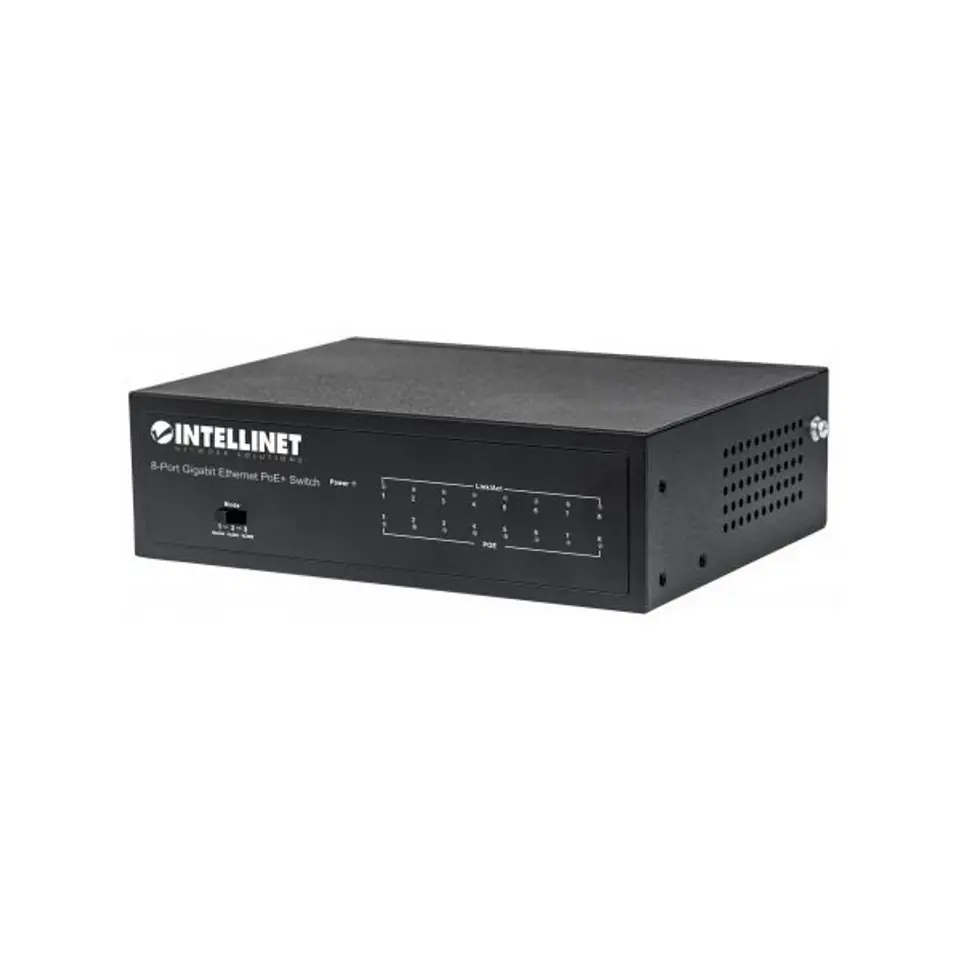

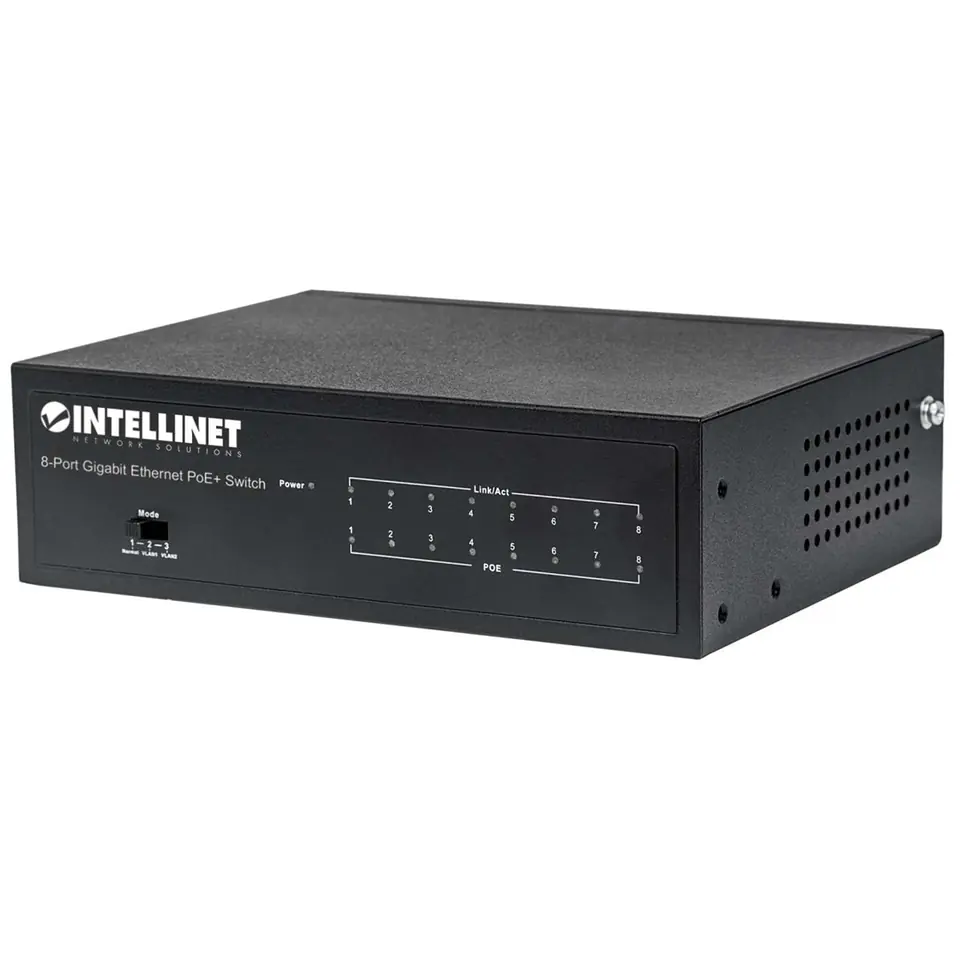

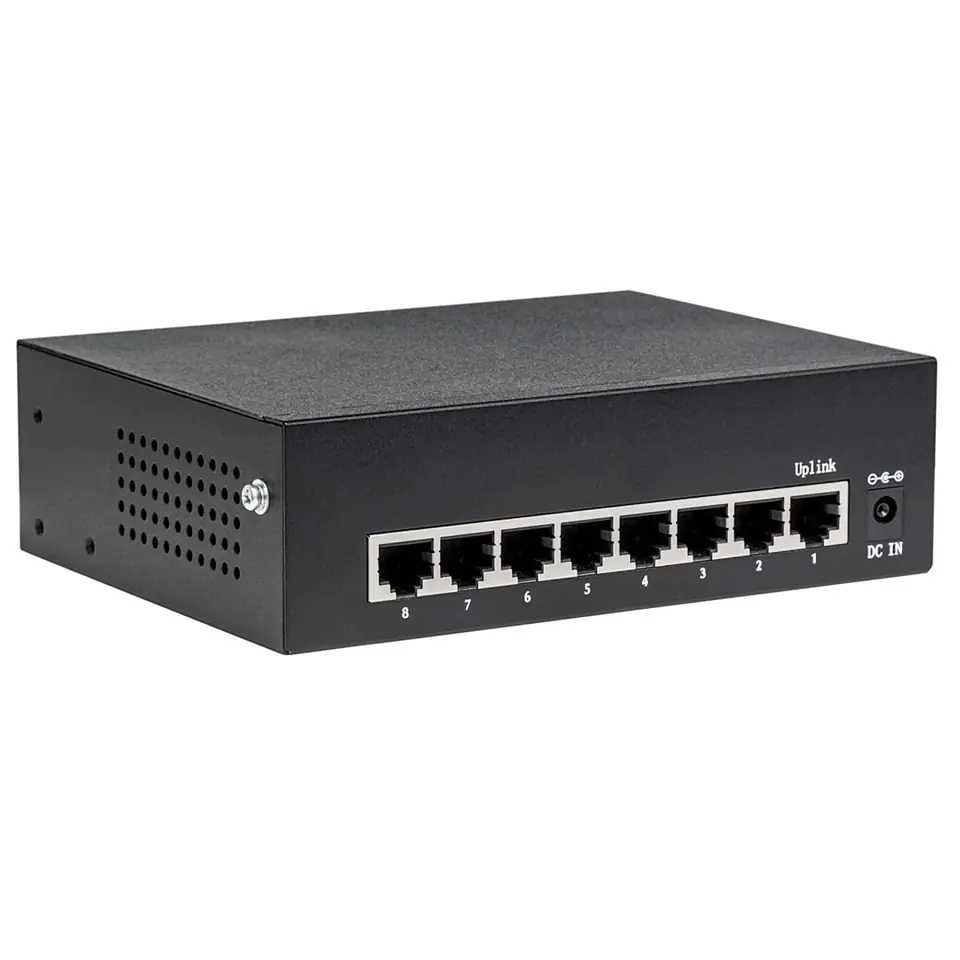

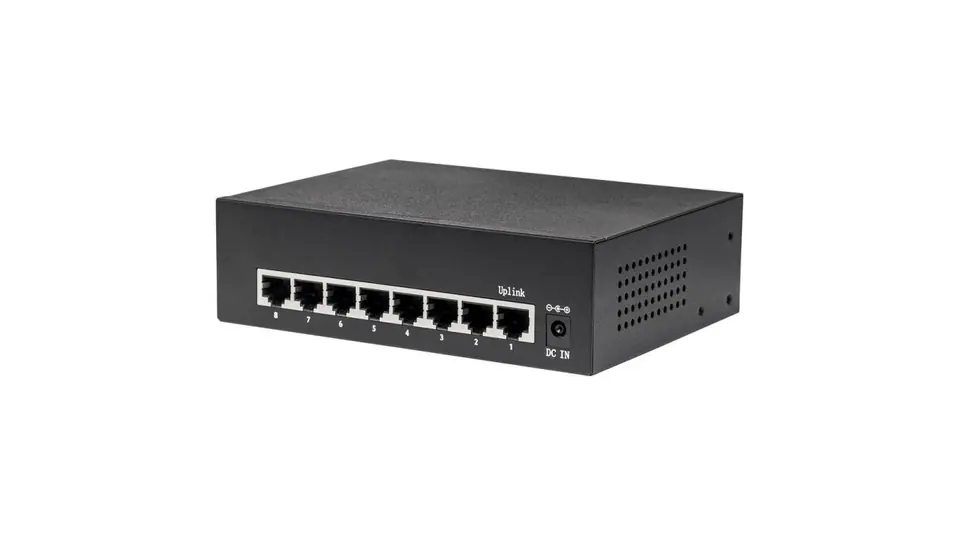

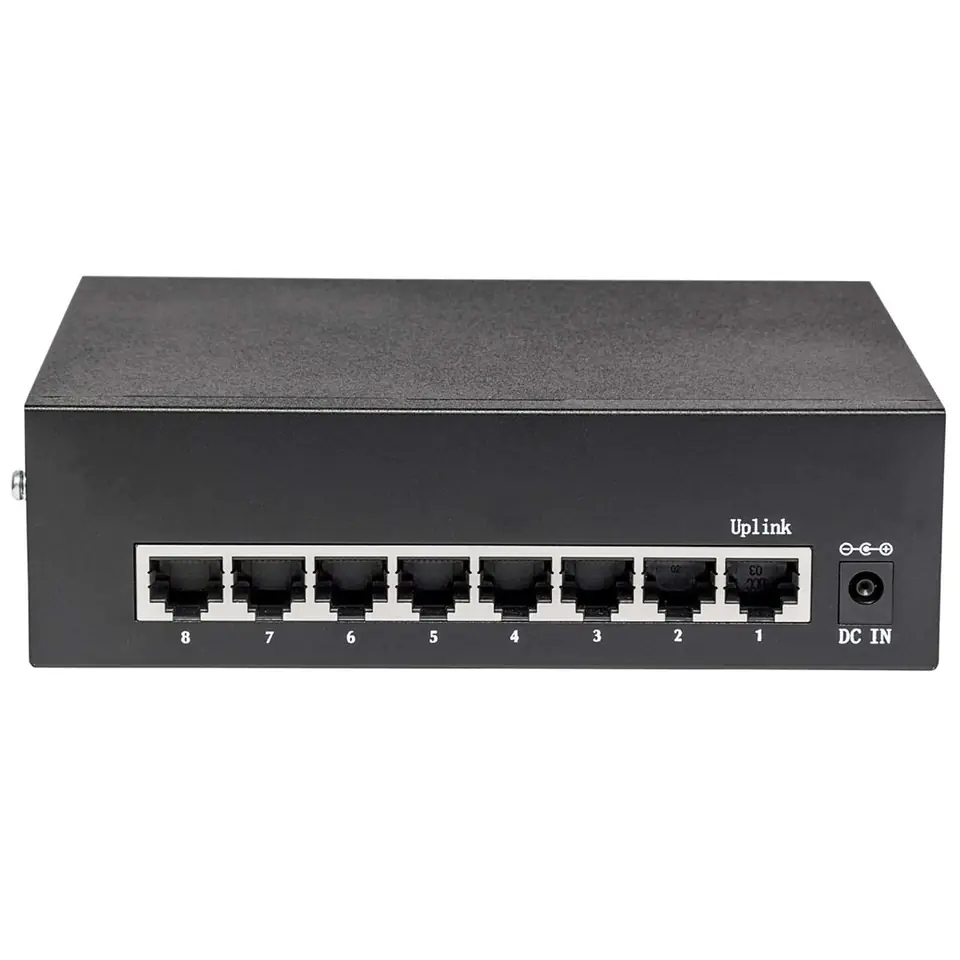

Intellinet 8-Port Gigabit Ethernet PoE+ Switch, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Compliant, 60 W, Desktop, Box
€117.34
Shipping from warehouse: A3
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Intellinet
- Product code:
- 561204 / 0766623561204
Share this product:
Specification
| 10g support: | No |
|---|---|
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 100 - 240 V |
| Auto mdi/mdi-x: | Yes |
| Auto-sensing: | Yes |
| Basic switching rj-45 ethernet ports quantity: | 8 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Cable types supported: | Cat3, Cat5, Cat5e, Cat4 |
| Cables included: | AC |
| Control and provisioning of wireless access points (capwap): | Yes |
| Copper ethernet cabling technology: | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Depth: | 118 mm |
| Flow control support: | Yes |
| Full duplex: | Yes |
| Harmonized system (hs) code: | 85176990 |
| Height: | 46 mm |
| Housing material: | Metal |
| Led indicators: | PoE, Activity, Link, Power |
| Mac address table: | 4096 entries |
| Manual: | Yes |
| Networking standards: | IEEE 802.3af, IEEE 802.3az, IEEE 802.3x, IEEE 802.3at, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating temperature (t-t): | 0 - 40 °C |
| Packet buffer memory: | 1.5 MB |
| Packet forwarding rate (1 gbps): | 1488000 pps |
| Packet forwarding rate (10 mbps): | 14880 pps |
| Packet forwarding rate (100 mbps): | 148800 pps |
| Power connector: | DC-in jack |
| Power consumption (max): | 67.3 W |
| Power over ethernet (poe): | Yes |
| Power over ethernet plus (poe+) ports quantity: | 8 |
| Power protection features: | Short circuit, Over voltage, Overload |
| Power source: | AC |

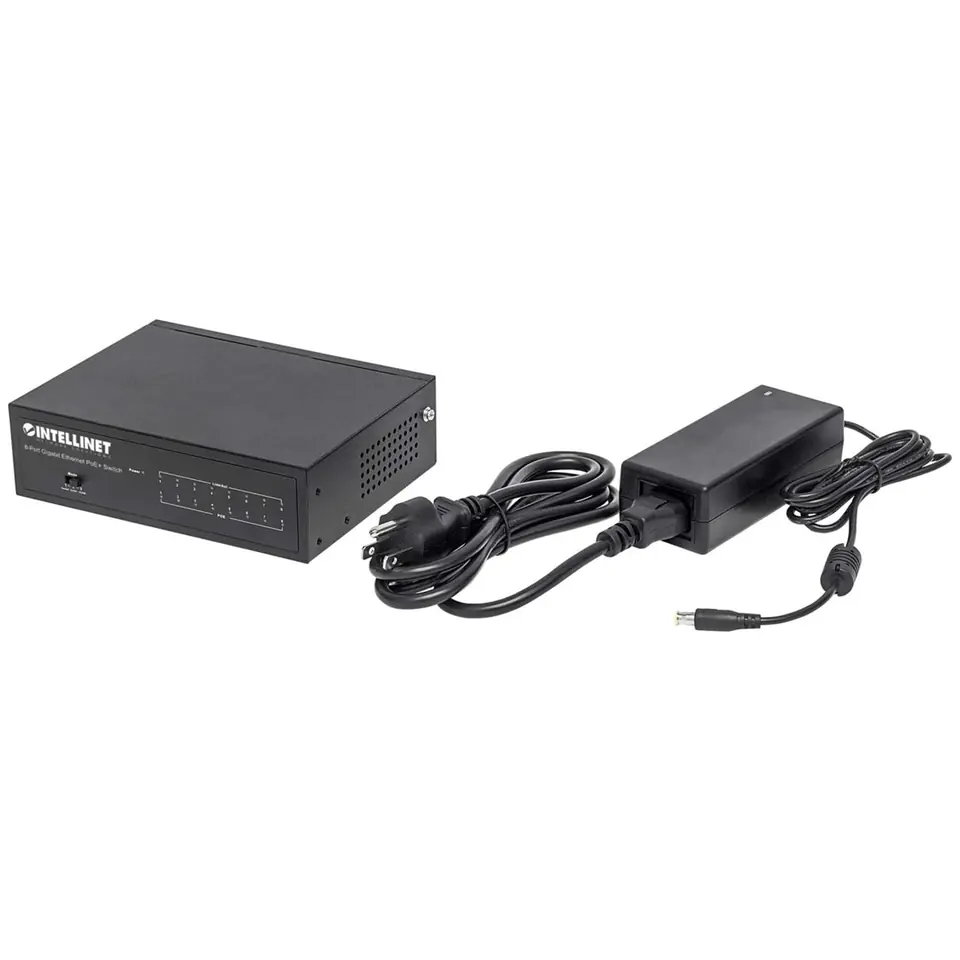

| Power supply included: | Yes |
| Product colour: | Black |
| Rack mount kit: | Yes |
| Store-and-forward: | Yes |
| Switch type: | Managed |
| Switching capacity: | 16 Gbit/s |
| Total power over ethernet (poe) budget: | 60 W |
| Virtual lan features: | Private VLAN |
| Vlan support: | Yes |
| Weight: | 930 g |
| Width: | 155 mm |
