- 10/100/1000 ports with automatic detection of optimal network speed
- Auto-MDIX (auto uplink) support on all RJ45 ports
- For use as a desktop switch or for mounting in a 19" rack
- NWay autonegotiation support
- Store and Forward switch architecture
- Full/half duplex mode
- Support for 802.3x flow control for full duplex mode and collision-based backpressure for half duplex mode
- Green Ethernet power reduction technology deactivates unused ports and adjusts power levels based on cable length
- Compliant with IEEE 802.3az (Energy Efficient Ethernet EEE) specification
- Bus bandwidth 48 Gbps
- Support for jumbo frames up to 9 KB
- MAC address table with up to 16k entries
- Memory buffer 512kB
- MAC address support with auto-learning and auto-aging functions
- Fanless design ensures quiet operation

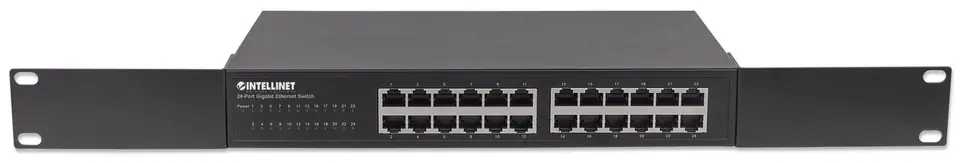

- 19" rack mounts included
- Fully NDAA compliant

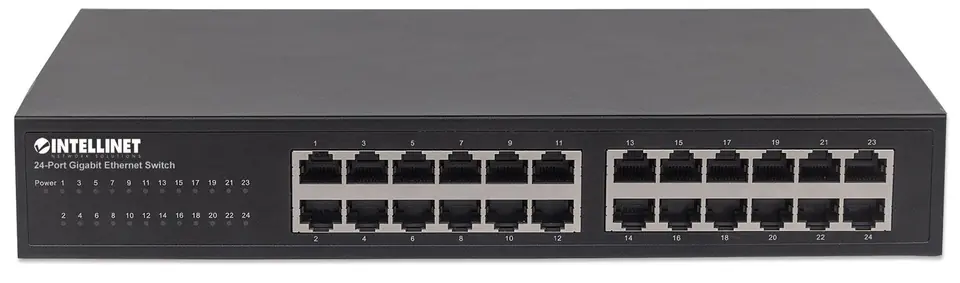

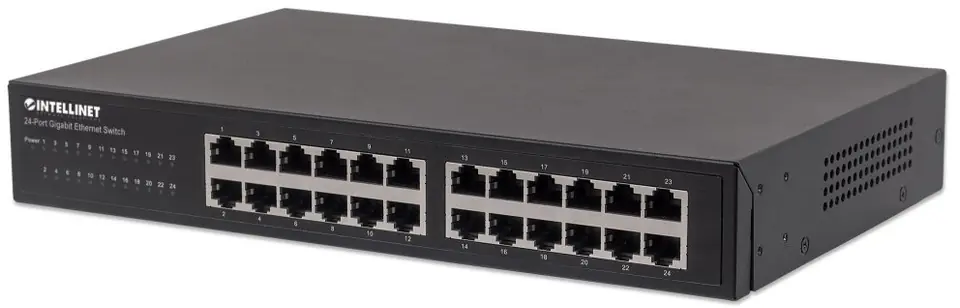

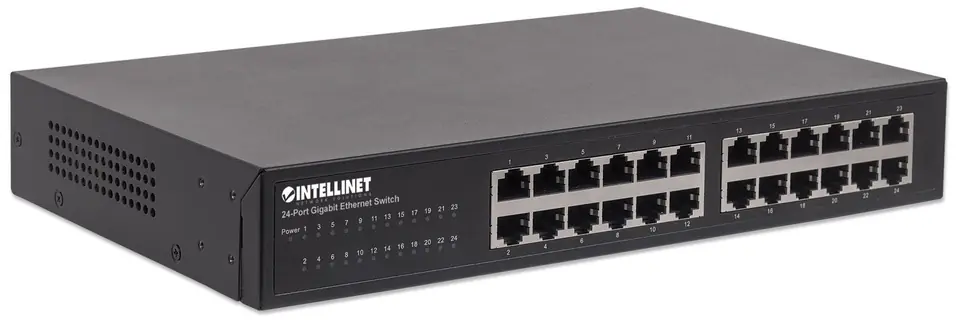

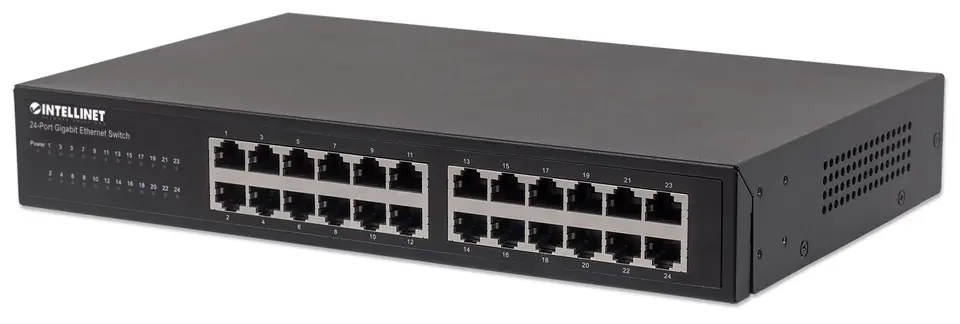

Intellinet 24-Port Gigabit Ethernet Switch, 24 x 10/100/1000 Mbit/s RJ45-Ports, IEEE 802.3az (Energy Efficient Ethernet), Desktop, 19" Rackmount, Metal
€117.04
Shipping from warehouse: M7
Estimated shipping: Tue, Feb 25 - Fri, Feb 28
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Intellinet
- Product code:
- 561273 / 0766623561273
Share this product:
Specification
| 10g support: | No |
|---|---|
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 100 - 240 V |
| Auto mdi/mdi-x: | Yes |
| Auto-negotiation: | Yes |
| Auto-sensing: | Yes |
| Basic switching rj-45 ethernet ports quantity: | 24 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Cable types supported: | Cat5, Cat5e, Cat3, Cat4 |
| Cables included: | AC |
| Control and provisioning of wireless access points (capwap): | Yes |
| Copper ethernet cabling technology: | 100BASE-TX, 10BASE-T, 1000BASE-T |
| Depth: | 180 mm |
| Flow control support: | Yes |
| Full duplex: | Yes |
| Harmonized system (hs) code: | 85176990 |
| Height: | 44 mm |
| Housing material: | Metal |
| Jumbo frames: | 9000 |
| Jumbo frames support: | Yes |
| Led indicators: | Power, Link, Activity |
| Mac address auto-aging supported: | Yes |
| Mac address auto-learning supported: | Yes |
| Mac address table: | 16384 entries |
| Networking standards: | IEEE 802.3x, IEEE 802.3u, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating temperature (t-t): | 0 - 40 °C |
| Packet buffer memory: | 0.512 MB |
| Packet forwarding rate (1 gbps): | 1488000 pps |
| Packet forwarding rate (10 mbps): | 14880 pps |
| Packet forwarding rate (100 mbps): | 148800 pps |

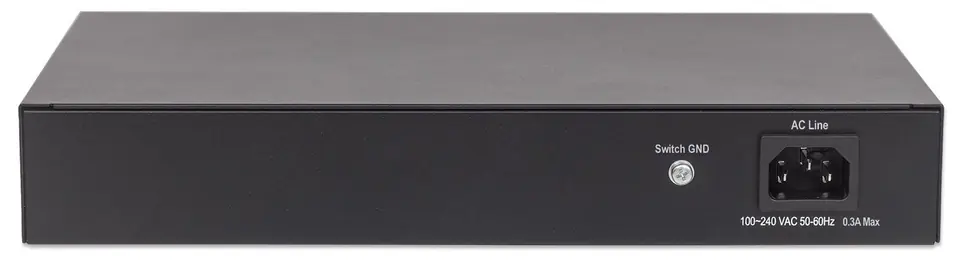

| Power connector: | AC-in jack |
| Power consumption (max): | 16 W |
| Power over ethernet (poe): | No |
| Product colour: | Black |
| Rack mount kit: | Yes |
| Rack mounting: | Yes |
| Storage temperature (t-t): | -20 - 70 °C |
| Store-and-forward: | Yes |
| Switching capacity: | 48 Gbit/s |
| User guide: | Yes |
| Weight: | 2.6 kg |
| Width: | 280 mm |
