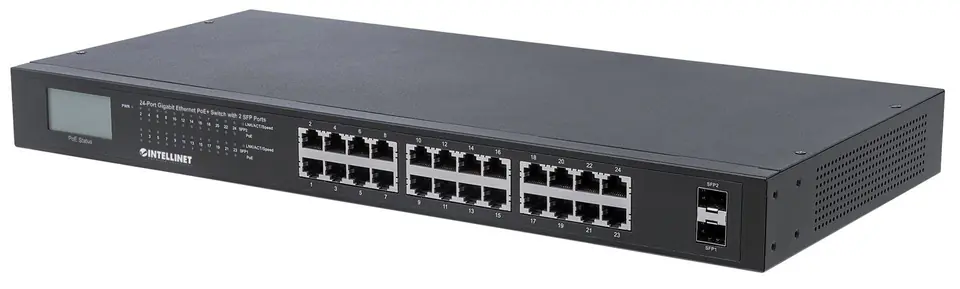

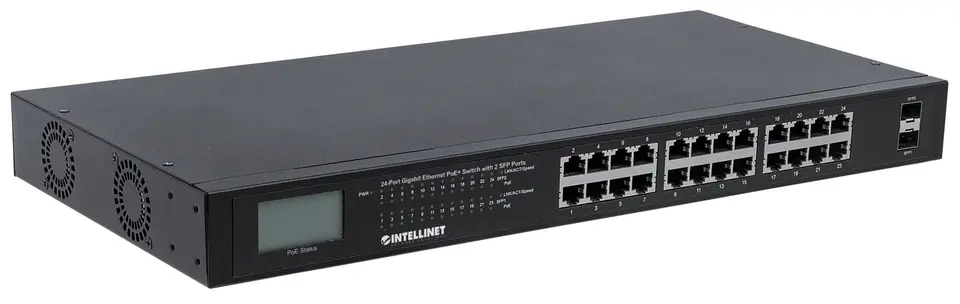

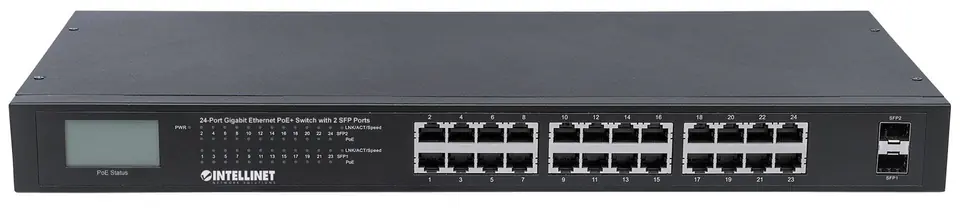

Intellinet 24-Port Gigabit Ethernet PoE+ Switch with 2 SFP Ports, LCD Display, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Compliant, 370 W, Endspan, 19" Rackmount
This product is not available
- Availability:
- expected delivery
- Brand:
- Intellinet
- Product code:
- 561242 / 0766623561242
Share this product:
Specification
| Ac input frequency: | 50 - 60 Hz |
|---|---|
| Ac input voltage: | 100 - 240 V |
| Auto mdi/mdi-x: | Yes |
| Auto-sensing: | Yes |
| Basic switching rj-45 ethernet ports quantity: | 24 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Cable types supported: | Cat5, Cat5e |
| Cables included: | AC |
| Copper ethernet cabling technology: | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Depth: | 204.3 mm |
| Flow control support: | Yes |
| Form factor: | 1U |
| Full duplex: | Yes |
| Harmonized system (hs) code: | 85176990 |
| Height: | 44 mm |
| Housing material: | Metal |
| Led indicators: | Link, Speed, Power, PoE, Activity |
| Mac address table: | 8192 entries |
| Manual: | Yes |
| Mean time between failures (mtbf): | 144000 h |
| Networking standards: | IEEE 802.3at, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3az |
| Noise level: | 21.3 dB |
| Number of fans: | 2 fan(s) |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating temperature (t-t): | 0 - 45 °C |
| Packet buffer memory: | 0.512 MB |
| Packet forwarding rate (1 gbps): | 1488000 pps |
| Packet forwarding rate (10 mbps): | 14880 pps |
| Packet forwarding rate (100 mbps): | 148800 pps |
| Power consumption (max): | 420 W |
| Power over ethernet (poe): | Yes |
| Power over ethernet (poe) power per port: | 30 W |
| Power over ethernet plus (poe+) ports quantity: | 24 |
| Power protection features: | Short circuit, Over voltage, Overload |
| Product colour: | Black |
| Rack mount kit: | Yes |
| Rack mounting: | Yes |
| Sfp module slots quantity: | 2 |
| Storage temperature (t-t): | -10 - 70 °C |
| Store-and-forward: | Yes |
| Switch type: | Unmanaged |
| Switching capacity: | 52 Gbit/s |
| Total power over ethernet (poe) budget: | 370 W |
| Weight: | 4 kg |
| Width: | 441.1 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
