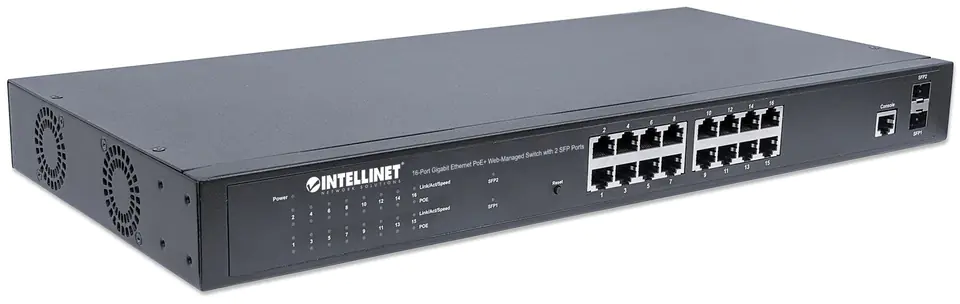

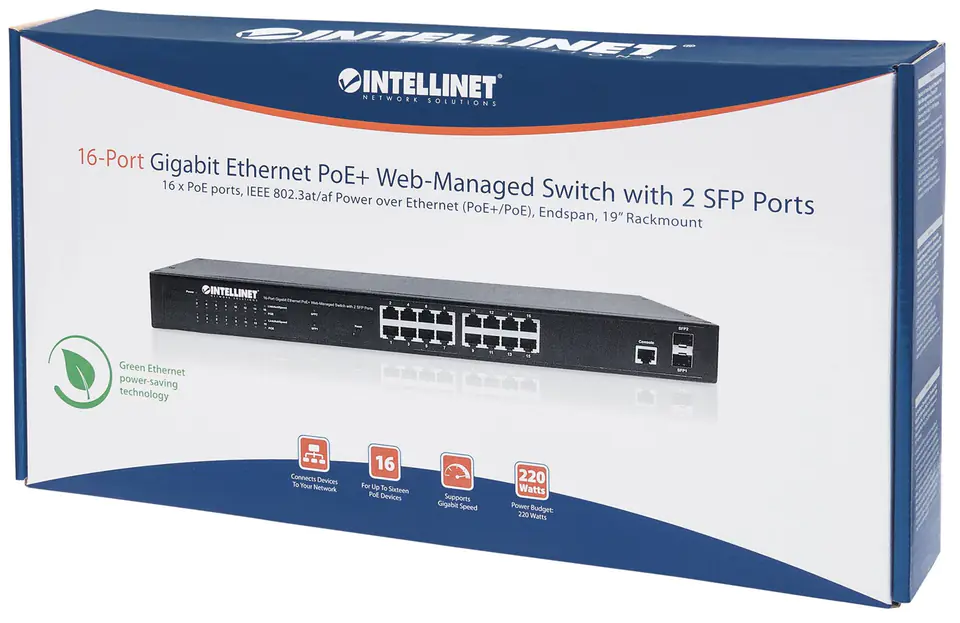

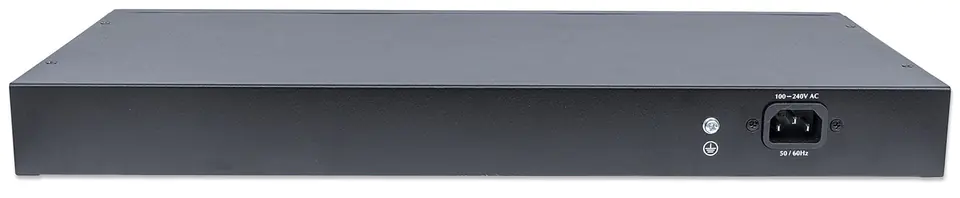

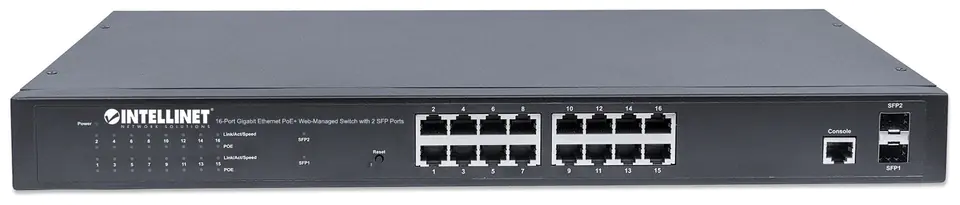

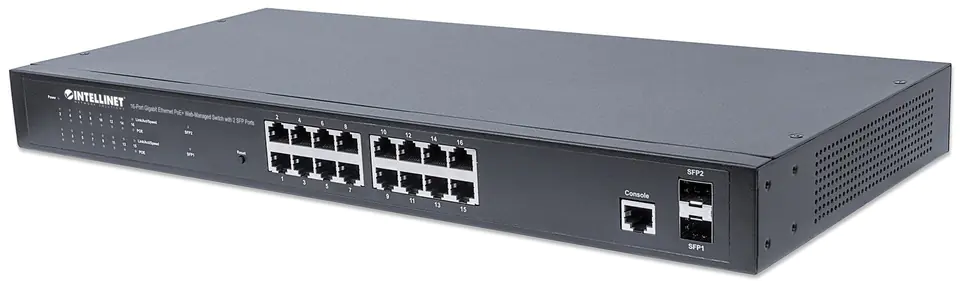

Intellinet 16-Port Gigabit Ethernet PoE+ Web-Managed Switch with 2 SFP Ports, 16 x PoE ports, IEEE 802.3at/af Power over Ethernet (PoE+/PoE), 2 x SFP, Endspan, 19" Rackmount
€425.89
Shipping from warehouse: A3
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Intellinet
- Product code:
- 561341 / 0766623561341
Share this product:
Specification
| 10g support: | No |
|---|---|
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 100 - 240 V |
| Access control list (acl): | Yes |
| Authentication: | Port-based authentication |
| Auto mdi/mdi-x: | Yes |
| Auto-sensing: | Yes |
| Basic switching rj-45 ethernet ports quantity: | 16 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control: | Yes |
| Cable types supported: | Cat5, Cat5e, Cat4, Cat3 |
| Cables included: | AC |
| Copper ethernet cabling technology: | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Depth: | 208 mm |
| Flow control support: | Yes |
| Form factor: | 1U |
| Full duplex: | Yes |
| Gigabit ethernet (copper) ports quantity: | 16 |
| Harmonized system (hs) code: | 85176990 |
| Height: | 44 mm |
| Housing material: | Metal |
| Igmp snooping: | Yes |
| Jumbo frames: | 9000 |
| Jumbo frames support: | Yes |
| Led indicators: | Yes |
| Link aggregation: | Yes |
| Mac address table: | 8000 entries |
| Management protocols: | SNMP, Telnet, SSH |
| Manual: | Yes |
| Multicast support: | Yes |
| Networking standards: | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3u, IEEE 802.1D, IEEE 802.3ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.3af, IEEE 802.3az |
| Number of fans: | 2 fan(s) |
| Number of vlans: | 4096 |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating temperature (t-t): | 0 - 40 °C |
| Packet buffer memory: | 0.512 MB |
| Packet forwarding rate (1 gbps): | 1488000 pps |
| Packet forwarding rate (10 mbps): | 14880 pps |
| Packet forwarding rate (100 mbps): | 148800 pps |
| Port mirroring: | Yes |
| Power consumption (max): | 260 W |
| Power over ethernet (poe): | Yes |
| Power over ethernet (poe) power per port: | 30 W |
| Power over ethernet plus (poe+) ports quantity: | 16 |
| Power protection features: | Short circuit, Over voltage, Overload |
| Power source: | AC |
| Product colour: | Black |
| Quality of service (qos) support: | Yes |
| Rack mount kit: | Yes |
| Rack mounting: | Yes |
| Rate limiting: | Yes |
| Security algorithms: | HTTPS, 802.1x RADIUS, SSH-2, SSH |
| Sfp module slots quantity: | 2 |
| Spanning tree protocol: | No |
| Storage temperature (t-t): | -20 - 90 °C |
| Store-and-forward: | Yes |
| Switch layer: | L2+ |
| Switch type: | Managed |
| Switching capacity: | 36 Gbit/s |
| Total power over ethernet (poe) budget: | 220 W |
| Virtual lan features: | Port-based VLAN, Tagged VLAN |
| Vlan support: | Yes |
| Web-based management: | Yes |
| Weight: | 3.86 kg |
| Width: | 440 mm |
