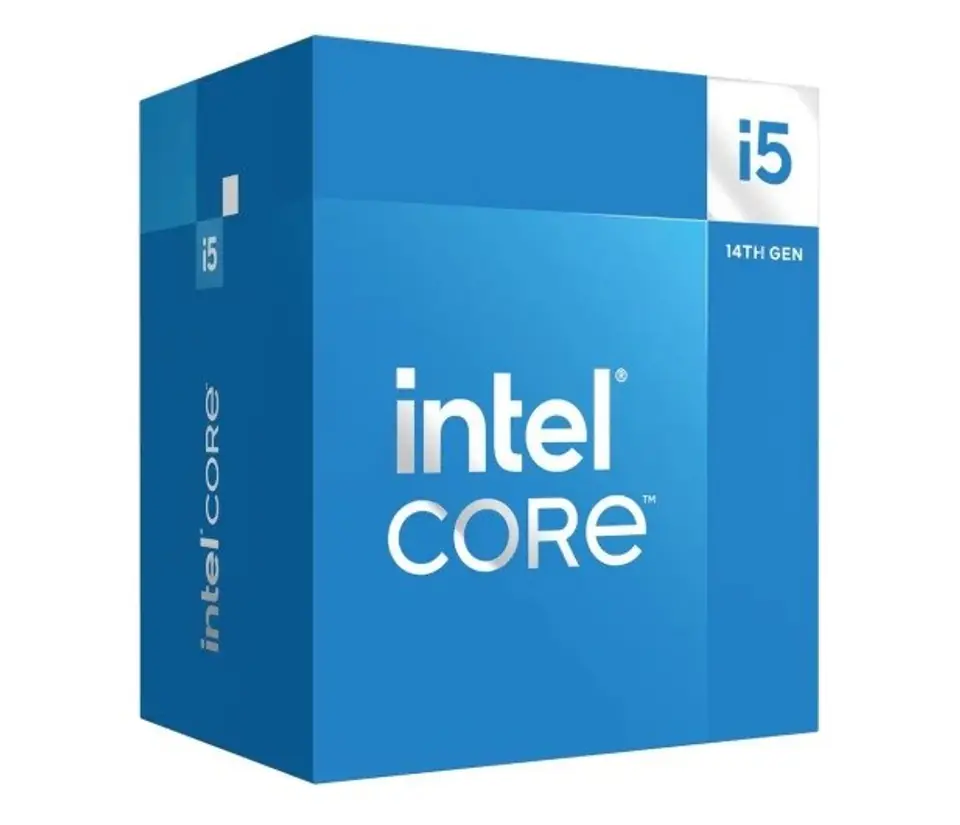

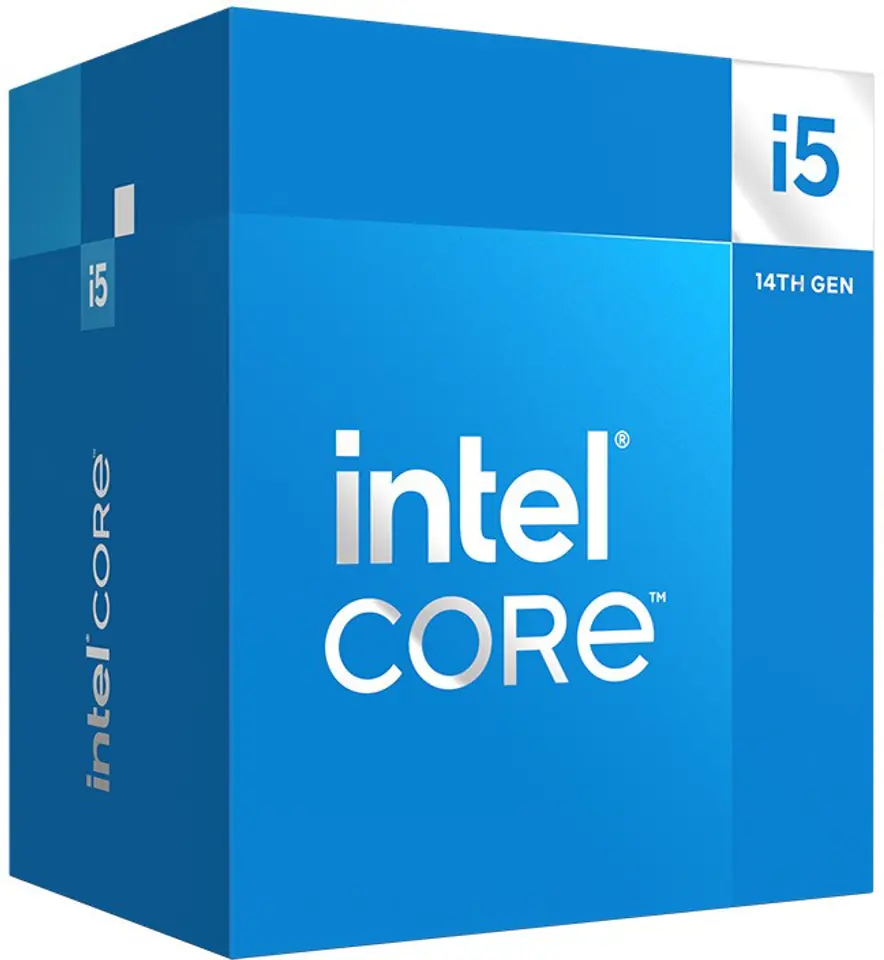

Intel Core i5-14500 processor 24 MB Smart Cache Box
€329.12
Shipping from warehouse: A3
Estimated shipping: Mon, Nov 18 - Tue, Nov 19
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Intel
- Product code:
- BX8071514500 / 5032037279178
Share this product:
Specification
| Box: | Yes |
|---|---|
| Bus type: | DMI4 |
| Cpu configuration (max): | 1 |
| Direct media interface (dmi) revision: | 4.0 |
| Discrete graphics card: | No |
| Discrete graphics card model: | Not available |
| Efficient cores: | 8 |
| Efficient-core base frequency: | 1,9 GHz |
| Efficient-core boost frequency: | 3.7 GHz |
| Embedded options available: | Yes |
| Enhanced intel speedstep technology: | Yes |
| Execute disable bit: | Yes |
| Graphics output: | eDP 1.4b, DP 1.4a, HDMI 2.1 |
| Idle states: | Yes |
| Intel 64: | Yes |
| Intel stable image platform program (sipp): | Yes |
| Intel trusted execution technology: | Yes |
| Intel turbo boost max technology 3.0: | No |
| Intel virtualization technology (vt-x): | Yes |
| Intel virtualization technology for directed i/o (vt-d): | Yes |
| Intel vpro® enterprise platform eligibility: | Yes |
| Intel vpro® essentials platform eligibility: | Yes |
| Intel vt-x with extended page tables (ept): | Yes |
| Intel® active management technology (intel® amt): | Yes |
| Intel® aes new instructions (intel® aes-ni): | Yes |
| Intel® boot guard: | Yes |
| Intel® clear video hd technology (intel® cvt hd): | Yes |
| Intel® control-flow enforcement technology (cet): | Yes |
| Intel® deep learning boost (intel® dl boost): | Yes |
| Intel® deep learning boost (intel® dl boost) on cpu: | Yes |
| Intel® gaussian & neural accelerator (intel® gna) 3.0: | Yes |
| Intel® hardware shield eligibility: | Yes |
| Intel® hyper threading technology (intel® ht technology): | Yes |
| Intel® one-click recovery: | Yes |
| Intel® os guard: | Yes |
| Intel® quick sync video technology: | Yes |
| Intel® remote platform erase (rpe): | Yes |
| Intel® secure key: | Yes |
| Intel® speed shift technology: | Yes |
| Intel® standard manageability (ism): | Yes |
| Intel® thread director: | Yes |
| Intel® threat detection technology (tdt): | Yes |
| Intel® total memory encryption - multi key: | Yes |
| Intel® turbo boost technology: | 2.0 |
| Intel® virtualization technology with redirect protection (vt-rp): | Yes |
| Intel® volume management device (vmd): | Yes |
| Intel® vpro™ platform eligibility: | Yes |
| Launch date: | Q1'24 |
| Market segment: | Desktop |
| Maximum internal memory: | 192 GB |
| Maximum internal memory supported by processor: | 192 GB |
| Maximum number of dmi lanes: | 8 |
| Maximum number of pci express lanes: | 20 |
| Maximum turbo power: | 154 W |
| Memory bandwidth (max): | 76.8 GB/s |
| Memory bandwidth supported by processor (max): | 76.8 GB/s |
| Memory channels: | Dual-channel |
| Memory types supported by processor: | DDR5-SDRAM, DDR4-SDRAM |
| Mode-based execute control (mbe): | Yes |
| Number of displays supported (on-board graphics): | 4 |
| Number of execution units: | 32 |
| On-board graphics card: | Yes |
| On-board graphics card base frequency: | 300 MHz |
| On-board graphics card directx version: | 12.0 |
| On-board graphics card dynamic frequency (max): | 1550 MHz |
| On-board graphics card maximum resolution (displayport): | 7680 x 4320 pixels |
| On-board graphics card maximum resolution (edp - integrated flat panel): | 5120 x 3200 pixels |
| On-board graphics card maximum resolution (hdmi): | 4096 x 2160 pixels |
| On-board graphics card model: | Intel UHD Graphics 770 |
| On-board graphics card opengl version: | 4.5 |
| On-board graphics card outputs supported: | Embedded DisplayPort (eDP) 1.4b, HDMI 2.1, DisplayPort 1.4a |
| On-board graphics card refresh rate at maximum resolution (displayport): | 60 Hz |
| On-board graphics card refresh rate at maximum resolution (edp - integrated flat panel): | 120 Hz |
| On-board graphics card refresh rate at maximum resolution (hdmi): | 60 Hz |
| Opencl version: | 3.0 |
| Pci express configurations: | 1x16+1x4, 2x8+1x4 |
| Pci express slots version: | 4.0, 5.0 |
| Performance cores: | 6 |
| Performance-core base frequency: | 2,6 GHz |
| Performance-core boost frequency: | 5 GHz |
| Processor base power: | 65 W |
| Processor boost frequency: | 5 GHz |
| Processor cache: | 24 MB |
| Processor cache type: | Smart Cache |
| Processor codename: | Raptor Lake |
| Processor cores: | 14 |
| Processor family: | Intel® Core™ i5 |
| Processor generation: | Intel® Core™ i5 14th generation |
| Processor manufacturer: | Intel |
| Processor model: | i5-14500 |
| Processor operating modes: | 64-bit |
| Processor package size: | 45 x 37.5 mm |
| Processor socket: | LGA 1700 |
| Processor threads: | 20 |
| Scalability: | 1S |
| Status: | Launched |
| Supported instruction sets: | SSE4.1, AVX 2.0, SSE4.2 |
| Thermal monitoring technologies: | Yes |
| Tjunction: | 100 °C |
| Use conditions: | PC/Client/Tablet, Workstation |
