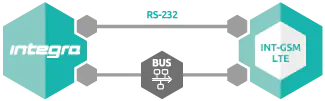

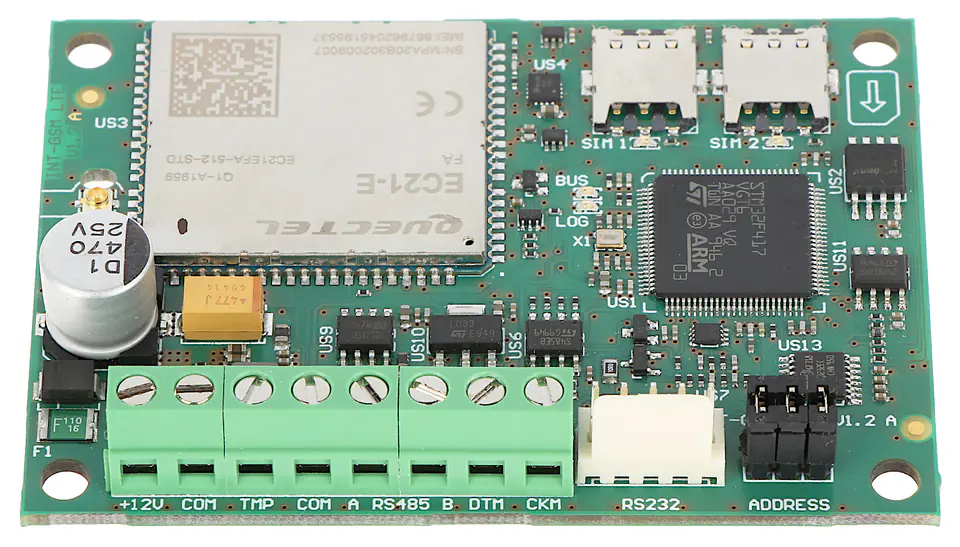

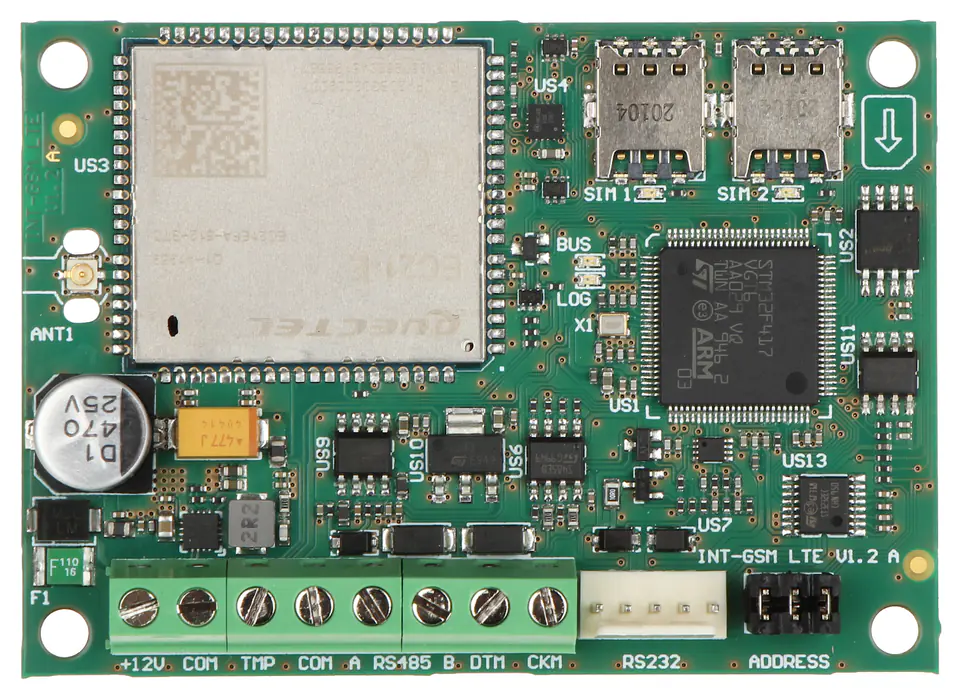

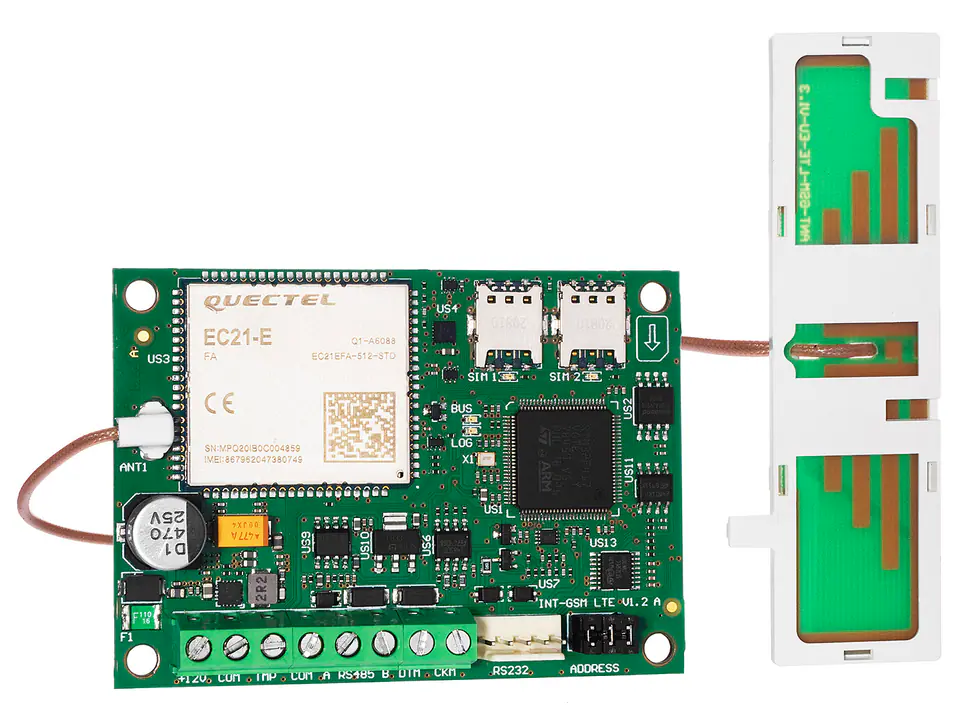

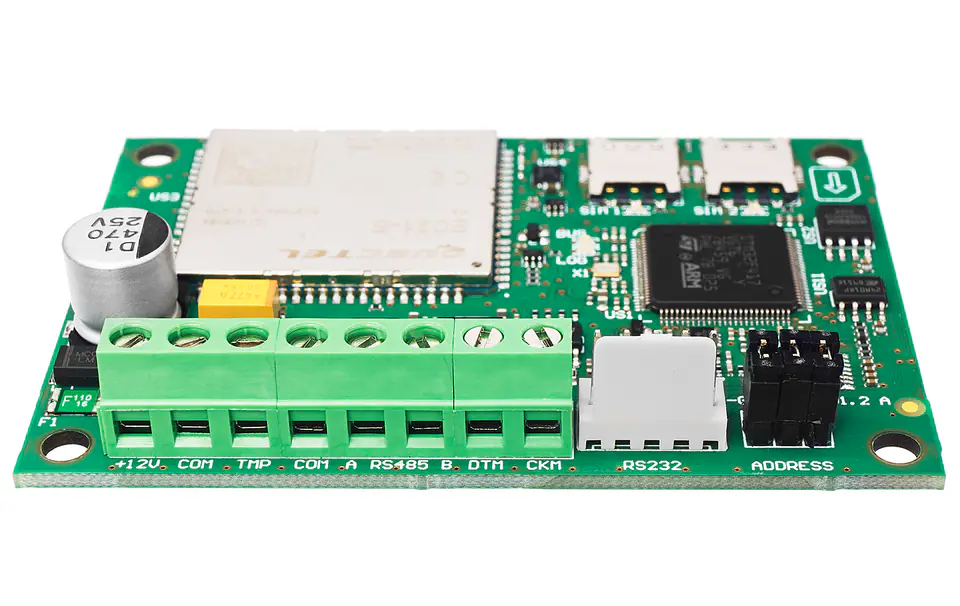

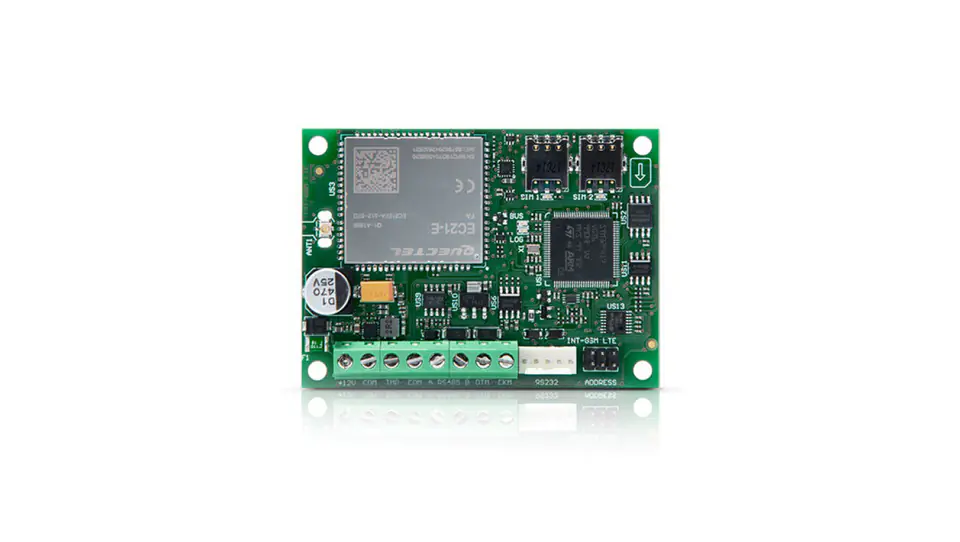

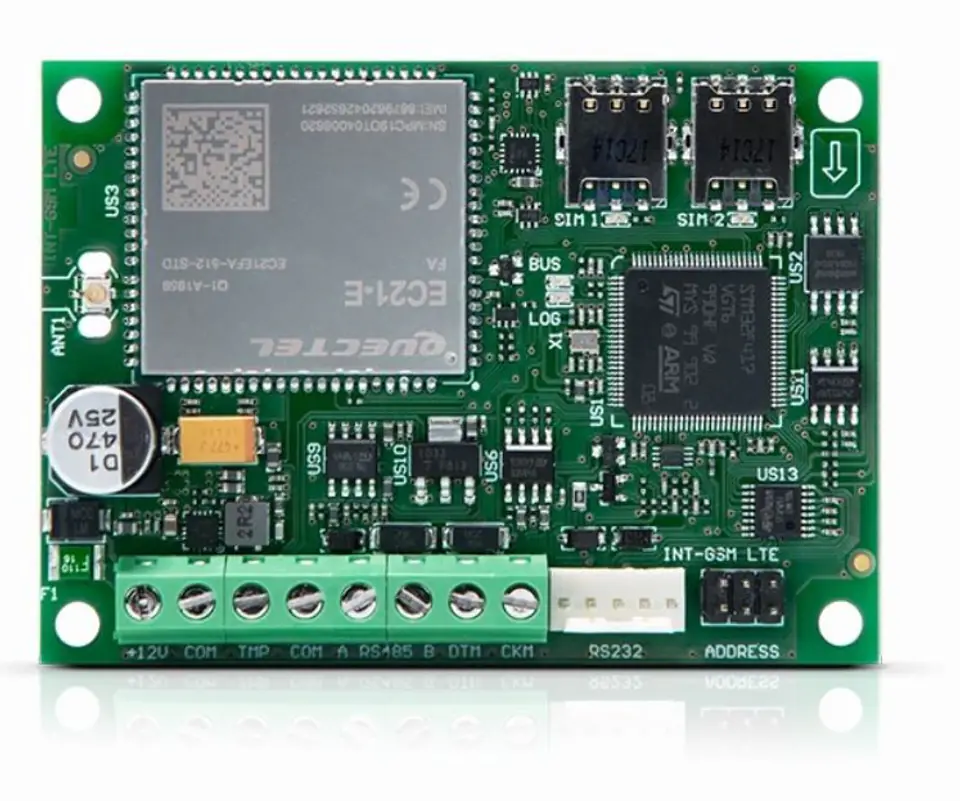

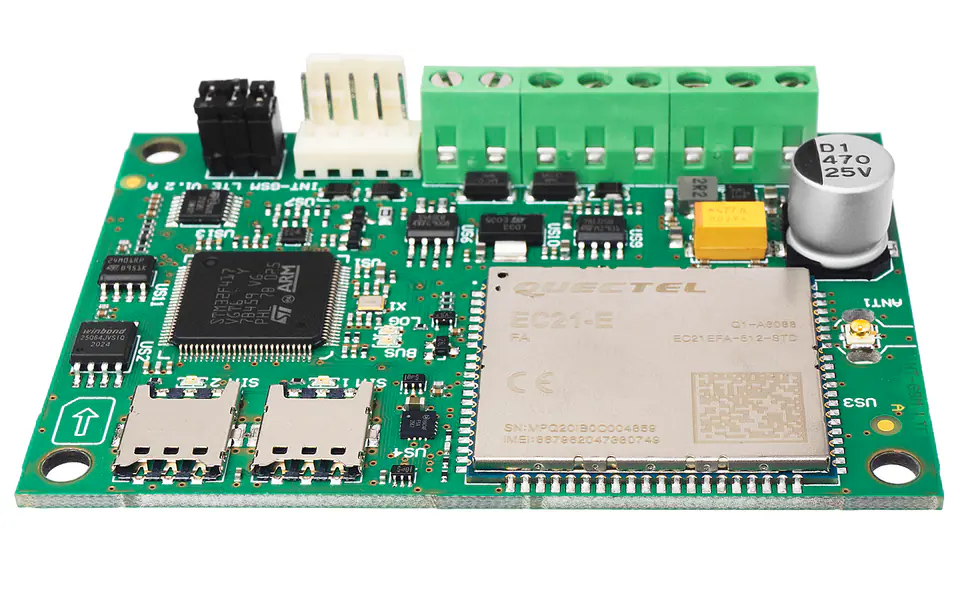

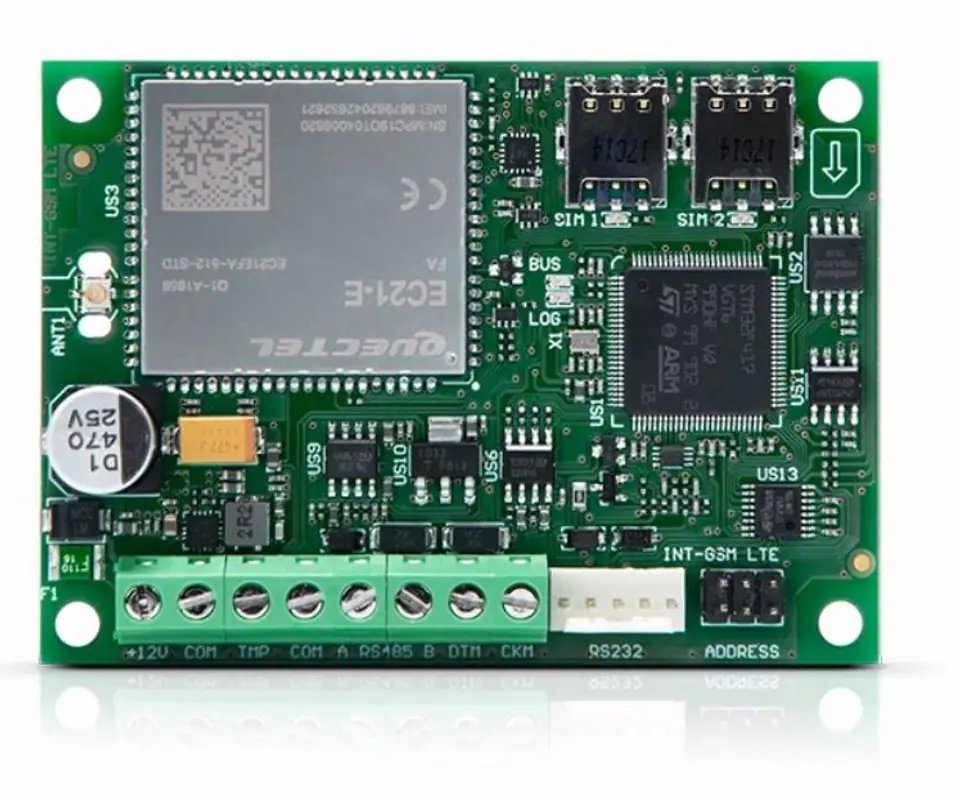

INT-GSM LTE is an LTE communication module enabling INTEGRA and INTEGRA Plus control panels to communicate via a 2G, 3G or 4G cellular network. The device works on the keypad bus of the alarm control panel. Supports two SIM cards. All cellular data transmissions are encrypted in the AES-192 standard.
INT-GSM LTE monitors events up to two monitoring stations (e.g. security agencies) over the cellular network. For this purpose, it uses cellular data transmission and SMS messages, with the possibility of setting a priority for each of the listed transmission paths.
Event notifications are created automatically on the basis of recording from the event memory of the alarm control panel. The module transmits information in the form of SMS messages or via the CLIP service (for up to 16 numbers), and in the case of cooperation with the INTEGRA Plus control panel also by e-mail (for up to 16 addresses). After installing the INTEGRA CONTROL mobile application, e.g. on a smartphone, PUSH notifications are available.
Cooperation of INT-GSM LTE with INTEGRA and INTEGRA Plus control panels opens access to remote control of the system using:
- INTEGRA CONTROL application
- Sms
- Cost-free CLIP service
- GUARDX program.

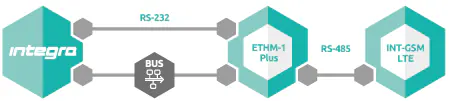

A big advantage of the INT-GSM LTE module is the possibility of cooperation with the ETHM-1 Plus Ethernet module (RS-485 connection). This duo allows you to carry out dual path monitoring in accordance with EN 50136, as well as to prioritize event monitoring paths (Ethernet, cellular data and SMS). By default, a cellular network is a backup connectivity channel for Ethernet.

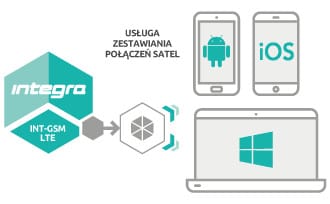

Communication via the cellular network allows wireless connection of the control panel and computer with the DLOADX program installed, and thus the system configuration even from a remote location. The connection between the module and the computer can be realized through the SATEL connection setup service.
The module software is updated via the RS-232 port or remotely, using the UpServ software (cellular data transmission).
Properties:
- Cooperation with INTEGRA and INTEGRA Plus control panels (version 1.19 or higher)
- Dual SIM support
- Ability to check the status of a pre-paid account
- Time synchronization from an NTP server or cellular network
- Notification: SMS, CLIP, PUSH, e-mail (INTEGRA Plus)
- Remote control: SMS, CLIP, mobile app
- Monitoring: cellular data (TCP/UDP), SMS messages
Possibility of cooperation with the ETHM-1 Plus Ethernet module (version 2.07 or higher):
- Dual Path Reporting, compliant with EN 50136
- Backup communication path
Possibility of using the SATEL connection setup service
Operation of the system from the INTEGRA CONTROL mobile application
- Android (version 4.2.7 or higher)
- iOS (version 5.0 or higher)
Programming control panels using DLOADX (version 1.19.004 or higher) - remote connection
Control of the alarm system using GUARDX - remote connection
Cooperation with the INTEGRUM system (integration of many alarm systems based on INTEGRA and INTEGRA Plus control panels)
Remote module software update via UpServ
