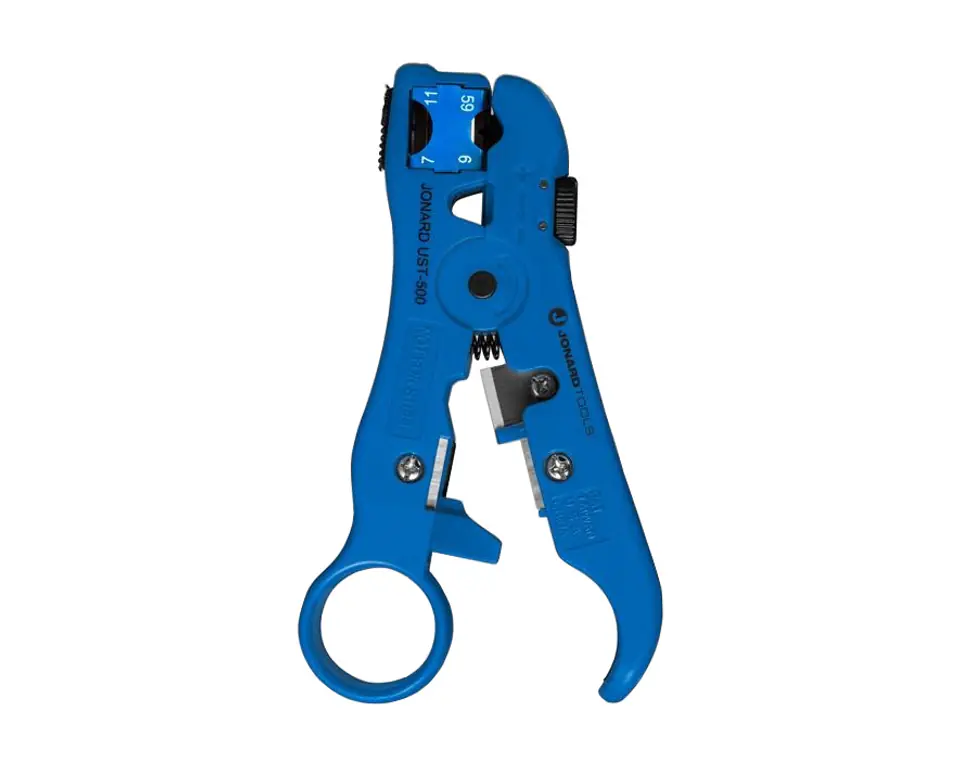

INSULATION STRIPPER JONARD TOOLS UST-525 COAX NETWORK
A tool designed to remove insulation from RG59, RG6, RG7 and RG11 coaxial cables and network and telephone cables for quick and easy termination for a given type of connector.
Key features:
- 2-level blade for cable termination for F, BNC and RCA connector
- High carbon steel blades withstand more than 5000 insulation removals
- Cable stop on the cassette ensures precise removal of insulation without the need for adjustment
- The cassette is double-sided for two-hand use
- Adjustable insulation removal hole is used to remove CAT3/4/5E/6/6A network cables from PVC and Plenum
- Knife for cutting all types of cables
- Separate insulation removal hole included for flat cables and 4P/6P type cables
- Velcro strap on the bottom of the tool will easily prepare the braided screen on the cable
- Large finger loop for smooth rotation during use
- Removing insulation removes 1/4" of the jacket and 5/16" of the screen and dielectric, revealing the middle conductor
Technical Specification:- Cable Type: COAX - Coax Cables, Internet, Telephone
- Cable size: RG-59/6/7/11 COAX, CAT3/4/5E/6/6A network, flat cable up to 1cm wide
- Handle color: Blue
- Length: 5" (122 mm)
- Weight: 97.52g
Data sheet:http://dmtrade.pl/katalogi/jonard/UST-525/KK-UST-525.pdf
Founded in 1958, Jonard Tools® manufactures tools for the telecommunications, cable TV, fiber optics, home automation, security and alarm markets, and electrical markets. Jonard Tools designs and builds patented products, working with customers to create innovative solutions for industry and beyond. All tools are Made For Life® and come with a lifetime warranty. Through quality and innovation, Jonard strives to develop the industry and connect the world.
