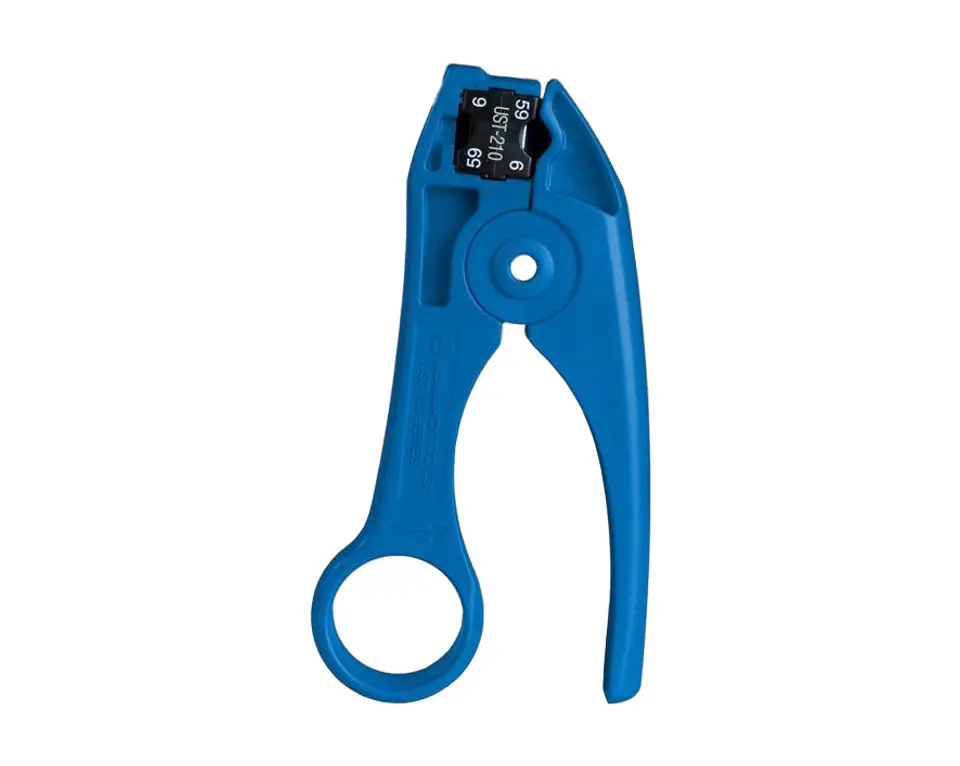

INSULATION STRIPPER JONARD TOOLS UST-1596 TWIN
Tool designed to remove insulation from RG59, RG6 coaxial cables for quick and easy termination for F-type connectors.

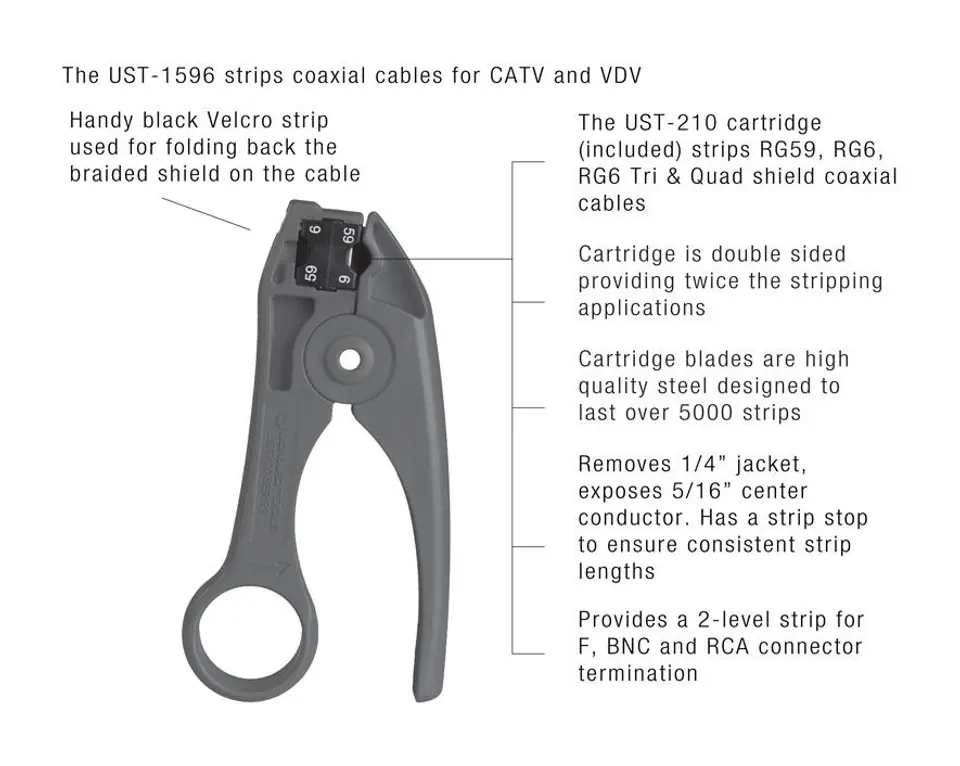

Key features:
- Double 2-level blade for: RG59, RG6
- High carbon steel blades withstand more than 5000 insulation removals
- Cable stop on both sides of the cartridge ensures precise removal of insulation without the need for adjustment
- The cassette is double-sided for two-hand use
- Velcro strap on the bottom of the tool will easily prepare the braided screen on the cable
- Large finger loop for smooth rotation during use
- Removing insulation removes 1/4" of the jacket and 5/16" of the screen and dielectric, revealing the middle conductor
Technical Specification:- Cable Type: COAX - Coax Cables, Internet, Telephone
- Cable size: RG6, RG59
- Handle color: Blue
- Length: 5" (122 mm)
- Weight: 97.52g
Data sheet: http://dmtrade.pl/katalogi/jonard/UST-1596/KK-UST-1596.pdf
