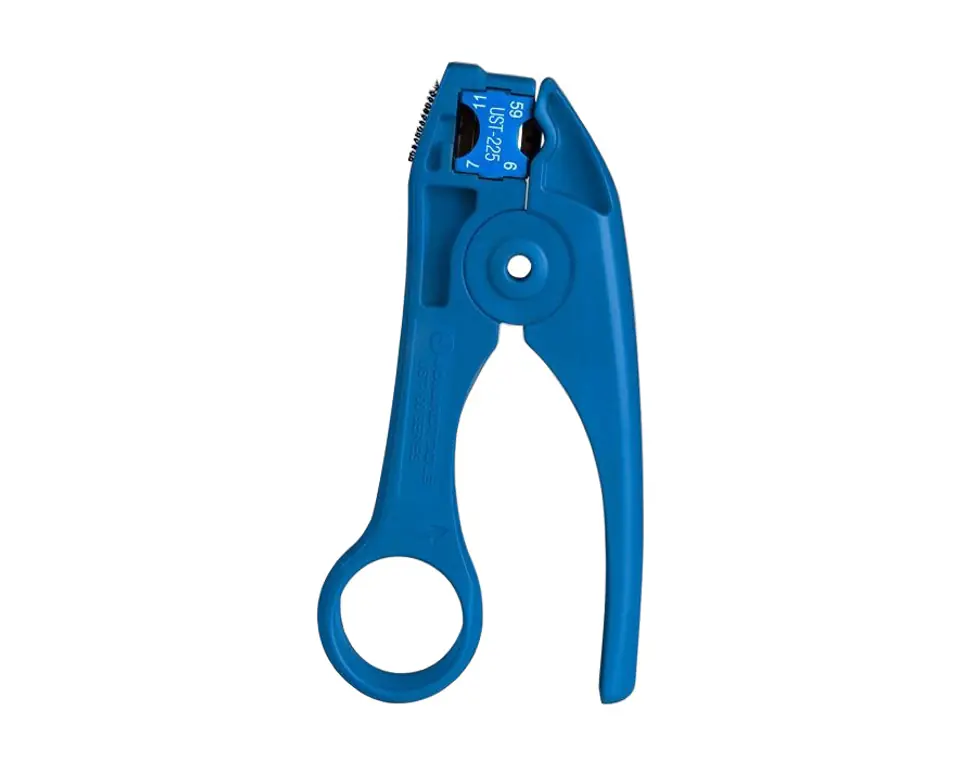

INSULATION STRIPPER JONARD TOOLS UST-125
A tool designed to remove insulation from RG59, RG6, RG6, RG7 and RG11 coaxial cables for quick and easy termination for F-connectors.
Key features:

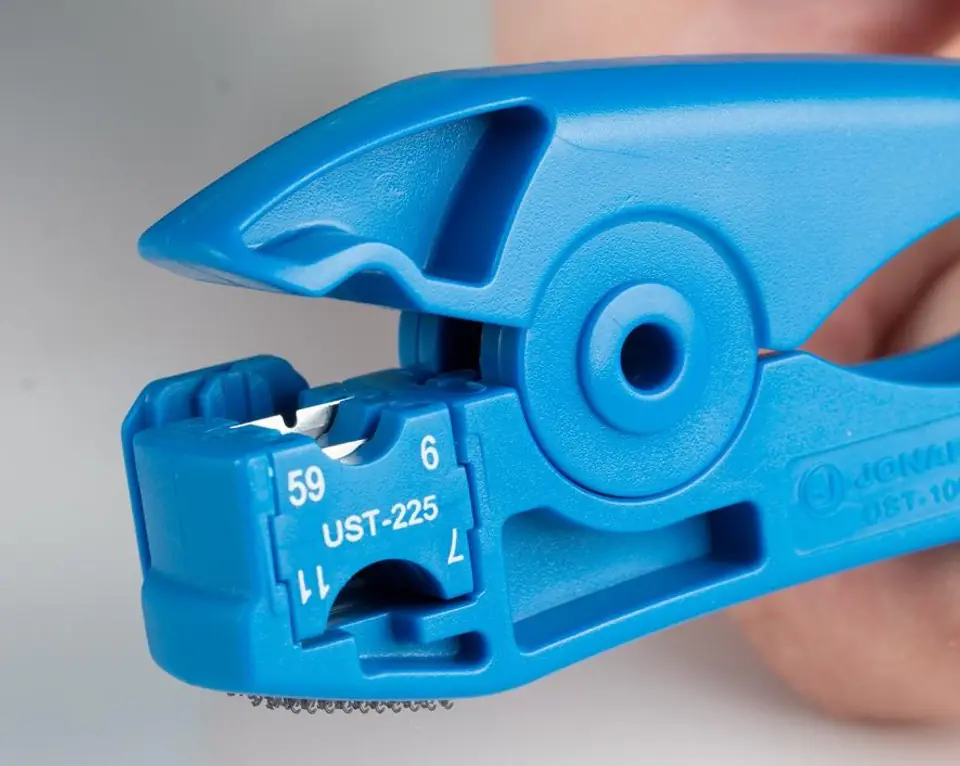

- 2-level blade for: RG59, RG6, RG7 and RG11.
- High carbon steel blades withstand more than 5000 insulation removals

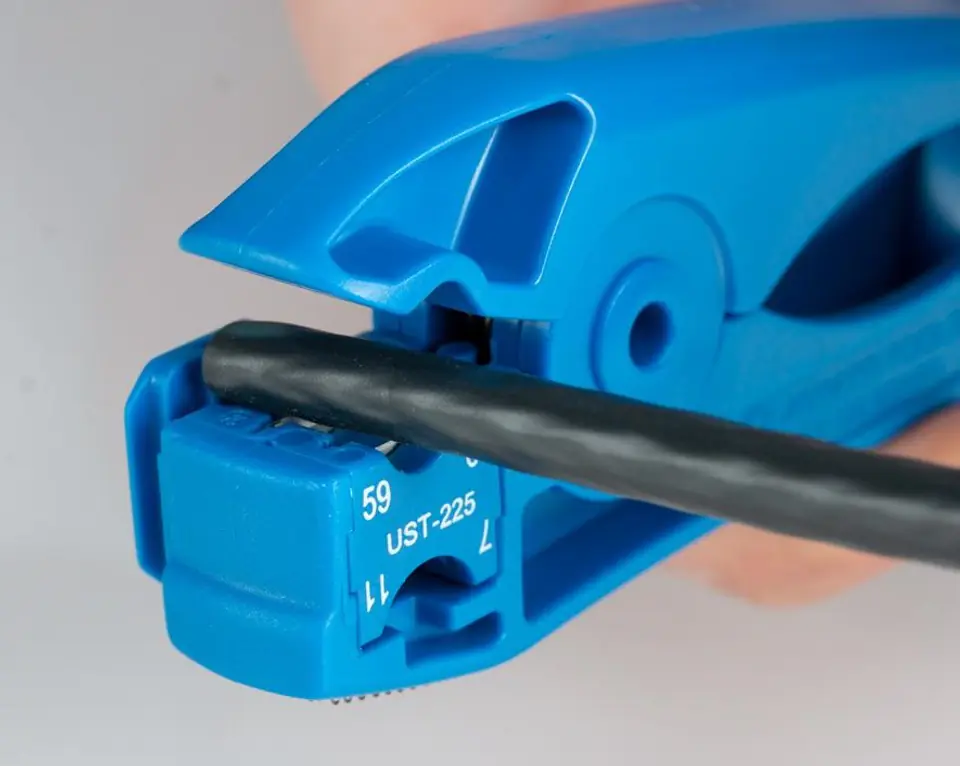

- Cable stop on both sides of the cartridge ensures precise removal of insulation without the need for adjustment
- The cassette is double-sided for two-hand use

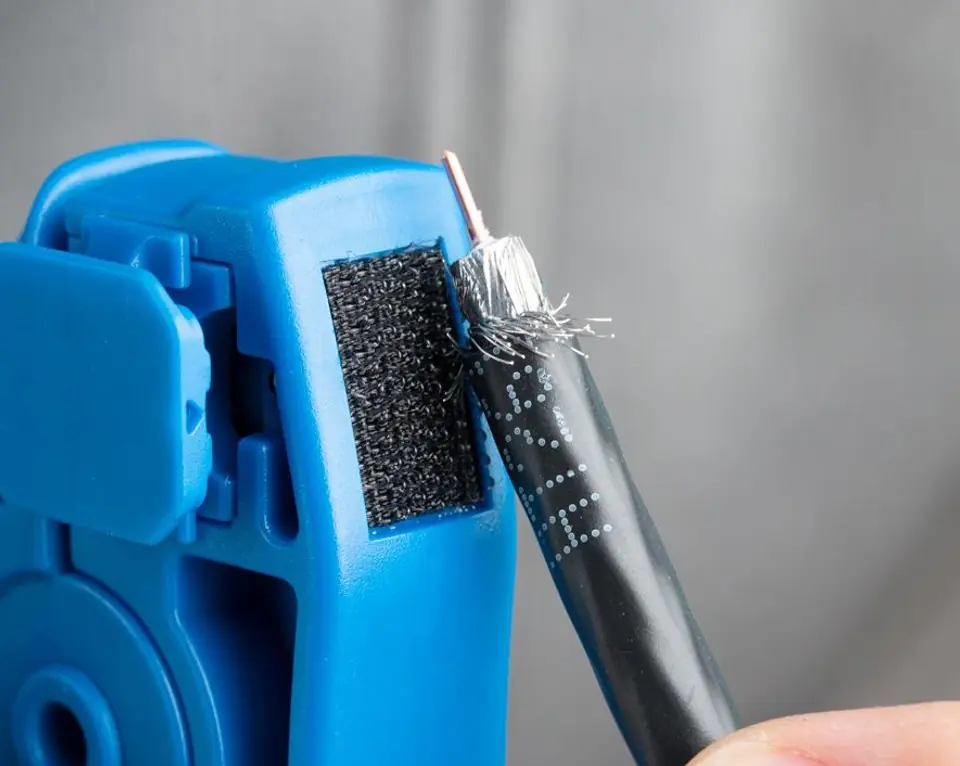

- Velcro strap on the bottom of the tool will easily prepare the braided screen on the cable
- Large finger loop for smooth rotation during use

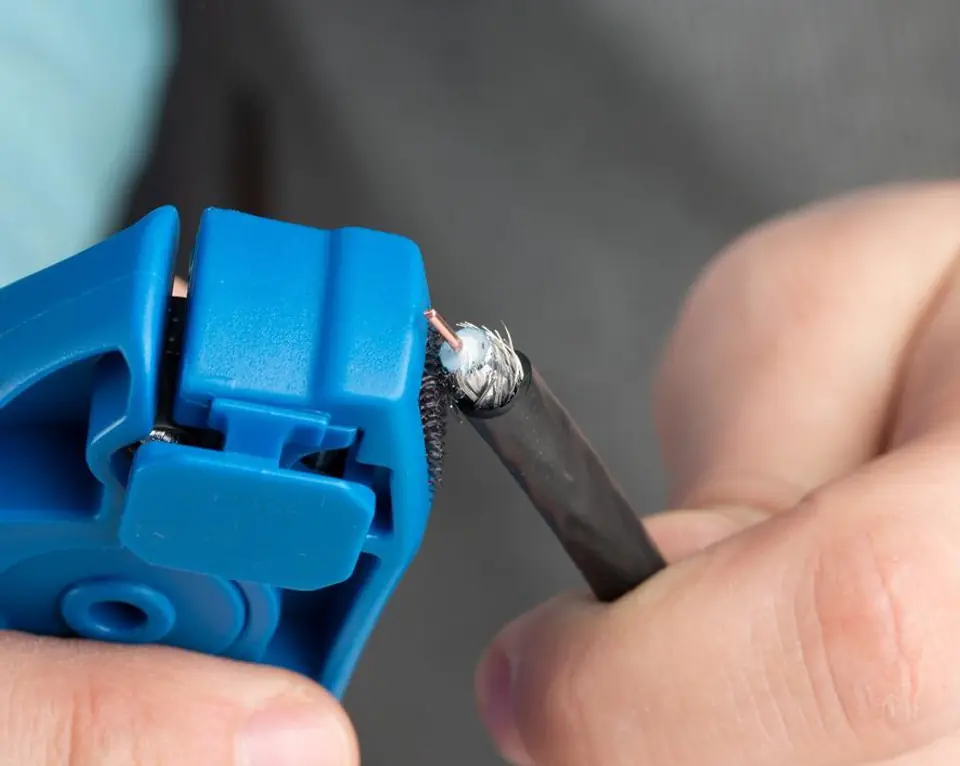

- Removing insulation removes 1/4" of the jacket and 5/16" of the screen and dielectric, revealing the middle conductor
Technical Specification:- Cable Type: COAX - Coax Cables
- Cable size: RG59 and RG6, RG7 and RG11
- Handle color: Blue
- Length: 4 3/4" (120.65 mm)
- Weight: 95.26g
Data sheet:http://dmtrade.pl/katalogi/jonard/UST-125/KK-UST-125.pdf
