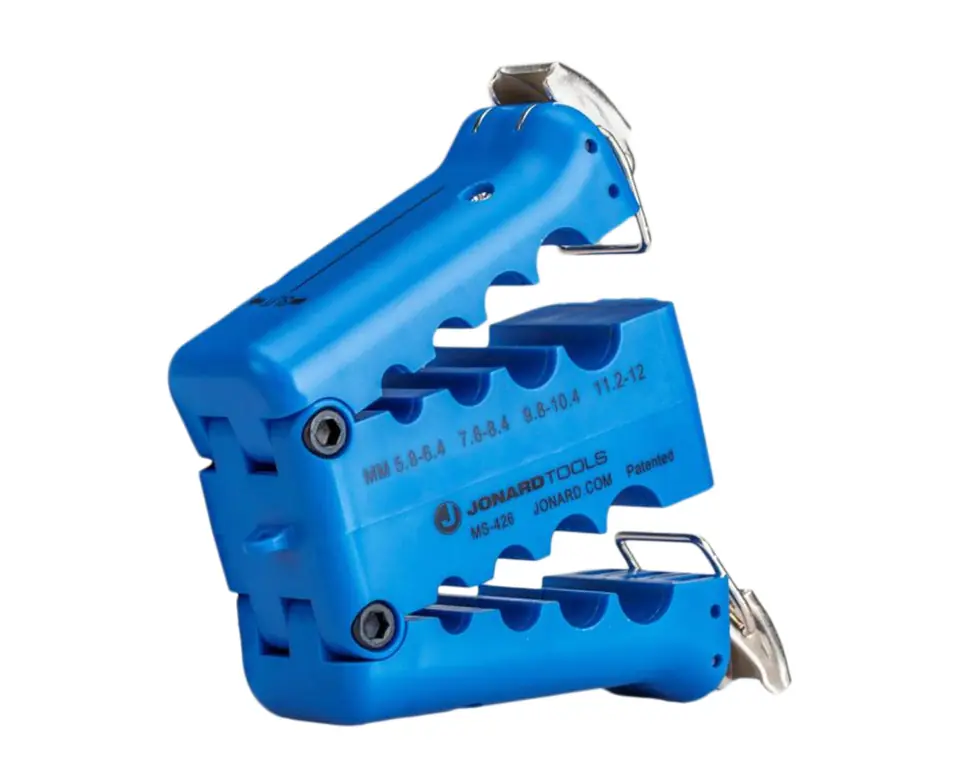

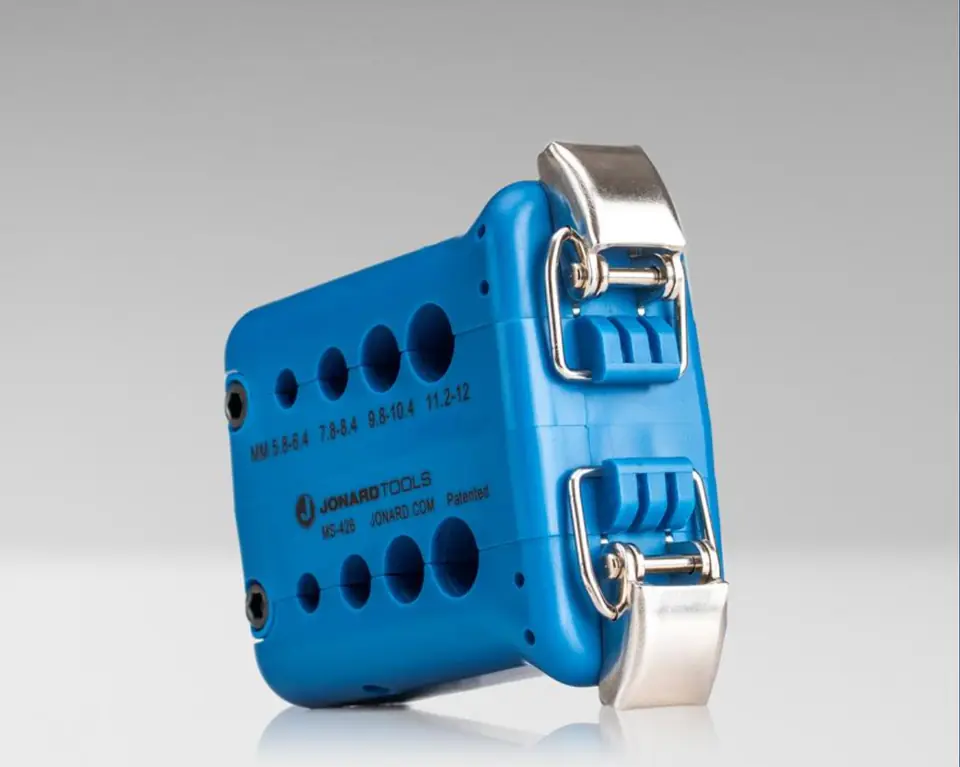

Insulation stripper JONARD TOOLS MS-426
The MS-426 Mid Span Slit and Ring Tool is designed to provide easy access to optical fibers in Prysmian ESMF Optical Mini FlexTube® cables
(as well as other thick-walled sheaths with a diameter of 5.8 to 12 mm, including Corning cable counterparts). Based on the popularity of Jonard Tools MS-6 and MS-26 cutting tools for medium span fibers,
We've introduced a ring feature to the tool to make it even more versatile.
Key features:
- Consists of 4 precision cutting grooves and 4 precision annular grooves ranging in size from 5.8 mm to 12 mm

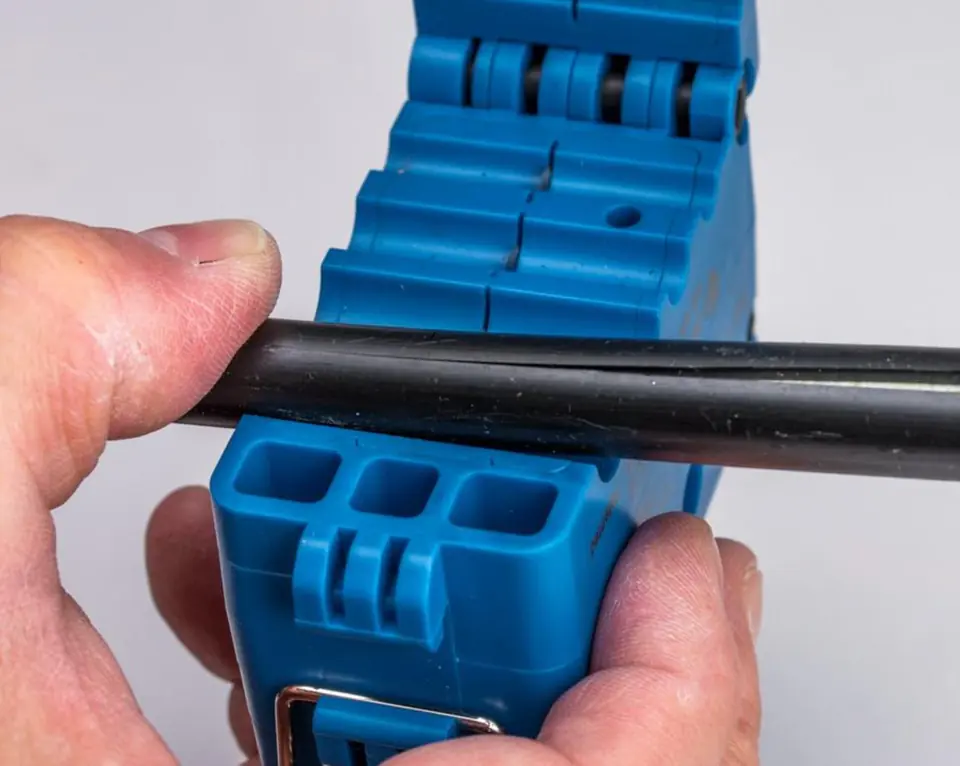

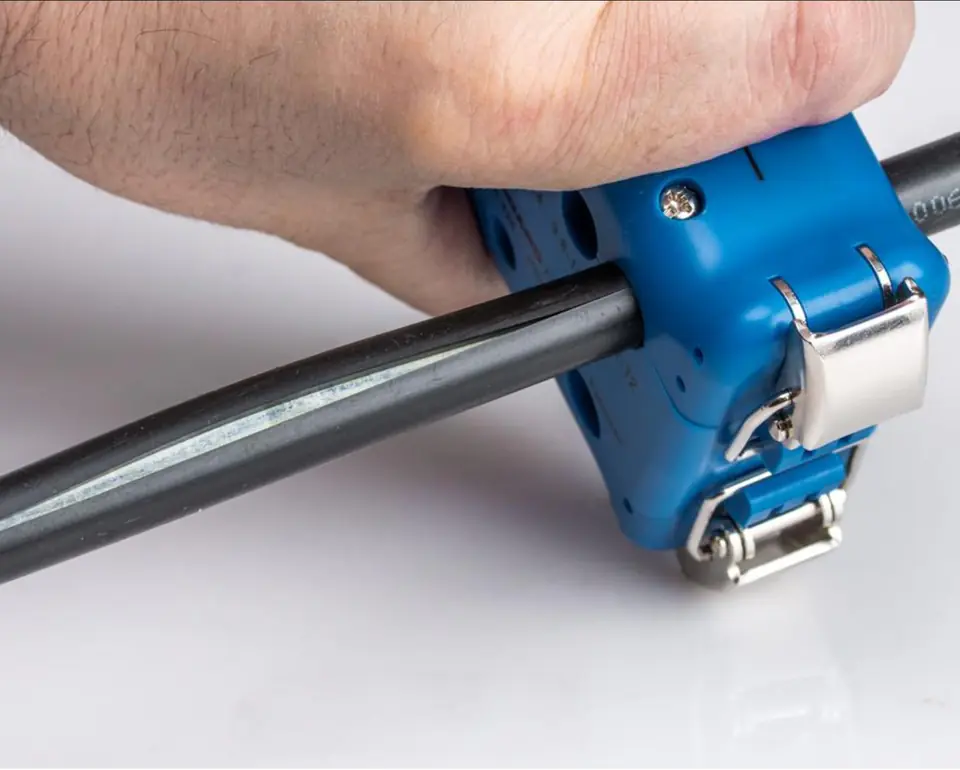

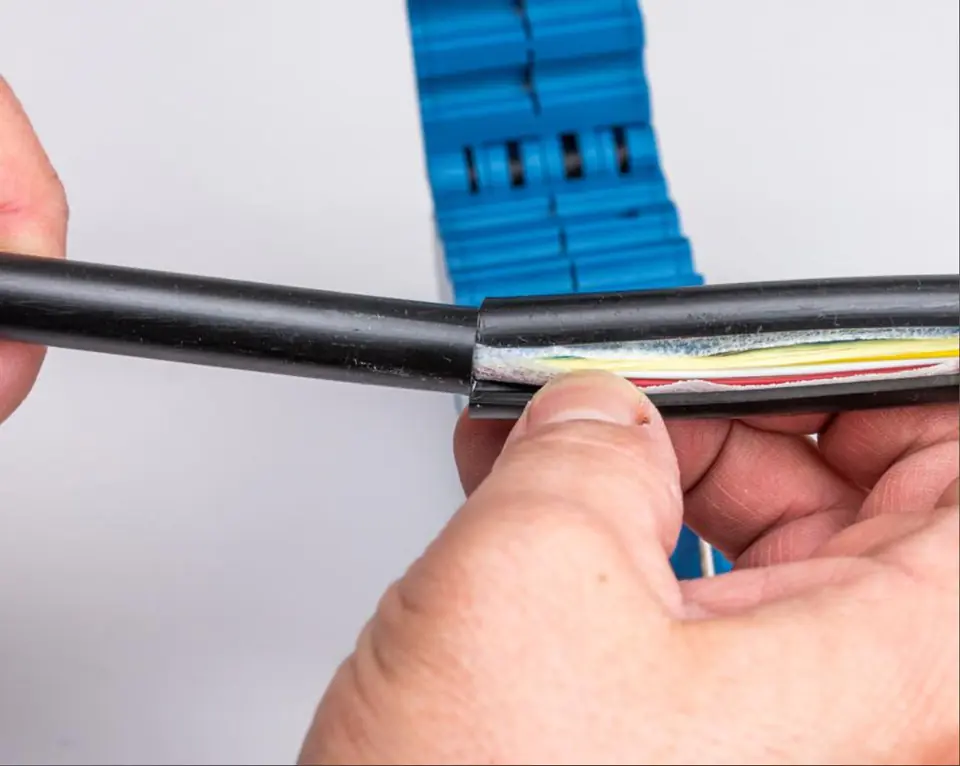

- One side of the tool makes radial/annular cuts and the other side cuts the cable (slitting)
- Compact design weighing less than 208 grams with attached mounting hole makes it ideal for use in tight spaces or on the go
- A line indicating on the top of the device indicates the position of the blade for accurate cutting
- This tool has been specially designed for use with Prysmian ESMF Optical Mini FlexTube® cables and other similar style cables, including equivalent Corning cables
- Replaceable blade kit available, part number: MS-426RB
- Blades withstand 5000 cuts/cuts
- All our MS series mid-span tools are patented due to their unique design and functionality.
Technical Specifications:
- Type of stripping insulation: Ring, Gap
- Cable type: jacket
- Diameter of supported cables: 5.8mm-12mm
- Weight: 207.93g
MS series list: https://www.dmtrade.pl/katalogi/jonard/ms-426/MSzestawienie1.pdf
