The insulating disconnector is designed to isolate the entire installation from the electrical networkThe LE-406469 device is designed for mounting on the TS-35 DIN rail

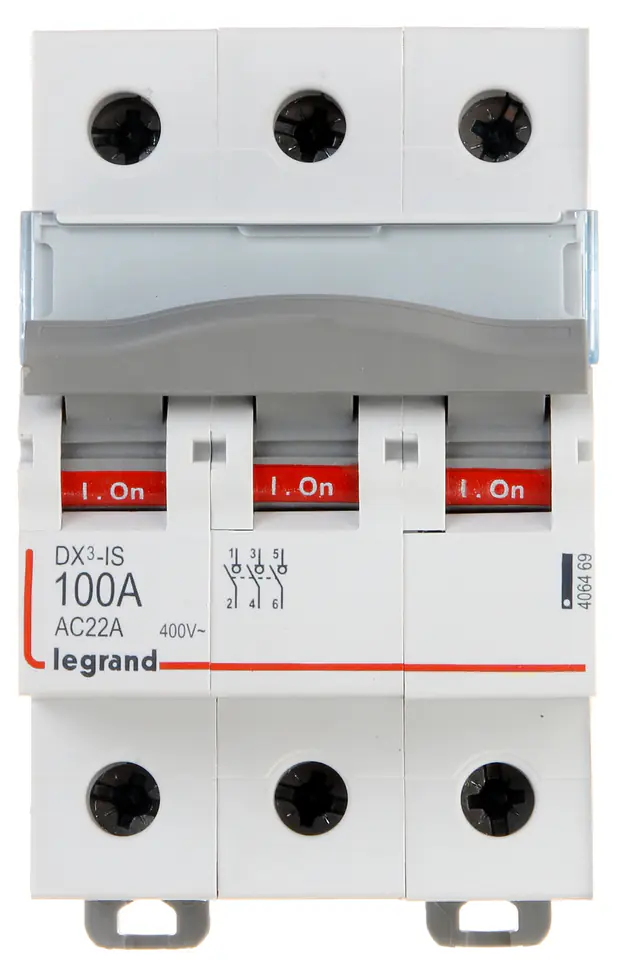

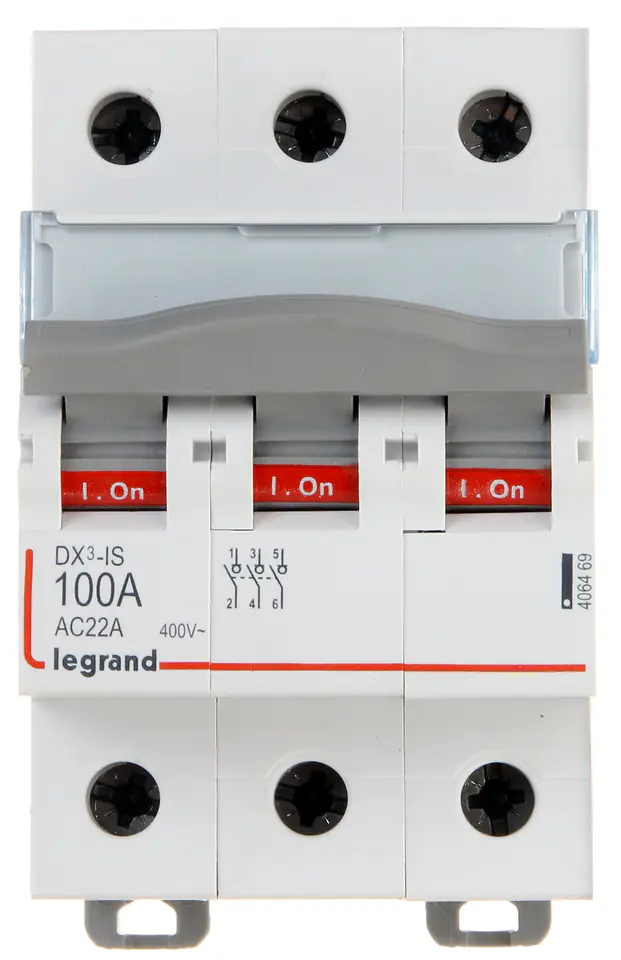

INSULATION DISCONNECTOR LE-406469 THREE-PHASE 100 A LEGRAND
€32.44
Shipping from warehouse: D4
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Legrand
- Product code:
- LE-406469 / 3245064064699
Share this product:
Specification
| Case:: | Plastic, DIN rail mounting, TS-35 |
|---|---|
| Category of use:: | AC22A |
| Connector type:: | screw terminals |
| Current:: | 100 A |
| Device type:: | Insulation disconnector, Three phase |
| Dimensions:: | 53 x 83 x 75 mm |
| Manufacturer / brand:: | LEGRAND |
| Number of poles:: | 3 |
| Rated surge voltage withstand:: | 6 kV |
| Scales:: | 0.27 kg |
| Selected features:: | Can be connected by comb or stick rails Provided space for a sheet of paper with a description |
| Short-term rated current:: | 2500 A |
| Voltage:: | 500 V AC, 50/60 Hz |
| Warranty:: | 2 years |
| Width in modules 17.5 mm:: | 3 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
