INSULATED CABLE SLEEVES SET OF 100PCS.

€12.65
Shipping from warehouse: ⁨U1⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
KNIPEX
Product code:
8255420030 / 4003773082460

Specification

Execution:100 parts, with insulated cable sleeves



Specifications:

Item no.: 97 99 907
EAN: 4003773082460
Weight: 90 g
Dimensions: 90 x 44 mm
Standard: DIN 46228-4: 2020-03



Practical lockable box, stackable
Handy, transparent box
Rotatable lid with hole for removing individual cable sleeves
With insulated cable sleeves with DIN colour coding system
Format: diameter 90 mm, height 44 mm



Included:

50 x Sleeves without flange grey 17 mm (50 x 4 mm2 / AWG 11)
20 x Bushings without flange Yellow 20 mm (20 x 6 mm2 / AWG 10)
20 x Sleeves without flange red 22 mm (20 x 10 mm2 / AWG 7)
10 x Sleeves without flange blue 24 mm (10 x 16 mm2 / AWG 5)

**

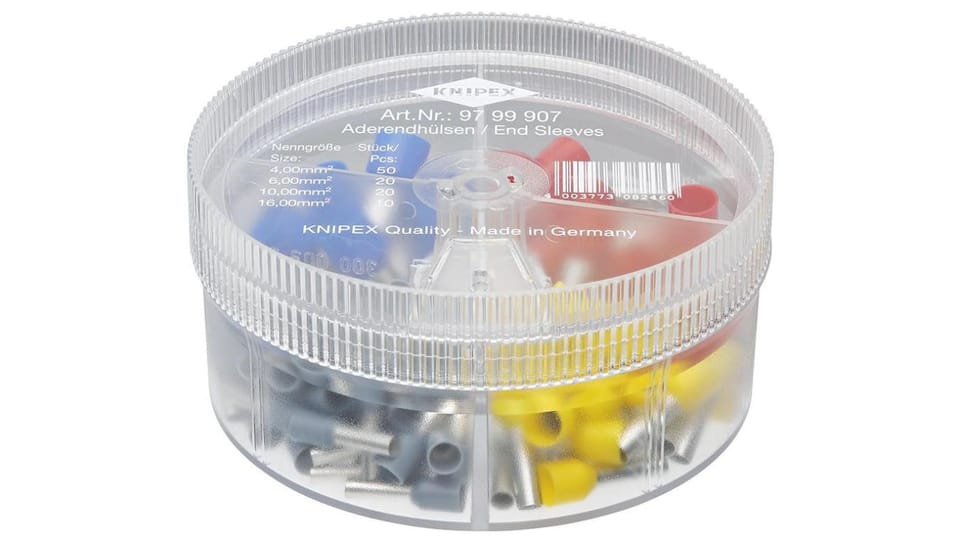

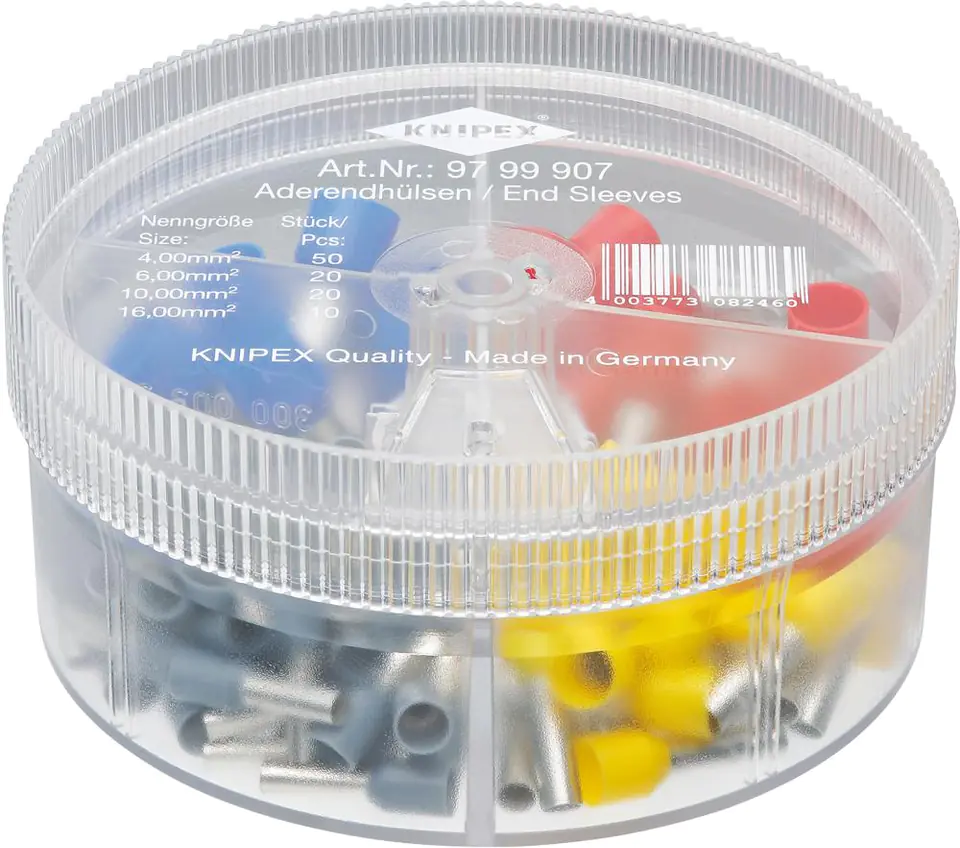

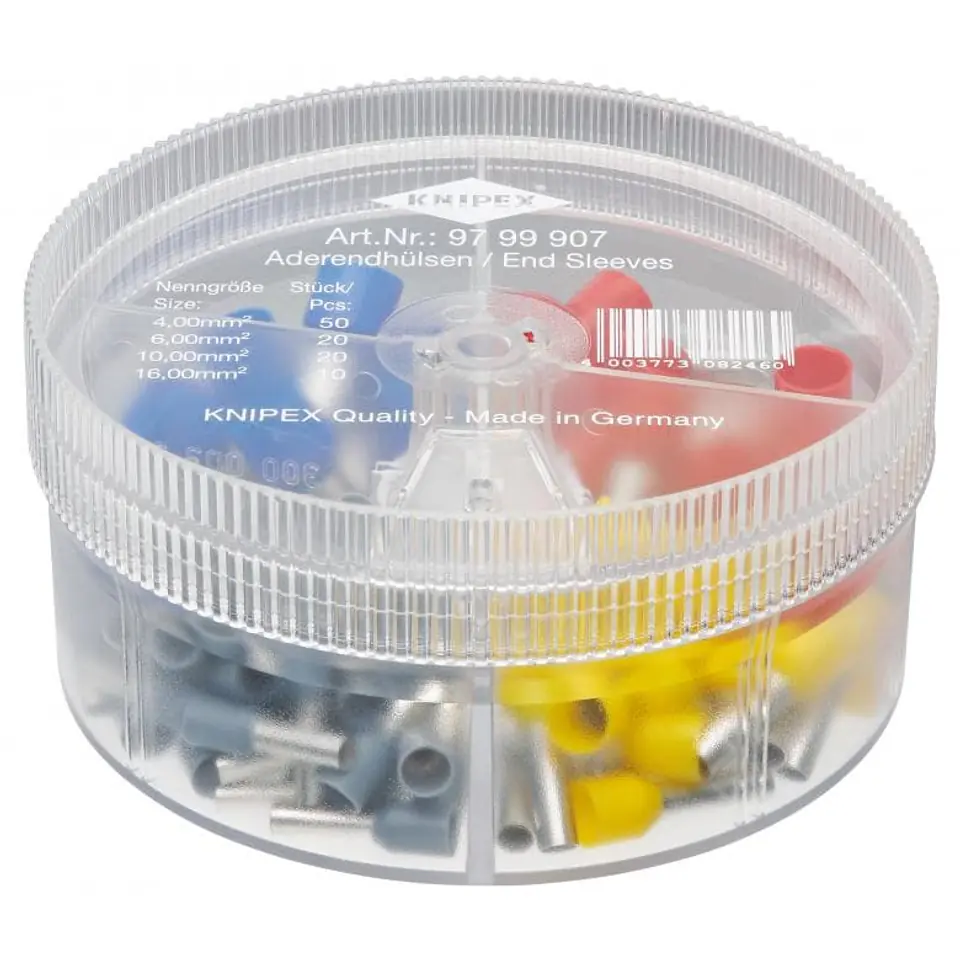

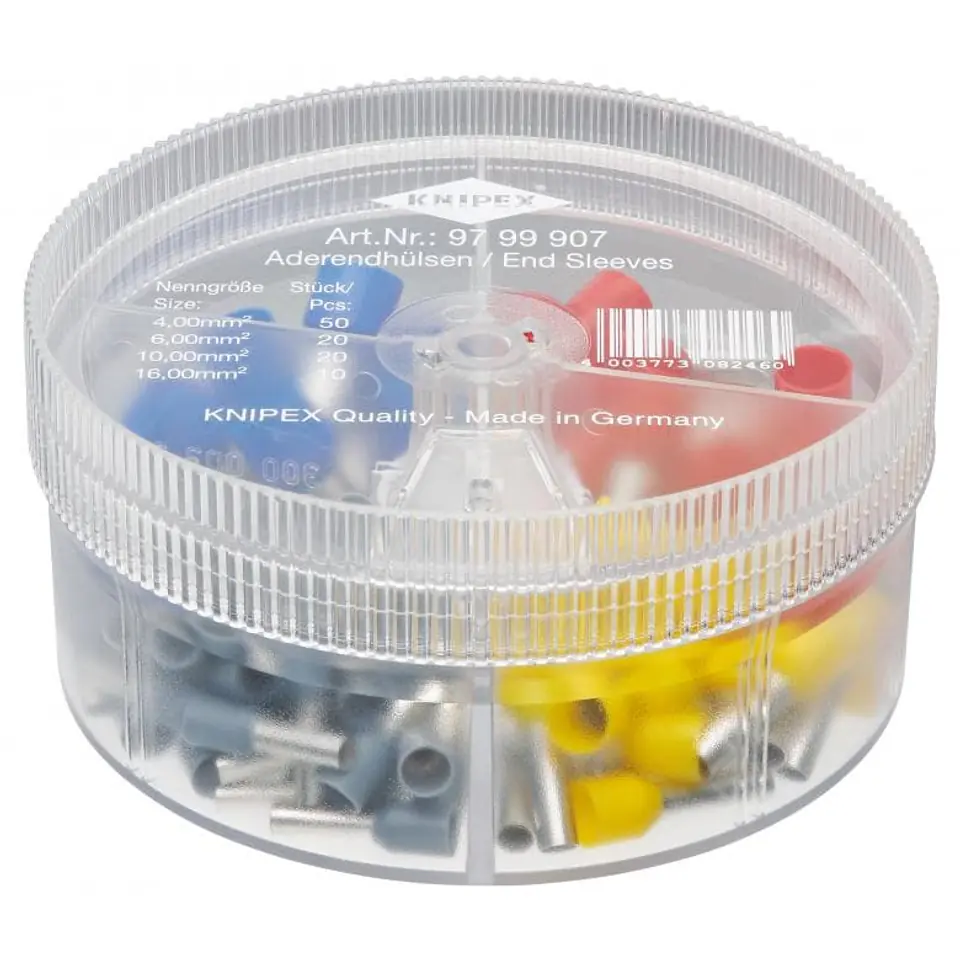

Illustrative photo.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
