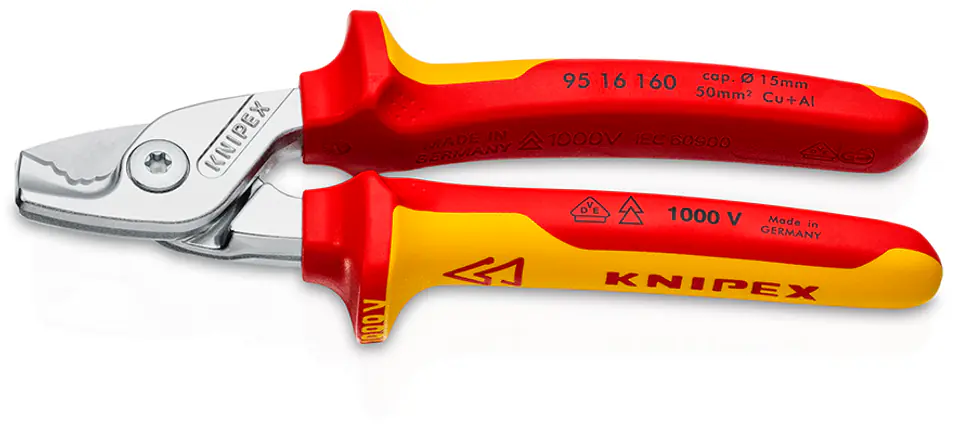

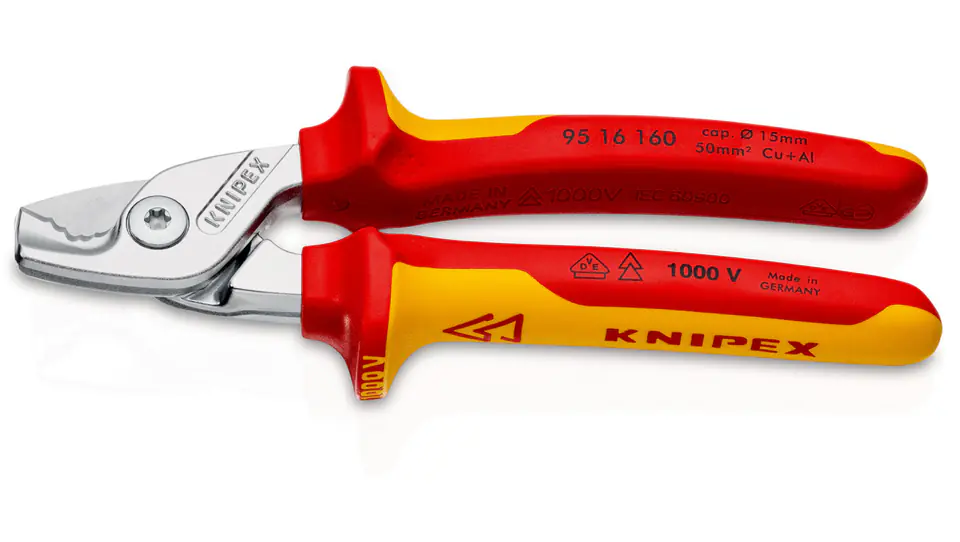

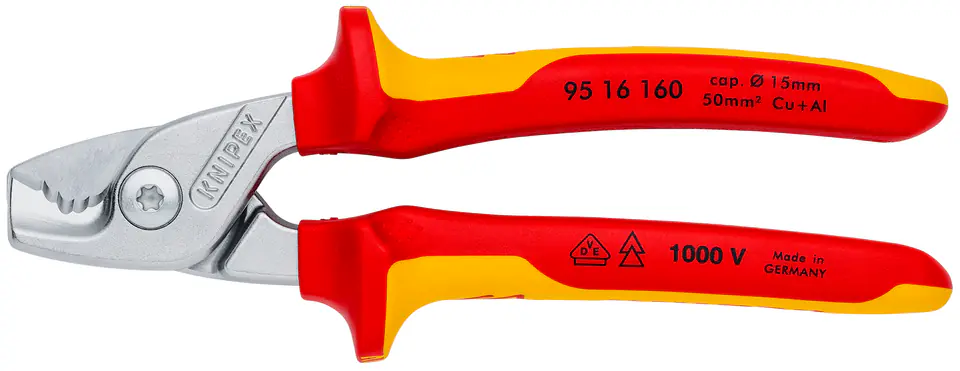

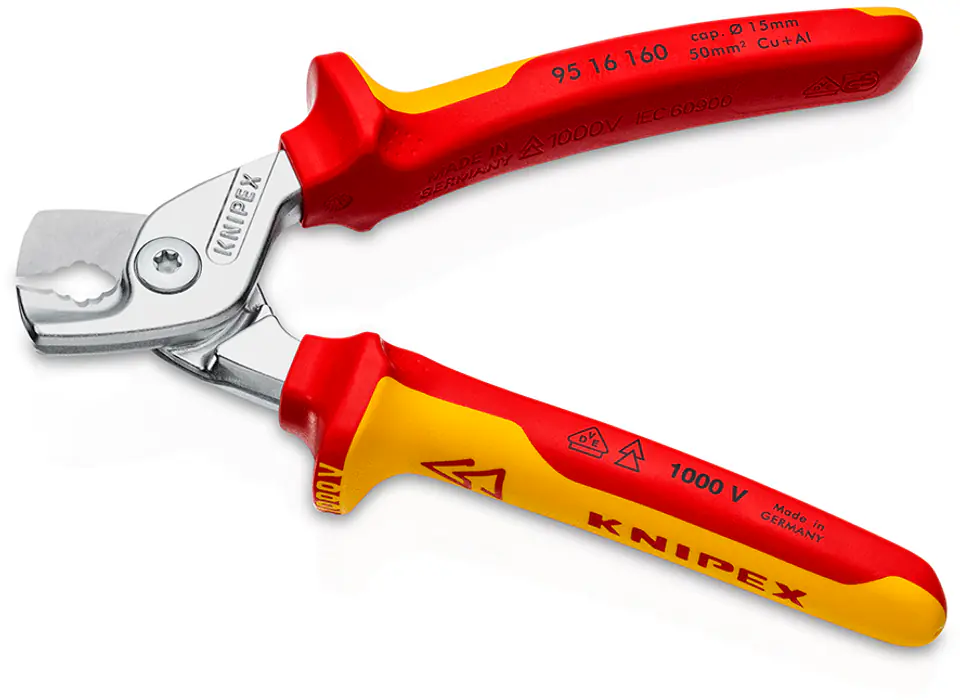

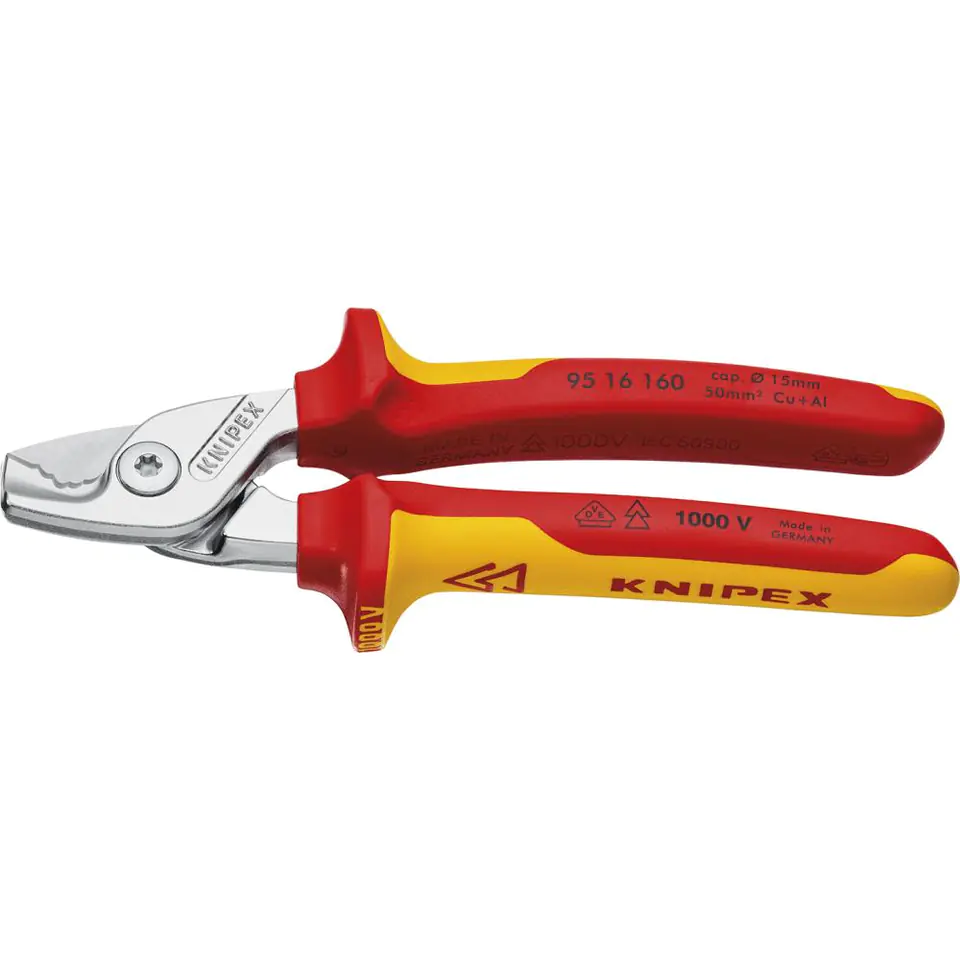

INSULATED CABLE SHEARS 1000V 160MM

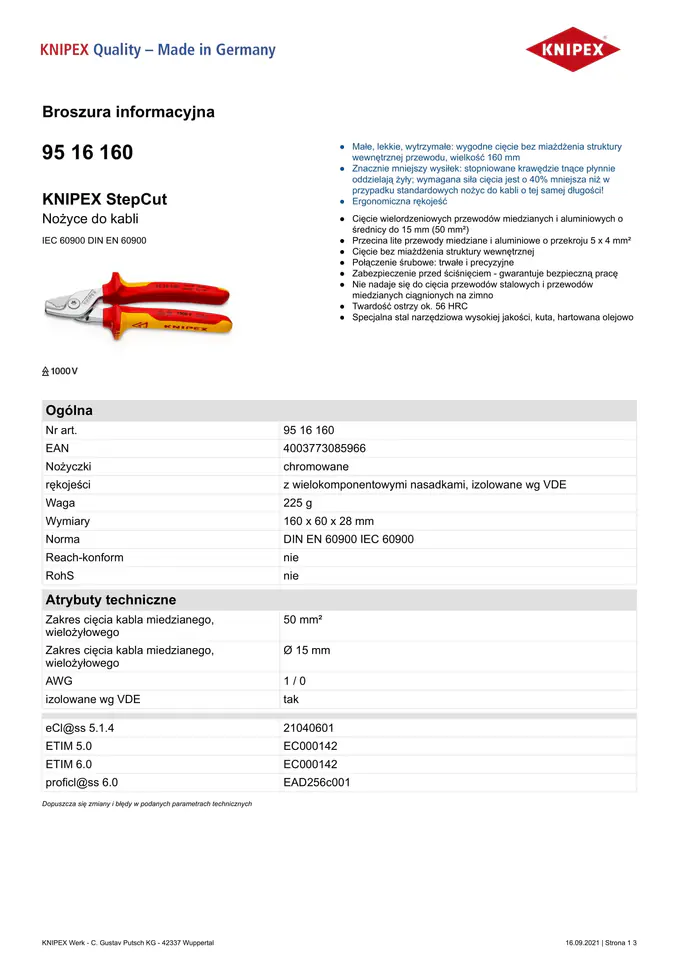

Technical data:

Article No. 95 16 160
EAN: 4003773085966
Scissors: chrome plated
handles: with multi-component caps, insulated according to VDE
Weight: 225 g
Dimensions: 160 x 60 x 28 mm
Standard: DIN EN 60900 IEC 60900
Reach-conform: no
RohS: no
Cutting range of copper, multicore cable: 50 mm2
Cutting range of copper, multicore cable: 15 mm
AWG: 1/ 0
VDE insulated: yes



Small, lightweight, durable: comfortable cutting without crushing the internal structure of the cable, size 160 mm

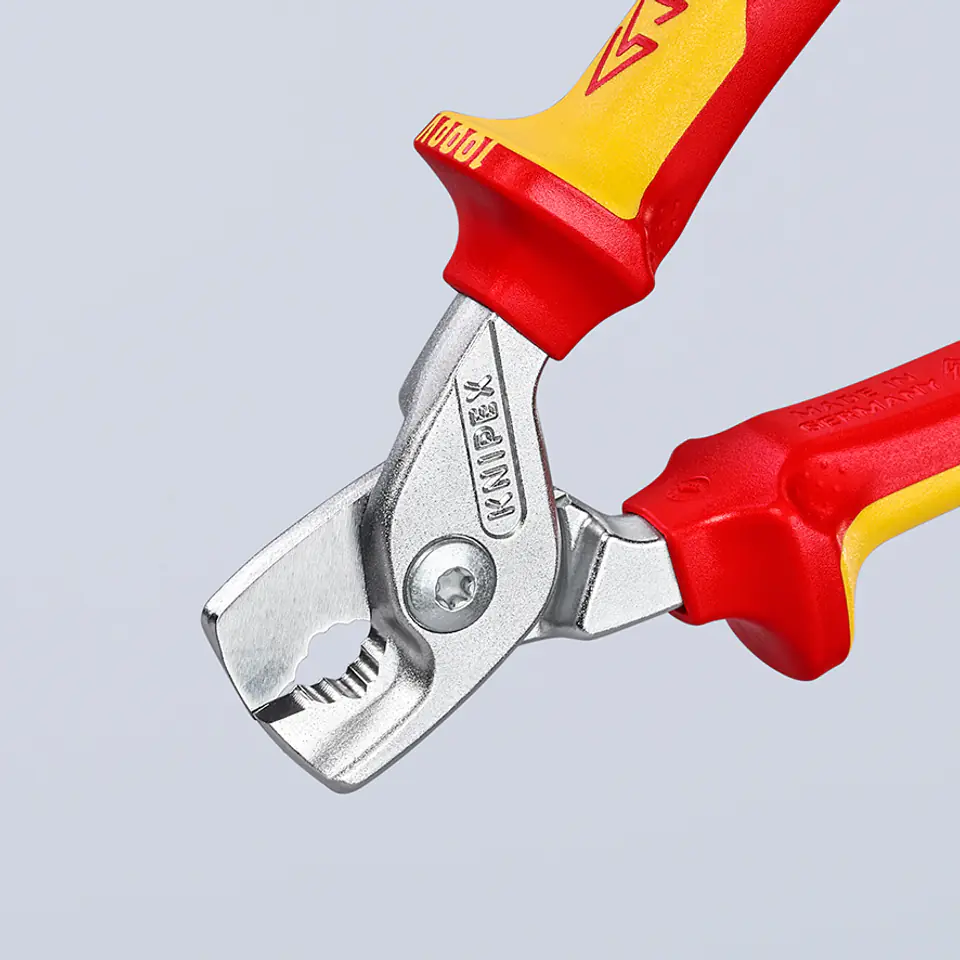

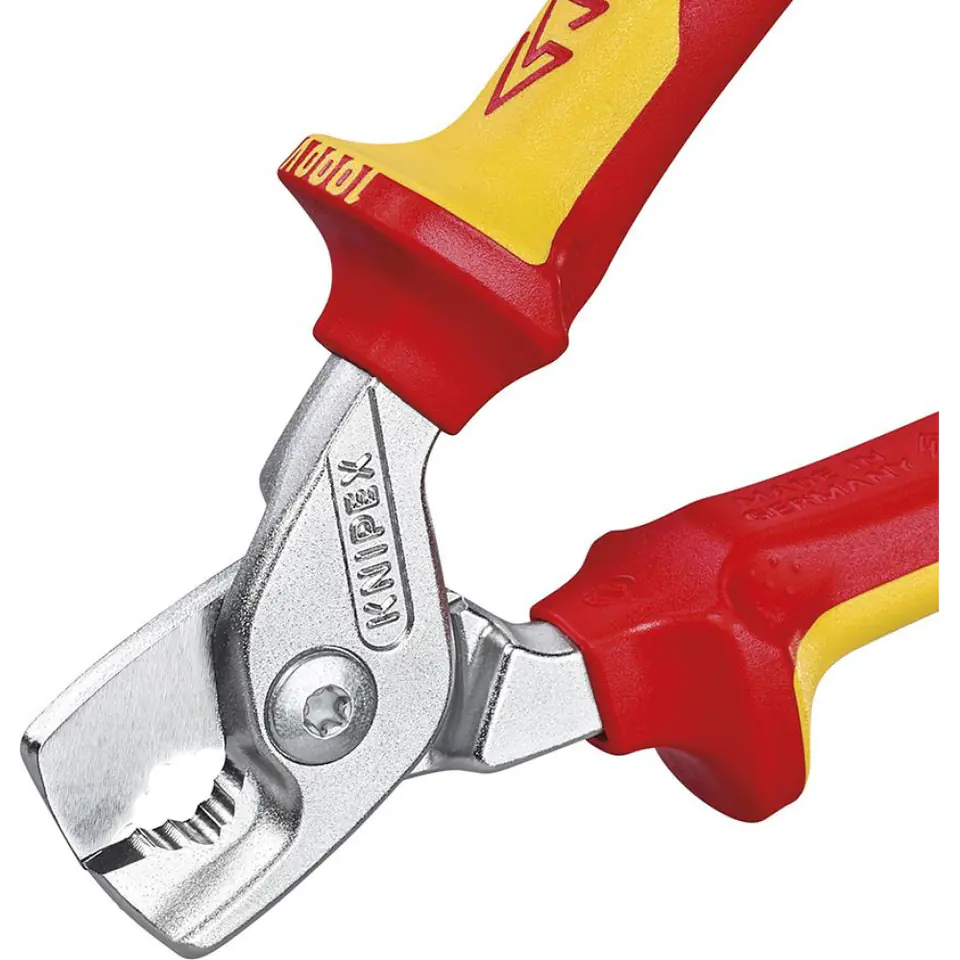

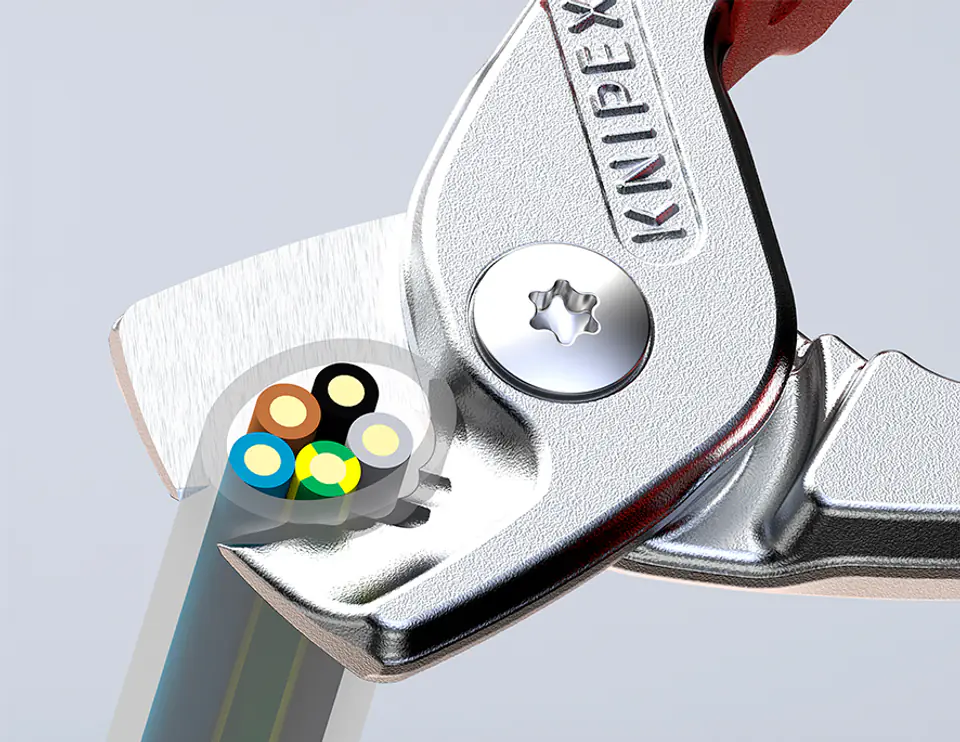

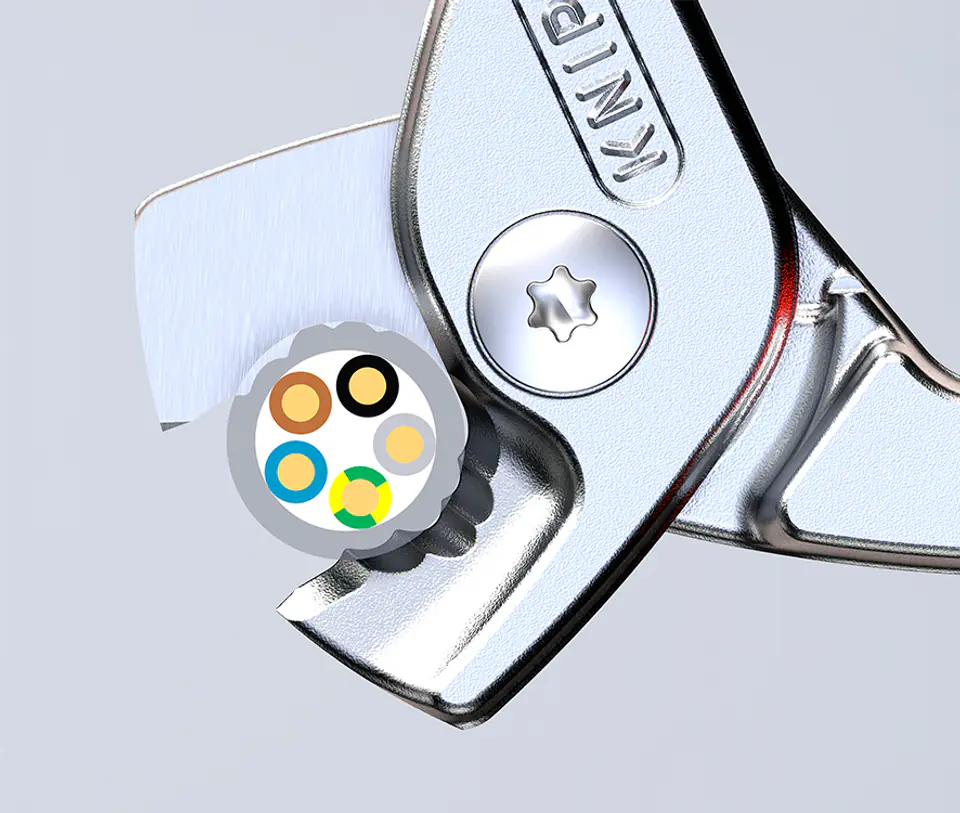

Much less effort: the stepped cutting edges smoothly separate the conductors The required cutting force is 40% less than that of standard cable shears of the same length!
Ergonomic handle

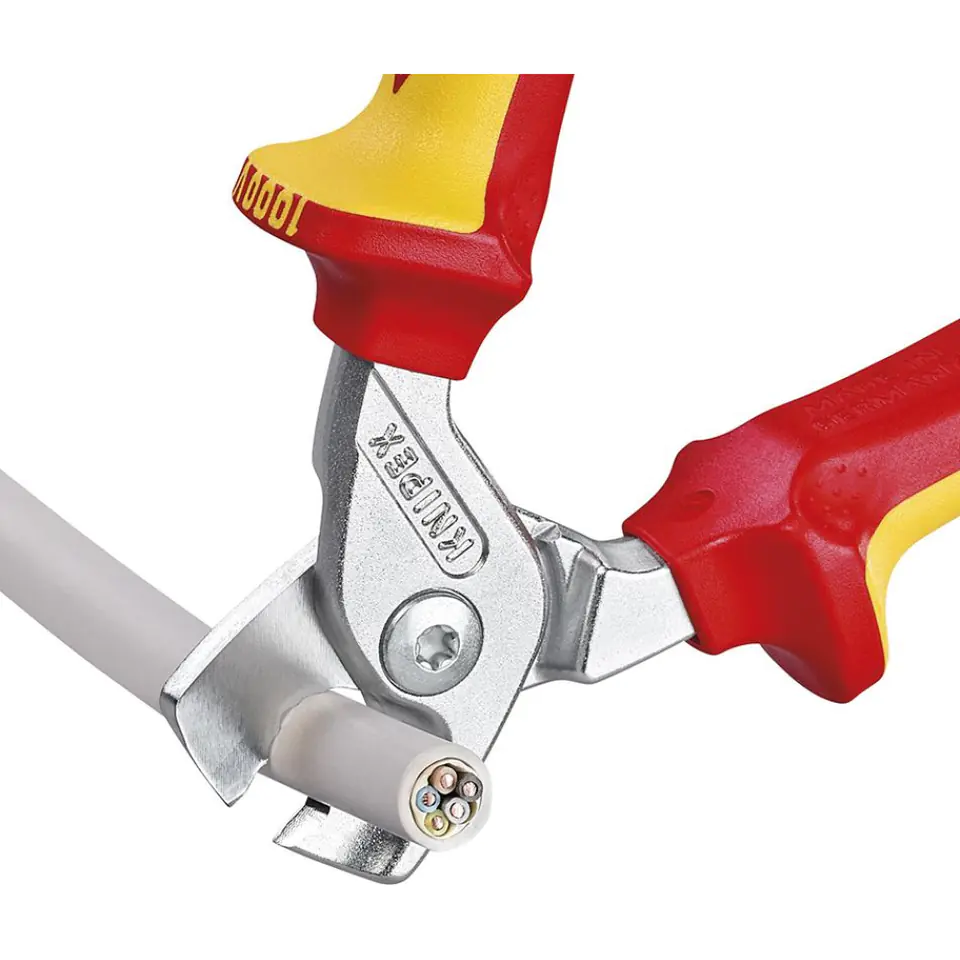

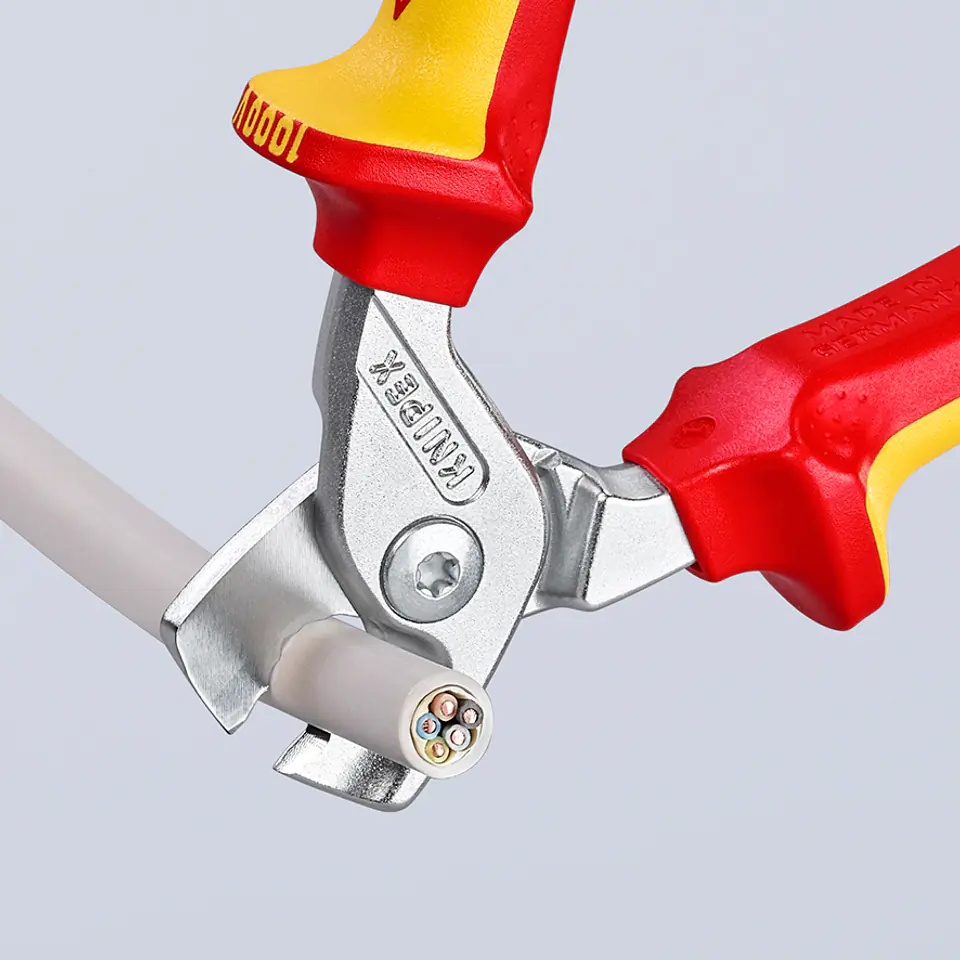

Cutting of multi-core copper and aluminium cables up to 15 mm (50 mm2) in diameter
Cuts solid copper and aluminium wires with a cross section of 5 x 4 mm2

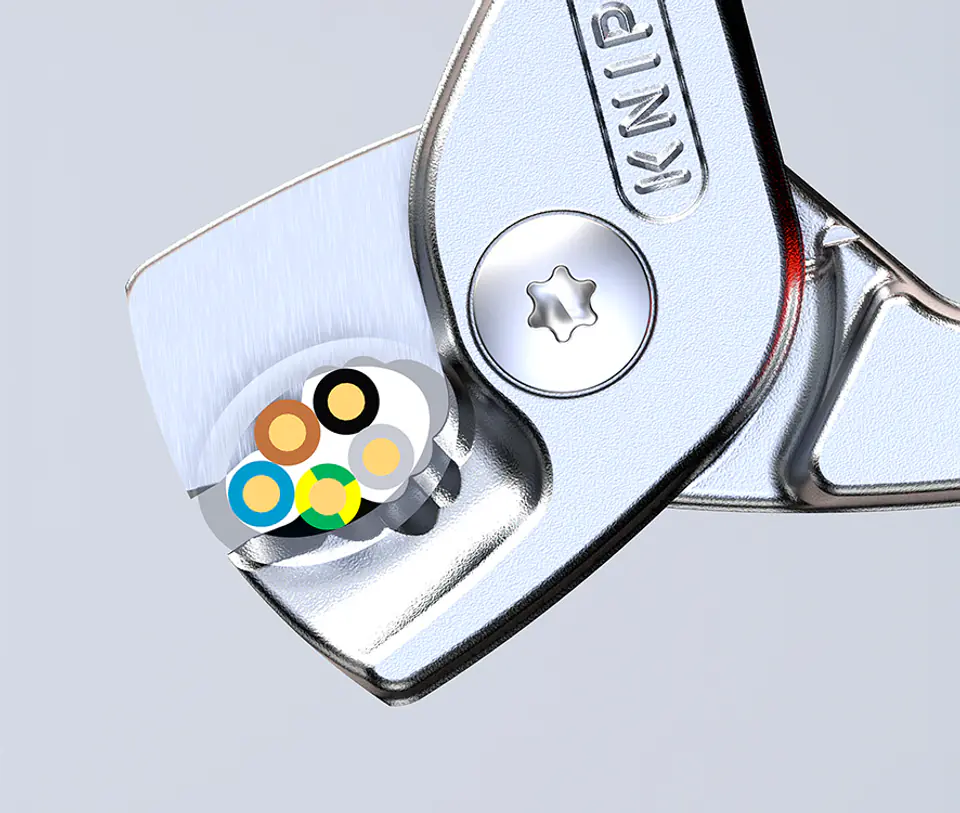

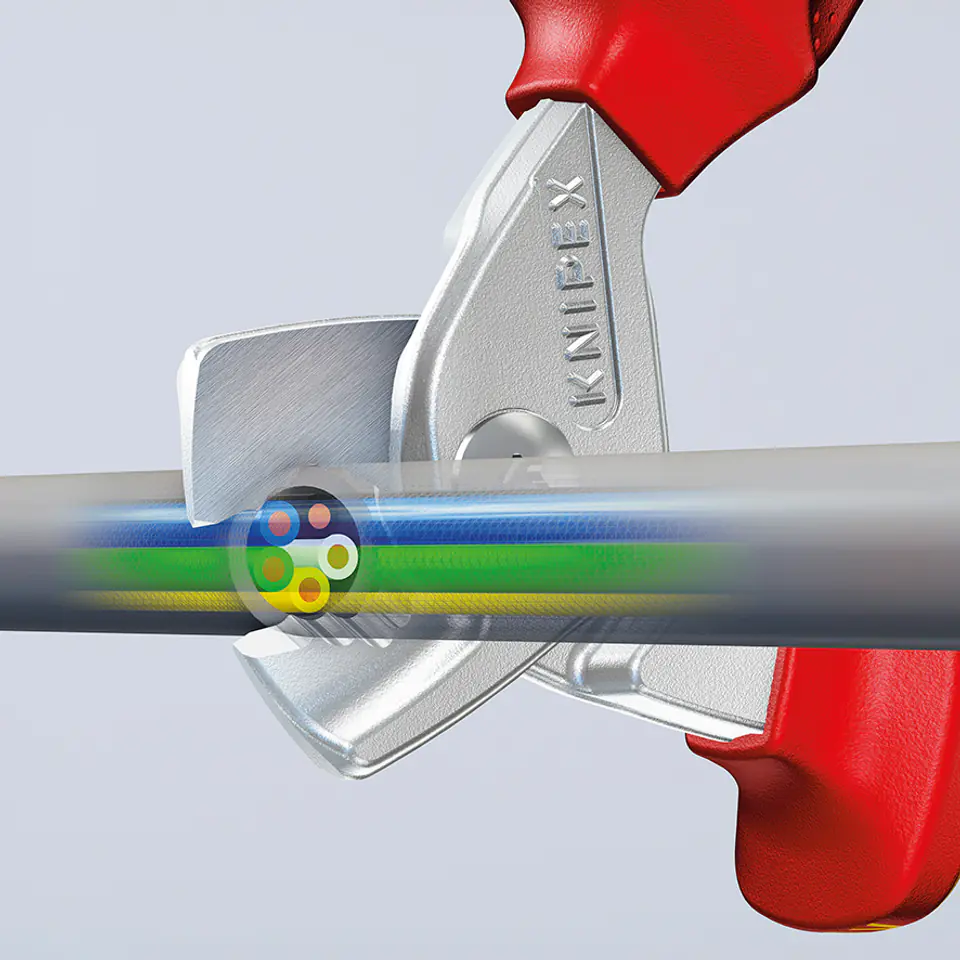

Cutting without crushing the internal structure
Screw connection: durable and precise
Compression protection - guarantees safe operation
Not suitable for cutting steel wires and cold-drawn copper wires
Blade hardness approx. 56 HRC
Special high quality tool steel, forged, oil-hardened


**

Illustrative photos.
