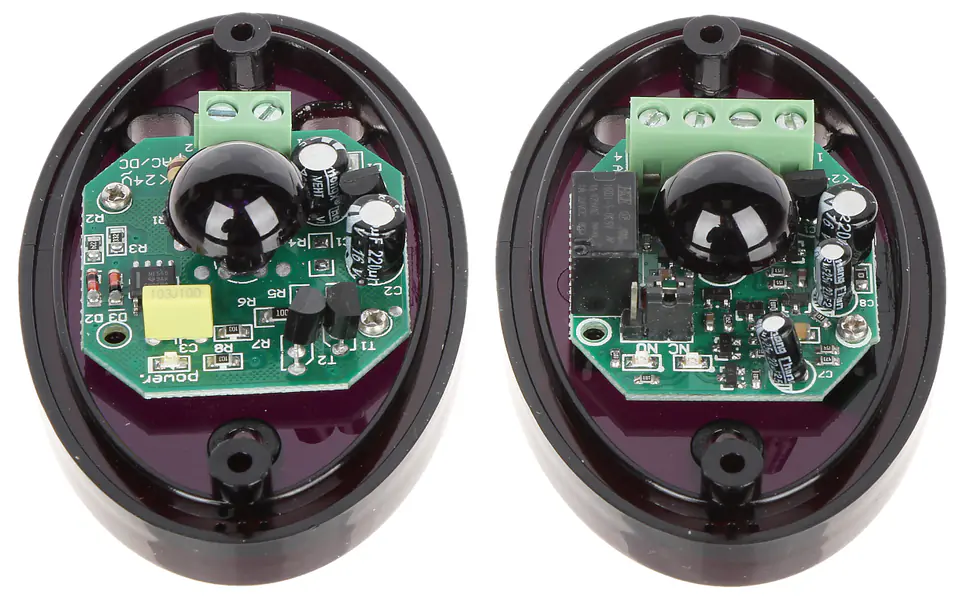

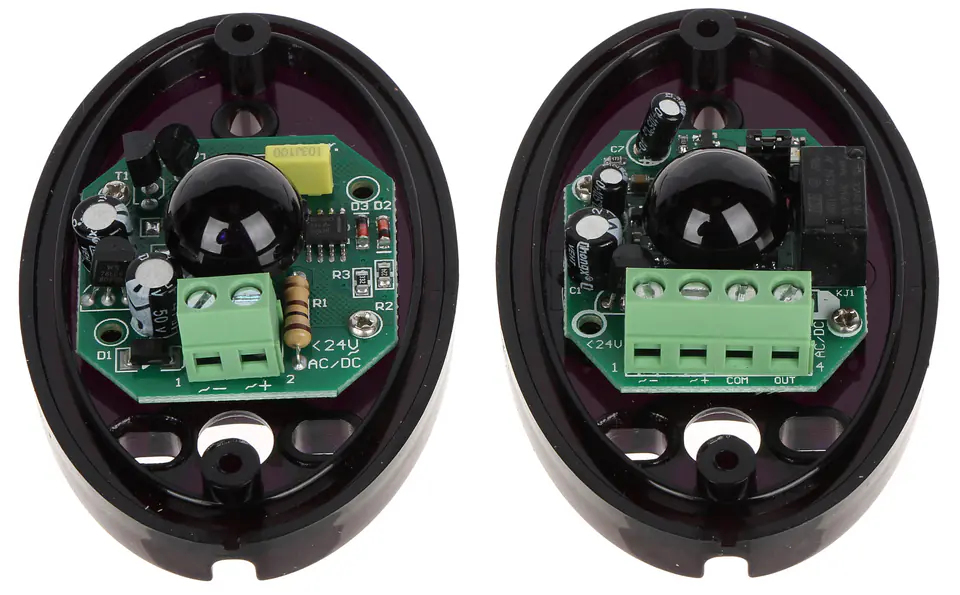

INFRARED BARRIER AN900-20 1 BEAM

€9.15
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Mon, Nov 25 - Wed, Nov 27
14 days returnUnconditional return policy
Availability:
moderate quantity
Product code:
AN900-20 / 5902887060229

Specification

-25 °c ... 55 °c / max. 95 %:Operating Temperature / Relative Humidity:
≥ 0.1 sec:Alarm duration:
0.04 kg:Transmitter and receiver weight:
1:Number of bundles:
12 v ... 24 vdc/ac:Power:
2 years:Warranty:
3  ... 15 m:Outdoor range:
3  ... 20 m:Indoor range:
30 ma - transmitter, 15 ma - receiver:Current consumption:
49 x 76 x 30 mm:Transmitter or receiver dimensions:
940 nm - modulated infrared flux:Flux characteristics:
Ip66:Sealing:
Relay (ac/dc 36v max. 1a), no/nc:Alarm output:
The minimum distance between devices is 3 m:Selected features:
Violation of the continuity of 1 beam:Method of detection:

Alarm systems based on passive infrared detectors, capture an intruder who has already entered the roomThe system based on infrared barriers is designed to trigger an alarm when the intruder is just about to enter the rooms, and is still outside the facility

Infrared curtains are also used in securing controlled passages, gates, fences, valuable objects in open space, etc. In museums, infrared curtains successfully play the role of a conflict-free, discreet separation of the viewer from valuable exhibits

During the constant interruption of the beam (placing an obstacle between the transmitter and the receiver), the barrier does not return to its original stateSuch the behavior of the barrier is important when controlling entrance gates, barriers, etc.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
