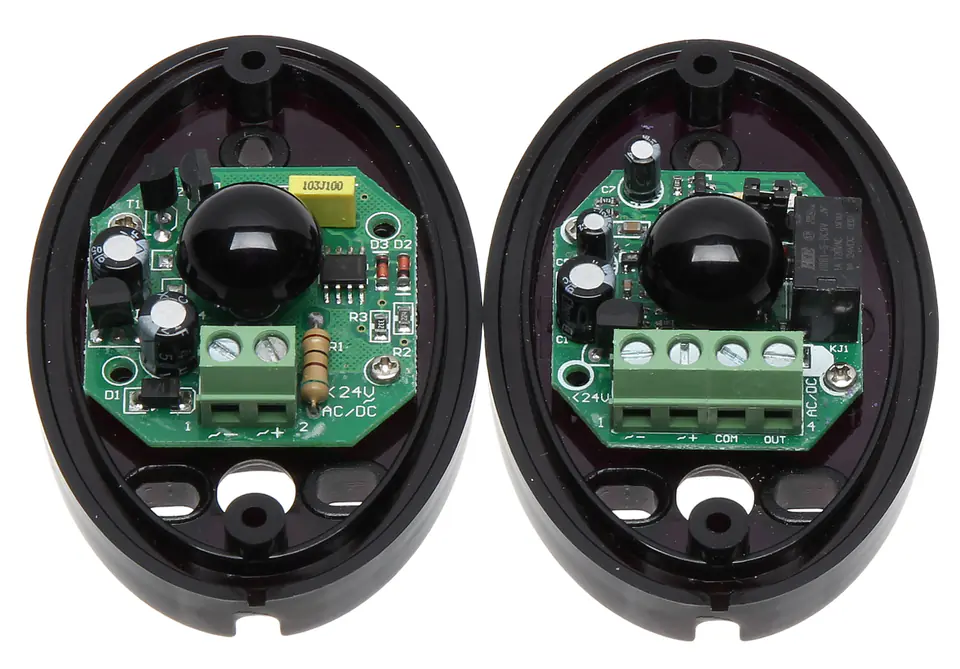

INFRARED BARRIER AN900-15 1 BEAM

€15.05
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
Availability:
moderate quantity
Product code:
AN900-15 / 5902887023477

Specification

-25 °c ... 55 °c / max. 95 %:Operating Temperature / Relative Humidity:
≤ 15 m:Outdoor range:
≤ 20 m:Indoor range:
≥ 0.1 sec:Alarm duration:
0.036 kg:Transmitter and receiver weight:
1:Number of bundles:
2 years:Warranty:
20 ma - transmitter, 18 ma - receiver:Current consumption:
49 x 76 x 22 mm:Transmitter or receiver dimensions:
9 v ... 16 v dc / ac - selectable by switch:Power:
940 nm - modulated infrared flux:Flux characteristics:
Ip66:Sealing:

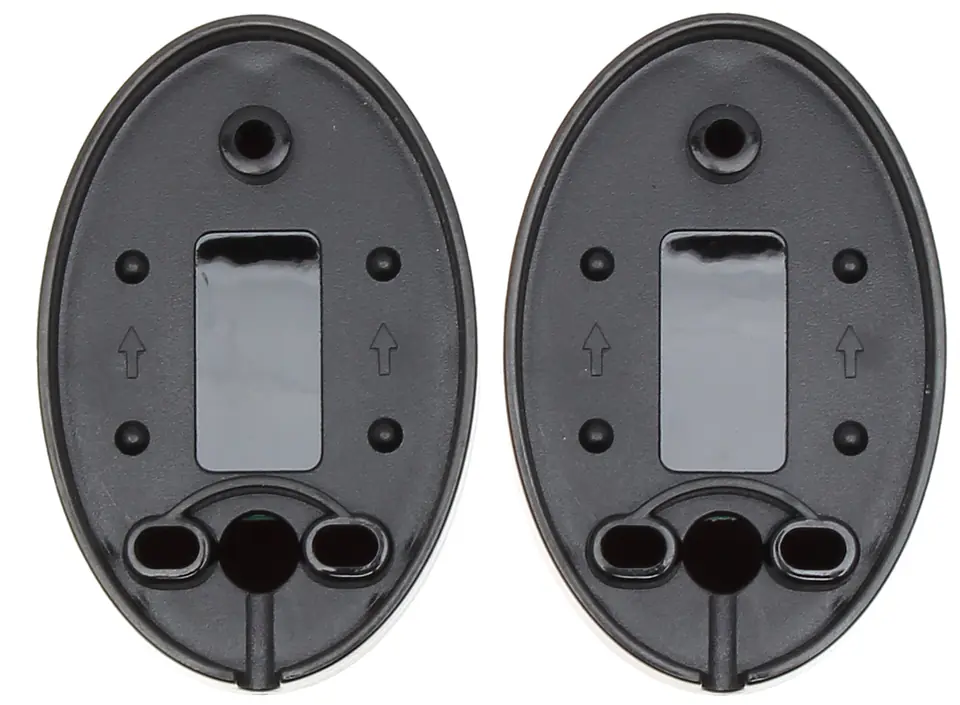

On the wall or post:Assembly:
Relay (ac/dc 36v max. 1a):Alarm output:
Violation of the continuity of 1 beam:Method of detection:

Alarm systems based on passive infrared detectors, capture an intruder who has already entered the roomThe system based on infrared barriers is designed to trigger an alarm when the intruder is just about to enter the rooms, and is still outside the facility

Infrared curtains are also used in securing controlled passages, gates, fences, valuable objects in open space, etc. In museums, infrared curtains successfully play the role of a conflict-free, discreet separation of the viewer from valuable exhibits

During the constant interruption of the beam (placing an obstacle between the transmitter and the receiver), the barrier does not return to its original stateSuch the behavior of the barrier is important when controlling entrance gates, barriers, etc.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
