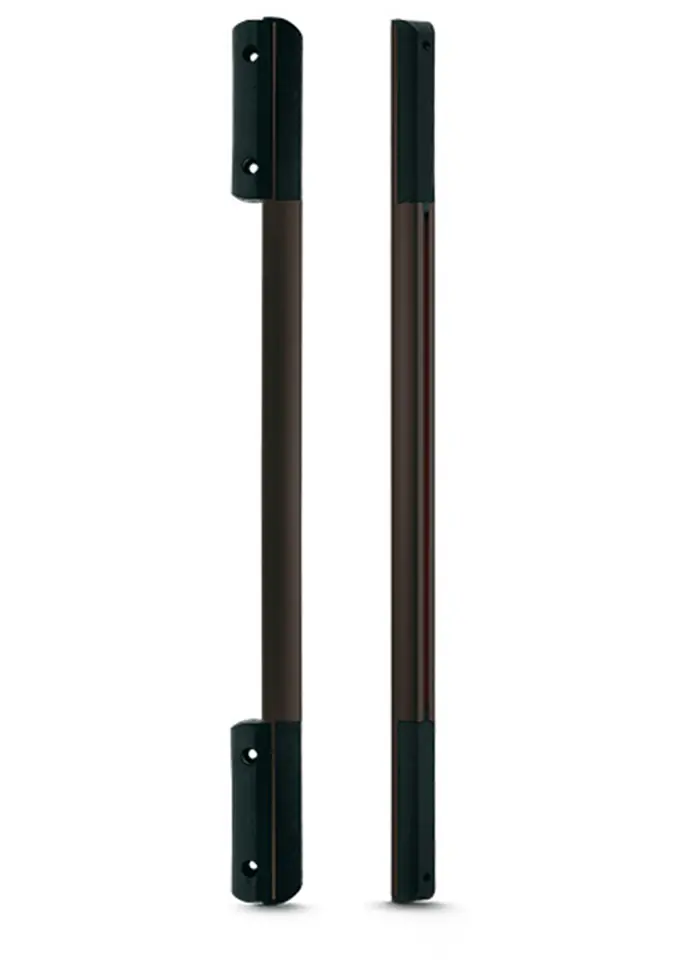

INFRARED BARRIER ACTIVA-4-BR 4 SATEL BEAM

€224.03
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Satel
Product code:
ACTIVA-4-BR / 5905033336728

Specification

-25 °c ... 55 °c / max. 95 %:Operating Temperature / Relative Humidity:
0.91 kg:Transmitter and receiver weight:
10 m:Outdoor range:
1047 x 23 x 21 mm:Transmitter or receiver dimensions:
12 vdc:Power:
2 sec:Alarm duration:
2 years:Warranty:
20 m:Indoor range:
4:Number of bundles:
40  ... 1000 ms:Interruption period (beam violation):
Black:Colour:
Max. 65 ma:Current consumption:
Nc:Anti-tamper contact:
Programmable number of beams, the violation of which will trigger an alarm:Method of detection:
Satel:Manufacturer / Brand:
Smooth sensitivity adjustment rs-232 port for programming using a computer with activa program installed:Selected features:
Transmission encoding:Flux characteristics:
Wall mountable:Assembly:

Alarm systems based on passive infrared detectors, capture an intruder who has already entered the roomThe system based on infrared barriers is designed to trigger an alarm when the intruder is just about to enter the rooms, and is still outside the facility

The curtain consists of several active infrared barriers (tracks) that create invisible \"grilles\" in the window or door cavity."An attempt to violate this \"lattice\" causes an immediate activation of the alarm signal

Infrared curtains are also used in securing controlled passages, gates, fences, valuable objects in open space, etc. In museums, infrared curtains successfully play the role of a conflict-free, discreet separation of the viewer from valuable exhibits

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
