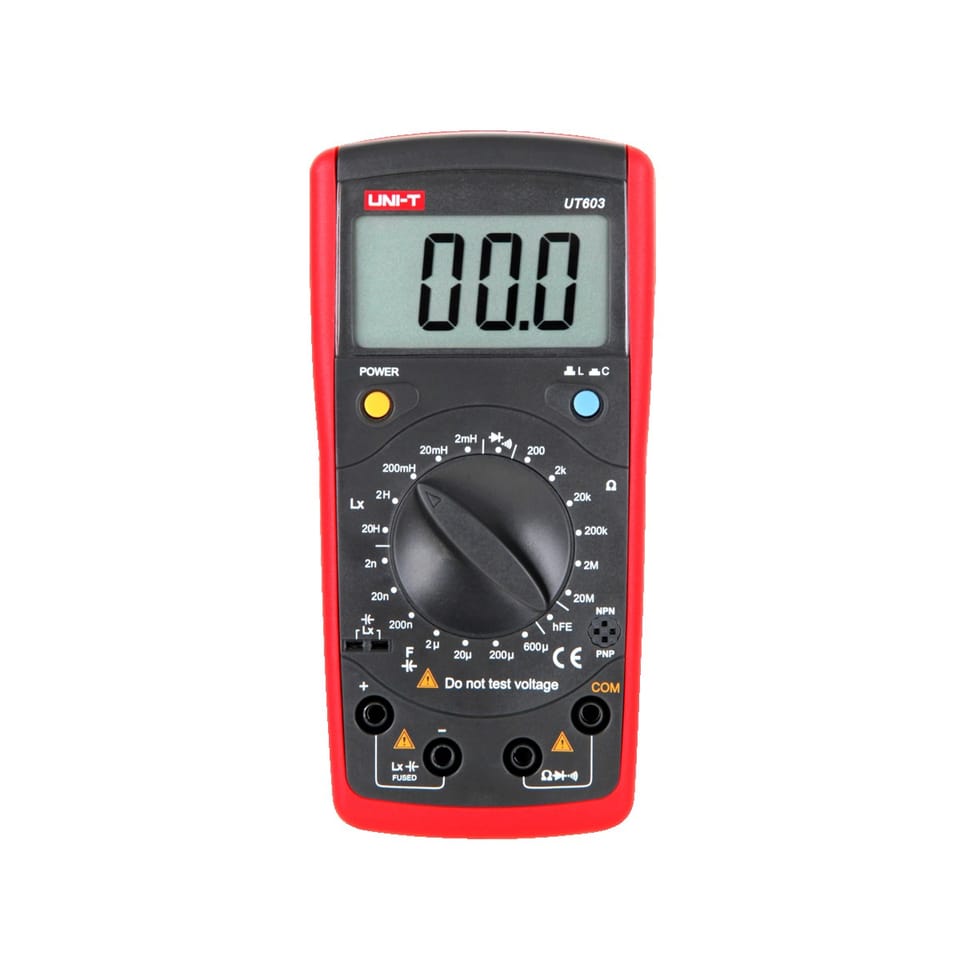

MEASURING RANGES
Capacitance: 2 nF/20 nF/200 nF/2 μF/20 μF/200 μF/600 μF ±(1%+5)
Inductance: 2 mH/20 mH/200 mH/2 H/20 H/200 H ±(2%+8)
Resistance: 200 Ohm/2 kOhm/20 kOhm/200 kOhm/2 MOhm/20 MOhm/200 MOhm ±(0.8%+1)
Diode test
Checking the continuity of the circuit
Transistor Test
ADDITIONAL FEATURES
Manual change of measuring ranges
Low battery indicator
Maximum reading: 2000
GENERAL FEATURES

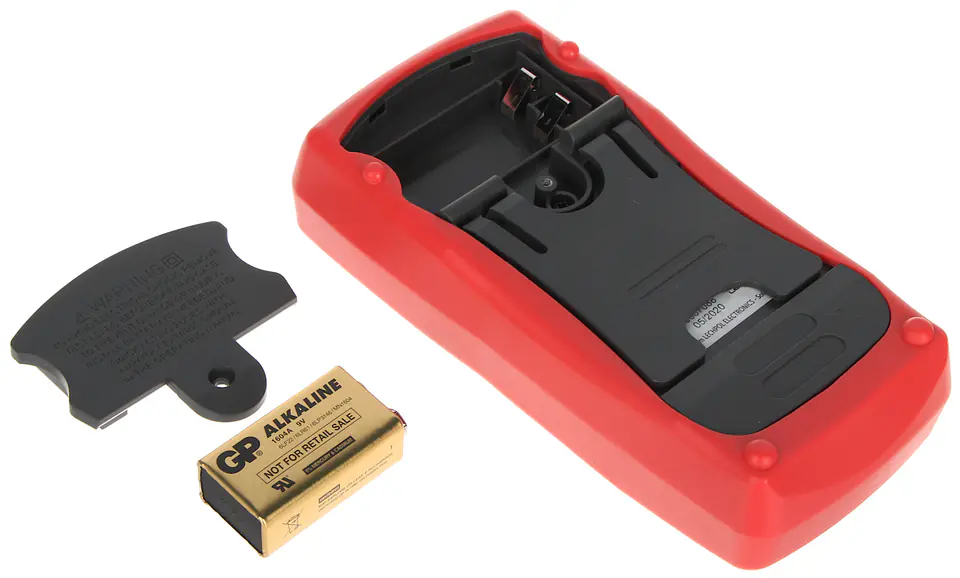

Power Supply: 9V (6F22) Battery
Display size: 61 x 32 mm
Product dimensions: 172 x 83 x 38 mm
Item weight: 287.2g

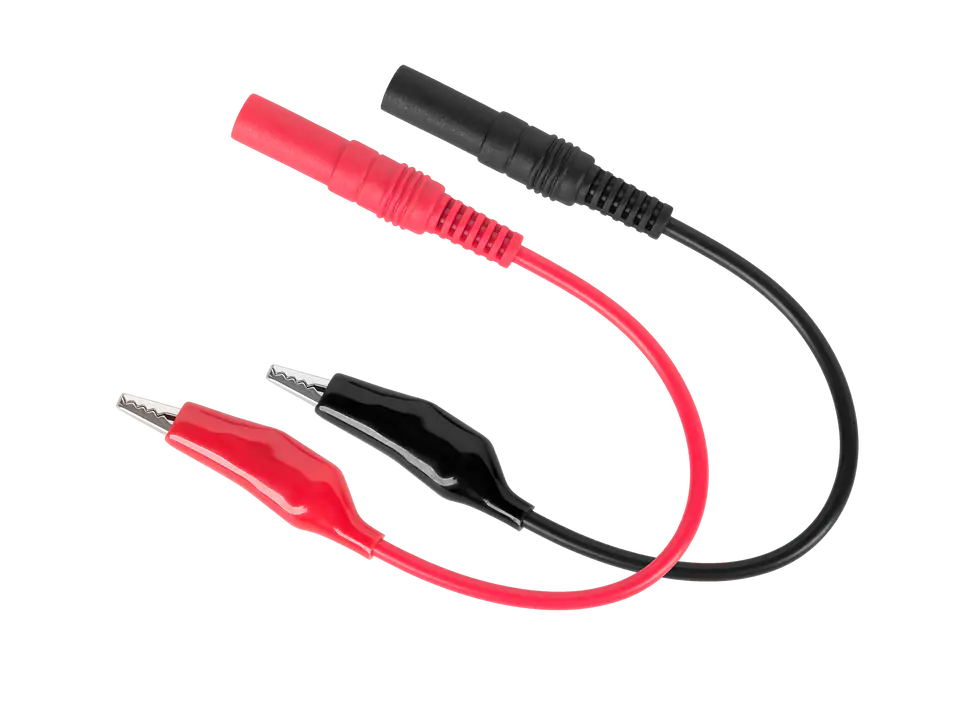

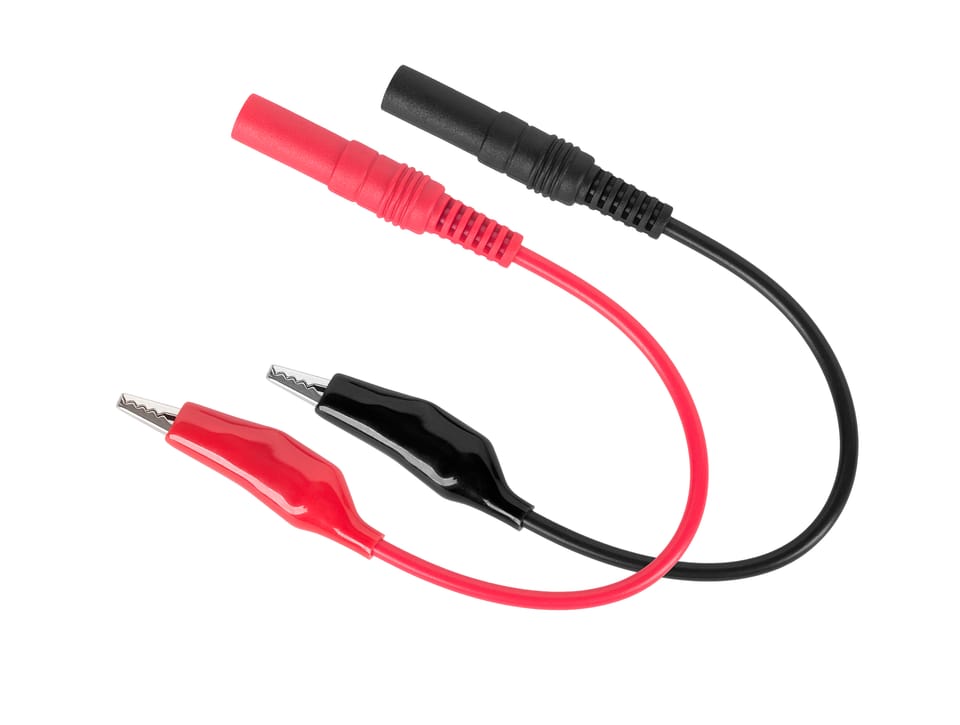

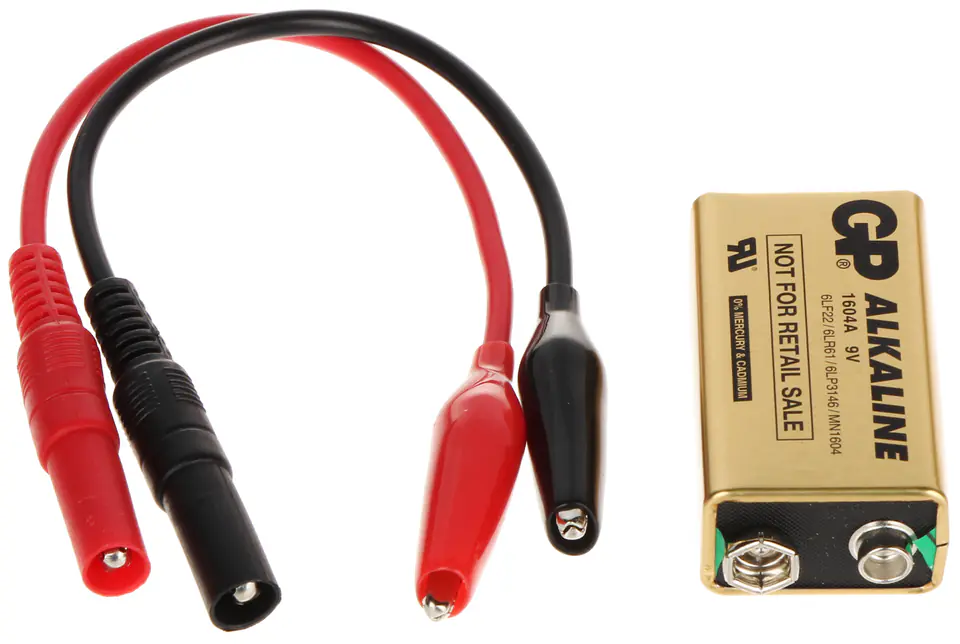

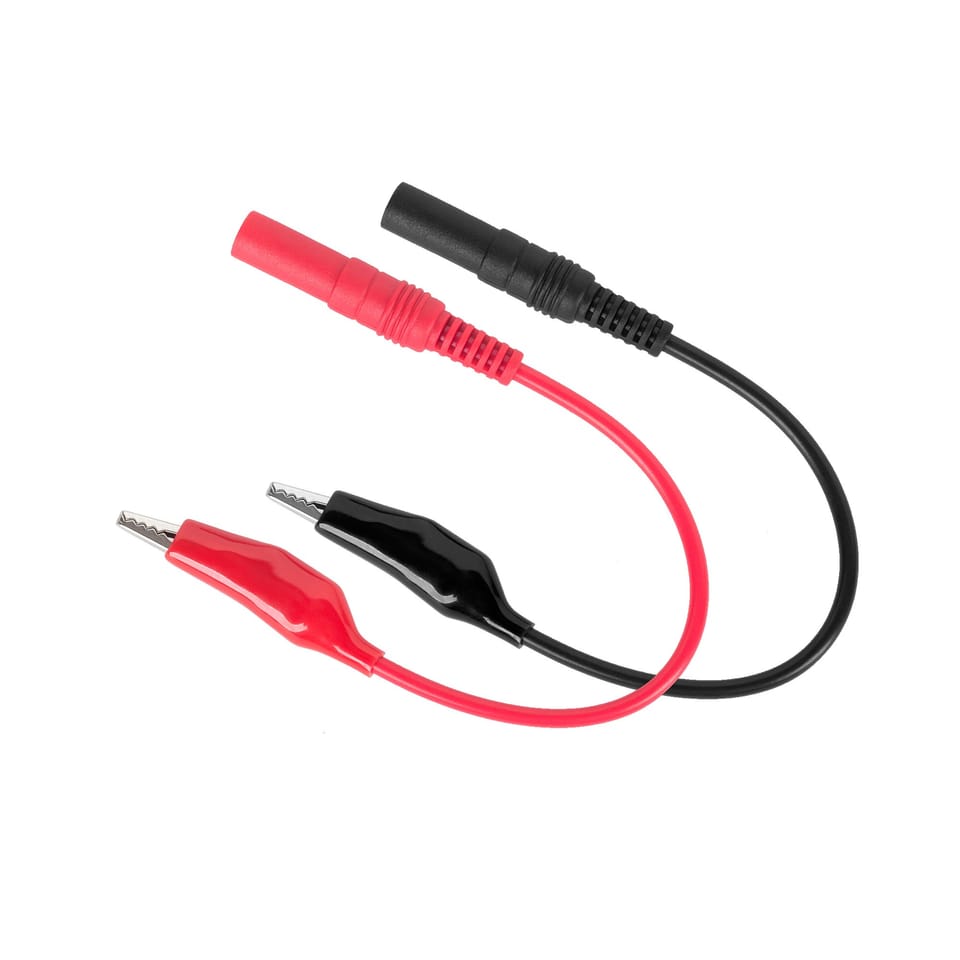

Accessories: battery, short test leads with crocodile clips, holster
