| Ac input frequency: | 50 - 60 Hz |
|---|---|
| Ac input voltage: | 230 V |
| Atx power connector (20+4 pin): | Yes |
| Atx version: | 2.2 |
| Cabling type: | Non-Modular |
| Combined power (-12v): | 3.6 W |
| Combined power (+3.3v): | 130 W |
| Combined power (+5v): | 130 W |
| Combined power (+5vsb): | 12.5 W |
| Cooling type: | Active |
| Depth: | 85 mm |
| Fan diameter: | 12 cm |
| Fan location: | Side |
| Height: | 150 mm |
| Input current: | 3 A |
| Max output current (-12v): | 0.3 A |
| Max output current (+12v1): | 10 A |
| Max output current (+12v2): | 12 A |
| Max output current (+3.3v): | 15 A |
| Max output current (+5v): | 22 A |
| Max output current (+5vsb): | 2.5 A |
| Motherboard power connector: | 20+4 pin ATX |
| Noise level: | 20 dB |
| Number of fans: | 1 fan(s) |
| Number of sata power connectors: | 2 |
| Peripheral (molex) power connectors (4-pin): | 3 |
| Power consumption (max): | 400 W |
| Power factor correction (pfc) type: | Passive |
| Power protection features: | Overload, Short circuit, Over voltage, Under voltage, Over current |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Silver |
| Rohs compliance: | Y |
| Safety: | UVP / OVP / SCP / OPP / OCP / OTP |
| Sustainability certificates: | RoHS |
| Total power: | 400 W |
| Width: | 140 mm |

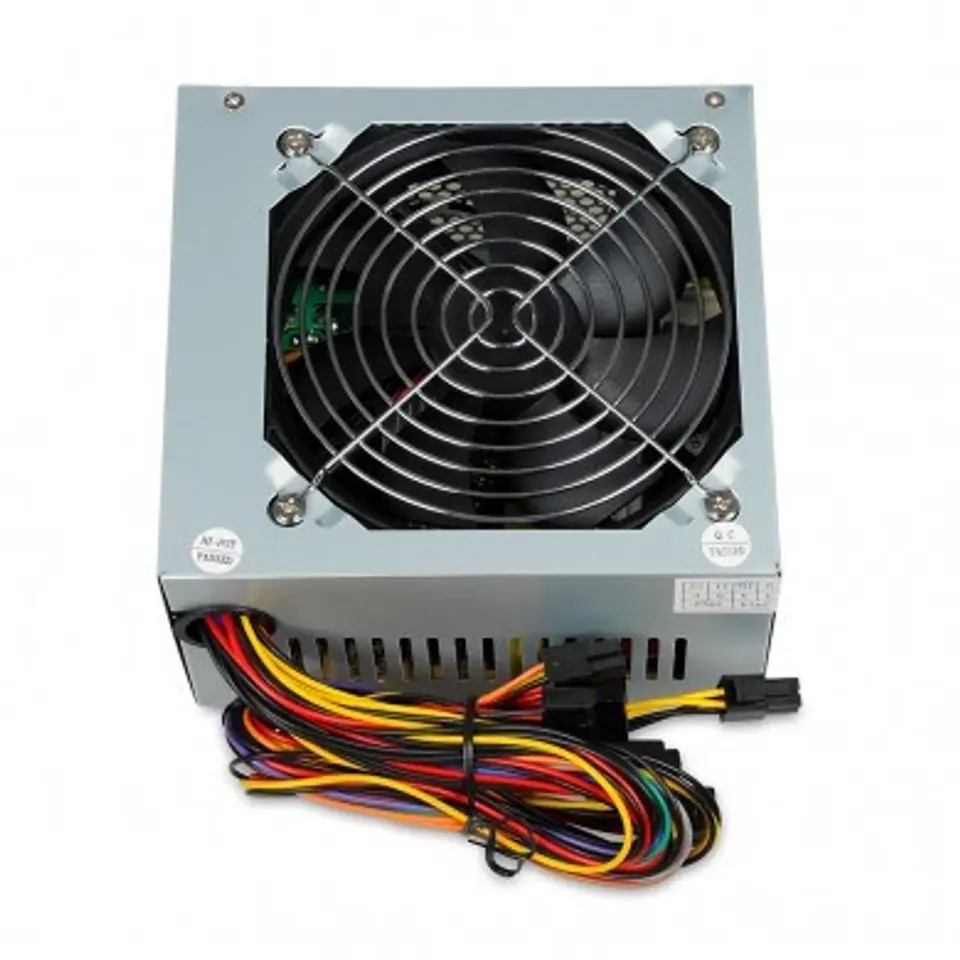

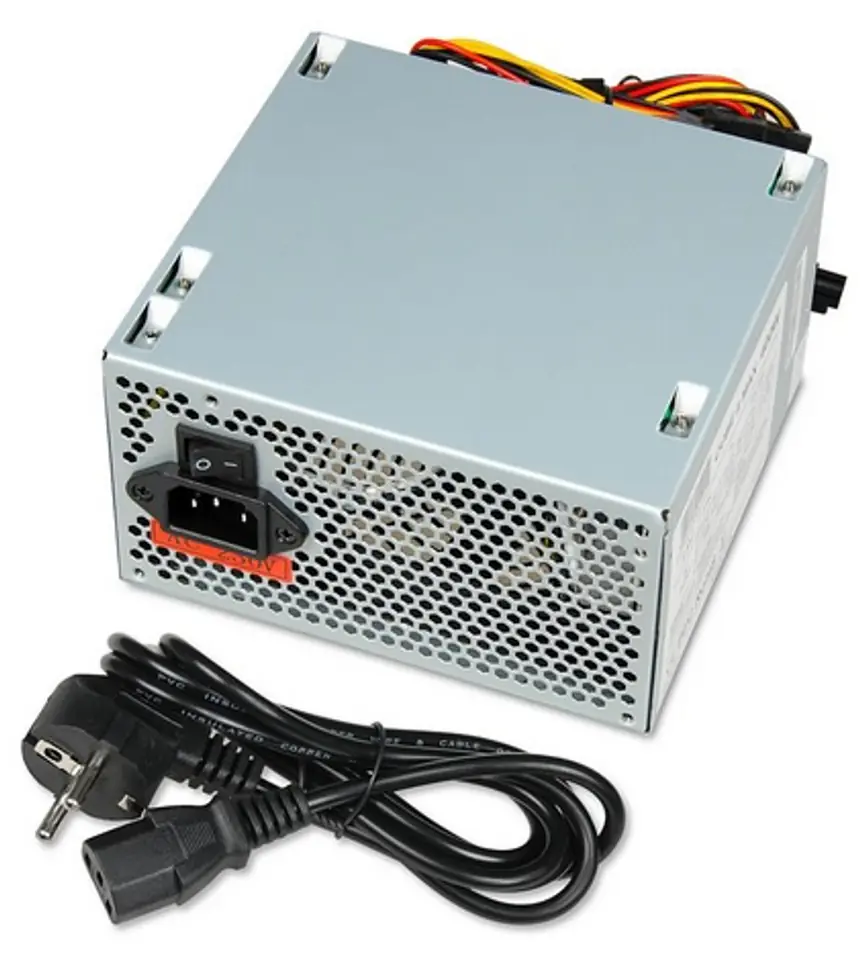

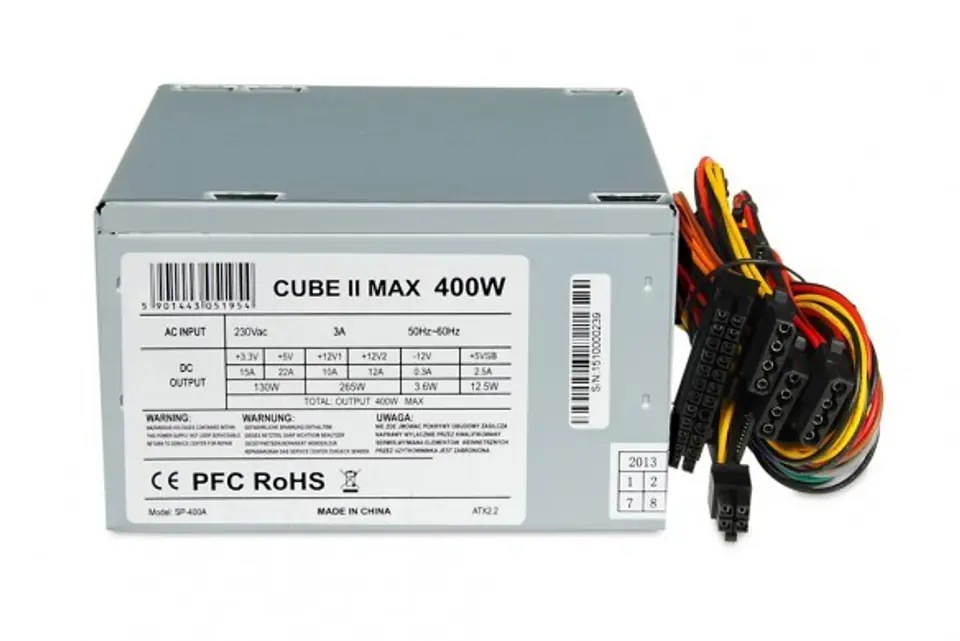

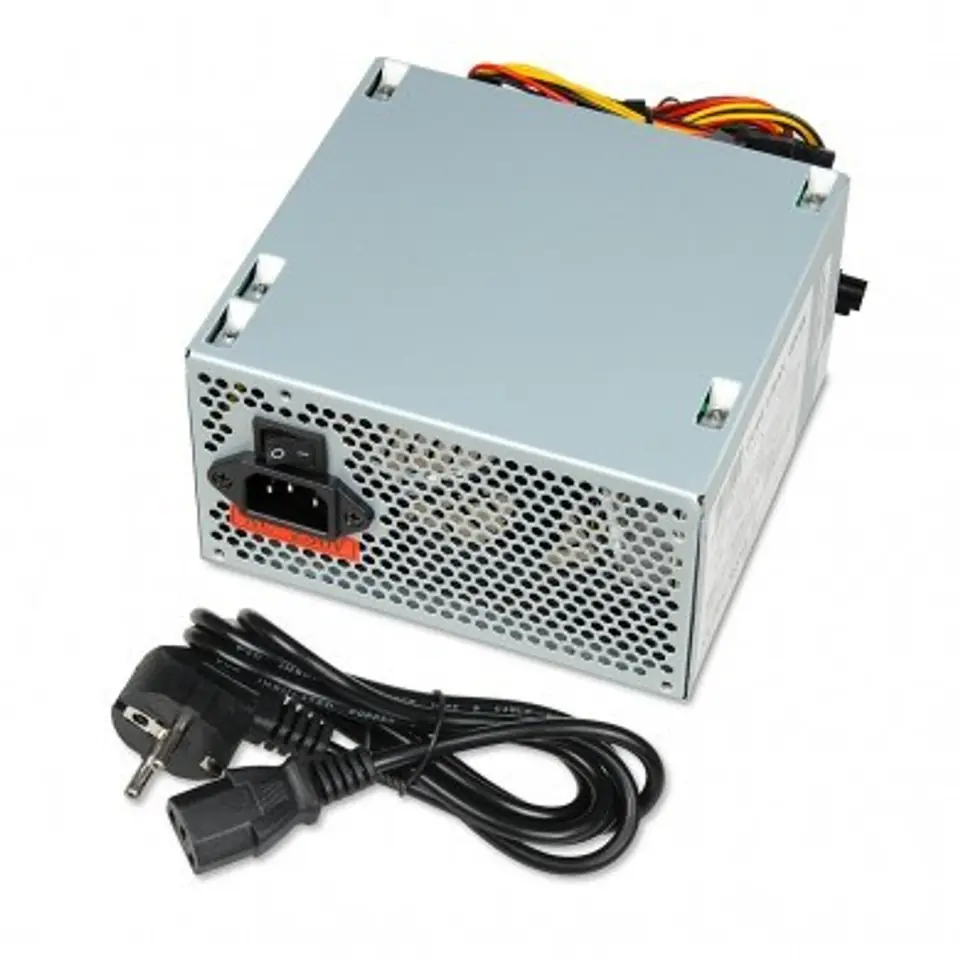

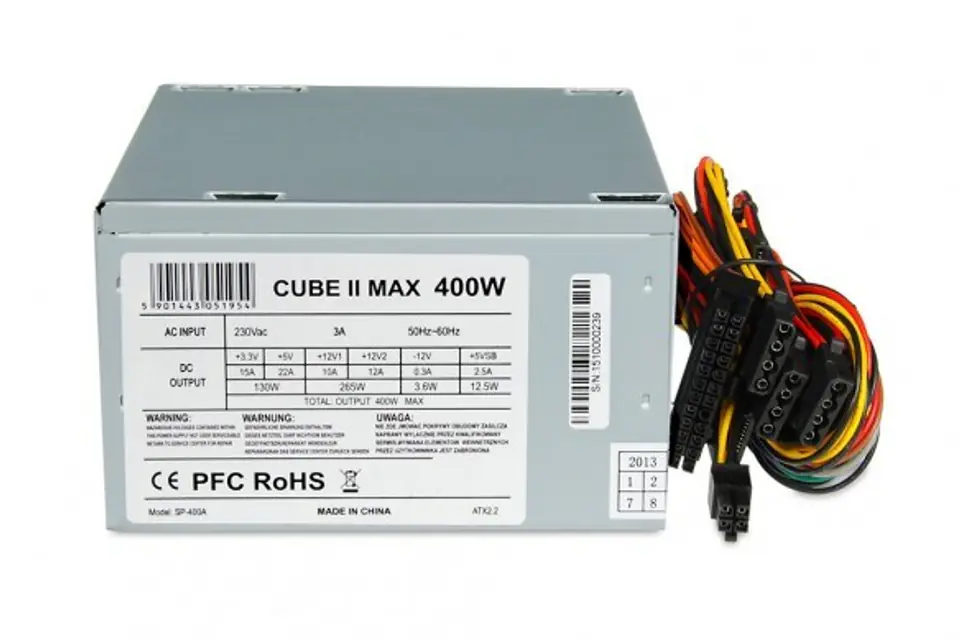

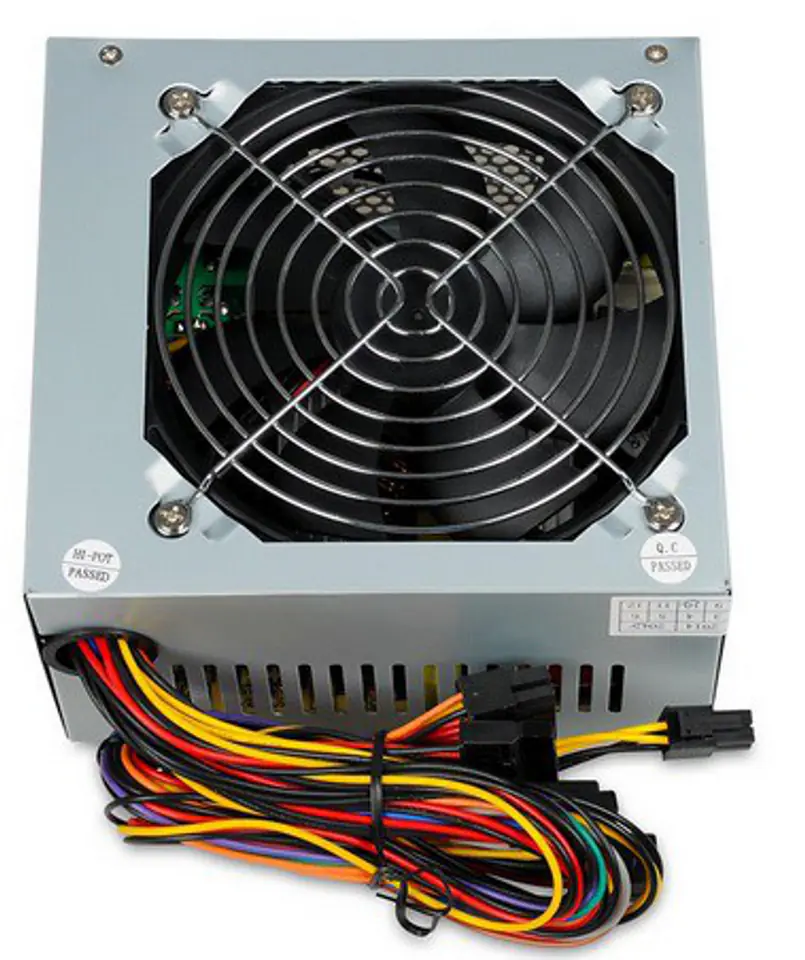

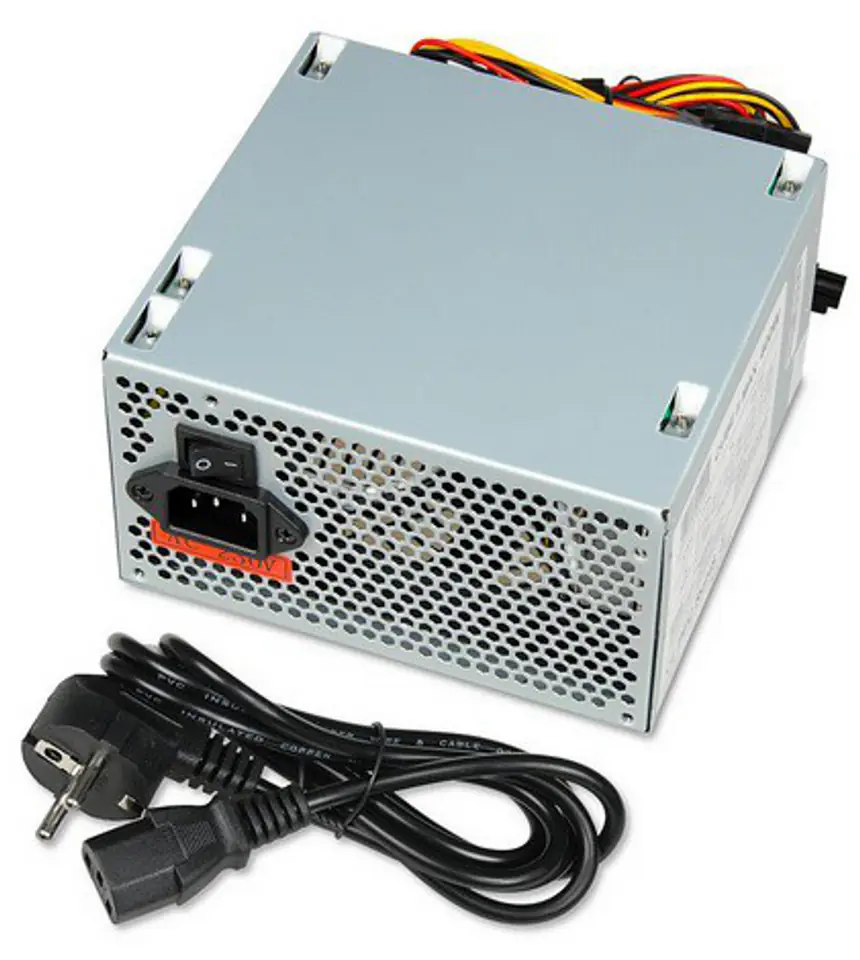

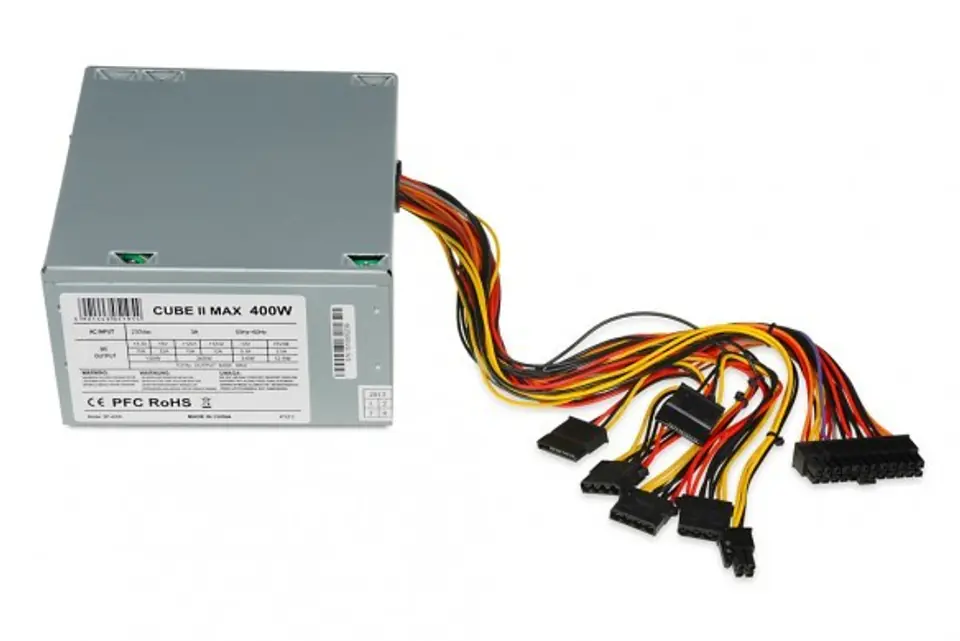

Power supply 400 W CUBE II 12 CM FAN
ATX 2.2 power supply 400W. A large number of protections, including: UVP (undervoltage) / OVP (overvoltage) / SCP (short-circuit) / OPP (overload) / OCP (overcurrent) / OTP (thermal) and AFC (automatic fan speed control). It has a detachable power plug (20 + 4) enabling connection to the main boards with 20-pin and 24-pin power supply.
