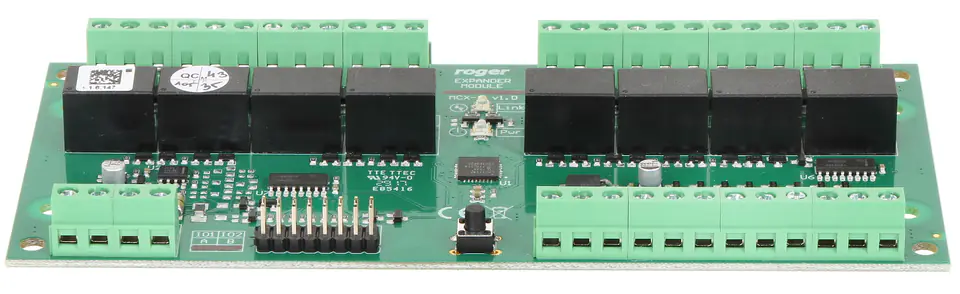

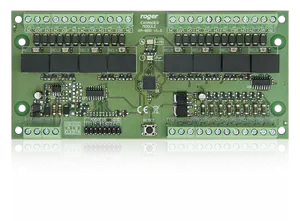

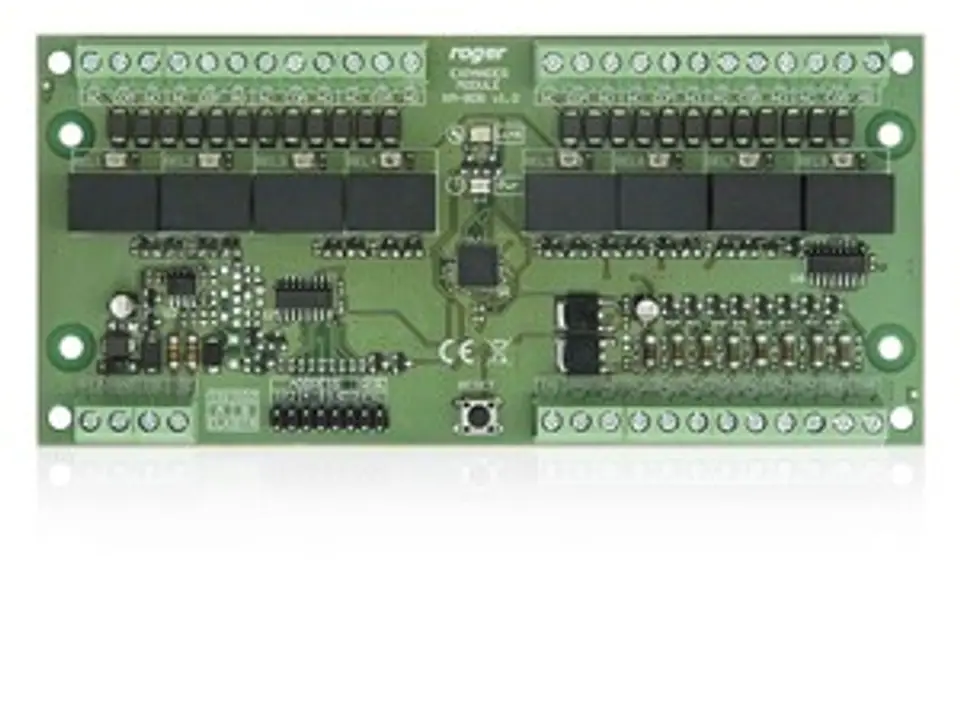

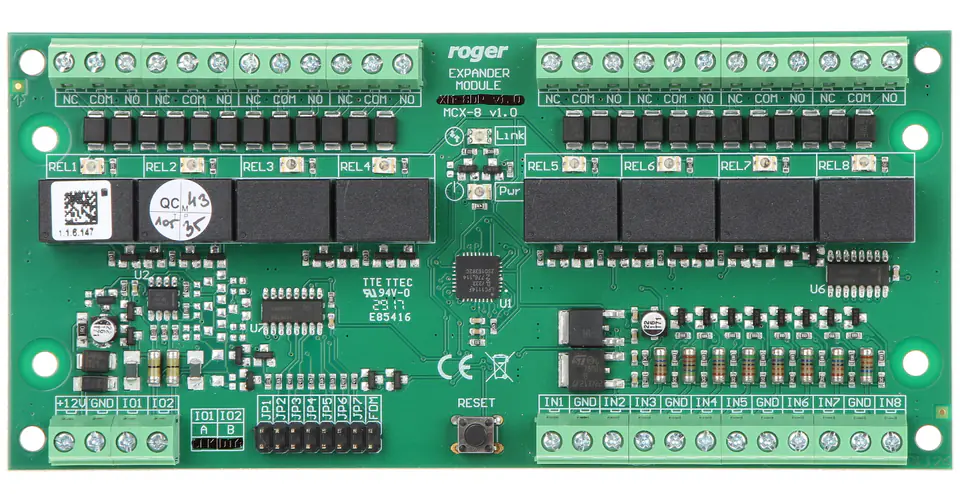

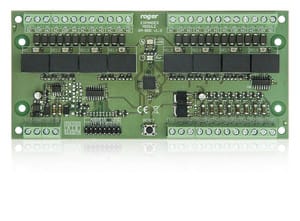

MCX8-BRD is an input and output expander designed to work in the RACS 5 access control systemThe device provides 8 parametric input lines and 8 relay outputsEvery input can be individually parameterized in terms of response time and topology of the attached contacts and resistors
I/O EXPANDER MCX8-BRD ROGER
€208.07
Shipping from warehouse: H7
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- ROGER
- Product code:
- MCX8-BRD / 5907608961632
Share this product:
Specification
| Dimensions:: | 72 x 155 x 15 mm (without stand) |
|---|---|
| Inputs:: | 8 x NO/NC/EOL/2EOL/3EOL |
| Manufacturer / brand:: | ROGER |
| Power:: | 12 VDC |
| Relay output:: | 8 x 1.5 A / 30 V |
| Scales:: | 0.118 kg |
| Selected features:: | Possibility of operating inputs in Double Wiring mode Input response time defined in the range of 50 ... 5000 ms Defining the Quiescent Polarity of the Output Line Configuration via RS-485 (RogerVDM) Software Update Via RS-485 Port (Roger VDM) LED Signaling |
| Warranty:: | 3 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
