I/O EXPANDER MCX4D ROGER

€120.72
Shipping from warehouse: ⁨H7⁩
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
ROGER
Product code:
MCX4D / 5902887044571

Specification

0.111 kg:Scales:
115 x 86 x 45 mm:Dimensions:
13.8 vdc:Power:
3 years:Warranty:
4:Number of supported transitions:
Roger:Manufacturer / Brand:
Transistor outputs : 4 power distribution up to 4 passes communication bus distribution 4 power outputs 12 v/1 a 4 power outputs 12 v/0.2 a rs485 communication interface to access controller reporting power statuses to access controller protection against deep discharge of the battery battery charging current : 0.3 a / 0.6 a / 0.9 a:Selected features:

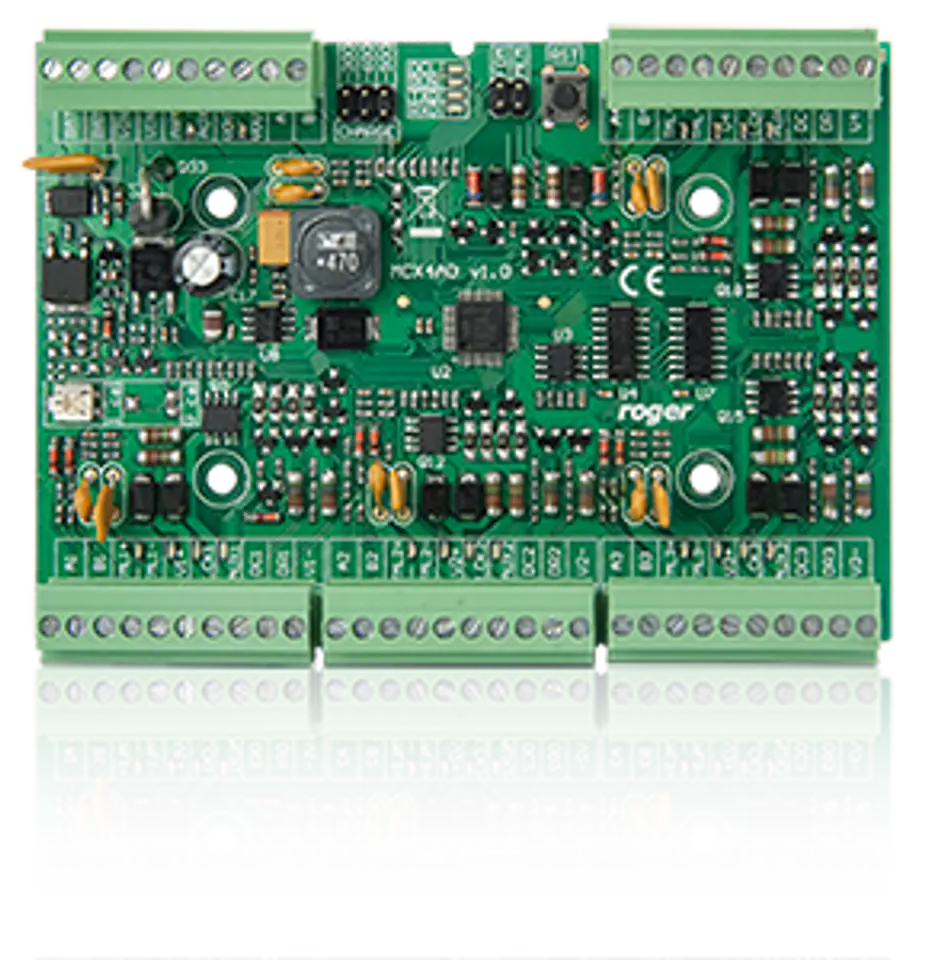

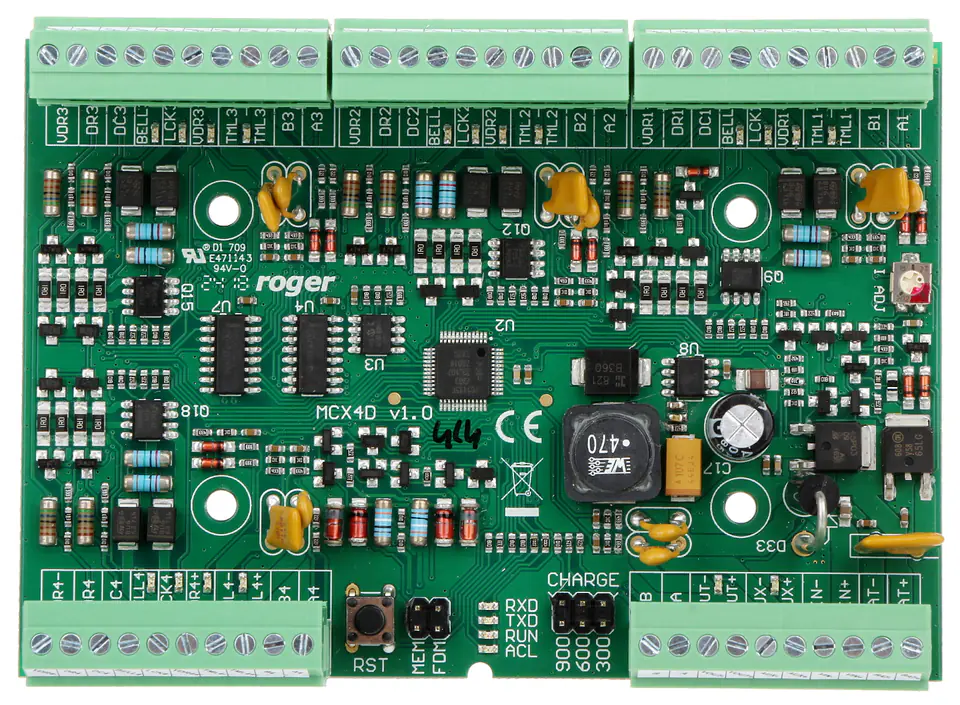

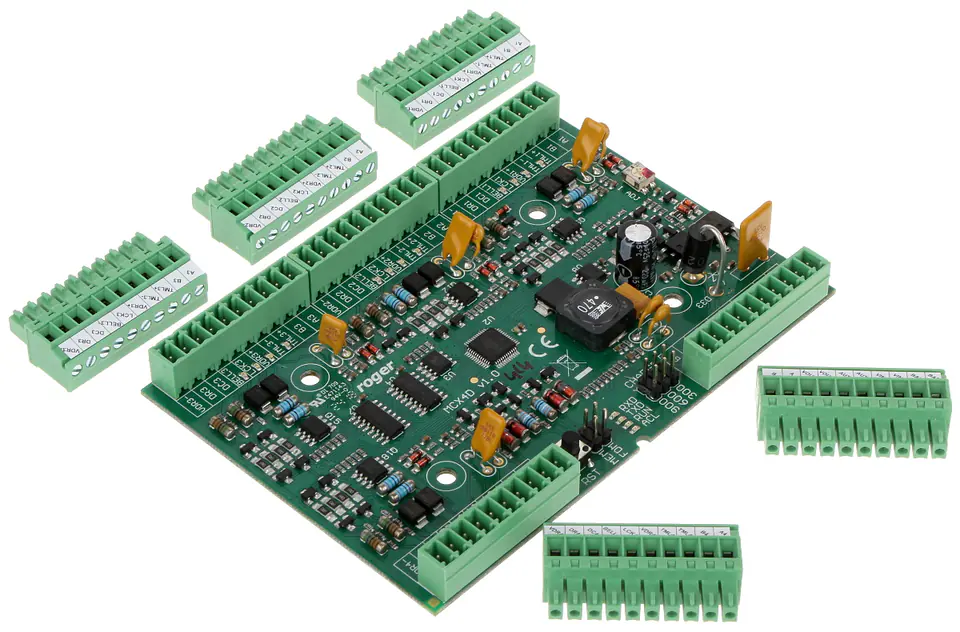

MCX4D is an I/O expander designed to work in the RACS 5 access control systemThe module is dedicated to 4 transitions, acts as a power and communication distributor for them, and supports a backup battery

For each of the supported passages, the expander offers: 2 inputs, 2 outputs, a communication interface to the readers and 2 power outputsElectrical circuits dedicated to handling each of the passages are electrically separated from each other, which means that the occurrence of failure or sabotage on one of the passages does not affect the operation of the other passagesThe MCX4D adapter is powered from an external 13.8 VDC power supply, which is also the power source for locks, readers and other transition elementsIn the event of a power failure, the entire system is powered by a backup battery, which can be charged depending on the needs

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
