MCX2-BRD is an input and output expander designed to work in the RACS 5 access control systemThe device provides 2 parametric input lines and 2 relay outputs Each of the inputs can be individually parameterized in terms of response time and topology of the attached contacts and resistors

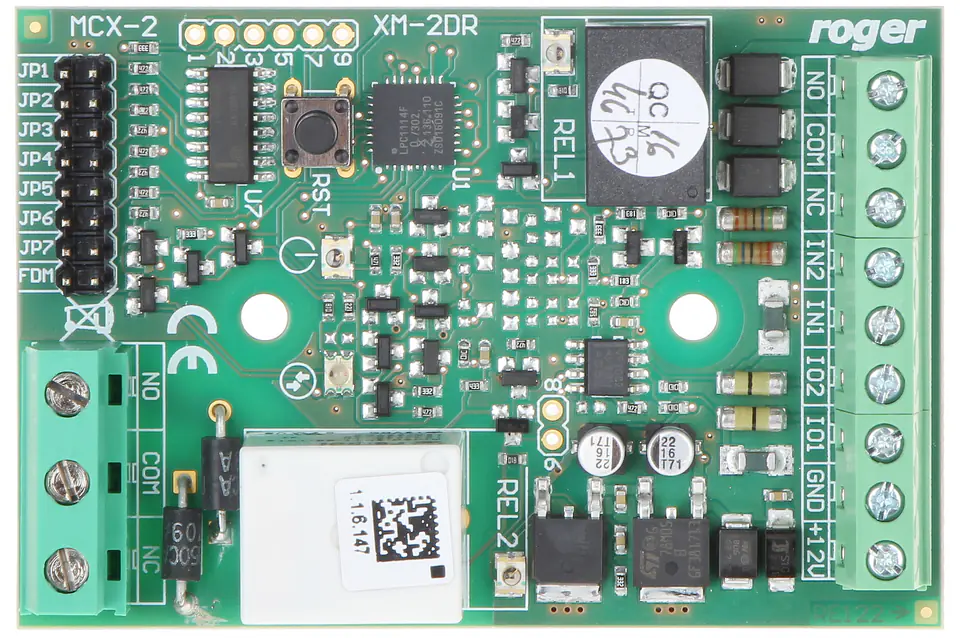

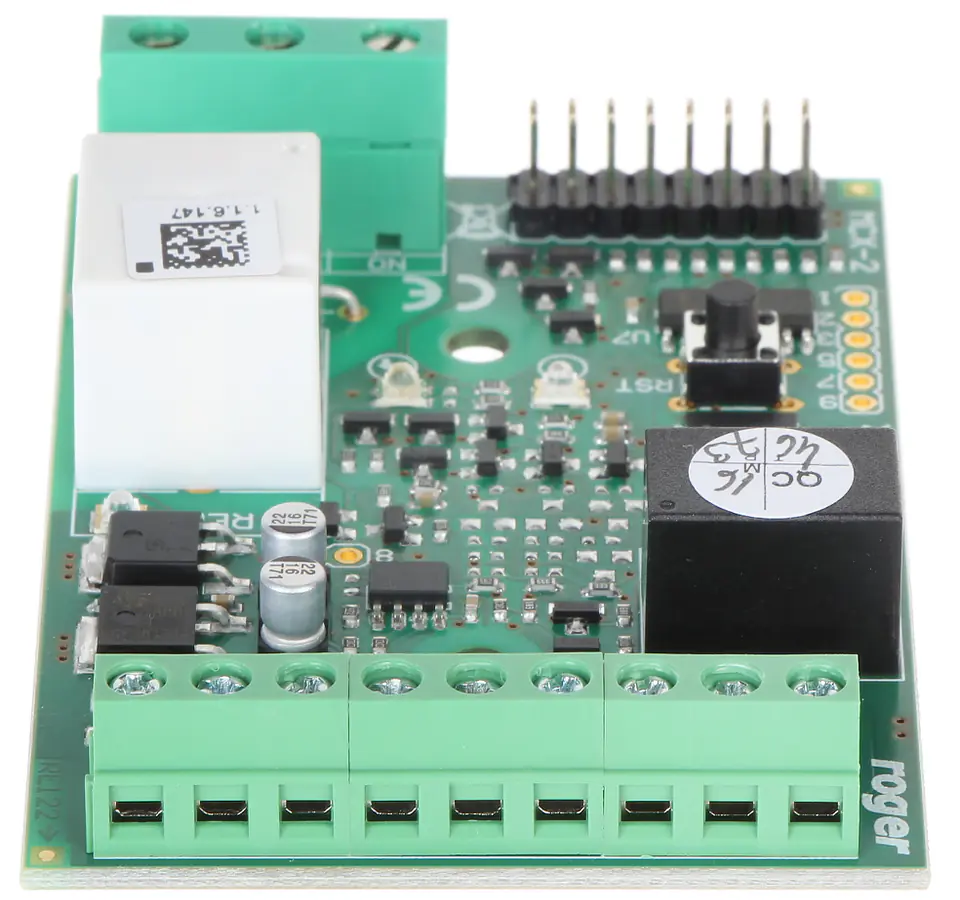

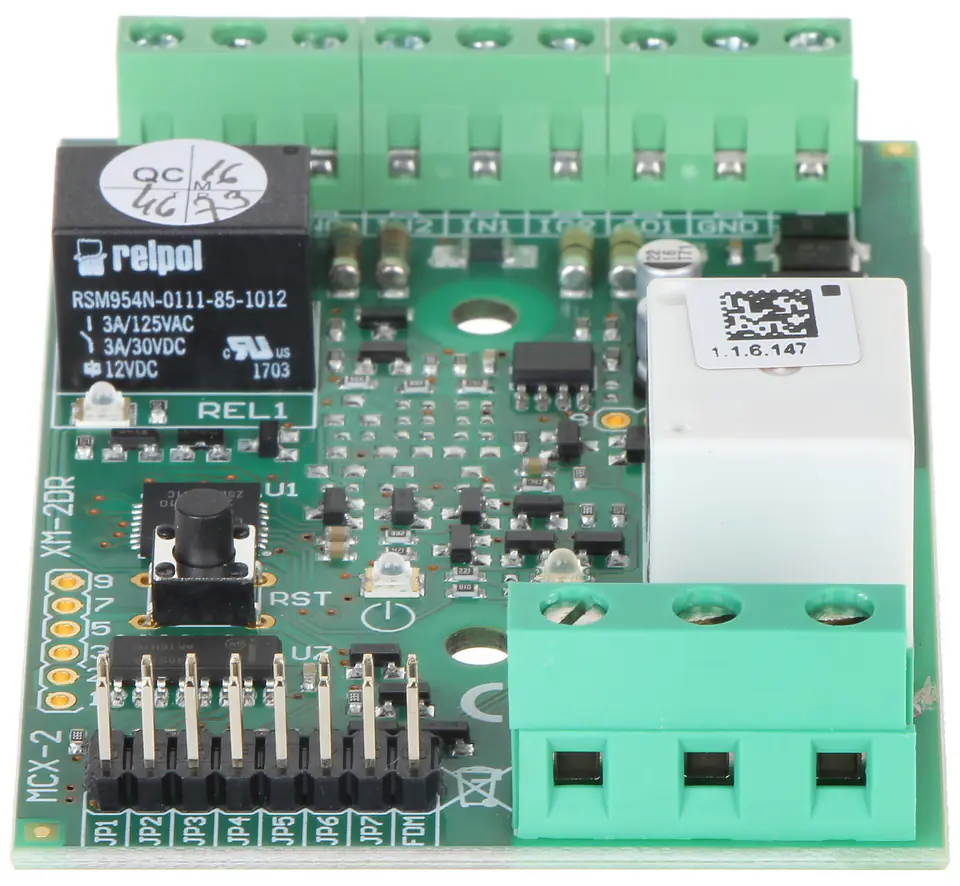

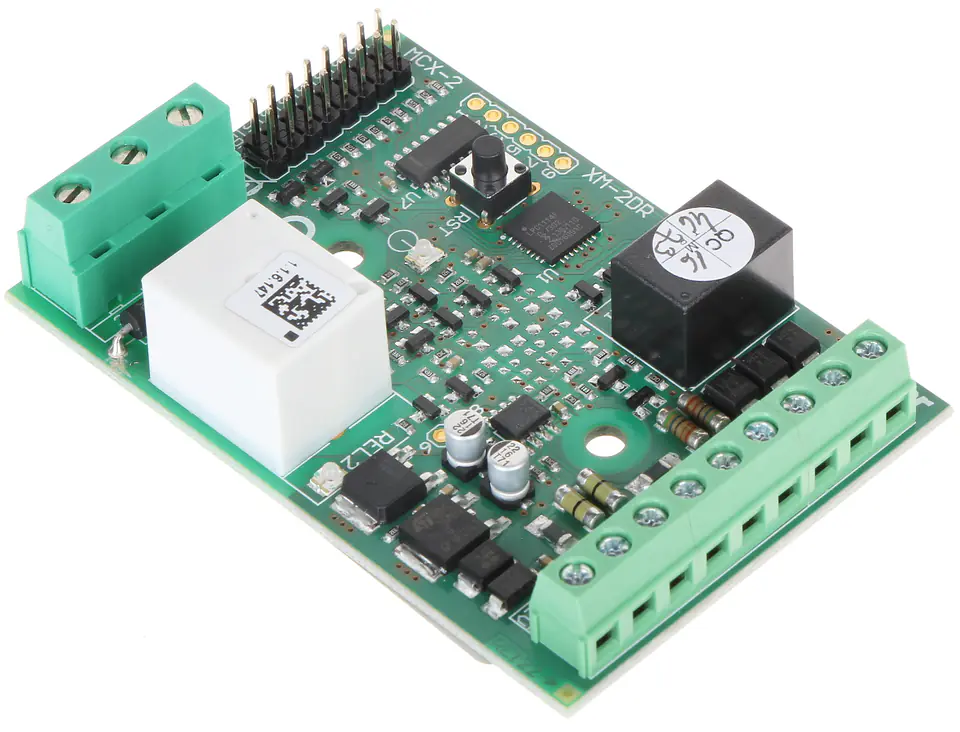

I/O EXPANDER MCX2-BRD ROGER
€76.07
Shipping from warehouse: D4
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- running out
- Brand:
- ROGER
- Product code:
- MCX2-BRD / 5907608961540
Share this product:
Specification
| Dimensions:: | 80 x 54 x 20 mm (without stand) |
|---|---|
| Inputs:: | 2 x NO/NC/EOL/2EOL/3EOL |
| Manufacturer / brand:: | ROGER |
| Power:: | 12 VDC |
| Relay output:: | 2 x 1.5 A / 30 V |
| Scales:: | 0.05 kg |
| Selected features:: | Possibility of operating inputs in Double Wiring mode Input response time defined in the range of 50 ... 5000 ms Defining The Quiescent Polarity of the Output Line Configuration via RS-485 (RogerVDM) |
| Warranty:: | 3 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
