Manufacturer Name: MSW-WP-50T

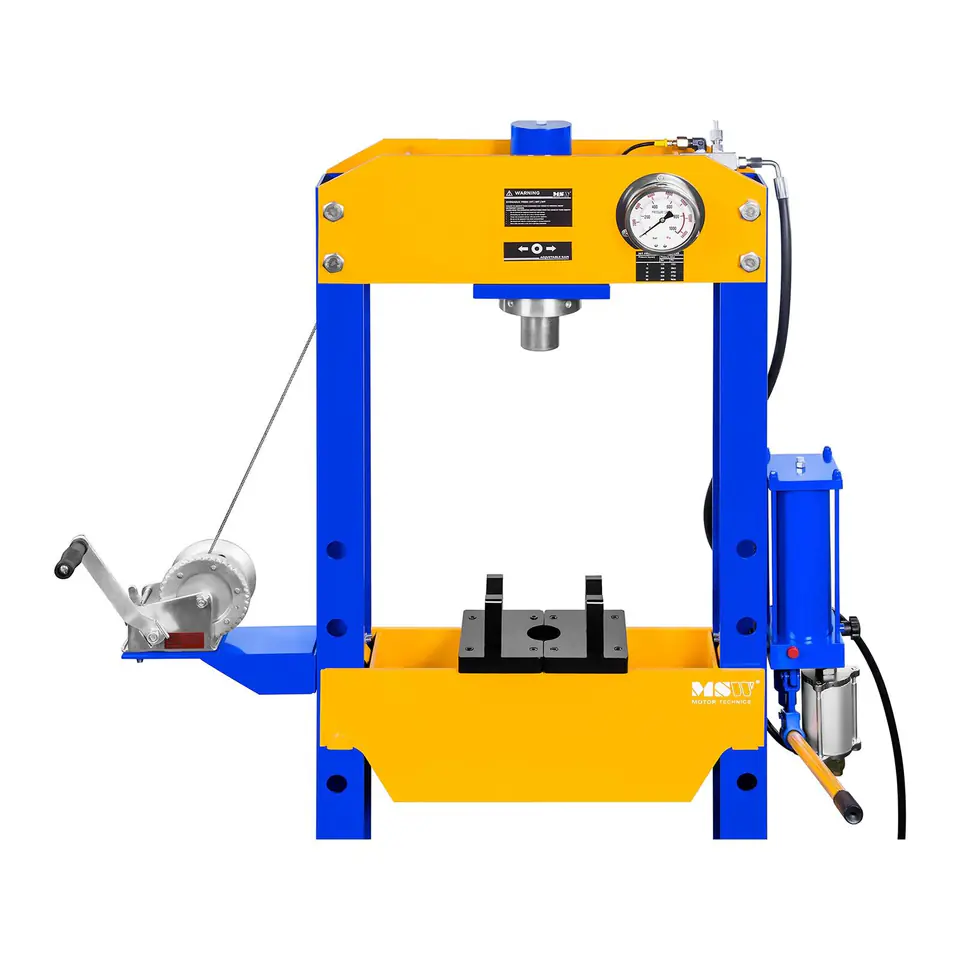

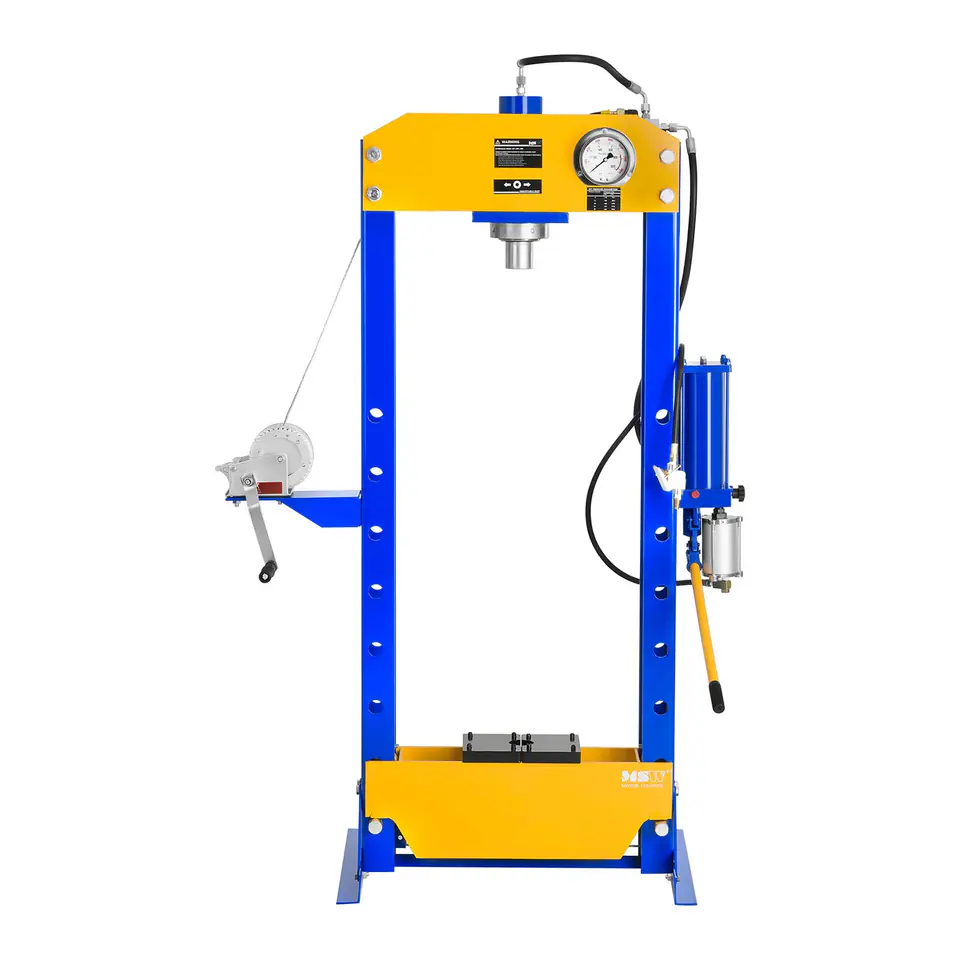

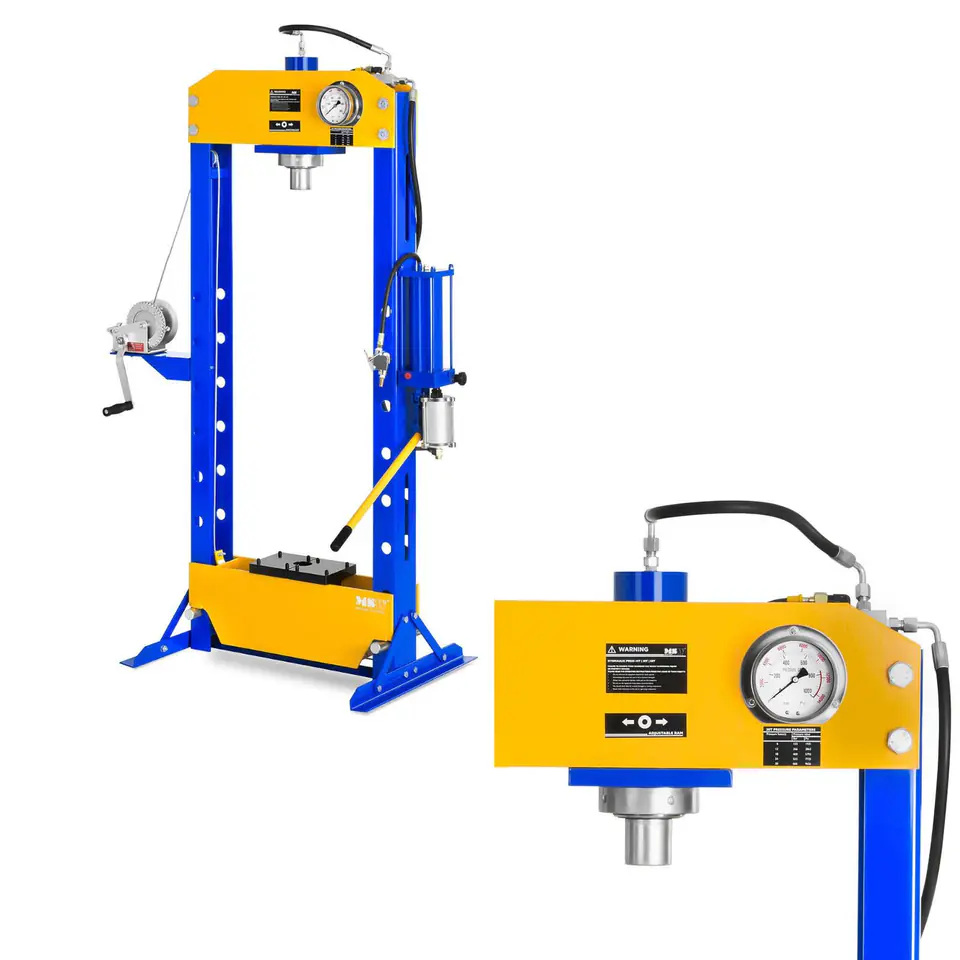

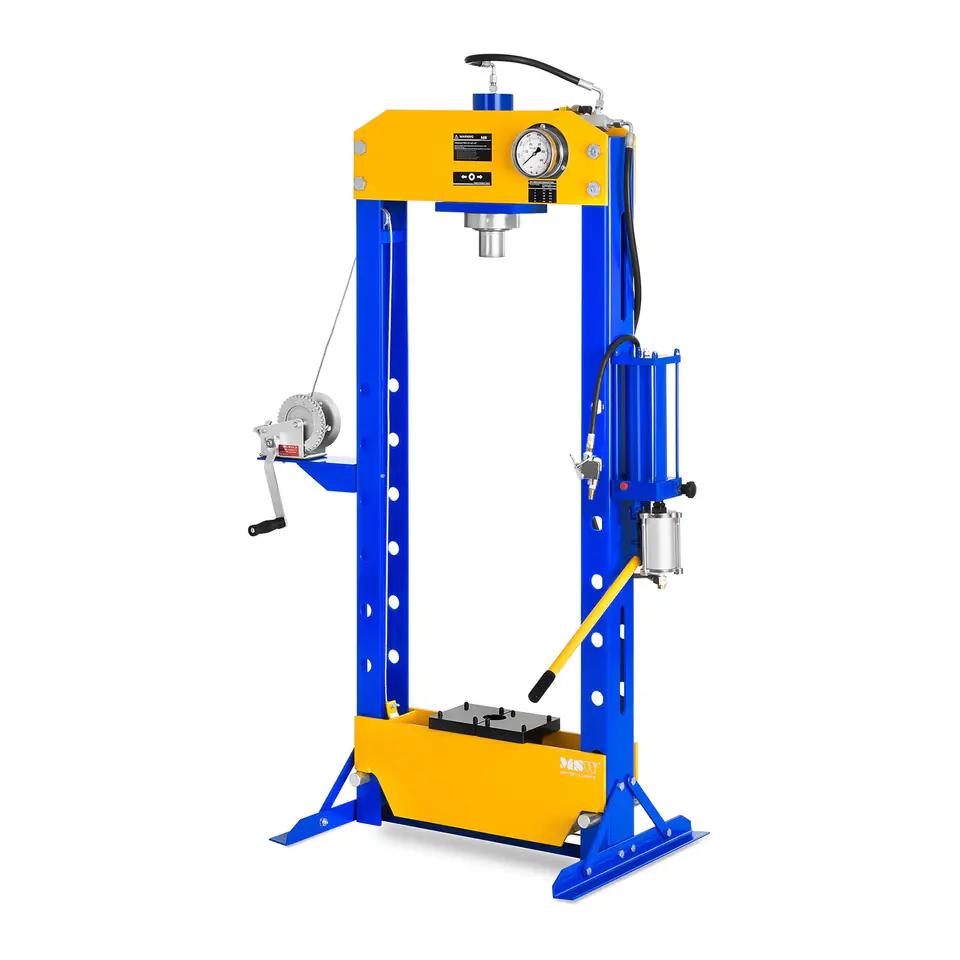

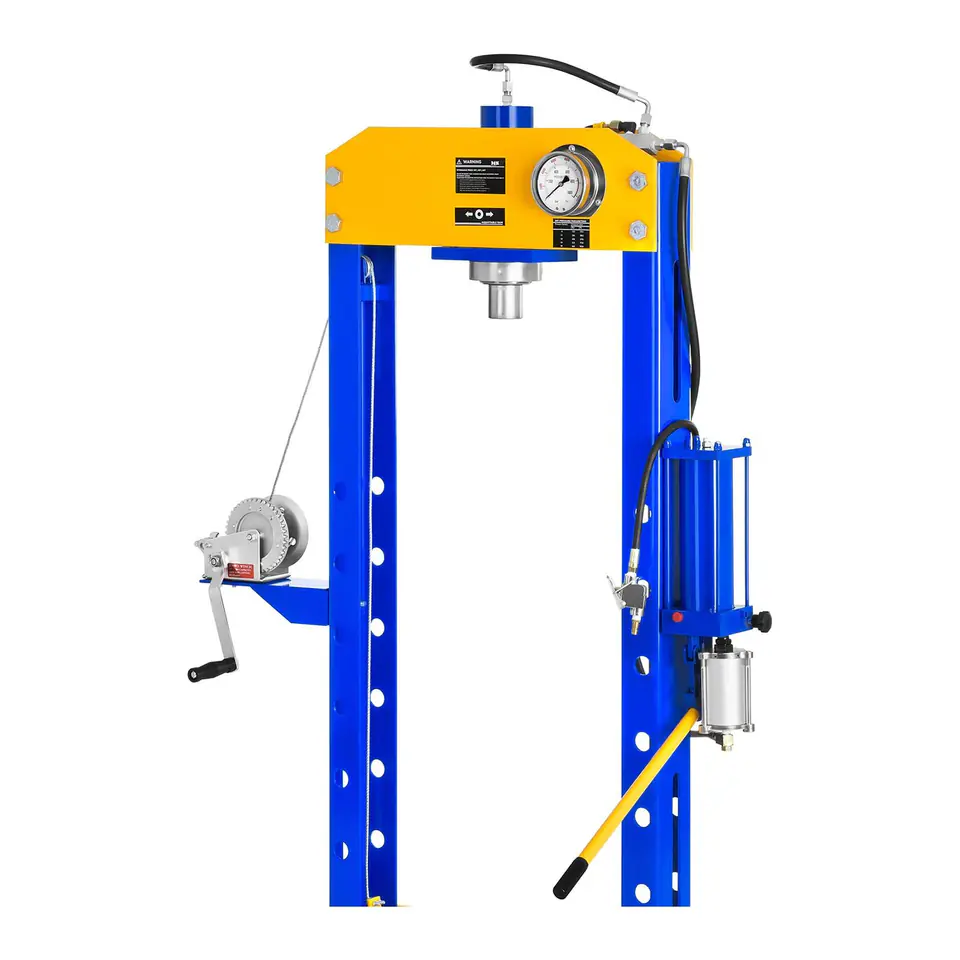

The hydraulic-pneumatic press with a maximum pressure of 50 tons by MSW Motor Technics is a device that will find its application in industrial plants, workshops, garages, services and automotive stores. The equipment is perfect for shaping, bending, straightening hard metal, and will also allow easy mounting and disassembly of gears, bearings, hubs or bushings. The robust, fully welded construction ensures the device high durability. Modern technical solutions used by the manufacturer make work with the MSW-WP-50T-P model very effective. Pneumatic control increases the speed and efficiency of operations while minimizing operator fatigue. Hydraulic control provides greater precision and high sensitivity.
Product features:
- High piston force

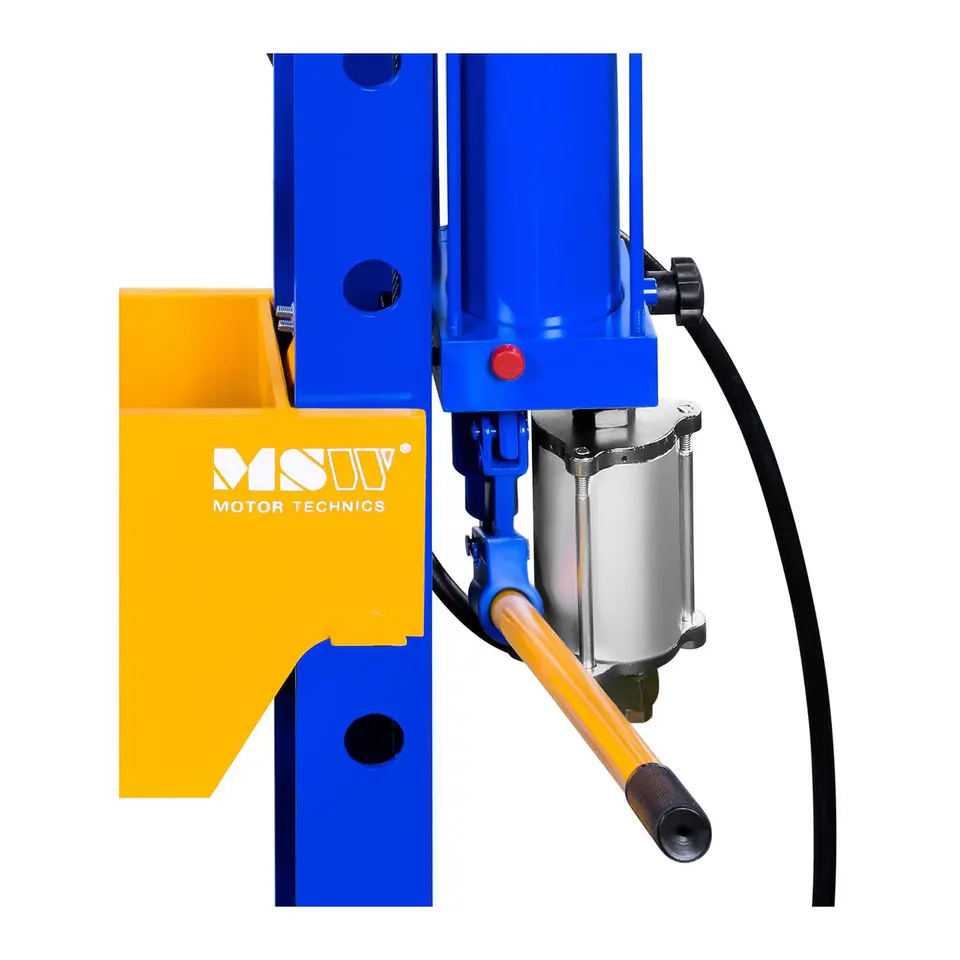

- Two ways to control
- Fully welded construction
- Working height adjustment
- Piston travel levels

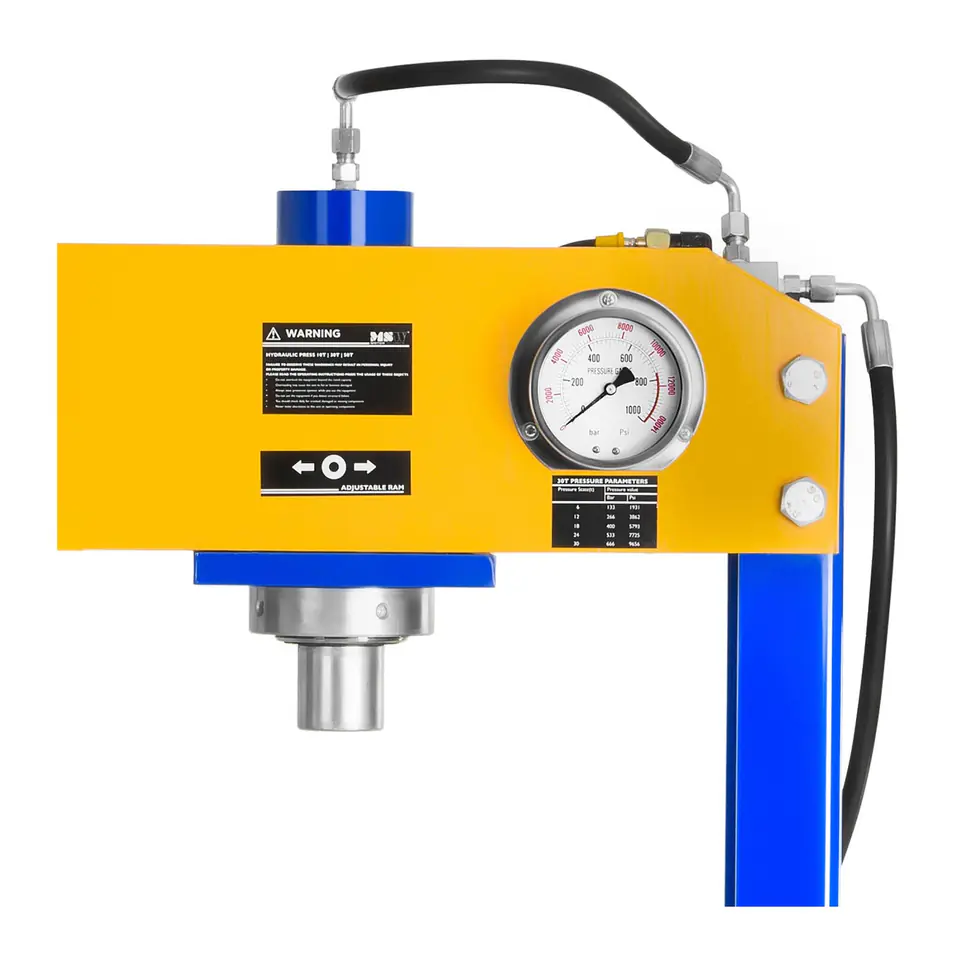

- Precision pressure gauge
- For industrial and workshop work
Technical parameters:
- - Model - MSW-WP-50T-P
- - Catalogue number - 6303
- - Article status - New
- - Maximum pressing force - 50 t
- - Maximum working pressure - 624 bar (9052 psi)
- - Air pressure - 7.5 – 8.5 bar (0.75 – 0.85 Mpa)
- - Working height - 60 – 1100 mm (7 levels)
- - Working table width - 615 mm
- - Piston stroke - 180 mm
- - Horizontal piston travel - 280 mm
- - Dimensions (LxWxH) - 96.00 x 140.00 x 190.00 cm
- - Weight - 243,00 kg
- - Shipping dimensions (LxWxH) - 193.00 x 89.00 x 38.00 cm
- - Shipping weight - 265,00 kg
