Manufacturer number: MSW 10060930

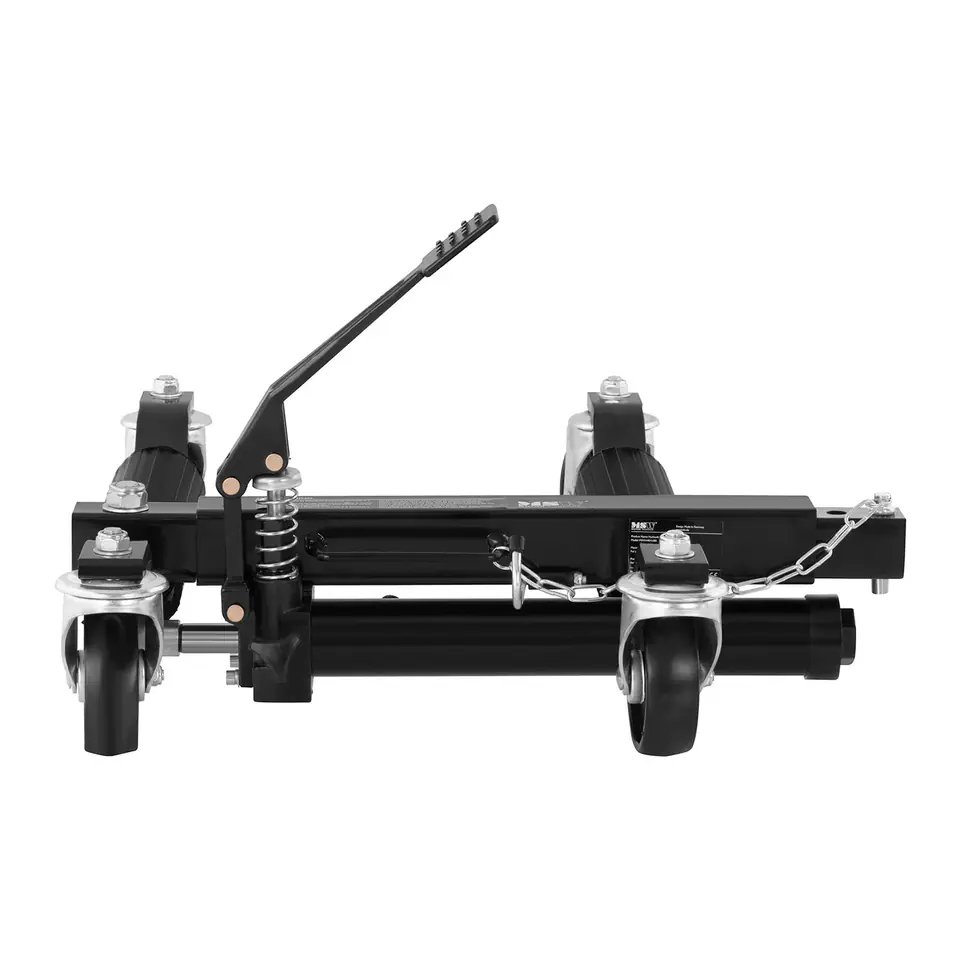

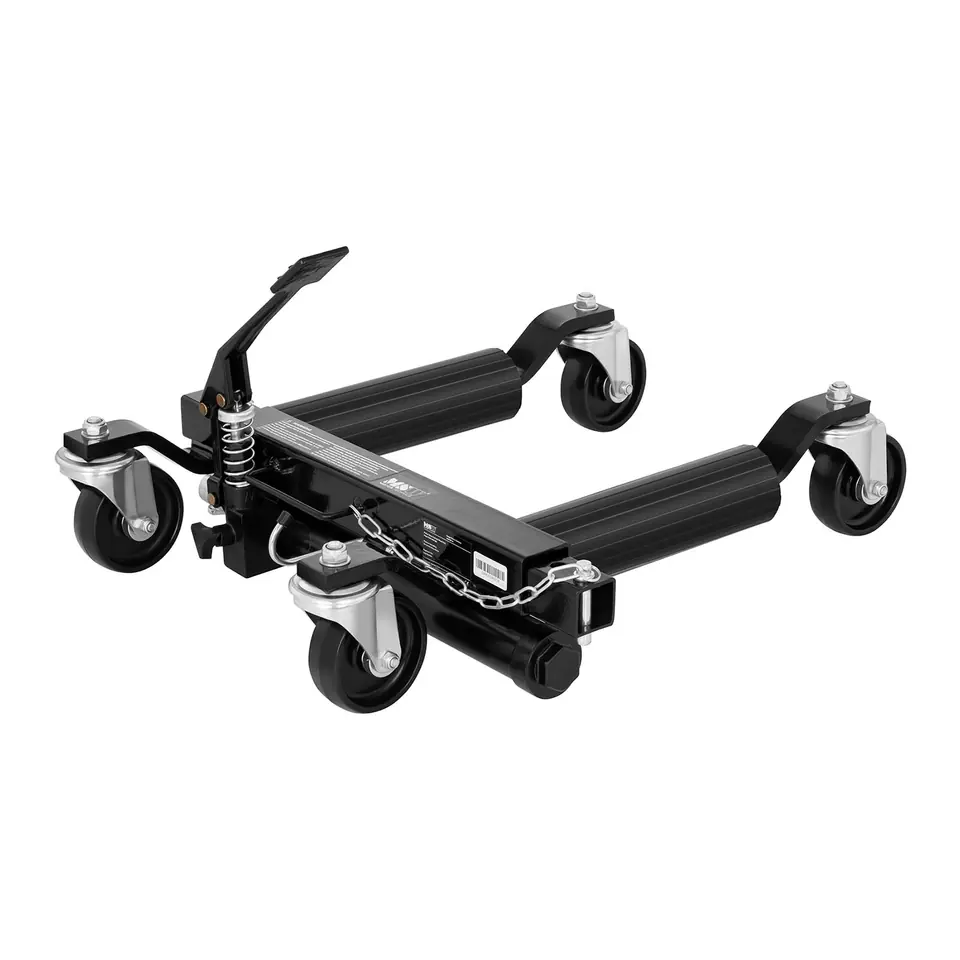

The vehicle handling trolley of the German brand MSW is a tool for lifting and moving vehicles without the need to use their basic drive. The MSW-HRH-680 model is perfect for various types of workshops, services, roadside assistance or in agriculture and individual DIY garages.
Four swivel wheels make it easy to manoeuvre the structure, even in small spaces, and a comfortable, foot-pedal-controlled hydraulic lifting mechanism (ranging from 380 to 660 mm) increases its functionality. In addition, the mechanism blocking the car in the right position and securing the pin with a chain and hook increase work safety.
Transport rollers are made of high quality steel, which guarantees above-average strength. This allows for convenient transport and lifting of vehicles weighing up to 680 kg (in the case of a single copy). In addition, thanks to simple operation, light weight and compact size , the set is very mobile and convenient.
Product features:
- - Capacity - hydraulic lifting mechanism (from 380 to 660 mm),
- - Strength - strong construction with a maximum lifting capacity of up to 680 kg,
- - Convenience - four swivel wheels, control by foot pedal,
- - Safety - a mechanism that locks the car in the right position and secures the pin with a chain and a hook blocking the pedal,
- - Mobility - light weight and compact size make it easy to carry the set,
- - Multifunctionality - the possibility of placing under a punctured or damaged wheel (including work with tires up to 30 cm wide), threshold, engine, swingarm or sled.
- - Model - MSW-HRH-680
- - Catalog no. - 10060930
- - Wheel dimensions - 101.5 x 33.8 mm
- - Rollers supporting the wheel - 300 mm
- - Adjustment range - 380-660 mm
- - Cylinder stroke - 280 mm
- - Maximum load for one piece - 680 kg
- - Dimensions (LxWxH) - 73 x 68 x 34.5 cm
- - Weight - 35 kg
- - Shipping dimensions (LxWxH) - 88 x 62.5 x 24.5 cm
- - Shipping weight - 37,45 kg

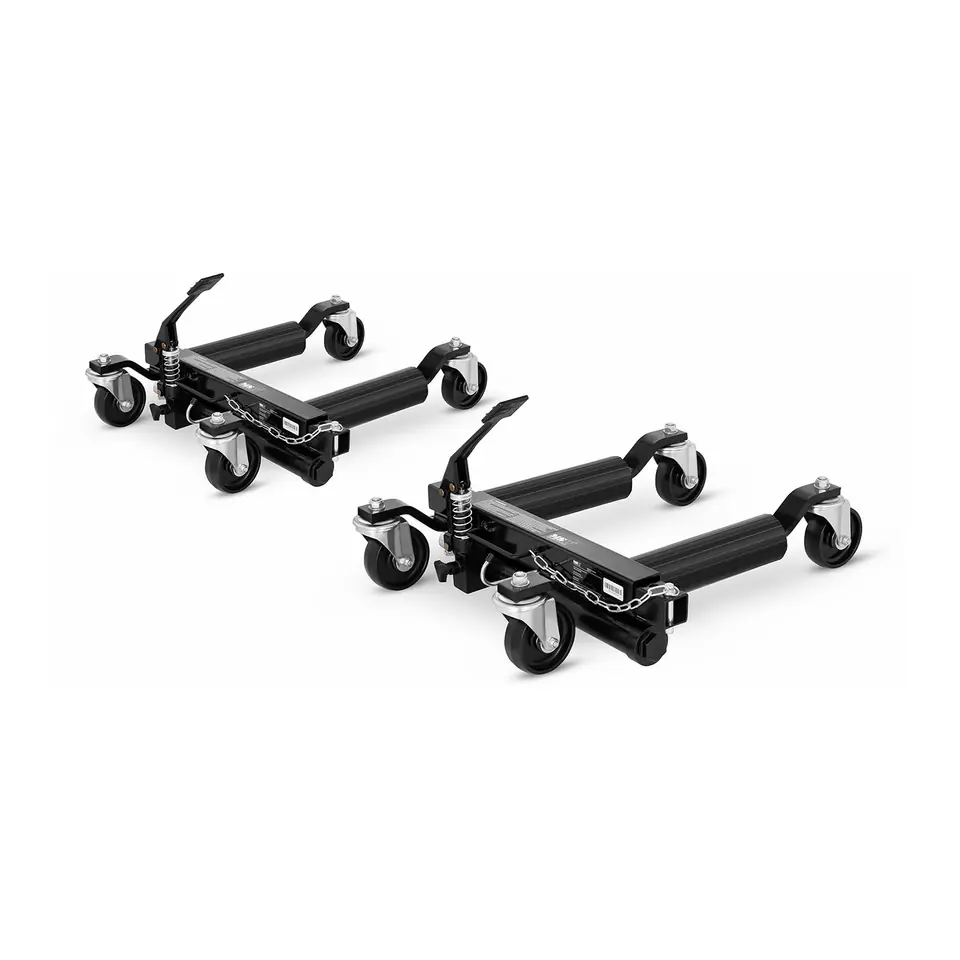

- - Trolley (2 pcs.),
- - Instruction PL.
