Manufacturer number: MSW 10060932

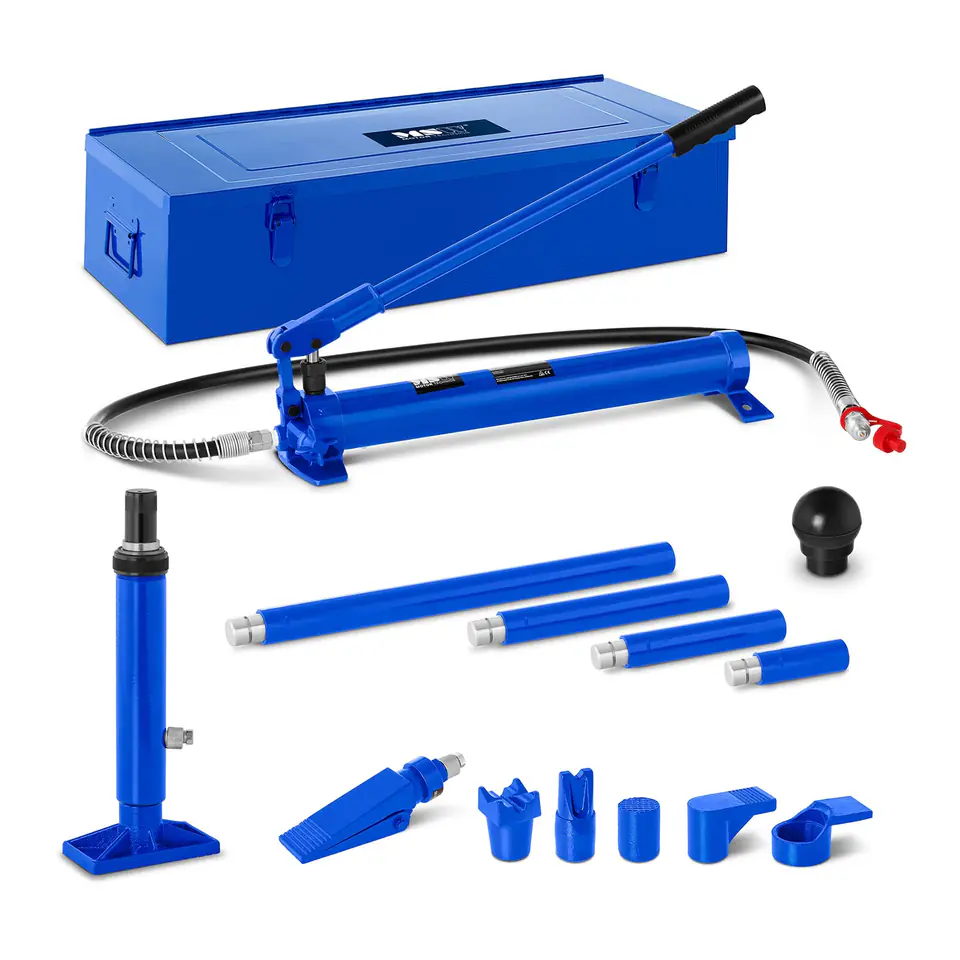

Hydraulic spreader with pump is a professional tool of the MSW brand designed for car workshops and services as well as private garages. It is perfect for the renovation of the body of passenger cars, vans and trucks. The MSW-KP-10 model is designed for lifting and processing the body (bending, straightening and spreading sheet metal).
The maximum load of the spreader reaches up to 10 tons, which makes it safe to carry out renovation work of even large vehicles, and the high quality of workmanship and solid construction ensure a long service life of the device. In addition, the possibility of adjustment significantly increases the functionality of the device. The motor rod can be lifted in the range from 355 to 490 mm, and four pipe extensions allow precise adjustment of the height to the user's needs.
In order to increase the convenience of use, the MSW-KP-10 model has been equipped with an automatic return spring, thanks to which the tool always returns to the starting position. In addition, the kit is characterized by very easy assembly, which is described in detail in the attached instruction manual.
The safety of working with the spreader has been increased by means of an automatic overload protection system, which effectively prevents damage to the actuators and other components. The whole is located in a practical case that facilitates storage and protects the equipment during transport.
Product features:
- - Capacity - lifting capacity up to 10 tons,
- - Precision - adjustment of the lifting height in the range from 0 to 135 mm,
- - Safety - overload protection system,
- - Convenience - a set of pipe extensions,
- - Multitasking - a set equipped with tools necessary to carry out most of the conservation work,
- - Mobility - metal case included,
- - Durability - high quality workmanship.
- - Model - MSW-KP-10
- - Catalog No. - 10060932
- - Article status - New
- - Maximum load - 10 t
- - Cylinder piston stroke - 135 mm
- - Minimum height of cylinder rod - 355 mm
- - Maximum height of cylinder rod - 490 mm
- - Dimensions (LxWxH) - 71.5 x 29.5 x 16.5 cm
- - Weight - 28.3 kg
- - Shipping dimensions (LxWxH) - 75.5 x 33 x 20.5 cm
- - Shipping weight - 29,25 kg

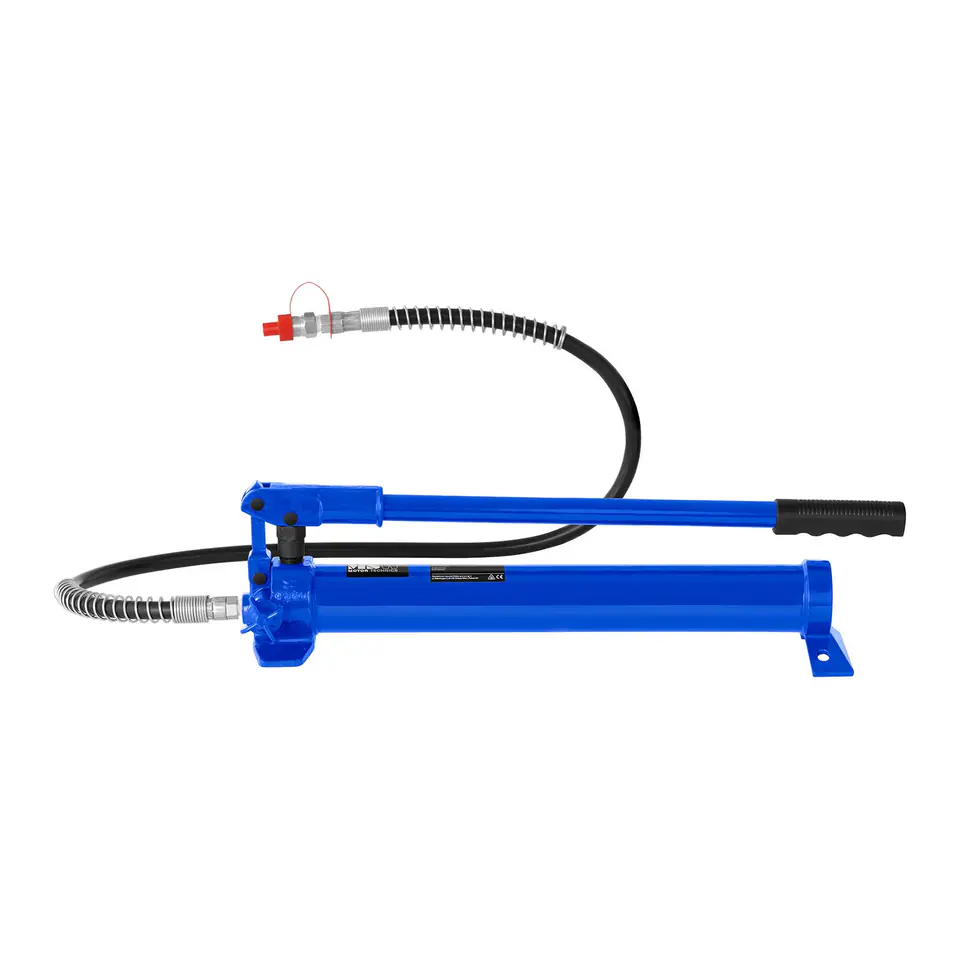

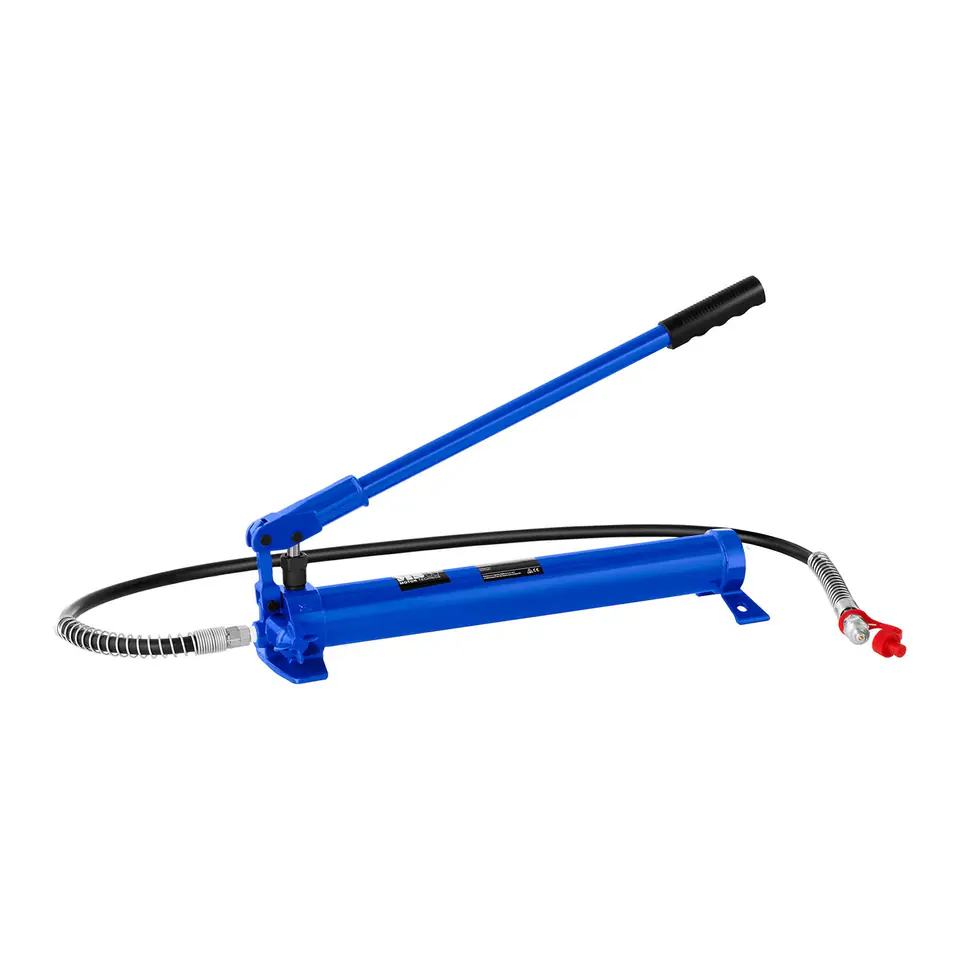

- - Hydraulic pump

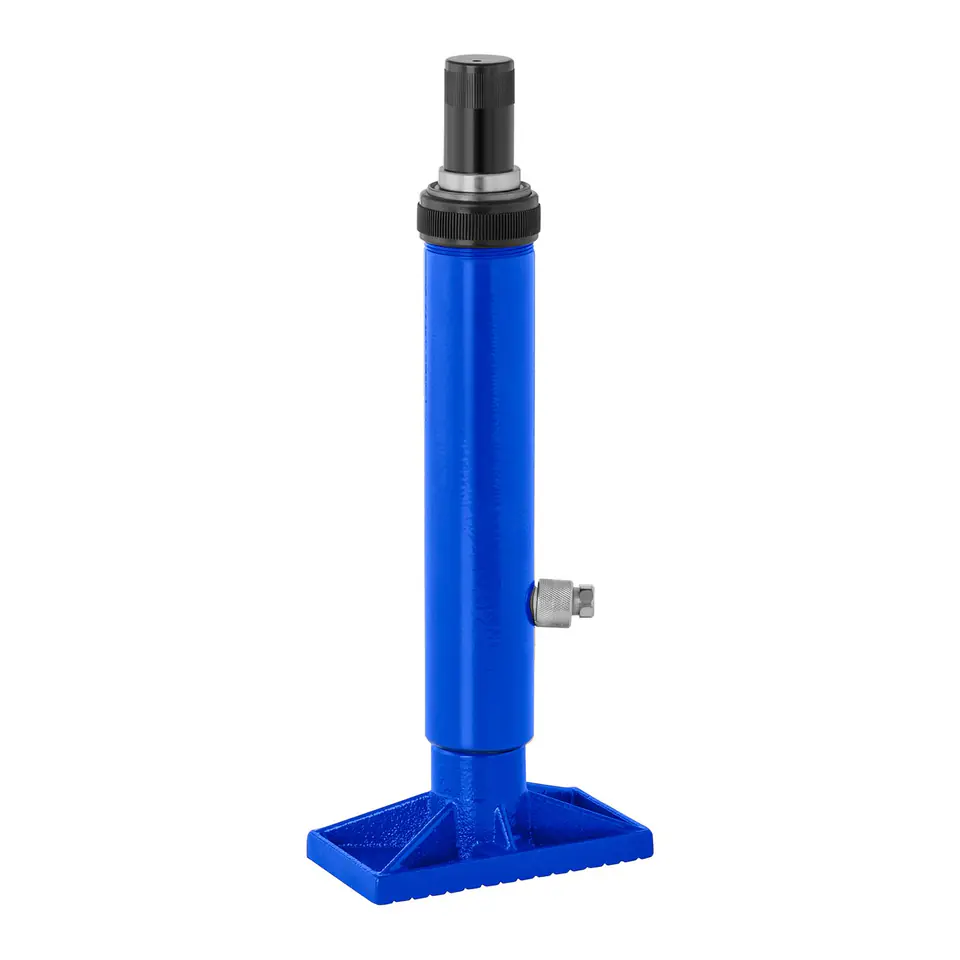

- - Actuator
- - Spreader Ø33 x 88 mm

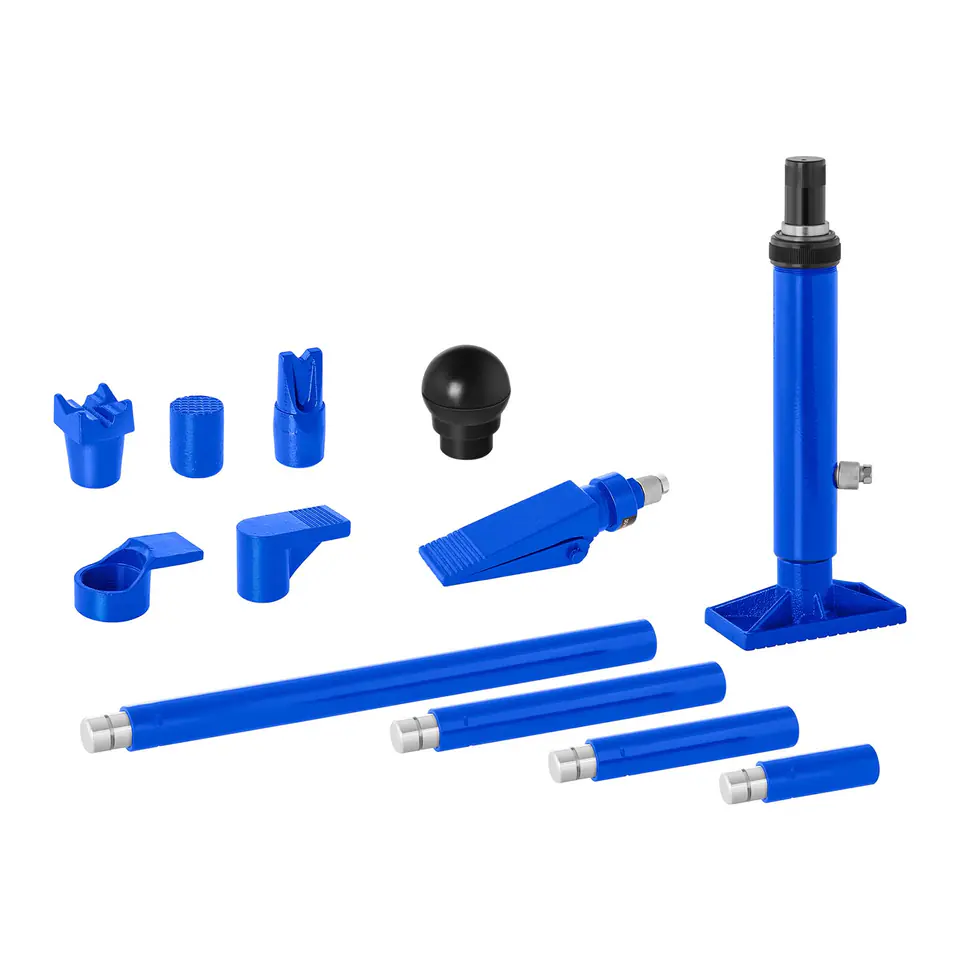

- - Attachments:
- - serrated nut Ø47 x 62 mm
- - rubber head Ø75 x 90 mm
- - Stand M56 x 2 x 28 mm
- - plate head Ø47 x 59 mm
- - side head 54 x 54 x 76 mm
- - expansion wedge Ø47 x 114 mm
- - Pipe extensions (Ø42 x 550 mm, Ø42 x 300 mm, Ø42 x 200 mm, Ø42 x 100 mm) – 4 pcs.
- - Metal case
- - Manual EN
