Technical data:
Index number YT-1704
UNIT PCA
Gross Weight (packaged) 7.6660
Master Carton MC 3
Pal 99
Construction / post type
Piston length [mm] 148
Maximum thread length [mm] 115
Maximum height [mm] 483
Color box
Type of piston rod coating electroless nickel plating
Head diameter [mm] 48
Base dimensions [mm] 124x127,5
Max height [mm] 483
Height min [mm] 220
Lifting capacity [kg] 10 000
Description:

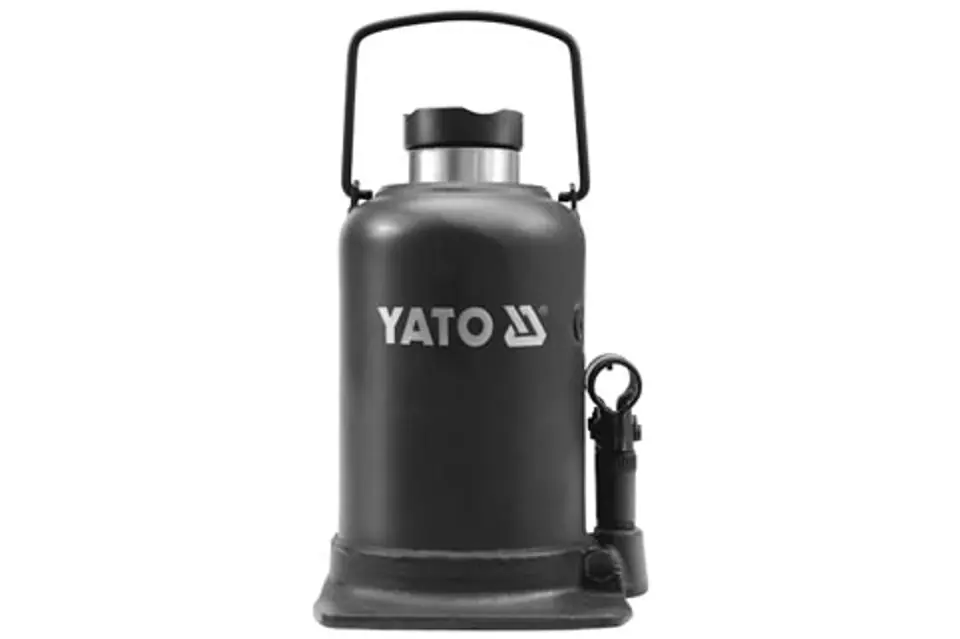

Professional YATO post lift. It has a system of valves that precisely dose the oil stream, which, despite the small stroke of the piston, ensures its high performance under maximum load. It is characterized by small size and weight, which is important in moving and storing. Indispensable in car workshops and vehicle service stations.
The set includes:
- post lift
- lift arm
- instruction manual
- warranty card
