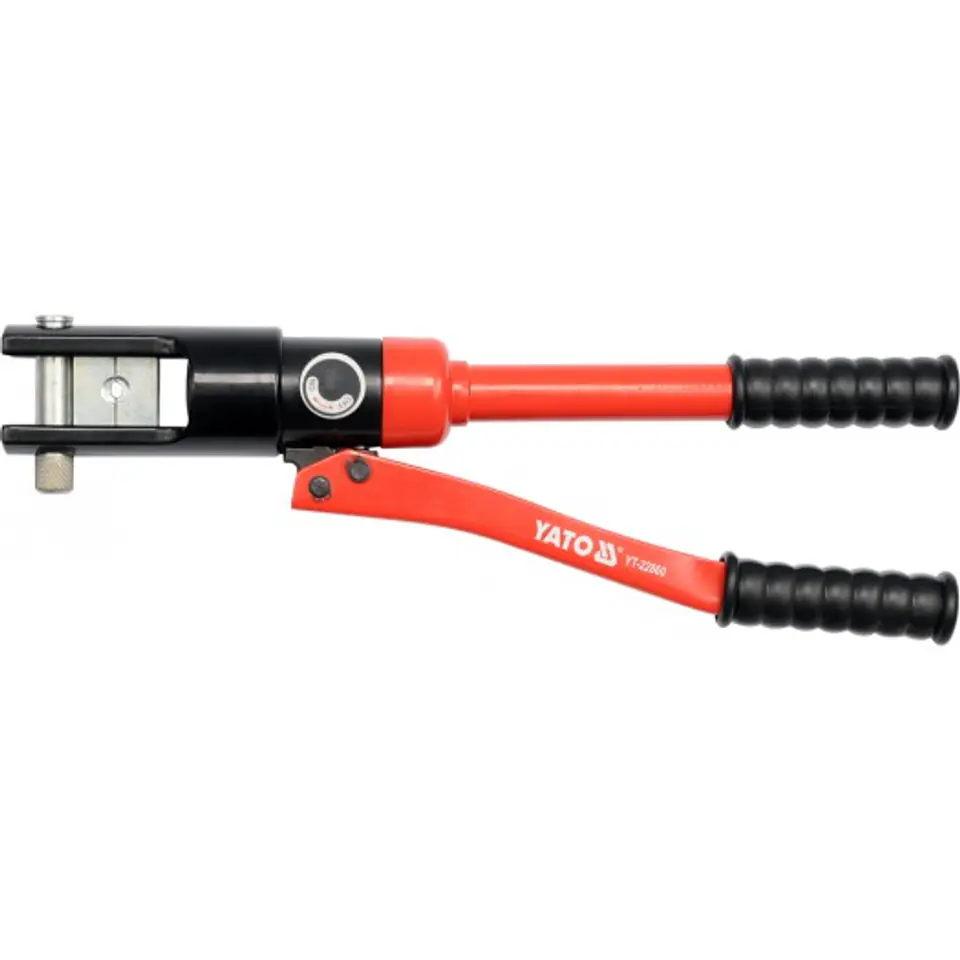

Manual press with hydraulic cylinder.
Designed for effective crimping of terminals on electrical wires or for clamping ropes.
Thanks to the hydraulic cylinder, clamping large ends is effortless.

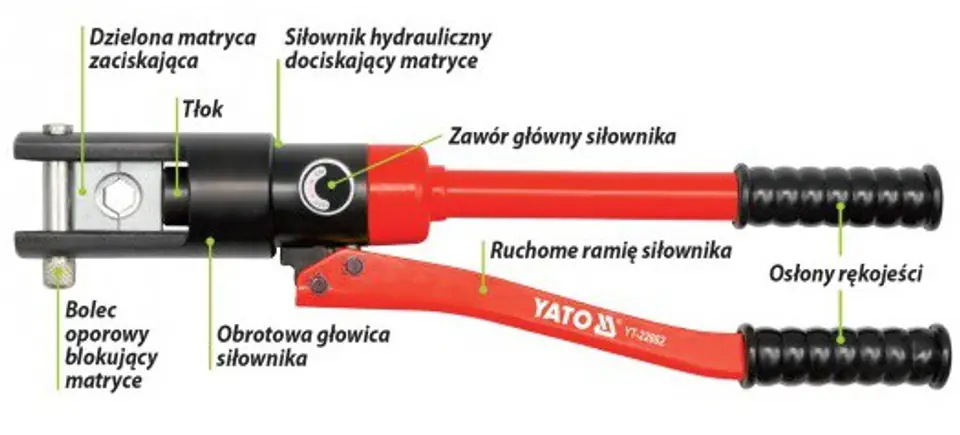

Characteristics of the YATO press Thrust bolt locking dies
Split clamping matrix
Piston Rotating actuator head
Actuator main valve
Movable actuator arm
Handle guard
Crimping range :
Aluminum : 10-95 mm2
copper : 10-120 mm2
Length : L=415mm
Pressure : 8T

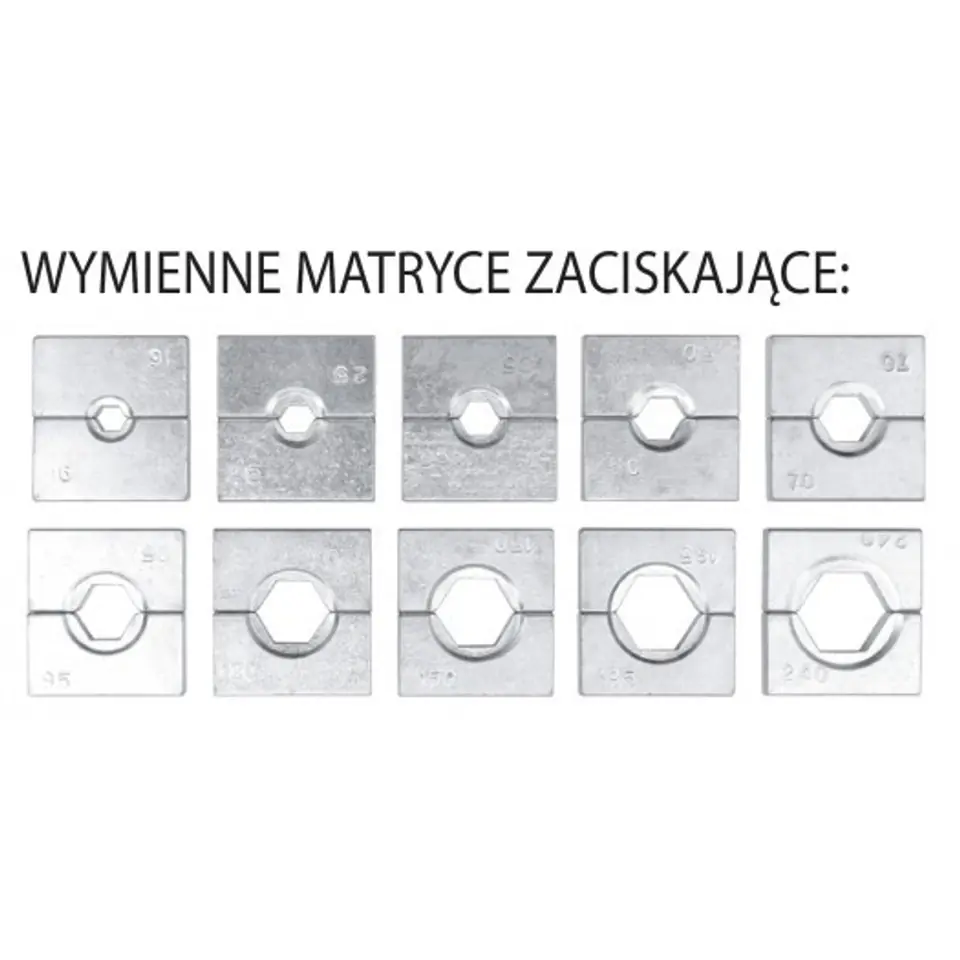

clamping jaw size (mm2) : 10 16 25 35 50 70 95 120
Purpose / Application

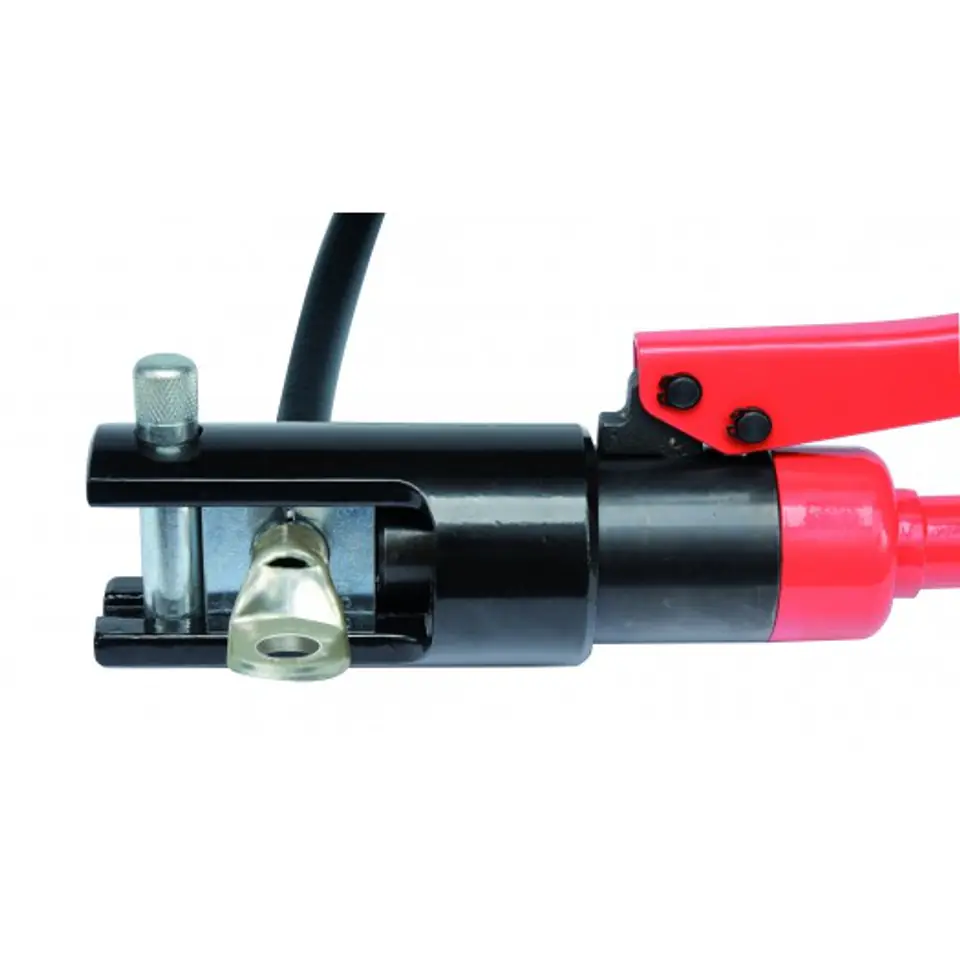

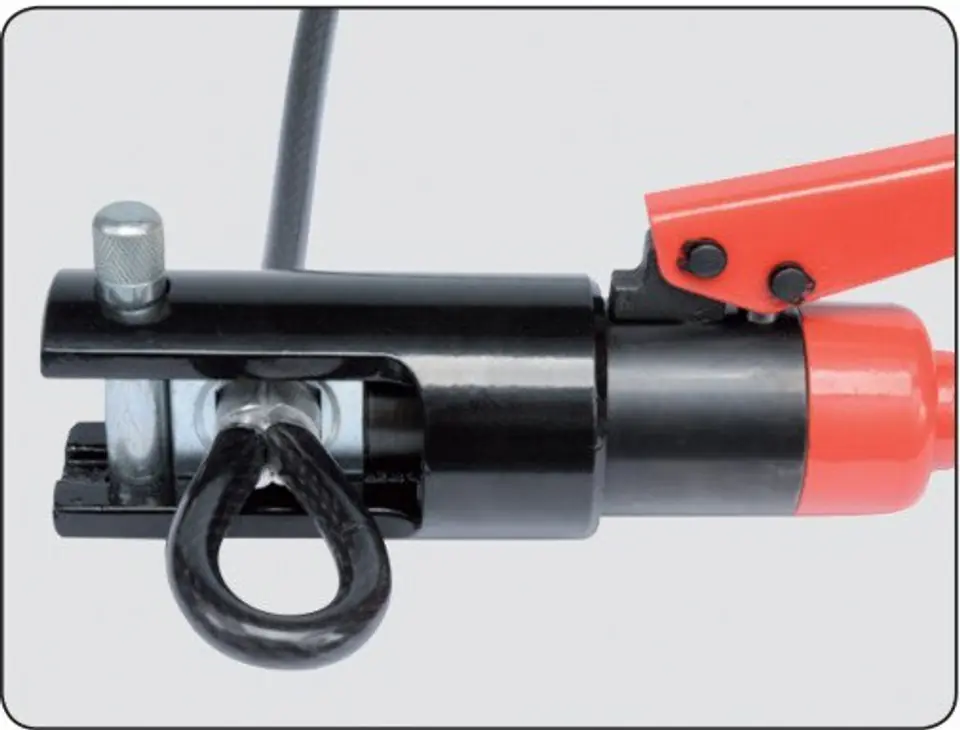

Effective crimping of terminals on electrical wires. Clamping of steel ropes.
