HV VHM mandrel cutter, nanopolish.kraw.scrap., reinforced core stroke, HA 5xD 10mm GÜHRING

€83.82
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
GÜHRING
Product code:
9067340100000 / 4049844137813

Specification

Aluminium < 8% krzemu fz:0.060 mm/rev.
Aluminium > 8% silicon:200
Copper alloys:130

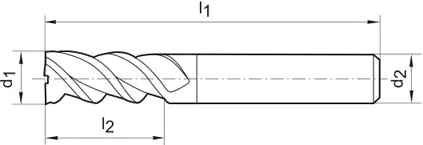

Corner chamfer 45°:0.10 mm
Cutting part length l2:50 mm
Diameter d1 = e8:10 mm
Shank diameter d2 = h6:10 mm
Total length l1:100 mm

High Performance Roughing Milling Aluminium, solid carbide, 5 x D

Execution: with core pitch and core reinforcement, with center blade, suitable for drilling. Polished surface.
Application: for machining aluminum, aluminum alloys and long and short particle brass.
Tools with a cutting edge length of 5 x D have a reinforced core and are suitable for grooving and roughing for ap = 1 x D, HPC roughing and finishing along the entire length of the cutting edge.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
