HV VHM mandrel cutter, nanopolish.kraw.kraw., reinforced core stroke, HA 4xD 16mm GÜHRING

€200.74
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
GÜHRING
Product code:
9067320160000 / 4049844137912

Specification

Aluminium < 8% krzemu fz:0.150 mm/rev
Aluminium > 8% silicon:200
Copper alloys:130
Corner chamfer 45°:0.15 mm

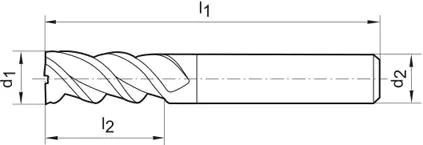

Cutting part length l2:64 mm
Diameter d1 = e8:16 mm
Shank diameter d2 = h6:16 mm
Total length l1:125 mm

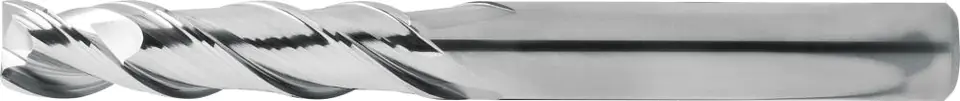

High Performance Roughing Milling Aluminium, solid carbide, 4 x D

Execution: with core pitch and core reinforcement, with center blade, suitable for drilling. Polished surface.
Application: for machining aluminum, aluminum alloys and long and short particle brass.
Tools with a cutting edge length of 4 x D have a reinforced core and are suitable for grooving and roughing for ap = 1 x D, HPC roughing and finishing along the entire length of the cutting edge.
