HV VHM end mill, nanopolish.kraw.scrap., reinforced core stroke, HA 5xD 8mm GÜHRING

€51.09
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
GÜHRING
Product code:
9067340080000 / 4049844137820

Specification

Aluminium < 8% krzemu fz:0.045 mm/rev.
Aluminium > 8% silicon:200
Copper alloys:130
Corner chamfer 45°:0.10 mm

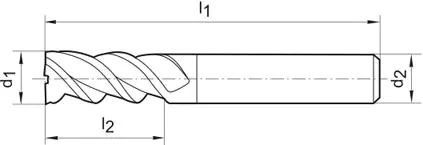

Cutting part length l2:40 mm
Diameter d1 = e8:8 mm
Shank diameter d2 = h6:8 mm
Total length l1:86 mm

High Performance Roughing Milling Aluminium, solid carbide, 5 x D

Execution: with core pitch and core reinforcement, with center blade, suitable for drilling. Polished surface.
Application: for machining aluminum, aluminum alloys and long and short particle brass.
Tools with a cutting edge length of 5 x D have a reinforced core and are suitable for grooving and roughing for ap = 1 x D, HPC roughing and finishing along the entire length of the cutting edge.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
